Product description

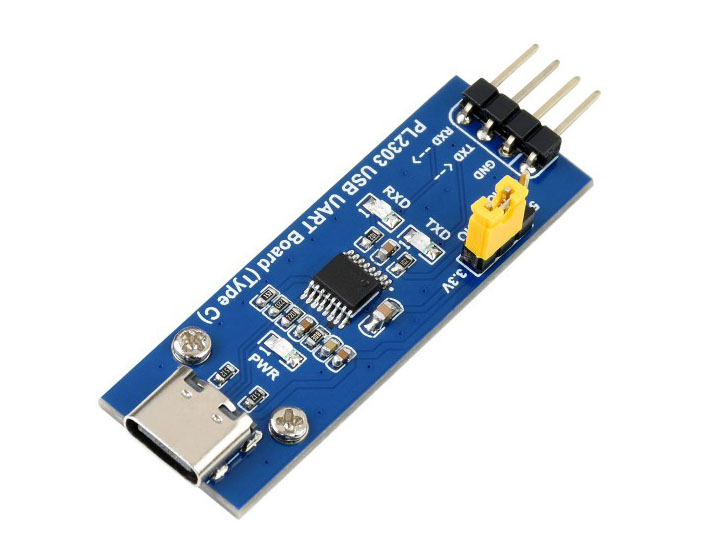

USB-C to UART TTL module with PL2303GS controller. Intended for serial programming and debugging. Converts a computer’s USB interface to UART with a TTL level of 3.3 V. VCC can be set to 3.3 or 5 V via jumper. Note that the logic level remains 3.3 V regardless of this setting. Equipped with a 4-pin connector that breaks out I/O connections and supply voltage. Connects directly to a breadboard (Breadboard friendly) or via the supplied connection cable with 4× dupont female.
Specifications:
- Controller: PL2303GS
- Host interface: USB-C female
- Device interface: UART (TTL level)
- Logic level: 3.3 V
- VCC output voltage: 3.3 or 5 V (selectable via jumper)
- LED indication: PWR, TXD, RXD
- Dimensions: 16.5 × 48 mm
- Compatibility: Windows 7/8/8.1/10/11, macOS, Linux
- Connections: VCC (3.3 or 5 V), GND, TXD, RXD
