Product description

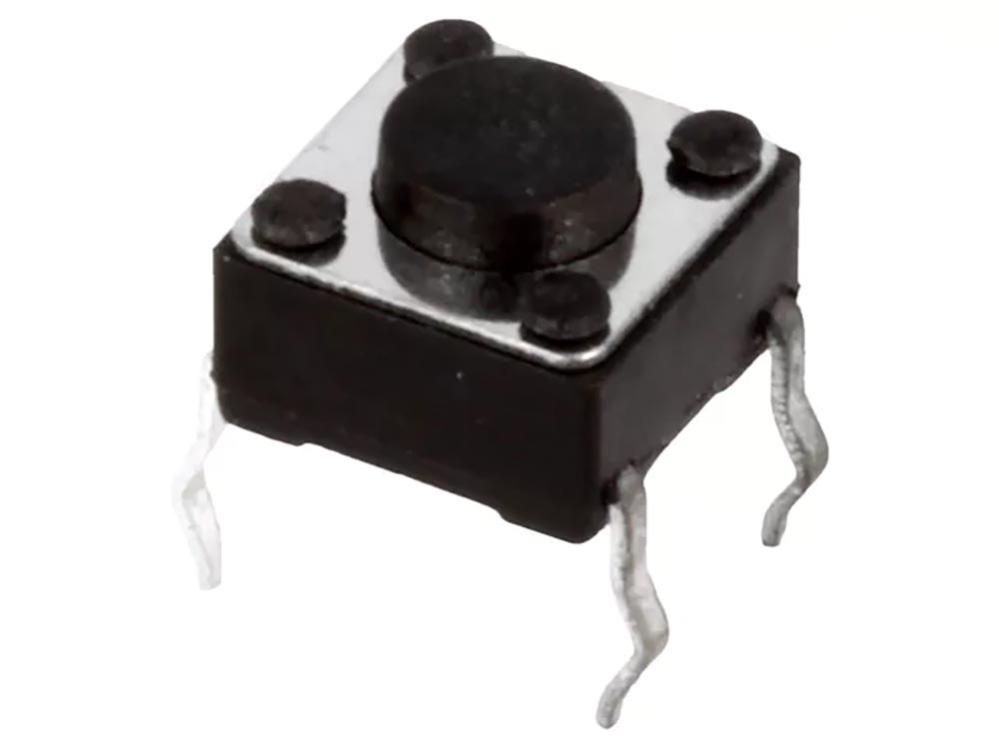

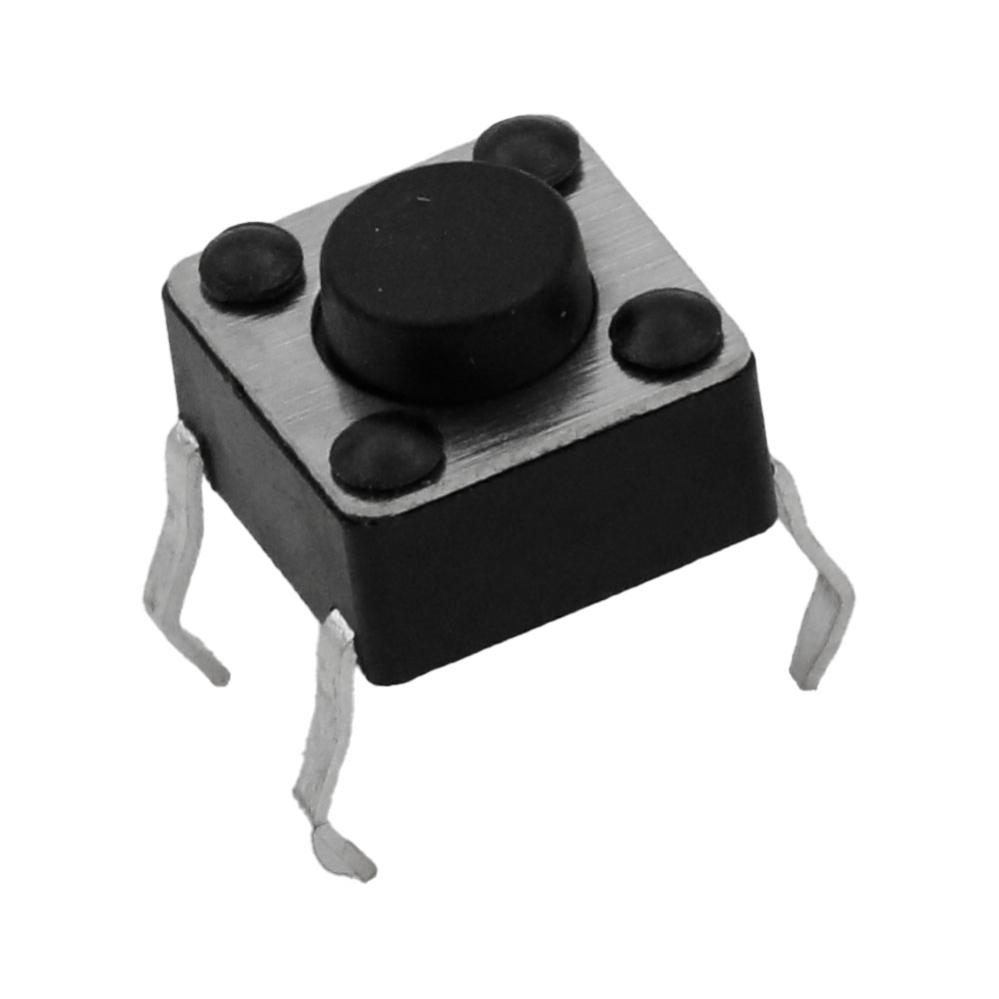

Tactile switch for PCB mounting, ideal for use on breadboards and prototyping PCBs.
Specifications:
- Type: Tactile switch, tact switch, push button
- Function: OFF-(ON) / SPST-NO
- Default state: NO (Normally Open)
- Rated voltage: 12 VDC
- Rated current: 50 mA
- Actuation force: 1.6 N
- Dimensions: 6 x 6 x 4.3 mm
- Terminal pitch: 4.5 x 6.5 mm
- Number of pins: 4
- Mounting type: through-hole (THT)
- Operating temperature: -25 to 70°C
- Contact resistance max: 50 mOhm
- Insulation resistance min: 0.1 GOhm
Tip:
When connecting a tactile switch to a breadboard, use flat-nose pliers to flatten the connection legs slightly. This extends the legs slightly and reduces the risk of them bending when pressing the switch into the breadboard.
