Product description

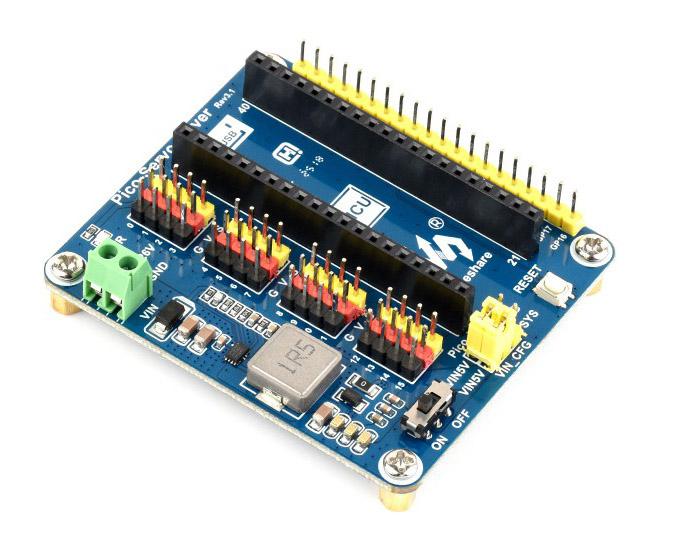

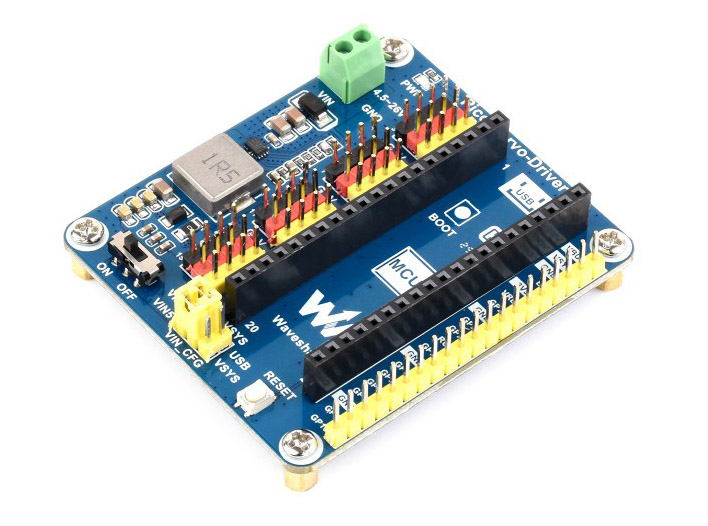

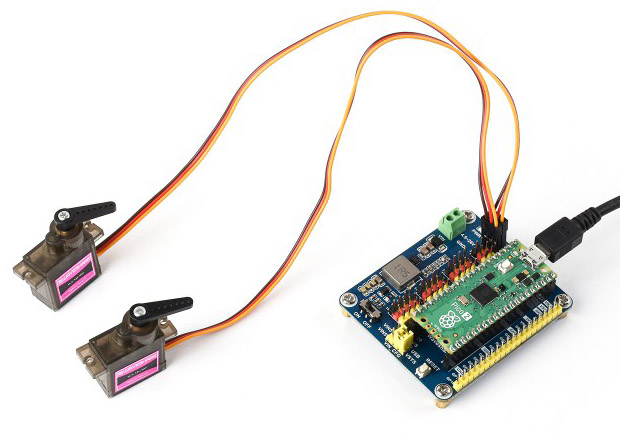

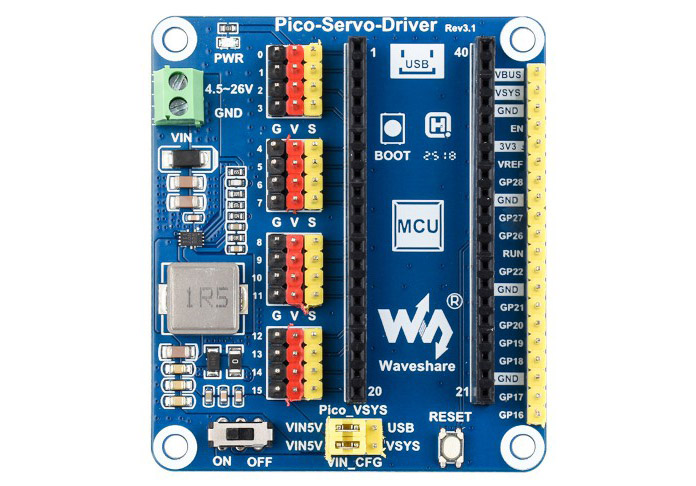

Servo driver for Raspberry Pi Pico with 16 channels and 16-bit resolution. Intended for servo and PWM control. Connects directly to the Pico board pin header. The board is suitable for servo systems such as robot arms or walking robots. Provides precise position control of multiple servos simultaneously. Unused GPIO pins from the Pico are accessible for easy expansion with additional sensors or modules. Development resources are available, including examples for both C/C++ and MicroPython. Servos, Raspberry Pi Pico, and external power supply are not included.
Specifications:
- Supply voltage: 5 V via Pico or 6–12 V via screw terminal
- Servo supply voltage: 5 V
- Logic level: 3.3 V
- Number of PWM/servo outputs: 16
- Resolution: 16-bit
- Max current to servos: 8 A (total for all servos)
- Servo connection: standard servo connector
- Access to unused GPIO pins: Yes
- Dimensions: approximately 65 × 56 mm
