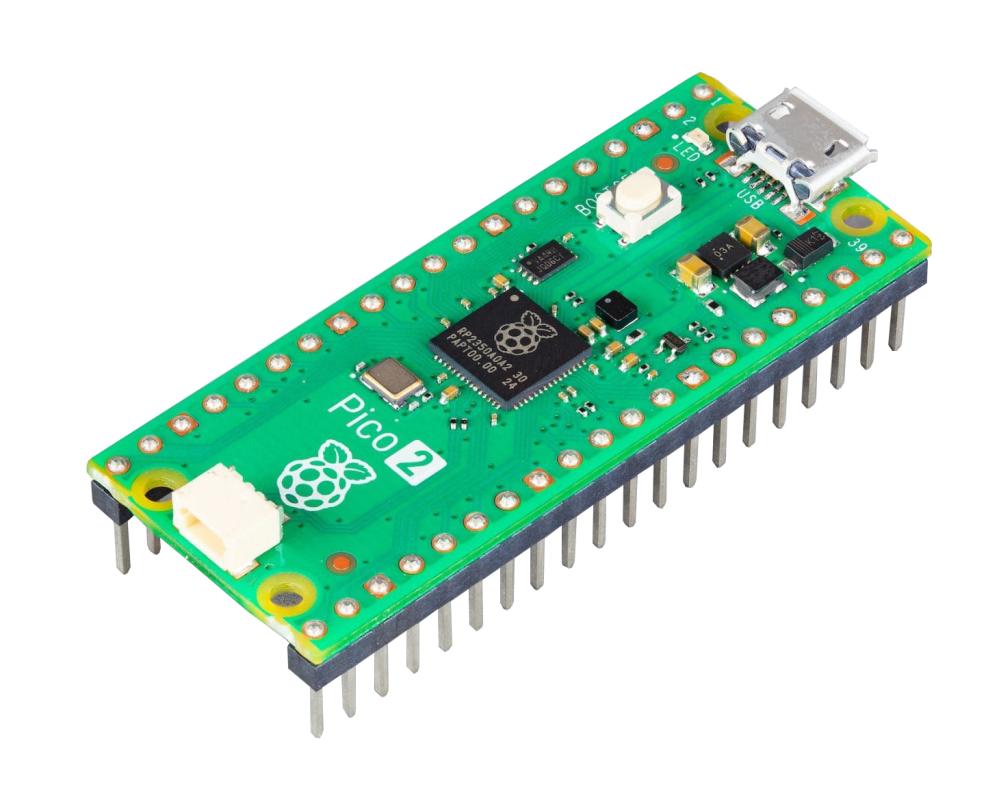

Product description
The Pico 2 H has pre soldered pin headers, otherwise it is the same as the Pico 2.
Compared to the Raspberry Pi Pico, the Pico 2 has a brand new processor with a higher clock speed, more RAM, more PIOs, inbuilt flash memory, security features and the option to run on either two Arm Cortex-M33 cores or two Hazard3 RISC-V cores.
Raspberry Pi Pico 2 delivers a significant performance boost, while retaining compatibility with earlier members of the Raspberry Pi Pico series.
Specifications
- Dual Arm Cortex-M33 or dual Hazard3 processors @ 150MHz
- 520 KB on-chip SRAM
- Software- and hardware-compatible with Raspberry Pi Pico 1
- Drag-and-drop programming using mass storage over USB
- Castellated module allows soldering direct to carrier boards
- Robust and fully documented security features:
- Optional boot signing, enforced by on-chip mask ROM, with key fingerprint in OTP
- Protected OTP storage for optional boot decryption key
- Global bus filtering based on Arm or RISC-V security/privilege levels
- Peripherals, GPIOs, and DMA channels individually assignable to security domains
- Hardware mitigations for fault injection attacks
- Hardware SHA-256 accelerator
- 2 × UART
- 2 × SPI controllers
- 2 × I2C controllers
- 24 × PWM channels
- 4 x ADC channels
- 1 × USB 1.1 controller and PHY, with host and device support
- 12 × PIO state machines
- Open source C/C++ SDK, MicroPython support
- Operating temperature -20°C to +85°C
- Supported input voltage 1.8 to 5.5 VDC
