Product description

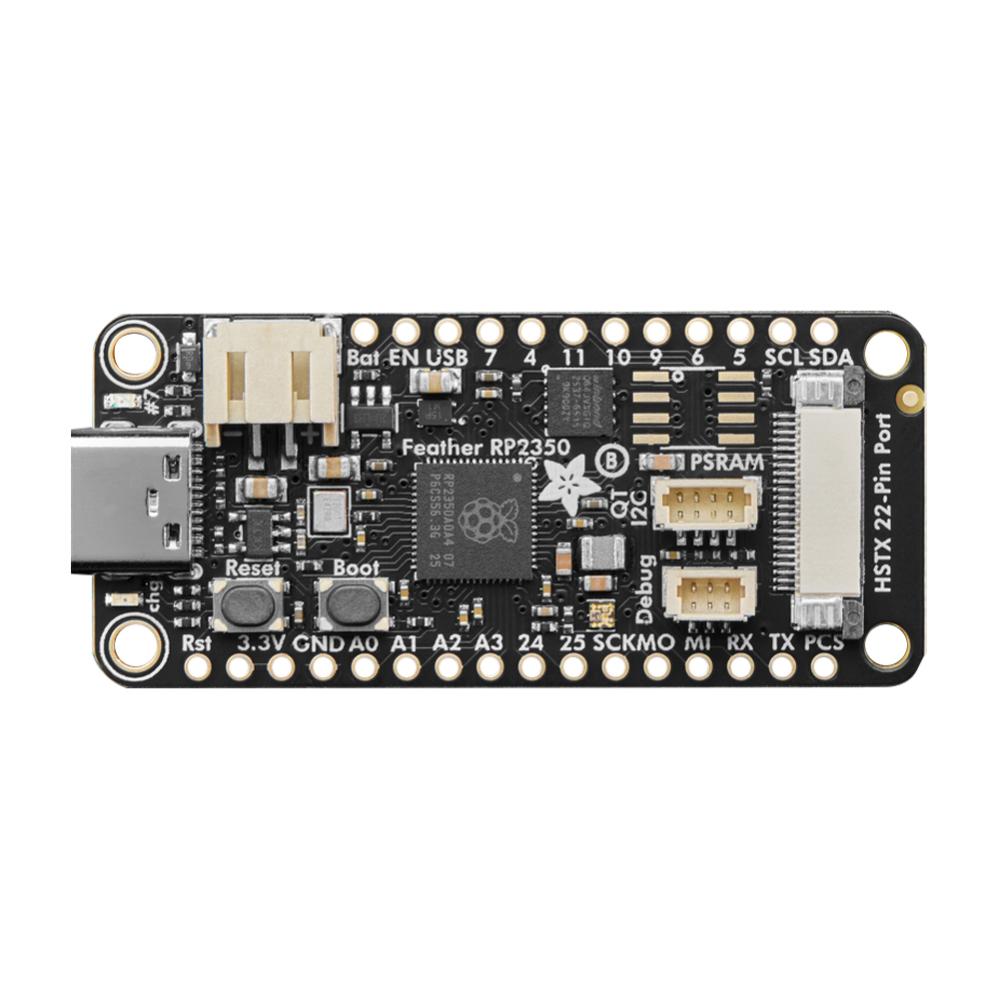

Adafruit Feather RP2350 with HSTX port is a development board in Feather format, based on Raspberry Pi RP2350. The board combines high performance, low power consumption, and wide compatibility with FeatherWing accessories. With dual ARM Cortex-M33 cores at 150 MHz, generous memory, and support for CircuitPython, MicroPython, Arduino, and C/C++, it is well suited for embedded systems, IoT projects, automation, and advanced prototypes. The integrated HSTX port enables fast differential data transfer, for example video output via DVI. The board also features a Qwiic connector for quick connection of I2C devices. With USB-C for programming and power supply. Built-in LiPo charging.
Specifications:
- Microcontroller: Raspberry Pi RP2350
- Processor: Dual-core ARM Cortex-M33
- Clock frequency: 150 MHz
- Supply voltage: 3.5–6 V DC or USB-C
- Logic level: 3.3V
- Flash memory: 8 MB SPI Flash
- SRAM: 520 KB
- Connection: USB-C
- HSTX port: 22-pin FPC
- Qwiic: Yes, 1 connector
- LiPo charger: Built-in, 200 mA charging
- PWM channels: 24
- ADC inputs: 4 x 12-bit
- Programming support: CircuitPython, MicroPython, Arduino, C/C++
- Compatibility: FeatherWing
- Dimensions: 50.8 x 22.8 x 7 mm
