Product description

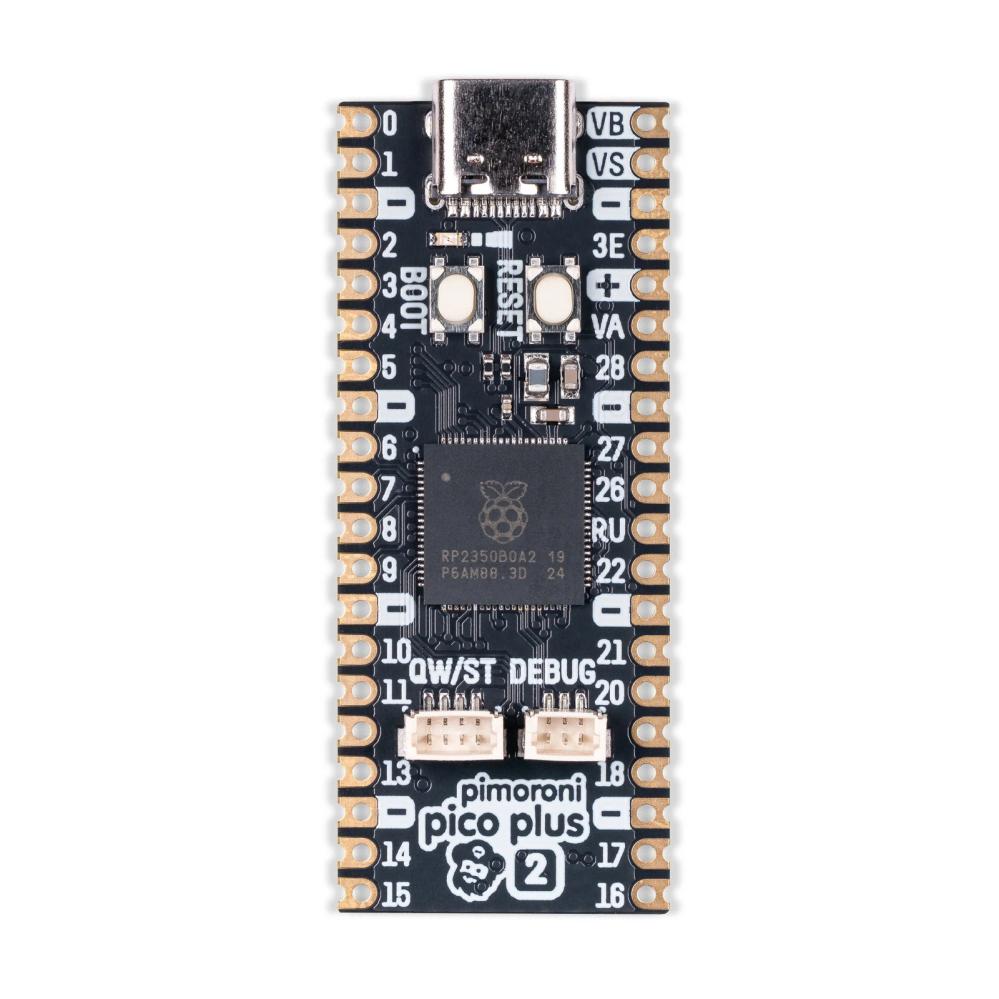

Pimoroni Pico Plus 2 is a compact development board based on the Raspberry Pi RP2350B, featuring dual ARM Cortex-M33 processor cores running at up to 150 MHz. The board has 520 kB of internal SRAM, 8 MB of external PSRAM, and 16 MB of flash memory. It is designed to be compatible with expansion boards and accessories for Raspberry Pi Pico.

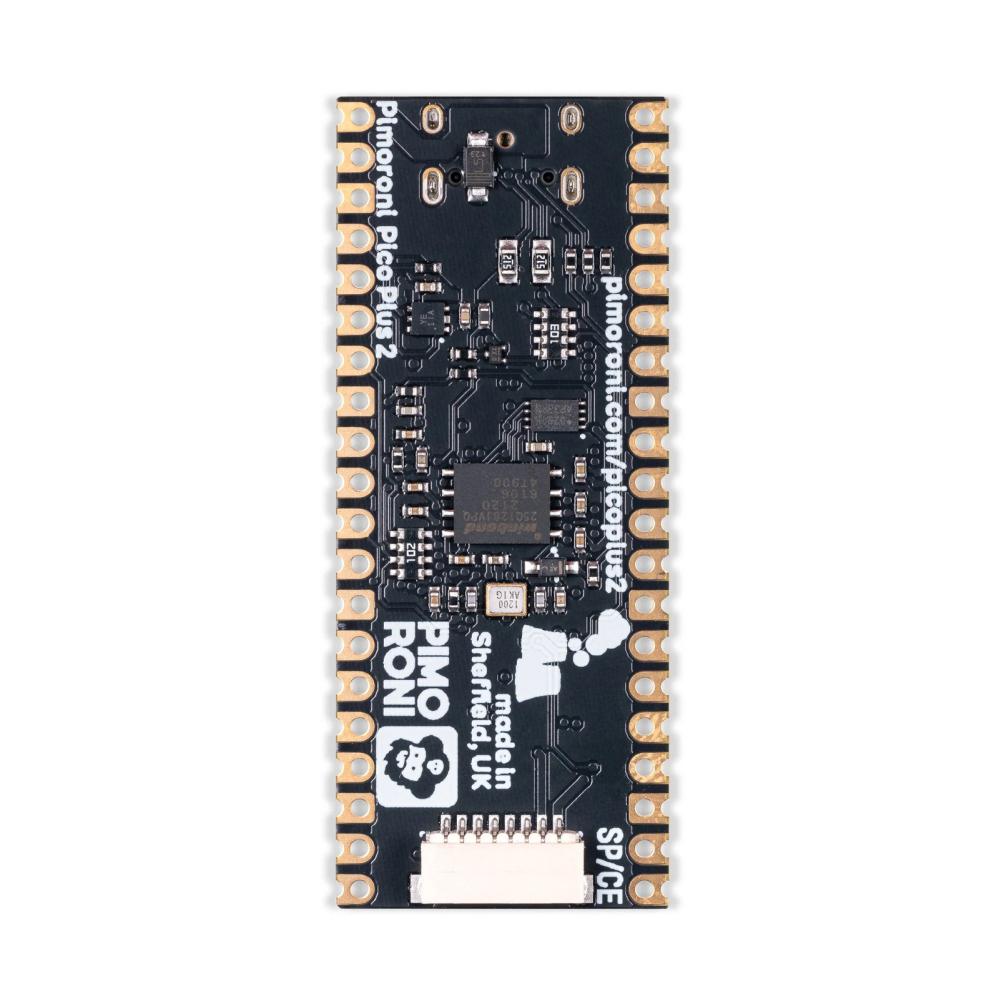

Pico Plus 2 features USB-C for power, programming, and data transfer. For easy connection of sensors and other modules, it includes a Qwiic connector for I²C, an SP/CE connector for SPI and serial devices, and a separate connector for SWD debugging.
The board also features a reset button, a BOOT button that can be used as a user button, and a programmable LED. It supports programming with MicroPython and CircuitPython, among others.
Specifications:
- Manufacturer: Pimoroni
- Model: Pico Plus 2
- Part number: PIM724
- Microcontroller: Raspberry Pi RP2350B
- Processor: Dual-core ARM Cortex-M33
- Clock frequency (max): 150 MHz
- Internal SRAM: 520 kB
- External PSRAM: 8 MB
- Flash memory: 16 MB QSPI with XiP support
- Input voltage: 3–5.5 V
- Voltage regulator: 3.3 V, max output current 600 mA
- USB: USB-C for power, programming, and data transfer
- I²C connector: Qwiic
- SPI/serial connection: SP/CE (compatible cable: 41038302)
- Debug connector: 3-pin JST-SH (SWD)
- Buttons: RESET and BOOT
- User button: BOOT, connected to GP45, active low
- Indicator: Programmable LED, connected to GP25
- Compatibility: Raspberry Pi Pico accessories
- Dimensions: Approx. 53 x 21 x 9 mm, including connectors
