Product description

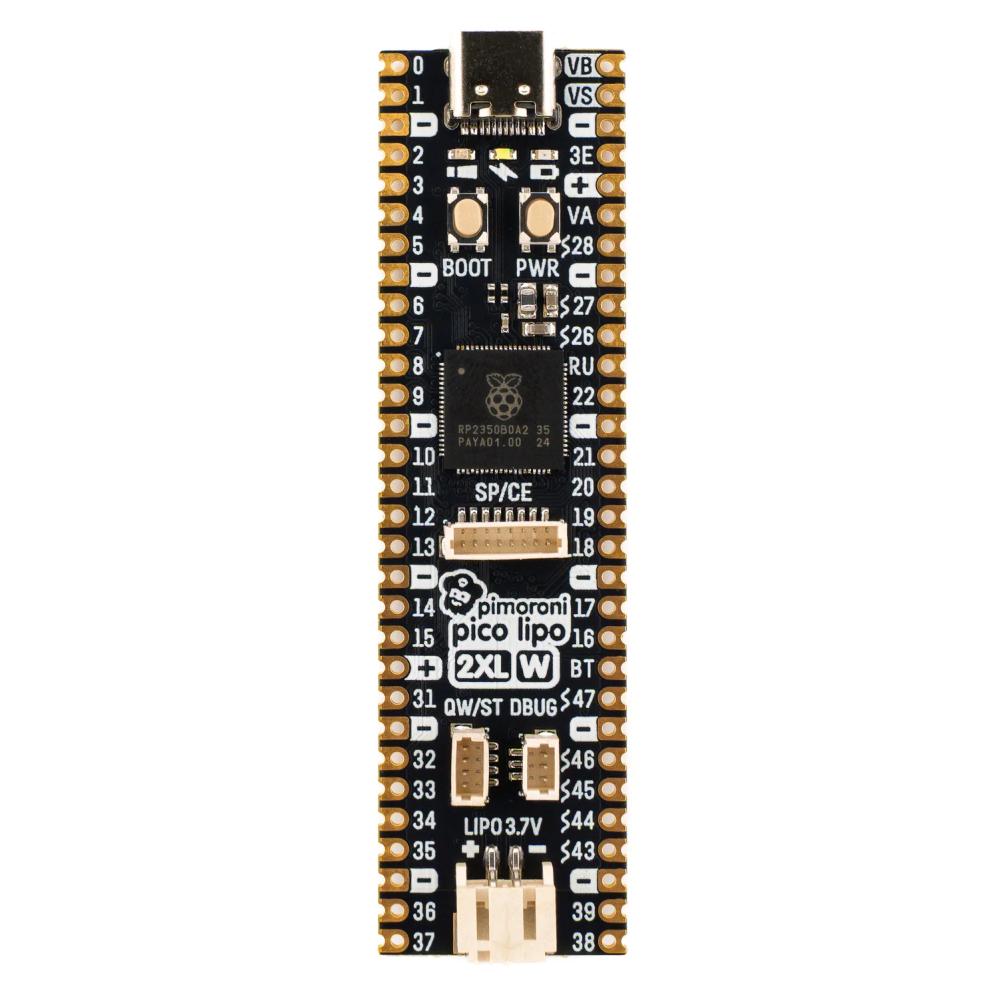

The Pico LiPo 2 XL W is a maxed-out development board from Pimoroni, featuring the RP2350B microcontroller from Raspberry Pi and wireless communication from the Raspberry Pi Radio Module 2 (Wi-Fi and Bluetooth). Many extra features and breakout pins make it a powerful hub for many projects. Features include 40 GPIO, a LiPo charger with JST connector and 215mA charge current, 16MB Flash, 8MB PSRAM, Qwiic connector, power switch and a user push button, as well as three LEDs to indicate power status, charging and programmable (user).
Suitable for advanced IoT projects, education, prototyping and embedded systems where both power and flexibility are required. A particularly good choice for portable, rechargeable projects, and when something needs battery backup.
- Powerful and flexible – ideal for wireless, battery-powered applications
- Easy to integrate with sensors and add-ons via Qwiic (I2C) and SP/CE (SPI) connectors
- Support for MicroPython, C++, Arduino and CircuitPython
- BOOT button provides additional functionality as a user button
- Debug port facilitates development work
Specifications:
- Processor: RP2350B – Dual-core ARM Cortex M33, up to 150 MHz with 520 KB SRAM
- Flash memory: 16 MB QSPI
- RAM: 8 MB PSRAM

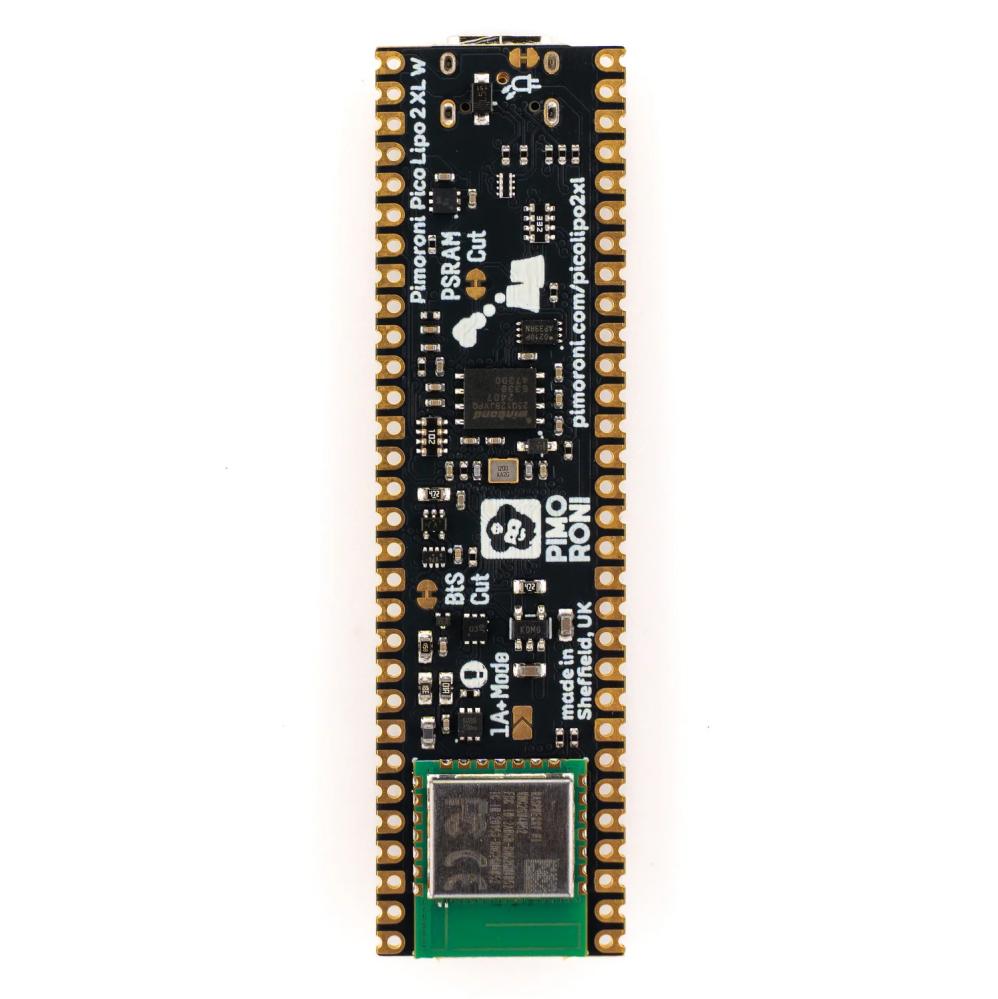

- Wireless communication: 2.4 GHz WiFi and Bluetooth via Raspberry Pi RM2 module
- Power supply: 3.3 - 5 V, via USB-C or via LiPo battery
- Built-in regulator: 3.3V, max 600 mA
- Programming: USB-C or with debugger on SWD connector

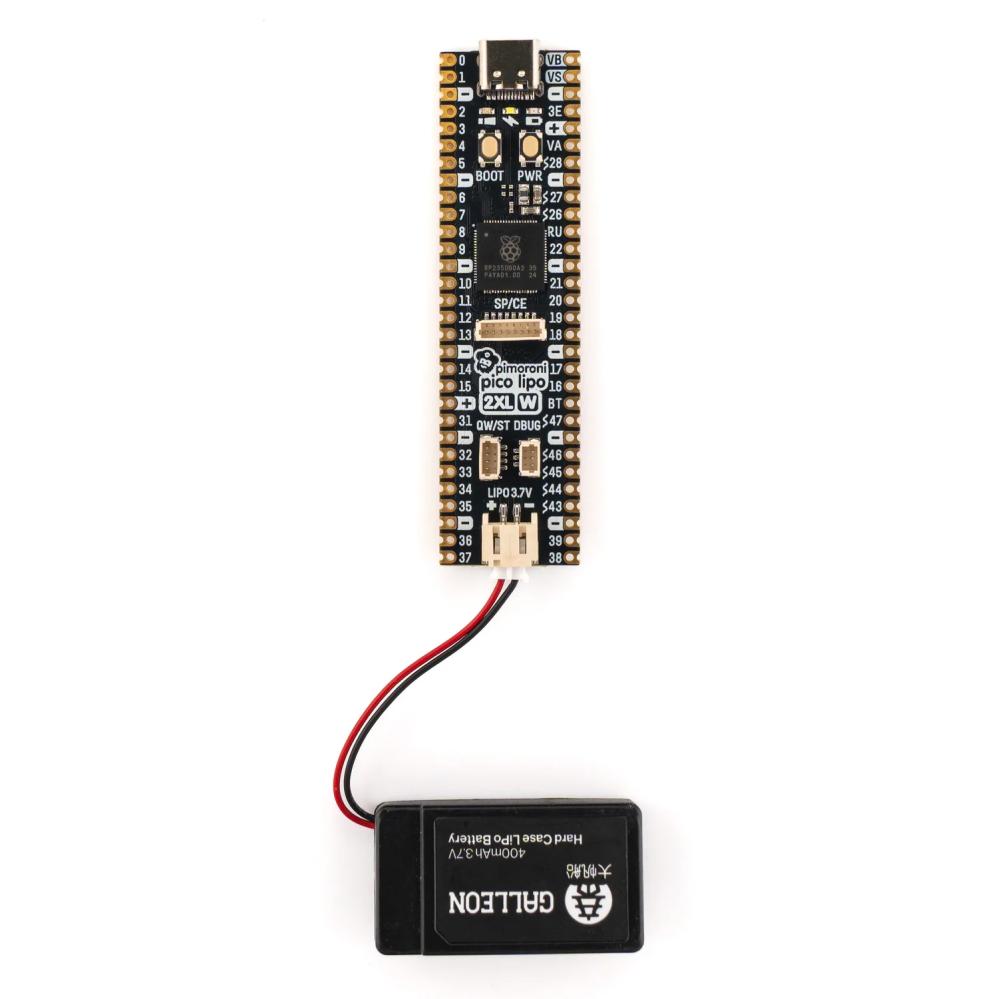

- Built-in LiPo charger with JST-PH connector (charging current 215mA)
- Dimensions: 77 x 21 x 10 mm including connectors

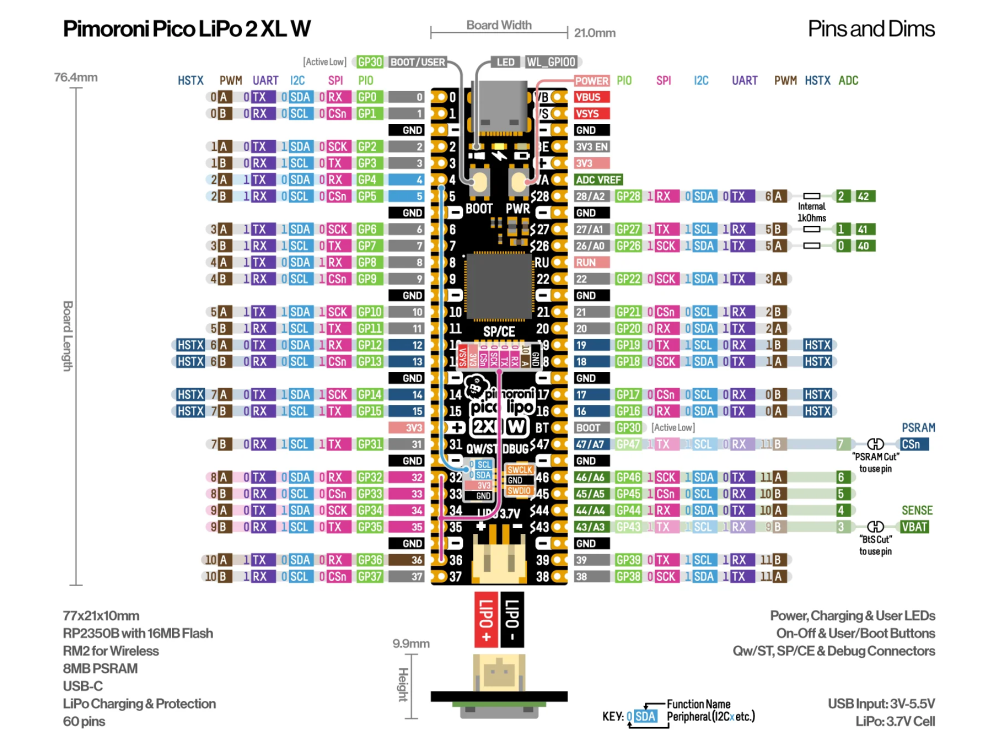

I/O connections:
- Qwiic (I2C)
- USB-C connector
- 40 GPIO
- Debug JST-SH 3-pin
User interface:
- Reset button
- BOOT button
- LED indicator
