Product description

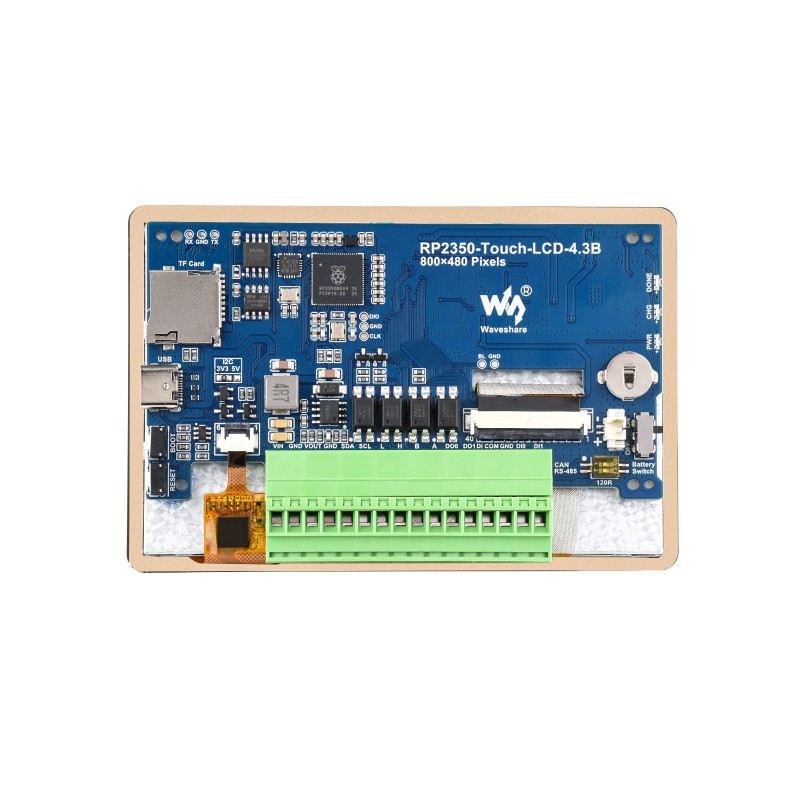

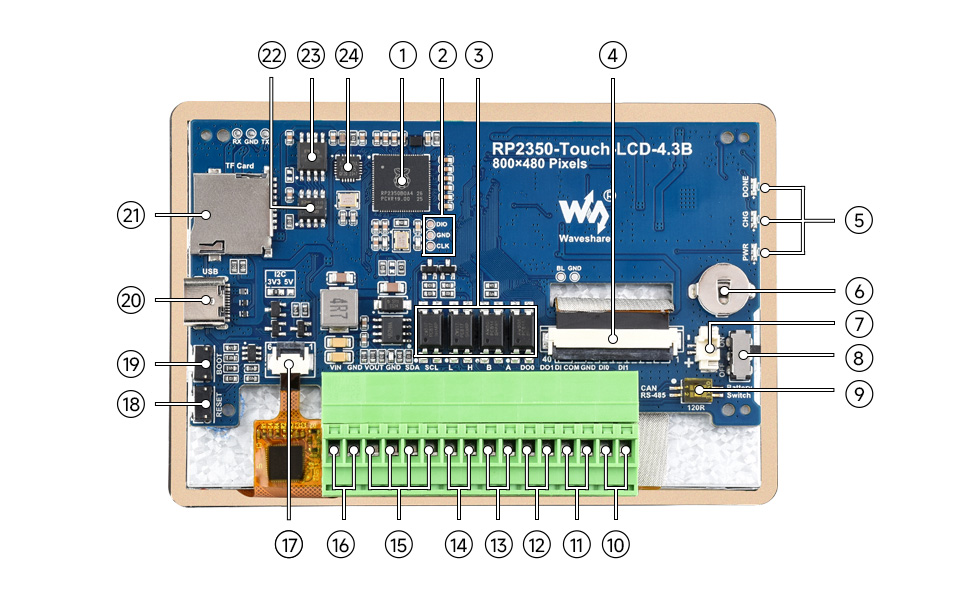

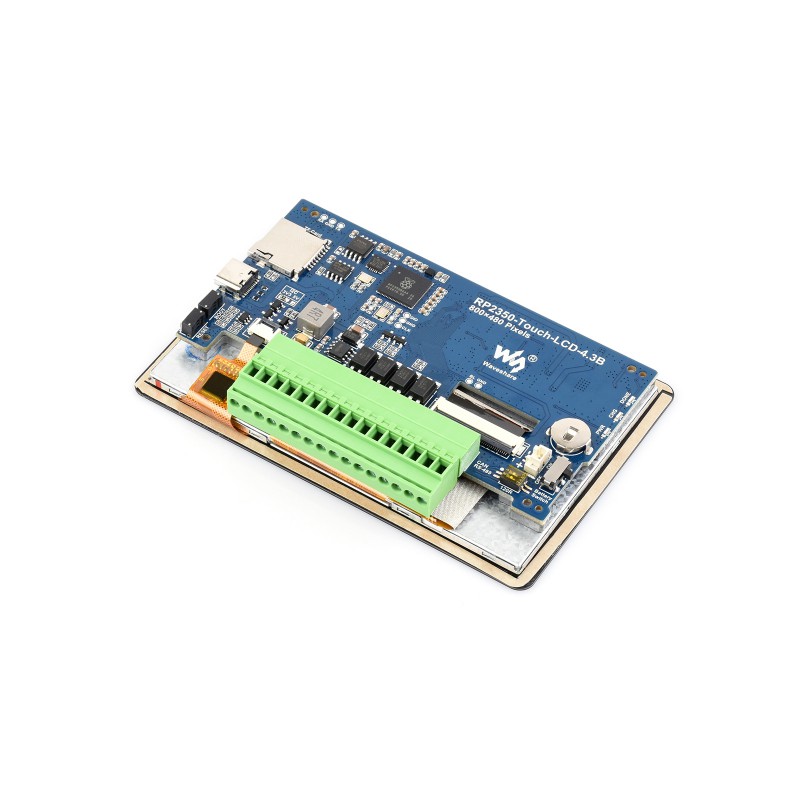

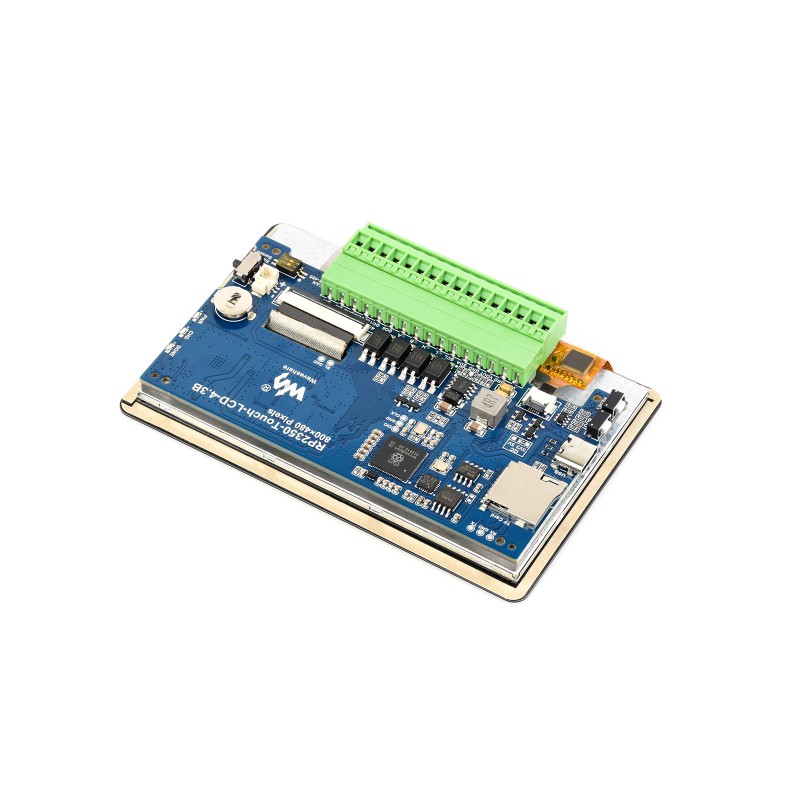

RP2350-Touch-LCD is a development board with an integrated 4.3-inch touchscreen and microcontroller in a compact and fully integrated solution. The board is based on Raspberry Pi RP2350 and is suitable for HMI interfaces, industrial control systems, IoT devices, and portable applications where both graphics and control are required in a single unit.

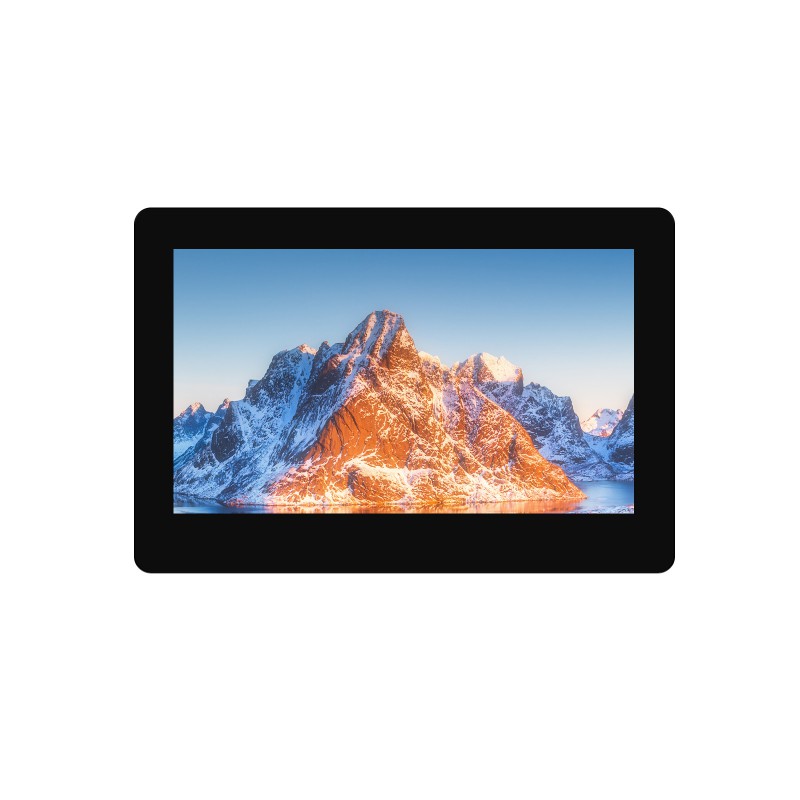

The board features a 4.3-inch IPS display with capacitive touch and a resolution of 800 x 480 pixels. The display offers a wide viewing angle and high brightness, ensuring good readability even in bright environments. The touch panel uses the GT911 controller and supports multi-touch. The display is driven via an SPI interface.
The core is based on the RP2350 microcontroller with a dual-architecture design, supporting both Arm Cortex-M33 and RISC-V Hazard3. This provides flexibility during development and the ability to optimize performance depending on the application. The board also includes integrated flash memory and PSRAM, enabling more advanced graphical and data-intensive applications.
In addition to the display, the board includes features such as a real-time clock (RTC), microSD card slot, and multiple communication interfaces. USB-C is used for programming and power supply, and development is supported via C/C++ and MicroPython.

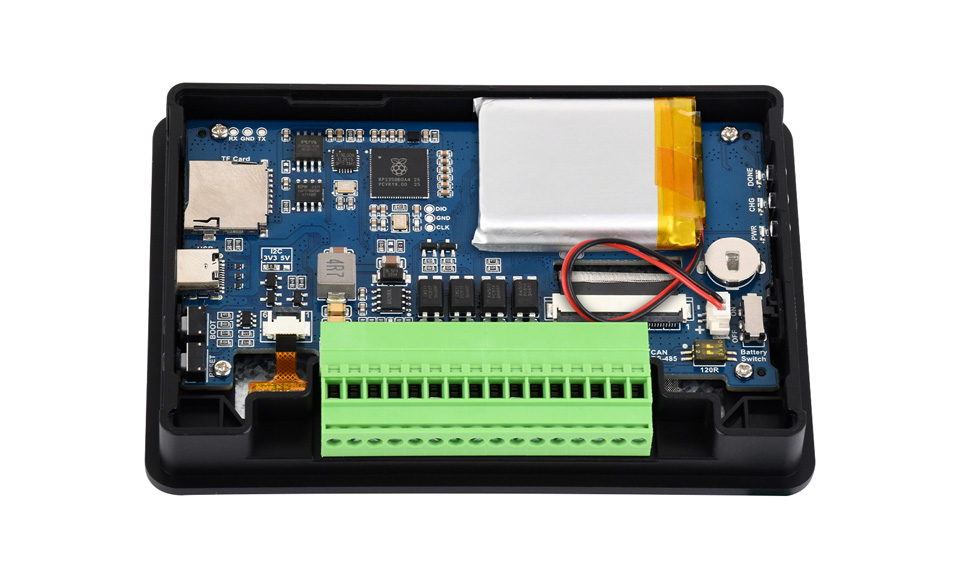

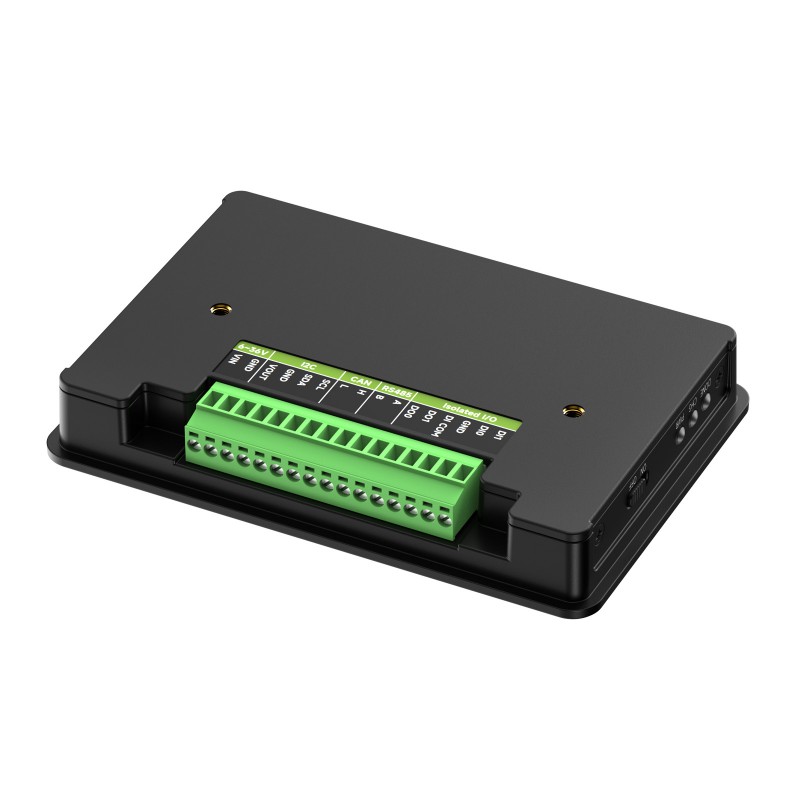

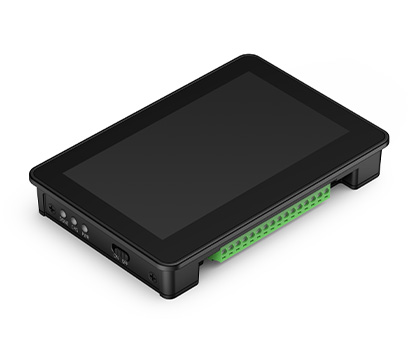

The board is delivered in an enclosure with display and back cover. On the rear side, there is an opening for a terminal block.
Specifications:
- Microcontroller: RP2350 (Raspberry Pi)
- Processor: Dual-core Arm Cortex-M33 + dual-core Hazard3 RISC-V
- Clock frequency: up to 150 MHz
- Memory: 520 KB SRAM
- Flash memory: 16 MB
- PSRAM: 2 MB
- Display: 4.3 inch IPS, 65K colors, capacitive touch
- Resolution: 800 x 480 pixels
- Touch controller: GT911 via I2C (multi-touch)
- Display interface: ST7262 via SPI
- Brightness: approx. 550 cd/m²
- Viewing angle: up to 160°

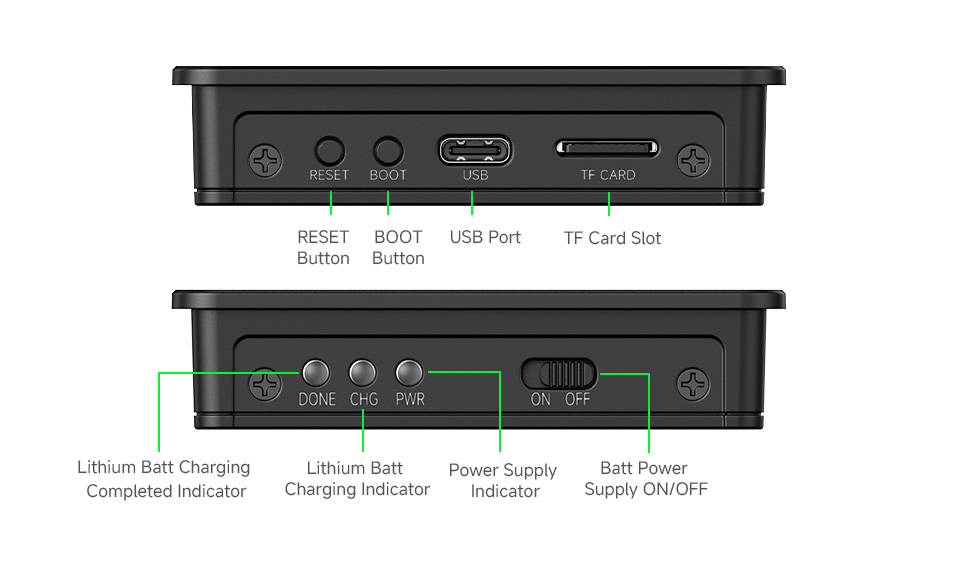

- USB: USB-C
- Power supply: via USB-C or 7 - 36 V DC or 3.7 V LiPo battery (LiPo battery not included)
- Interfaces: SPI, I2C, UART, ADC, PWM, GPIO

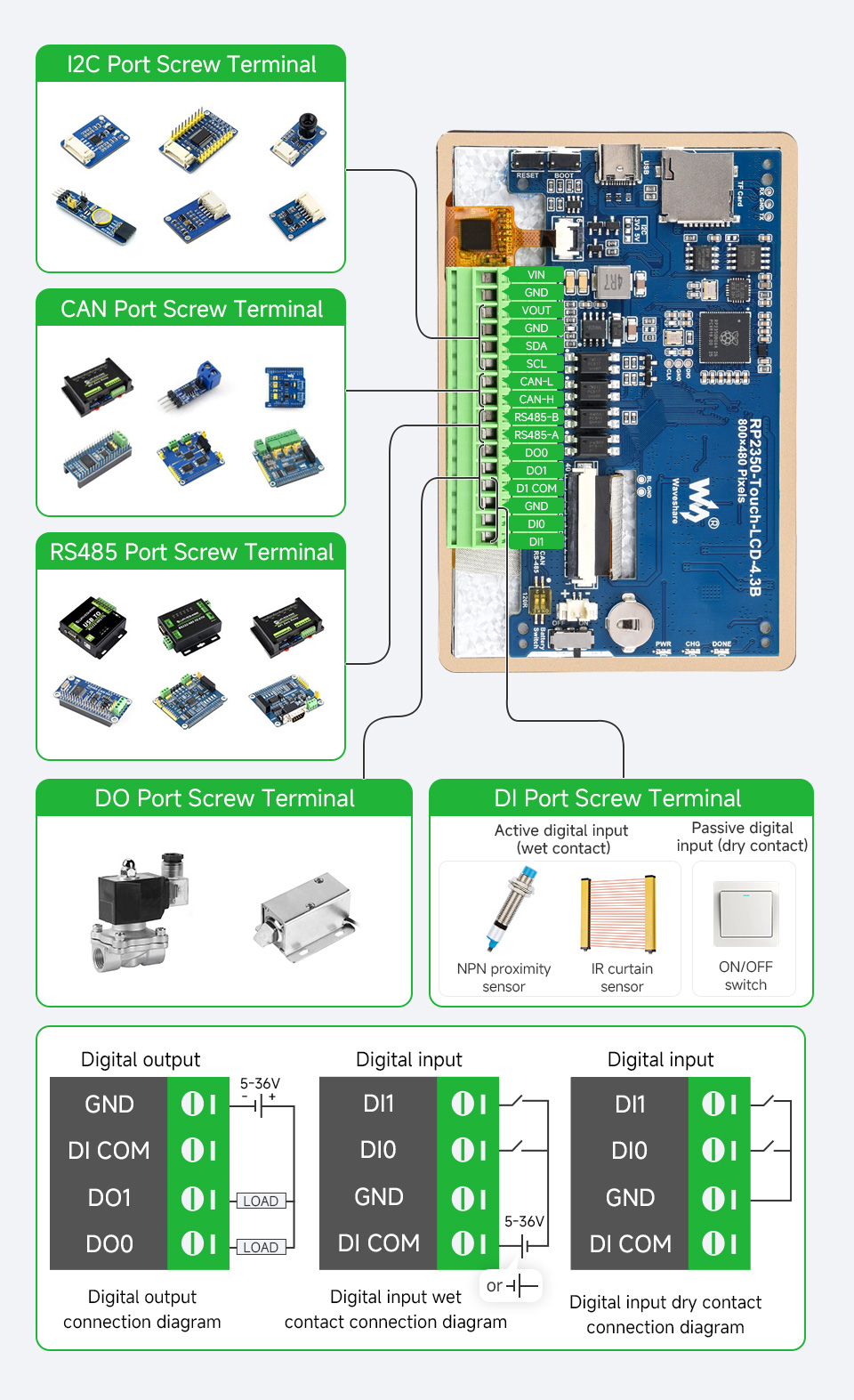

- Other: CAN bus and RS485 via terminal block
- Storage: microSD card slot
- RTC: built-in
- Other: temperature sensor, PIO (12 state machines)
- Form factor: development board with integrated display in enclosure
