Product description

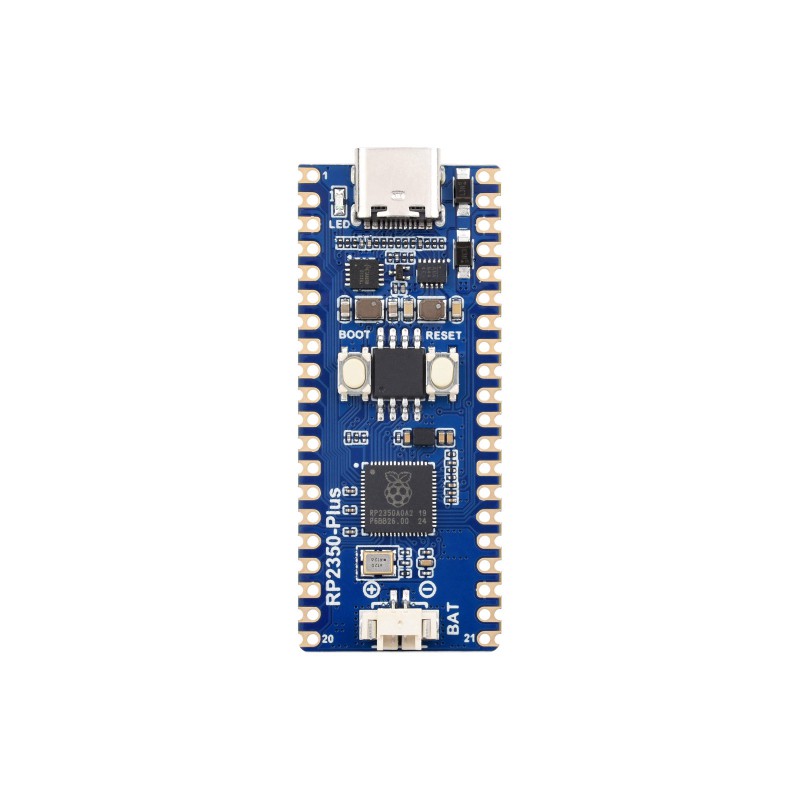

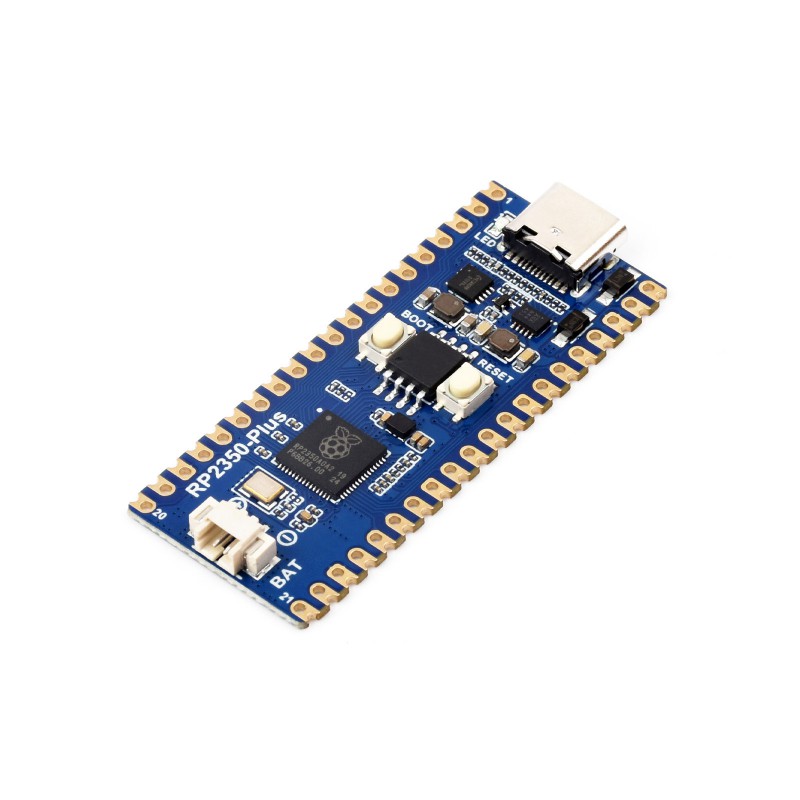

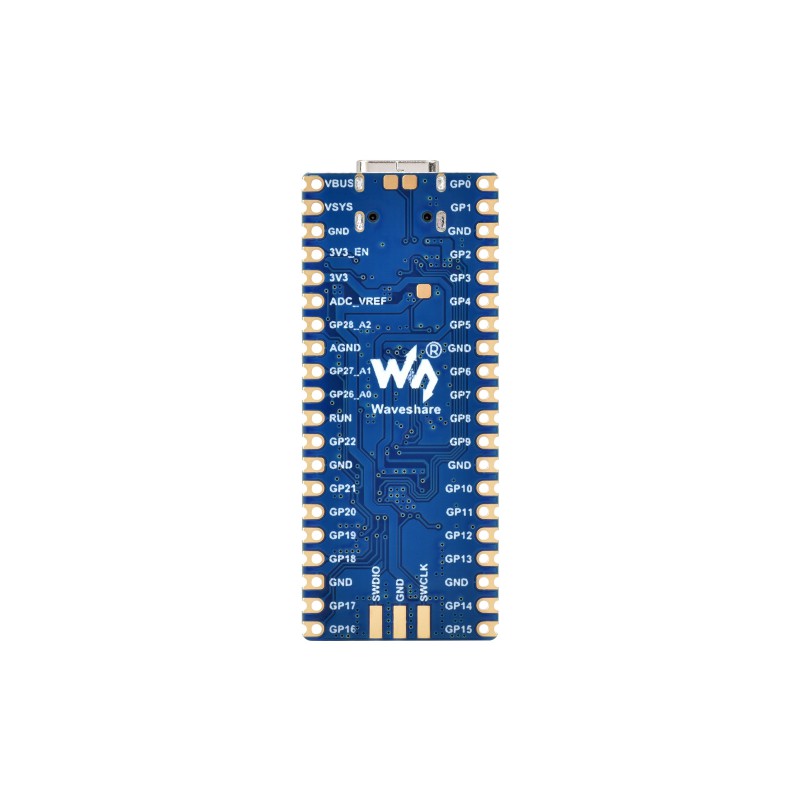

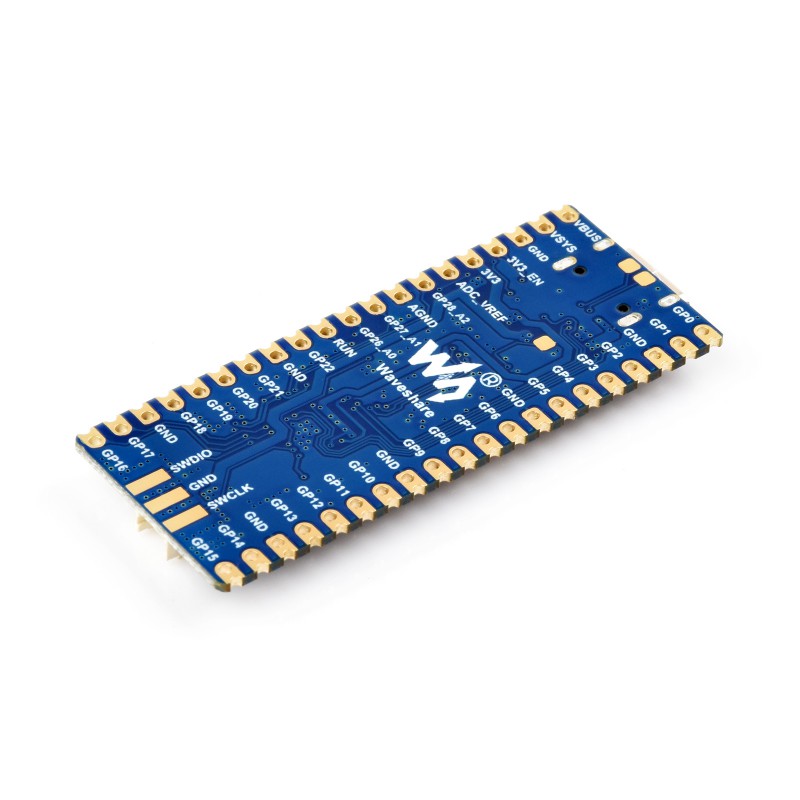

RP2350-Plus is a high-performance development board based on the Raspberry Pi RP2350A. The board is compatible with the Raspberry Pi Pico 2 ecosystem, making it easy to reuse code, libraries, and hardware accessories. It features an integrated DC-DC converter and battery connector for mobile applications, while offering a wide range of peripheral interfaces and GPIO connections. This makes it suitable for everything from IoT projects to advanced signal processing and control systems. The board has castellated holes that can be soldered directly onto a custom PCB or fitted with pin headers for use with breadboards.
Specifications:
- Microcontroller: Raspberry Pi RP2350A
- Processor architecture: Dual-core Arm Cortex-M33 + dual-core RISC-V Hazard3
- Clock frequency: Up to 150 MHz
- RAM: 520 kB SRAM
- Flash memory: 16 MB
- Supply voltage and logic level: 3.3 V
- USB: USB-C with host and device support
- GPIO: 26
- Interfaces: 2 × SPI, 2 × I2C, 2 × UART
- Analog inputs: 4 × ADC
- PWM: Up to 16 channels
- PIO: 12 state machines
- Power supply: USB Type-C or 3.7 V Li-Ion/LiPo via battery connector
- Low power modes: sleep and dormant
- Other: temperature sensor, built-in timers and clocks
