Product description

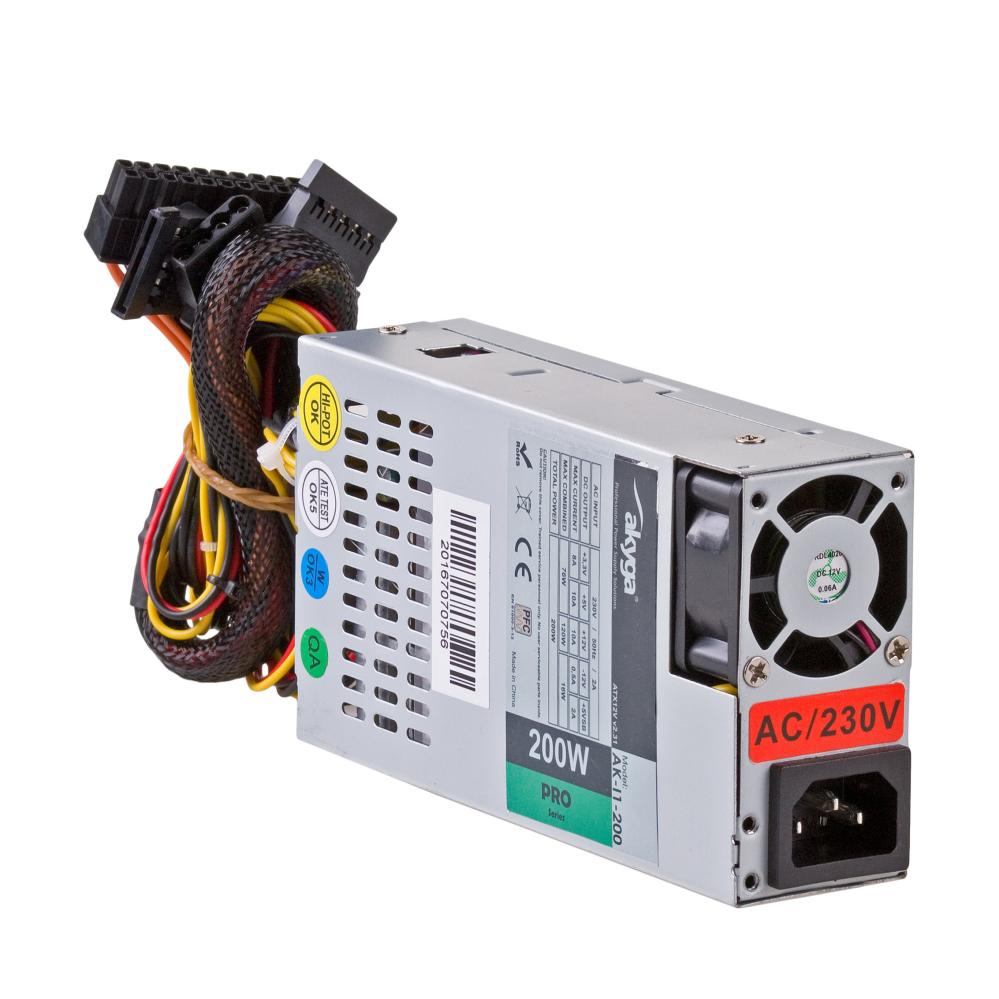

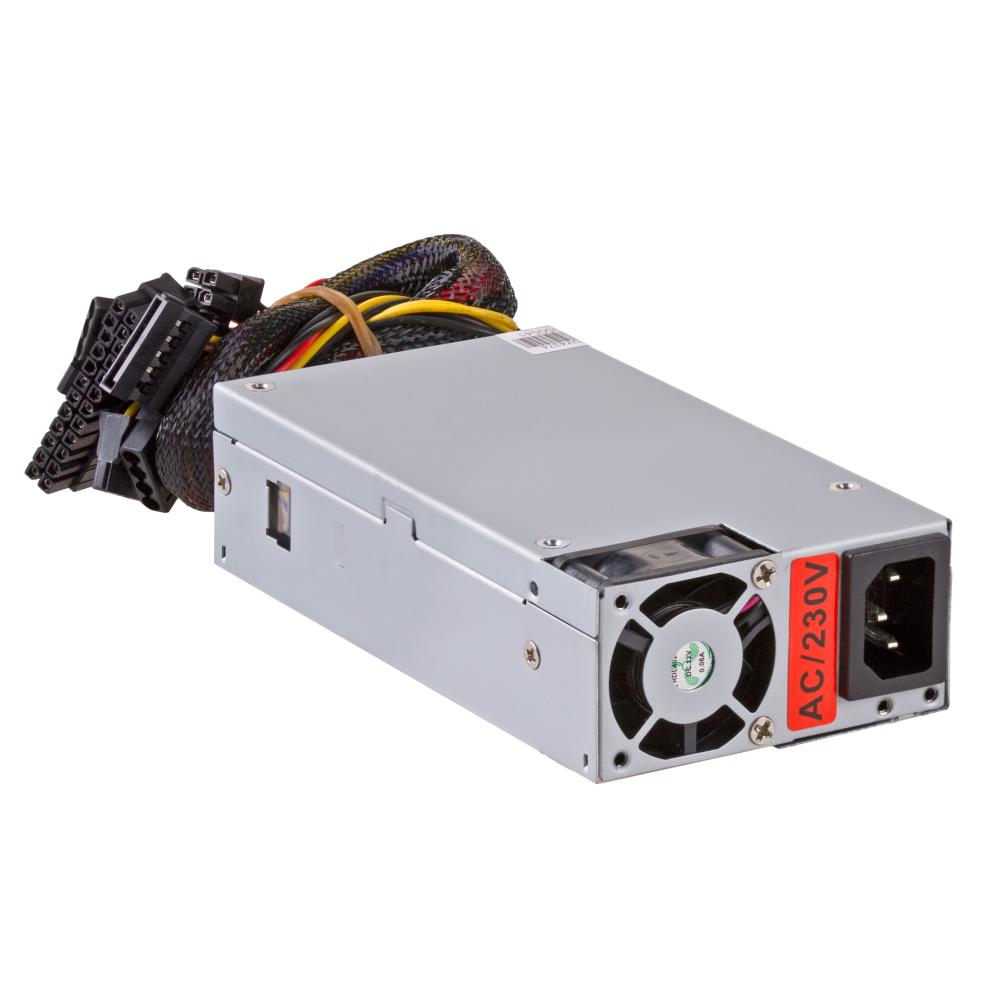

Mini-ITX power supply rated at 200 W from the Akyga Pro series. Designed for compact systems such as 1U cases and rack-mounted solutions. The power supply delivers stable power for smaller computer platforms and is intended for continuous operation. Equipped with a 24-pin motherboard connector, 4-pin ATX12V for CPU, as well as connections for two SATA and two Molex. The compact design is complemented by a temperature-controlled 40 mm fan that ensures quiet and efficient cooling during operation.
For stable and safe operation, the power supply includes multiple protection features such as overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection. The PFC filter contributes to stable operation and reduced interference.
Specifications:
- Model: AK-I1-200
- Power: 200 W
- Form factor: Mini-ITX 1U
- Series: Pro
- Supply voltage: 230 V
- Efficiency: > 70%
- +3.3 V: 8 A
- +5 V: 10 A
- +12 V: 10 A
- Max load +12 V: 120 W
- Max load +3.3 V +5 V: 76 W

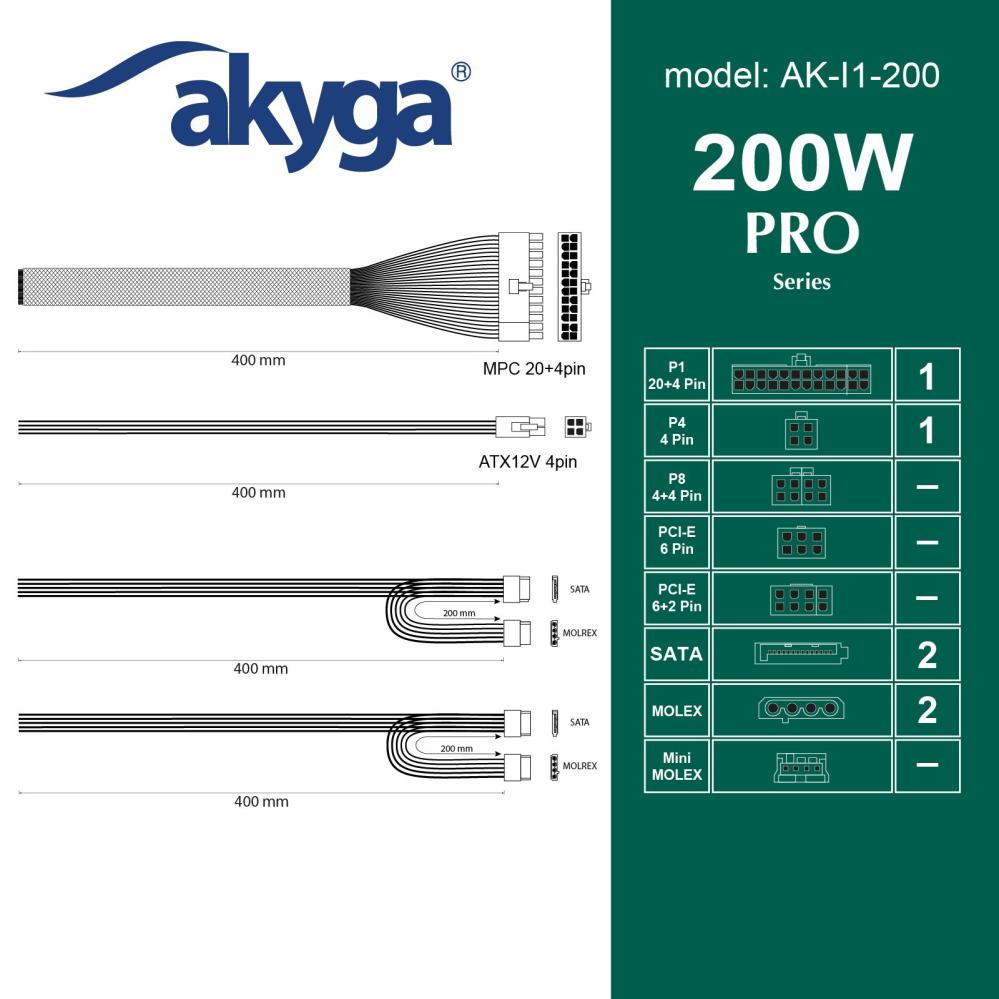

- Motherboard connector: 24-pin
- CPU connector: 4-pin ATX12V
- SATA connectors: 2 pcs
- Molex connectors: 2 pcs
- PFC: Passive
- Cooling: 40 mm fan, temperature controlled
- Protection: OVP, OCP, OPP, OTP, SCP
- Power input: IEC C14 (mains cable not included)
- Cable length: 40 cm
- Product dimensions: 150 x 80 x 40 mm
- Weight: 580 g
- Certifications: CE, RoHS, REACH
- Warranty: 24 months
