Product description
TFX power supply rated at 300 W from the Akyga Ultimate series with 80+. Designed for compact computers such as mini and media center PCs. The power supply is compatible with current standards and provides stable power delivery in smaller systems with limited space.

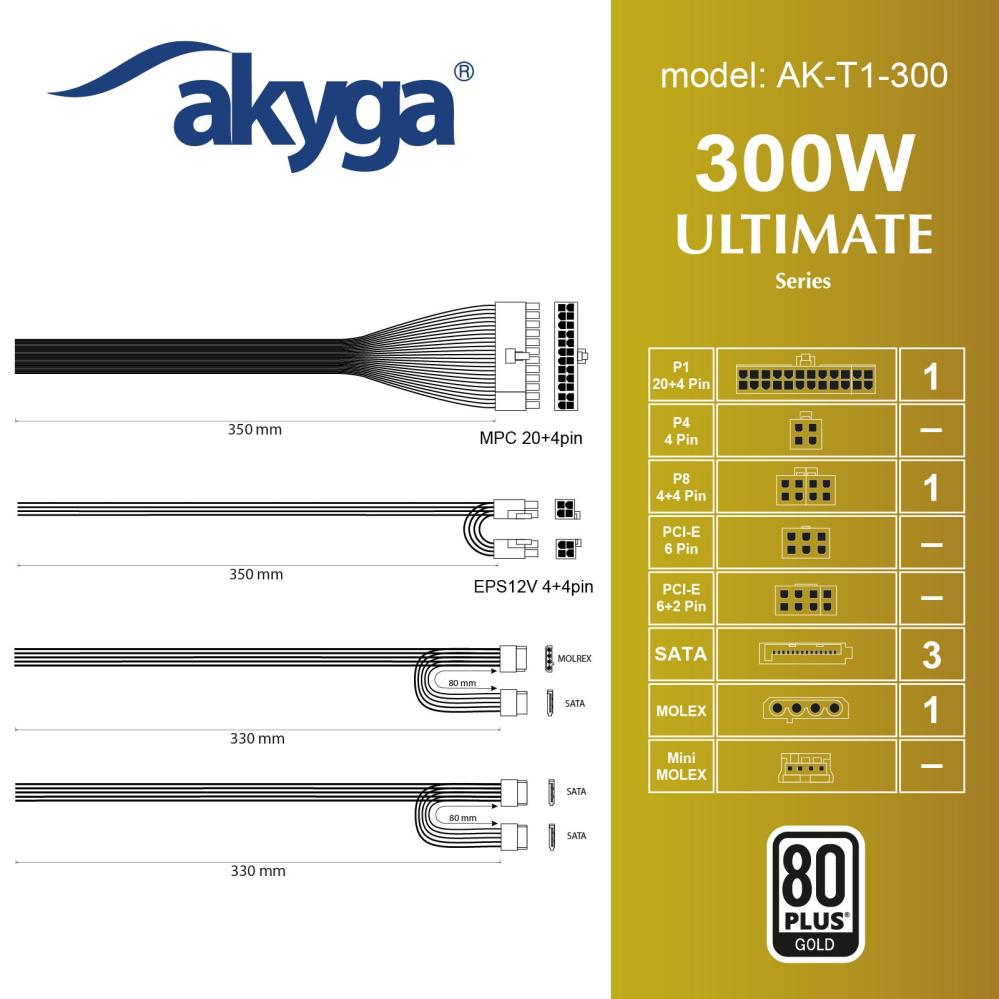

Equipped with a 24-pin motherboard connector, EPS 4+4-pin for CPU, three SATA connectors and one Molex connector. The compact design is combined with a temperature-controlled 80 mm fan that provides quiet and efficient cooling during operation. The optimized cable length simplifies installation in smaller cases.
With an efficiency above 80% and 80 Plus compatibility, the power supply contributes to energy-efficient operation and reduced heat generation. For safe operation, it is equipped with protection features such as overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, undervoltage protection and short circuit protection. Active PFC ensures stable operation and reduces interference in the power system.
Specifications:
- Model: AK-T1-300
- Power: 300 W
- Form factor: TFX
- Series: Ultimate
- Supply voltage: 230 V
- Efficiency: > 80%
- 80 Plus: Compatible
- +3.3 V: 15 A
- +5 V: 15 A
- +12 V: 20 A
- Max load +12 V: 240 W
- Max load +3.3 V +5 V: 100 W
- Motherboard connector: 24-pin
- CPU connector: 4+4-pin EPS
- SATA connectors: 3 pcs
- Molex connectors: 1 pc
- PFC: Active
- Cooling: 80 mm fan, temperature controlled
- Protection: OVP, OCP, OPP, OTP, SCP, UVP
- Power input: IEC C14
- Cable length: 8–36 cm
- Product dimensions: 175 x 85 x 65 mm
- Weight: 836.4 g
- Certifications: CE, RoHS, REACH
- Warranty: 24 months
