Product description

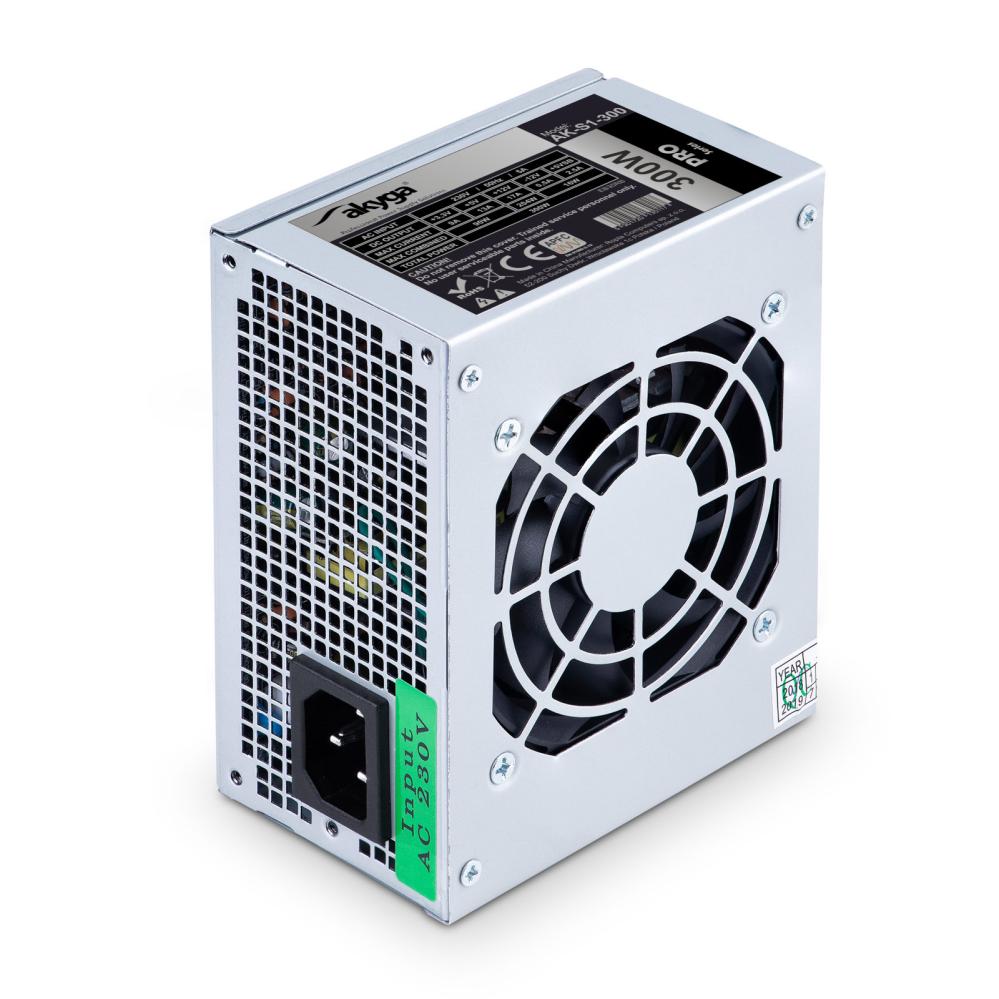

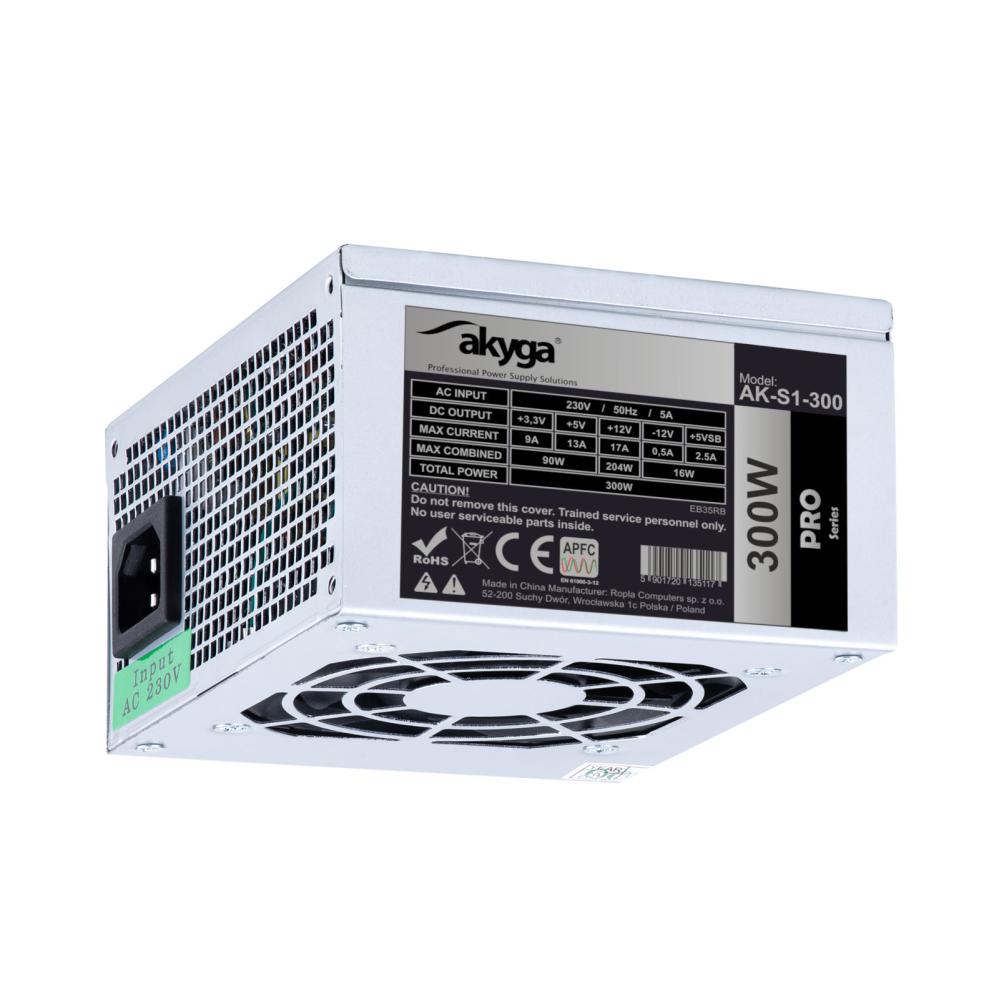

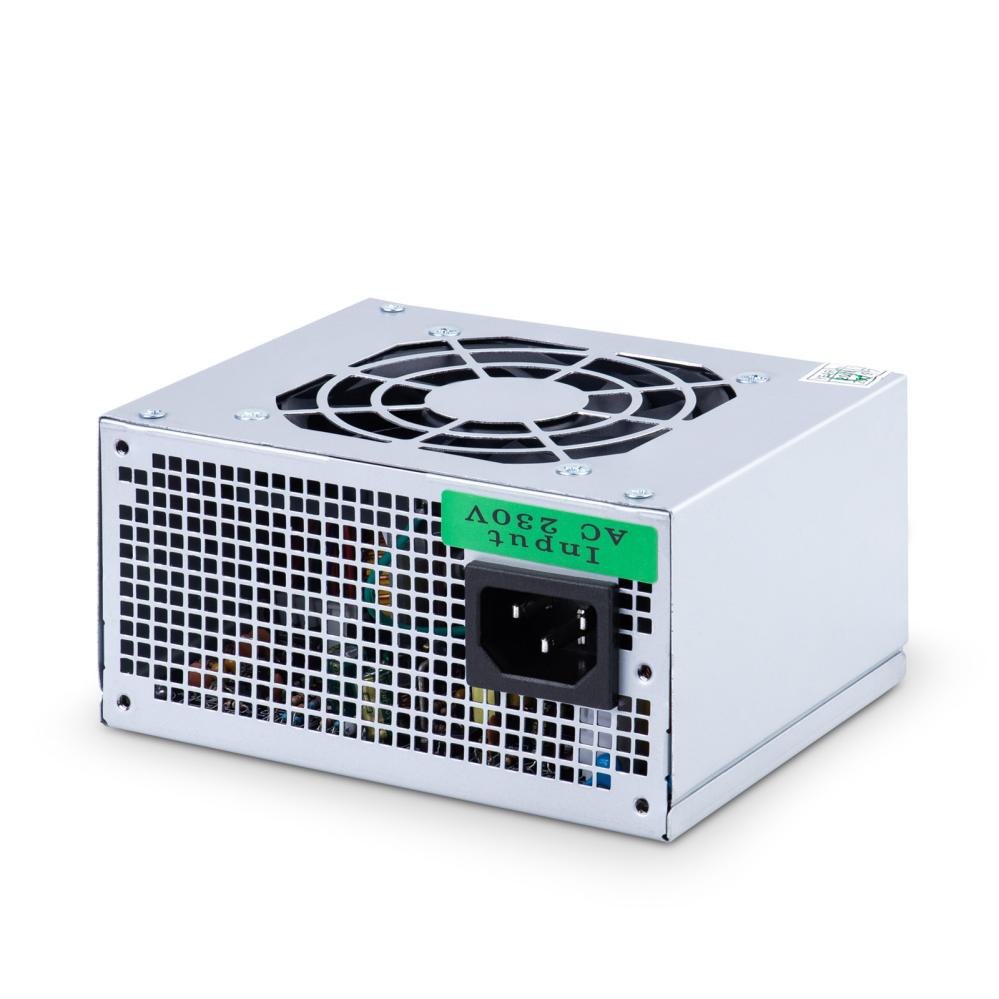

SFX power supply rated at 300 W from the Akyga Pro series, designed for installation in compact computer cases where space is limited. The power supply provides stable power delivery for smaller systems and is intended for continuous operation.

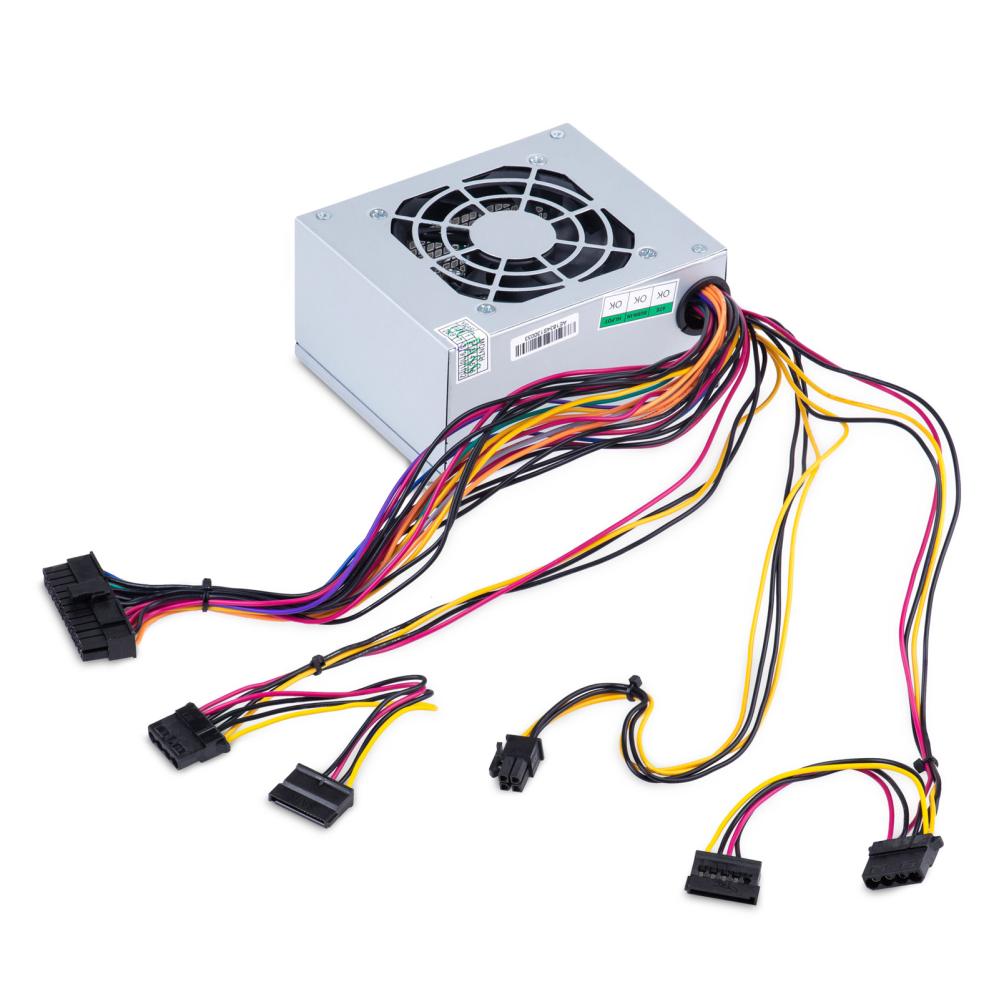

The power supply is equipped with a 24-pin motherboard connector, 4-pin ATX12V for CPU, as well as two SATA and two Molex connectors for connecting storage devices and accessories. The built-in temperature-controlled 80 mm fan with automatic speed control ensures efficient cooling during operation.
For stable and safe operation, the power supply includes multiple protection features such as overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, undervoltage protection, and short circuit protection. The PFC filter contributes to stable operation and reduced interference.
Specifications:
- Model: AK-S1-300
- Power: 300 W
- Form factor: SFX
- Series: Pro
- Supply voltage: 230 V
- Efficiency: > 70%
- +3.3 V: 9 A
- +5 V: 13 A
- +12 V: 17 A
- Max load +12 V: 204 W
- Max load +3.3 V +5 V: 90 W

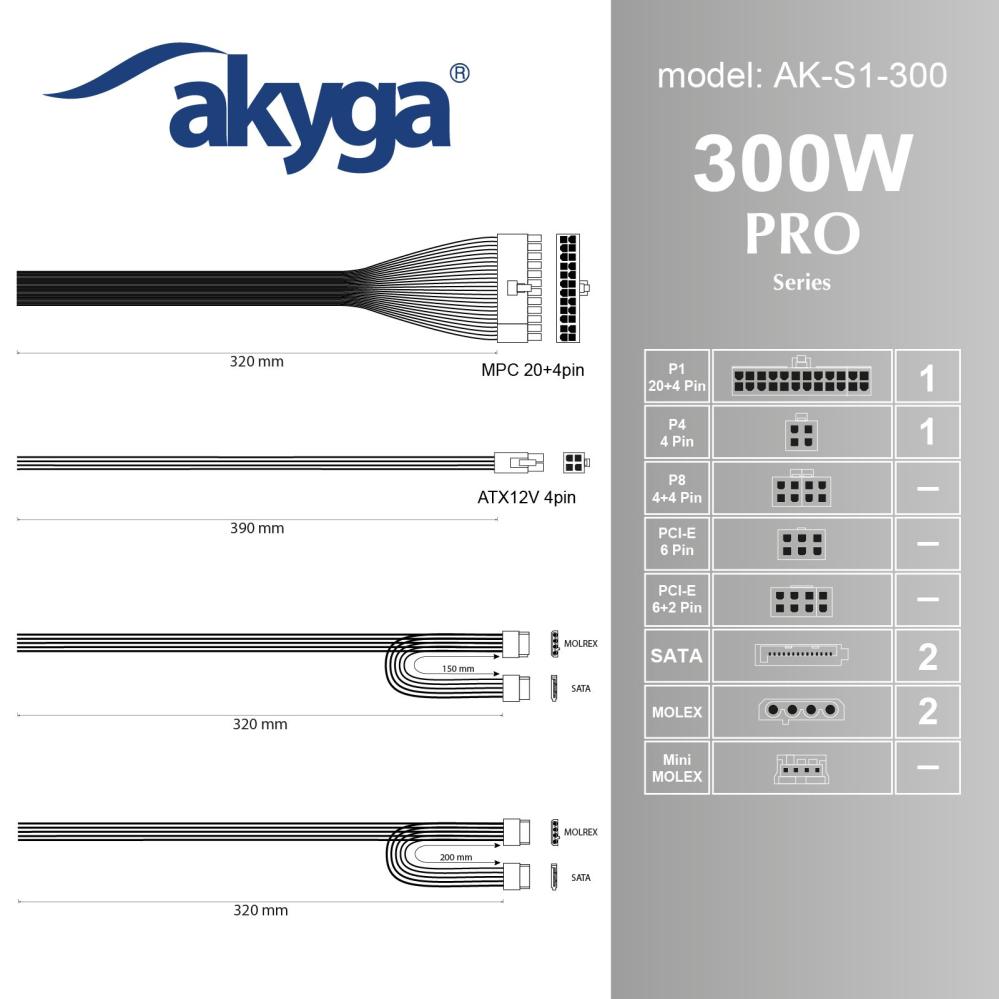

- Motherboard connector: 24-pin
- CPU connector: 4-pin ATX12V
- SATA connectors: 2 pcs
- Molex connectors: 2 pcs
- Mini-Molex: No
- PFC: Passive
- Cooling: 80 mm fan, temperature controlled
- Protection: OVP, OCP, OPP, OTP, SCP, UVP
- Power input: IEC C14 (power cable not included)
- DC cable length: 30–60 cm
- Product dimensions: 63.5 x 125 x 100 mm
- Weight: 0.8 kg
- Certifications: CE, RoHS, REACH
- Warranty: 24 months
