Product description

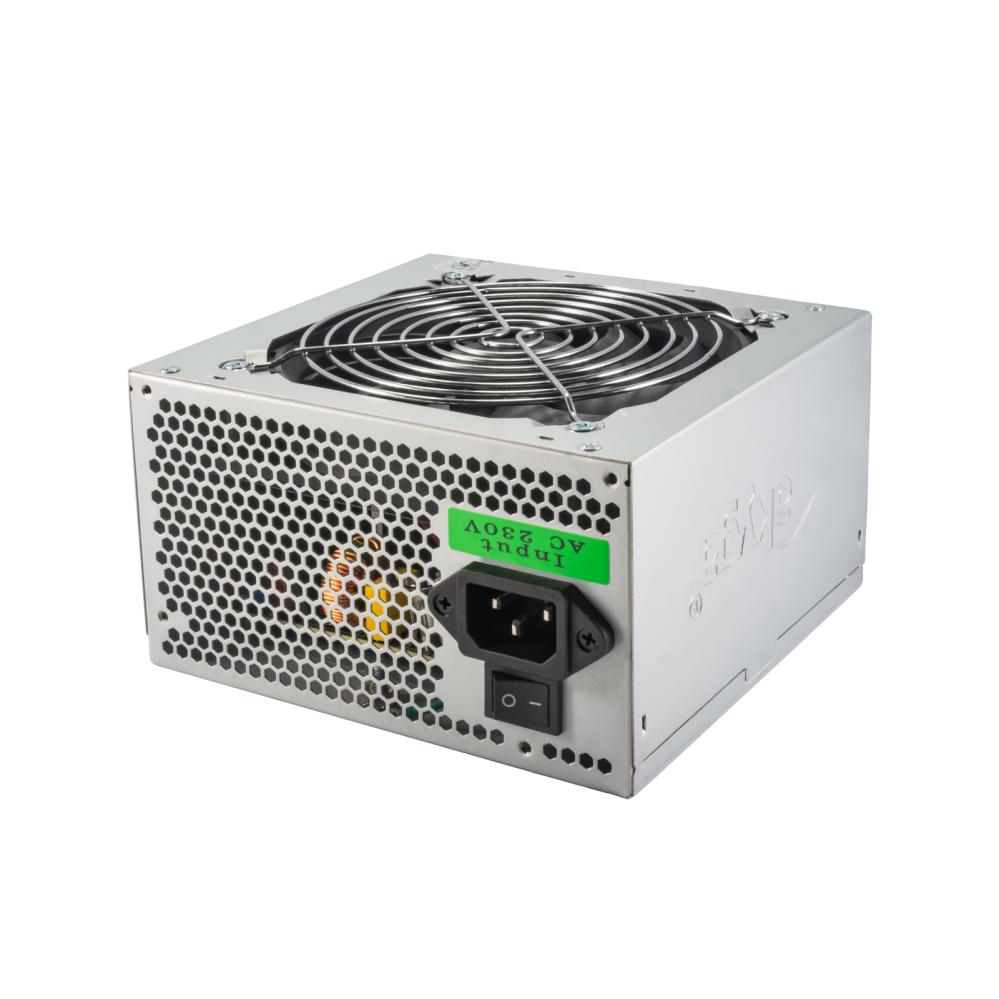

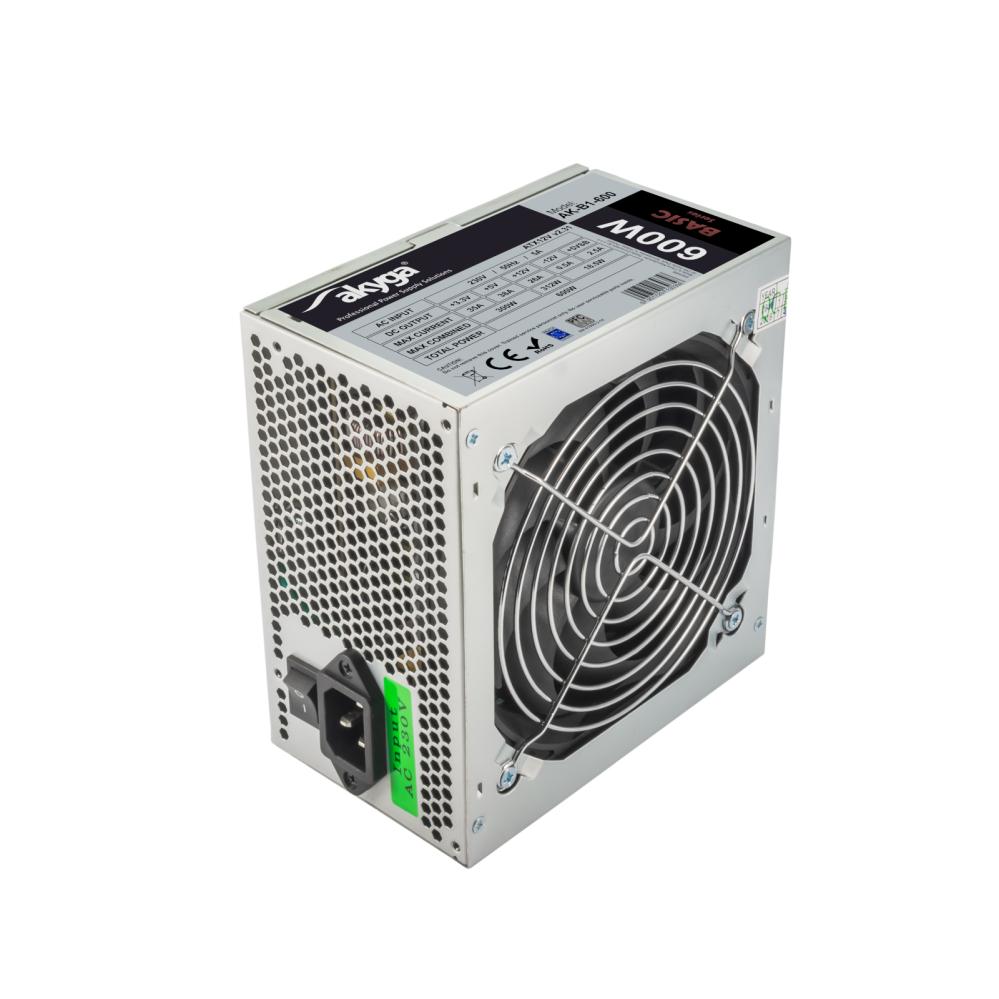

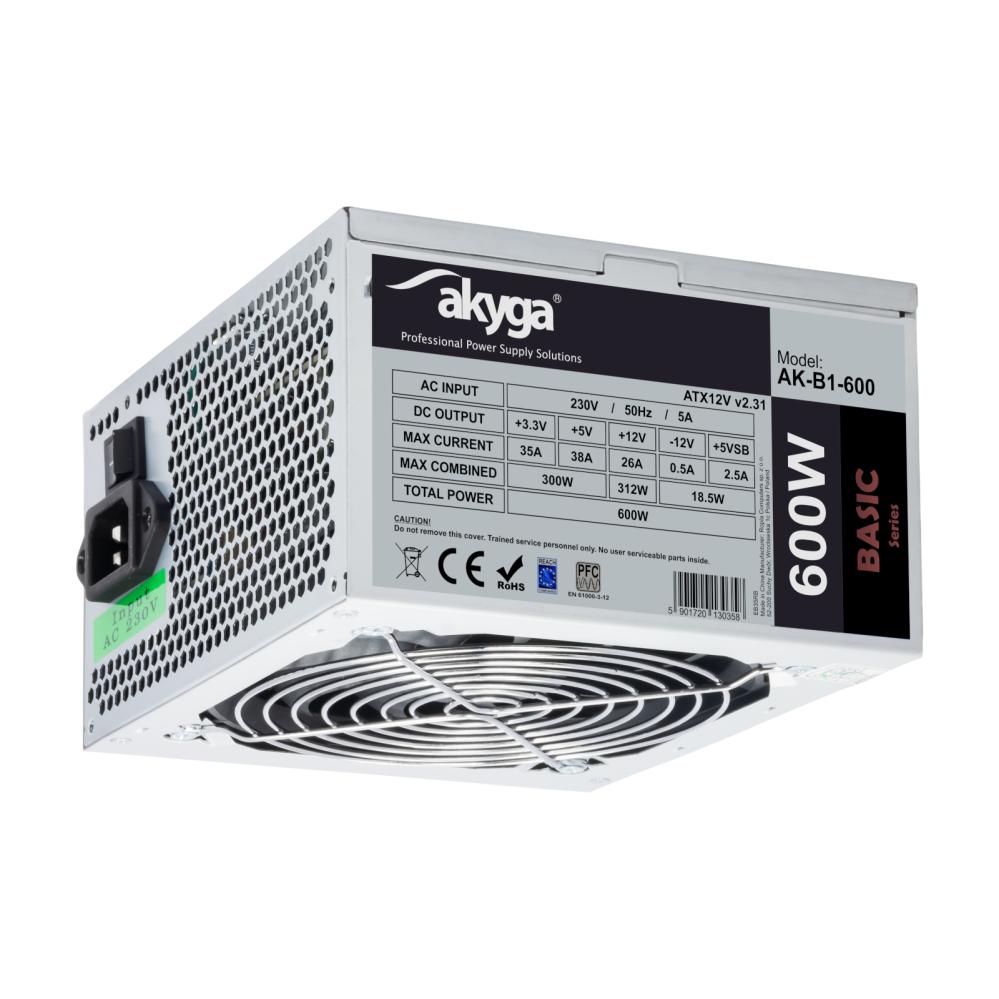

ATX power supply rated at 600 W from Akyga, compatible with the ATX 2.31 standard. The power supply is designed for desktop computers and provides stable power delivery up to 600 W.

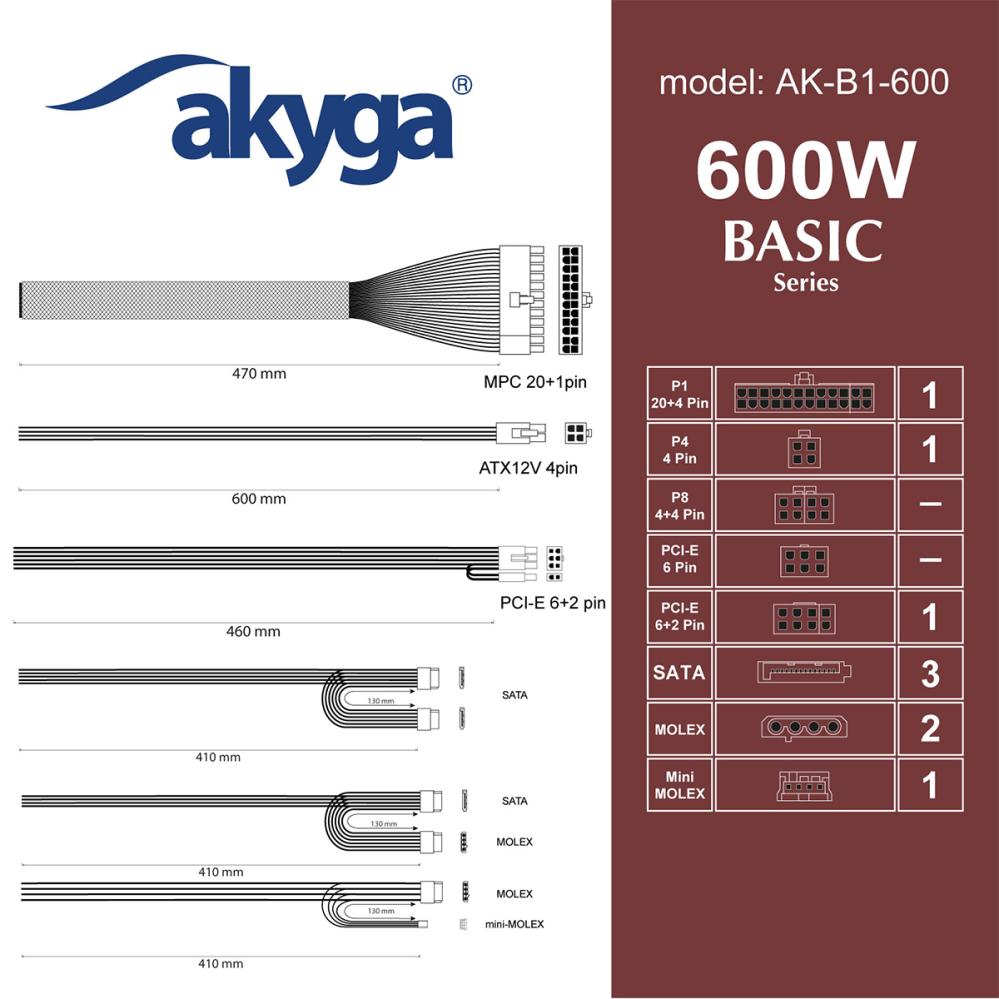

The power supply is equipped with a 24-pin motherboard connector, 4-pin ATX12V for CPU, and PCIe 6+2-pin for graphics cards. Four SATA connectors, two Molex, and one mini-Molex enable connection of storage devices and accessories. The built-in temperature-controlled 120 mm fan ensures efficient cooling during operation. A mechanical power switch allows easy shutdown without disconnecting the mains cable.
For increased operational reliability, the power supply includes multiple protection features such as overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection. The PFC filter contributes to stable operation.
Specifications:
- Model: AK-B1-600
- Power: 600 W
- Form factor: ATX 2.31
- Supply voltage: 230 V
- Efficiency: > 70%
- +3.3 V: 35 A
- +5 V: 38 A
- +12 V: 26 A
- Max load +12 V: 312 W
- Max load +3.3 V +5 V: 300 W
- Motherboard connector: 24-pin
- CPU connector: 4-pin ATX12V
- PCIe connector: 6+2-pin
- SATA connectors: 4 pcs
- Molex connectors: 2 pcs
- Mini-Molex: 1 pc
- Modular: No
- PFC: Passive
- Cooling: 120 mm fan, temperature controlled
- Power switch: Yes
- Protection: OVP, OCP, OPP, OTP, SCP
- Power input: IEC C14 (mains cable not included)
- DC cable length: 30–60 cm
- Product dimensions: 140 x 150 x 85 mm
- Weight (net): 1.12 kg
- Certifications: CE, RoHS, REACH
- Warranty: 24 months
