Product description

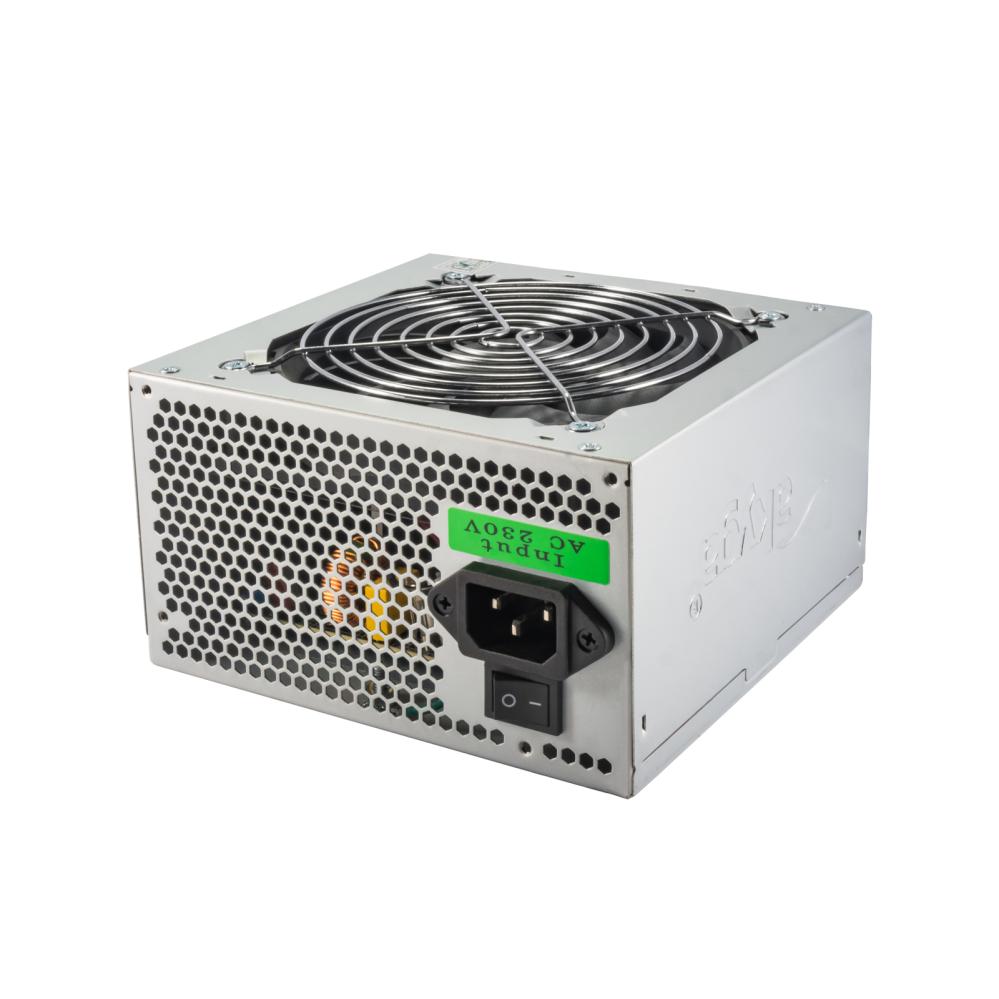

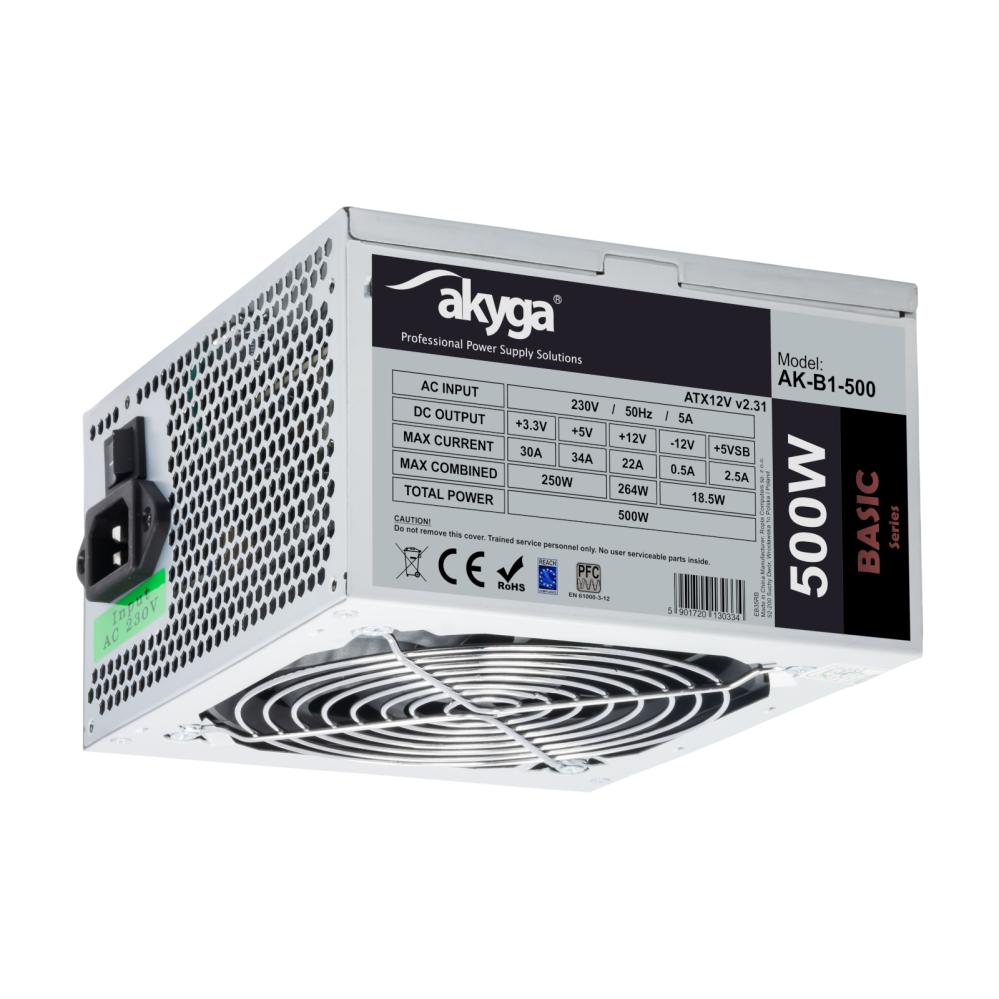

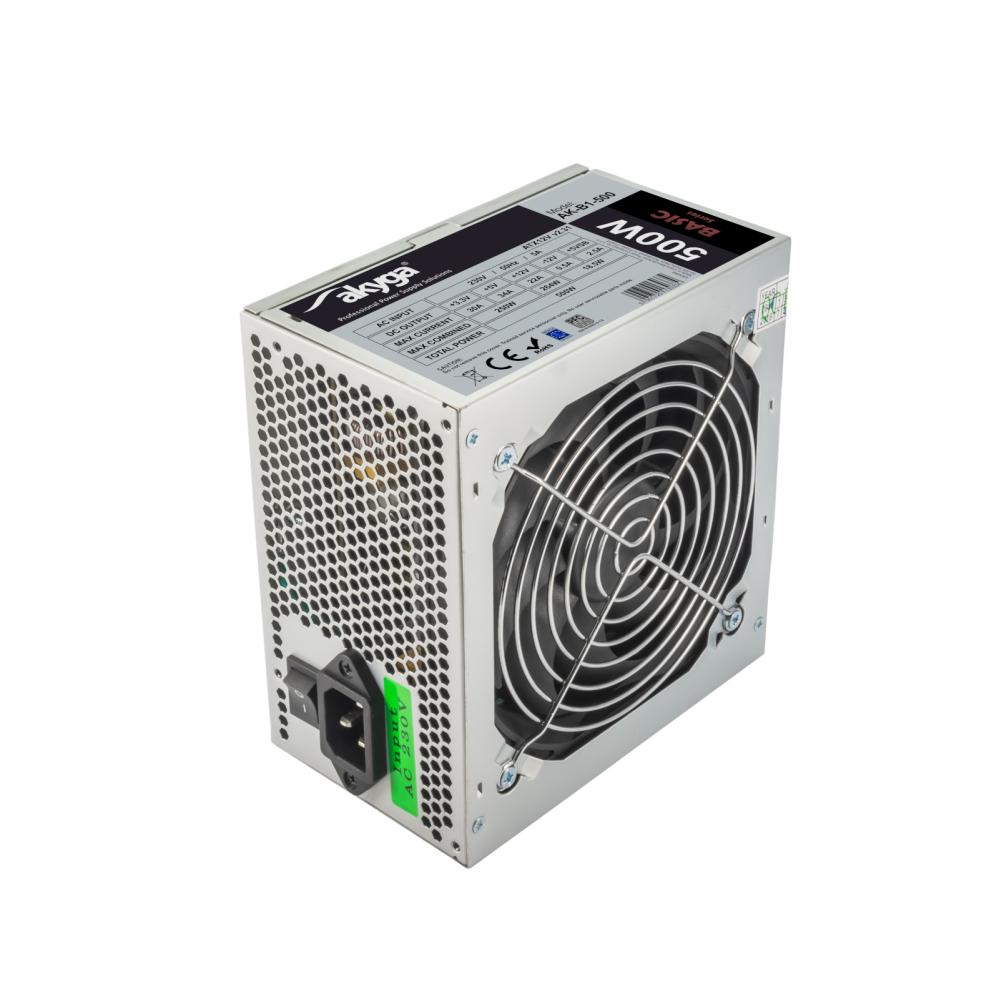

ATX power supply rated at 500 W from Akyga. Compatible with the ATX 2.31 standard. The power supply is designed for desktop computers and provides stable power delivery. Suitable for applications where reliable operation is required.

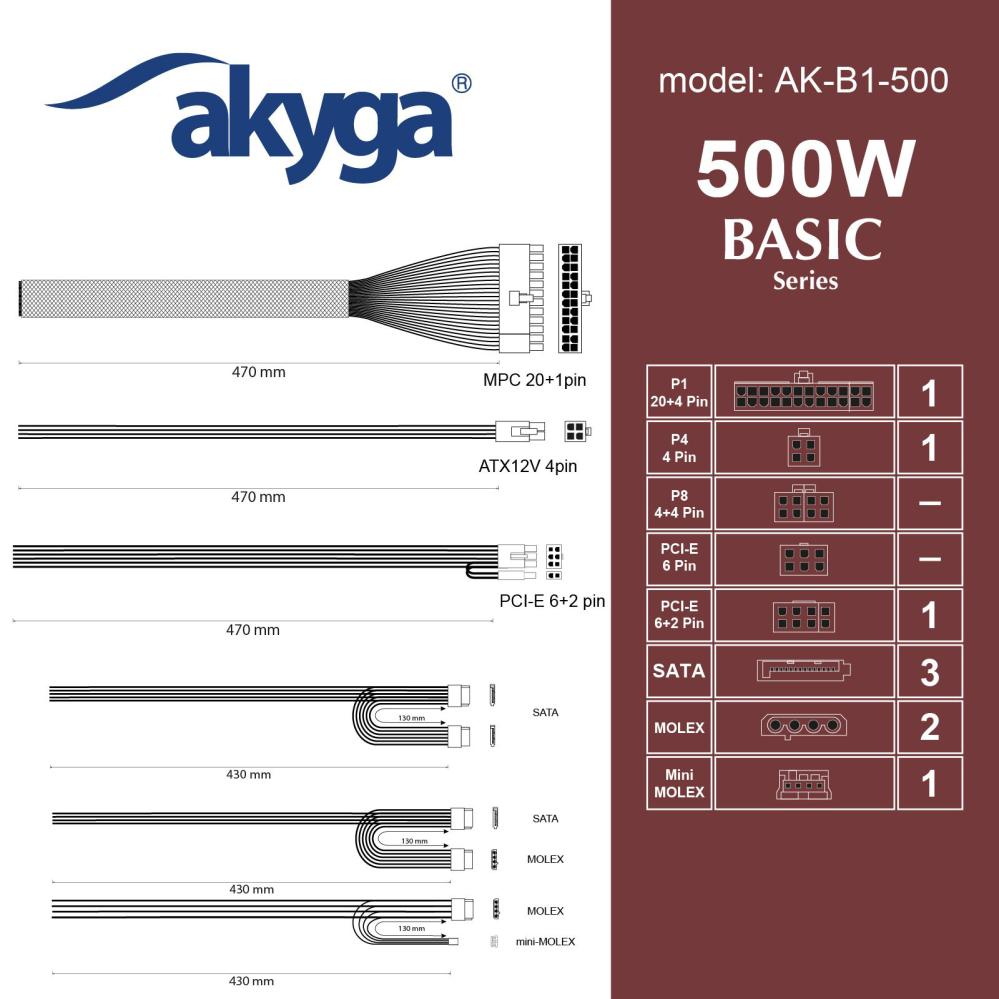

The power supply is equipped with a 24-pin motherboard connector, 4-pin ATX12V for CPU, and PCIe 6+2-pin for graphics cards. Three SATA connectors, two Molex, and one mini-Molex enable connection of storage devices and accessories. The built-in temperature-controlled 120 mm fan ensures quiet and efficient cooling during operation. A mechanical power switch allows easy shutdown without disconnecting the mains cable.
For stable and safe operation, the power supply includes multiple protection features such as overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection. The PFC filter contributes to stable operation and reduced interference.
Specifications:
- Model: AK-B1-500
- Power: 500 W
- Form factor: ATX 2.31
- Series: Basic
- Supply voltage: 230 V
- Efficiency: > 70%
- 80 Plus: No
- +3.3 V: 30 A
- +5 V: 34 A
- +12 V: 22 A
- Max load +12 V: 264 W
- Max load +3.3 V +5 V: 250 W
- Motherboard connector: 24-pin
- CPU connector: 4-pin ATX12V
- PCIe connector: 6+2-pin
- SATA connectors: 3 pcs
- Molex connectors: 2 pcs
- Mini-Molex: 1 pc
- PFC: Passive
- Cooling: 120 mm fan, temperature controlled
- Power switch: Yes
- Protection: OVP, OCP, OPP, OTP, SCP
- Power input: IEC C14 (power cable not included)
- Cable length: 30–60 cm
- Product dimensions: 140 x 150 x 85 mm
- Weight: 1.03 kg
- Certifications: CE, RoHS, REACH
- Warranty: 24 months
