Product description

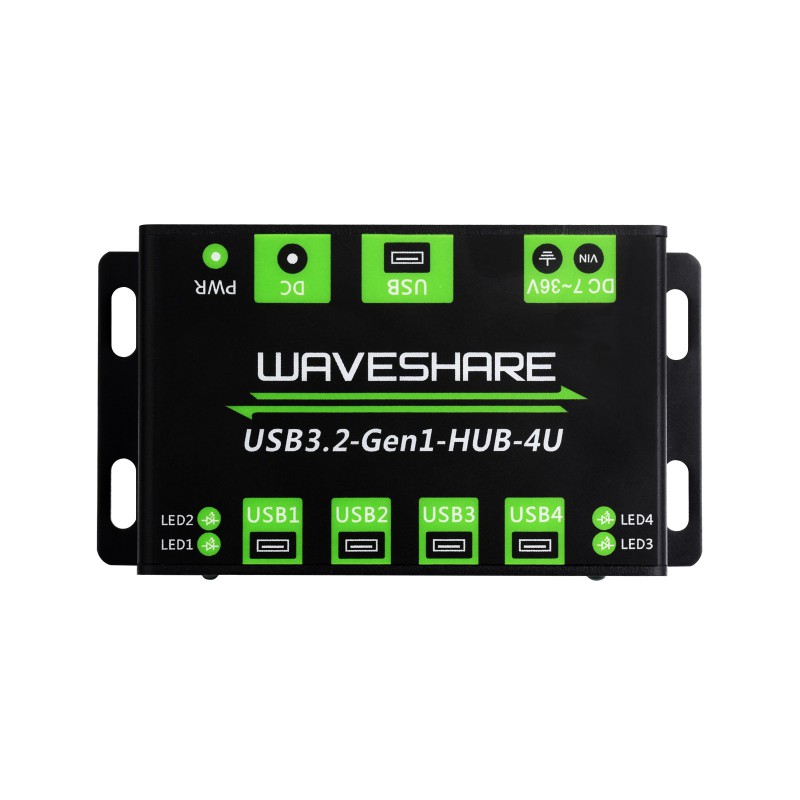

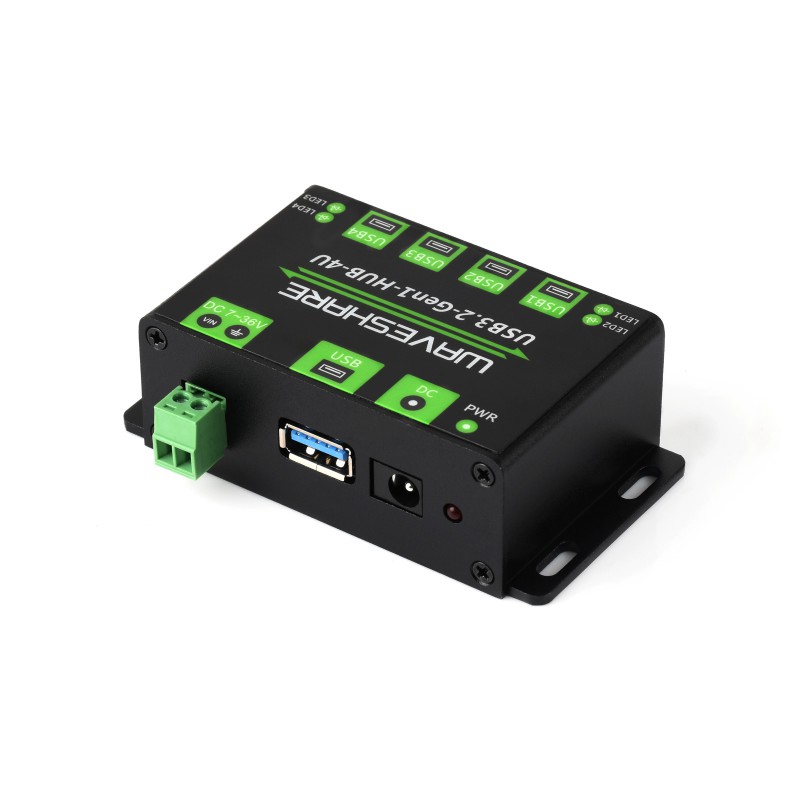

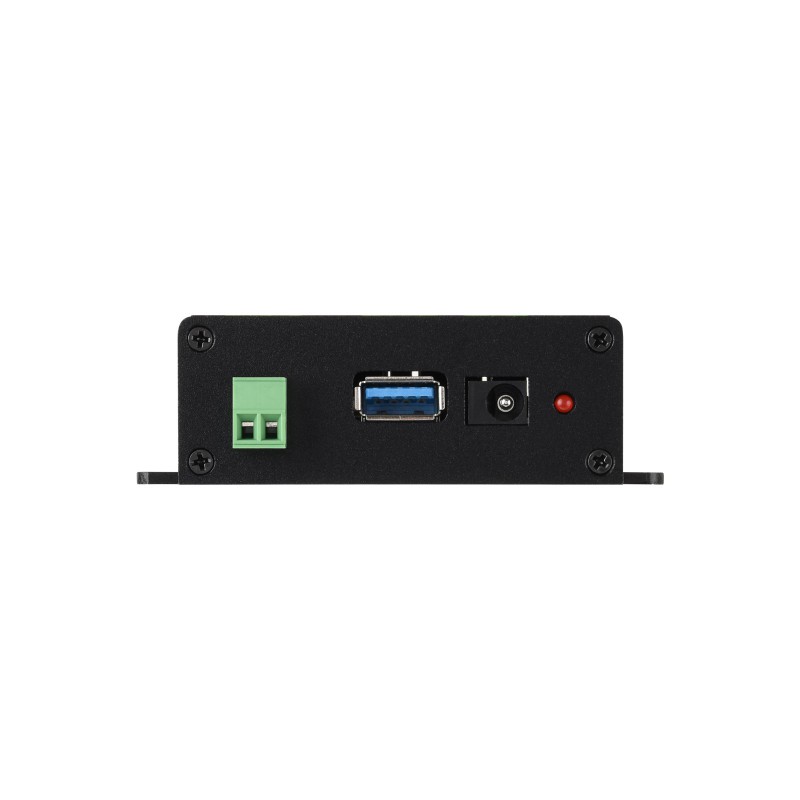

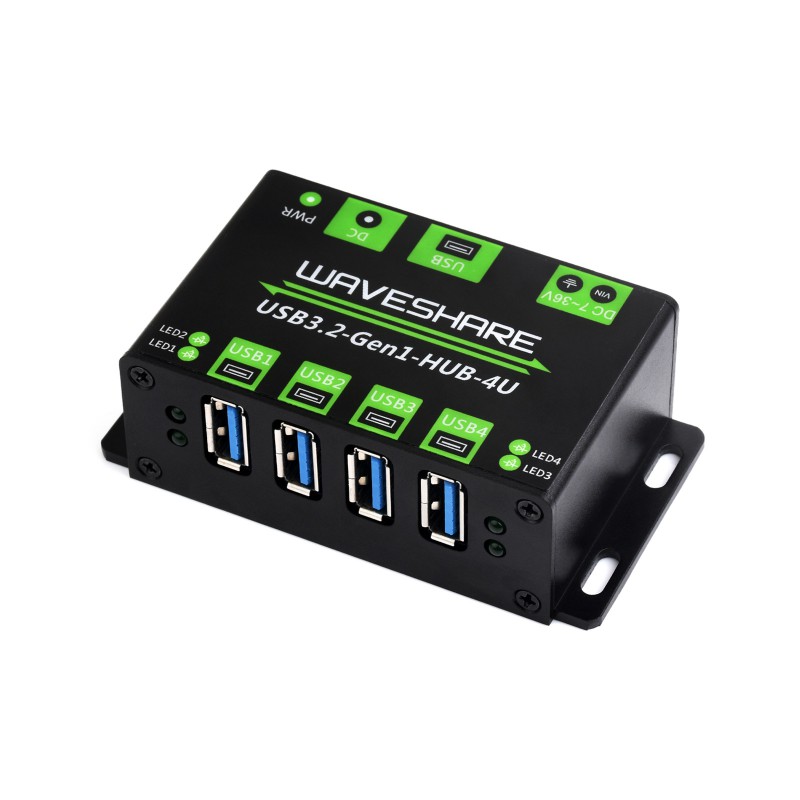

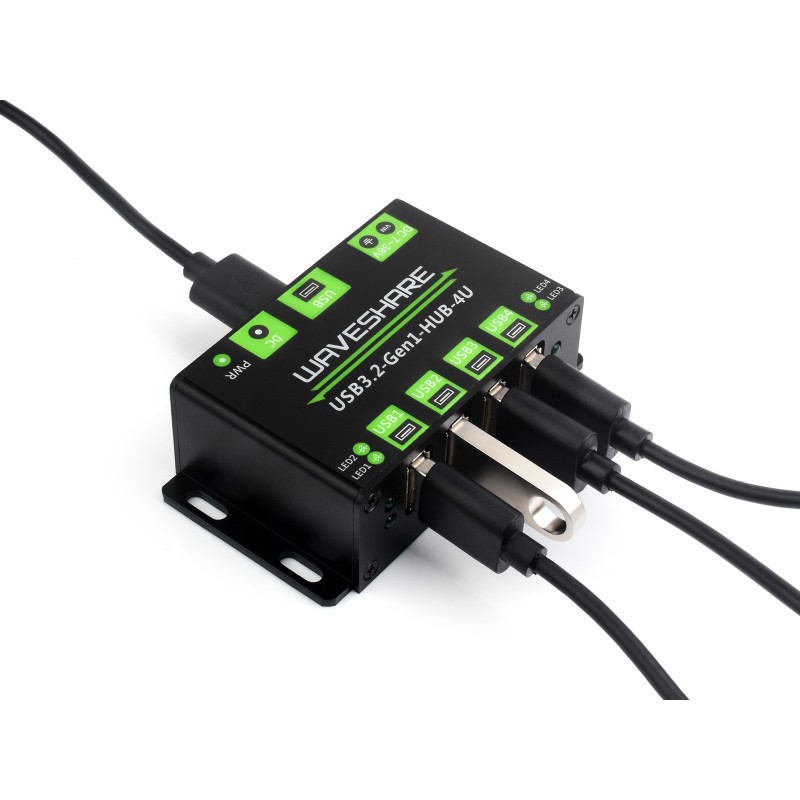

USB3.2-Gen1-HUB-4U is an industrial USB hub with four USB 3.2 ports for connecting multiple USB devices to a computer or single-board computer. The hub features a metal enclosure with mounting flanges for screw installation. Supports external power supply for powering USB devices with higher power requirements. Additional features include multiple protection circuits for industrial and demanding environments. Plug and play functionality requires no drivers.
Specifications:
- Model: USB3.2-Gen1-HUB-4U
- Standard: USB 3.2 Gen1
- Compatibility: USB 3.2 / 2.0 / 1.1
- Number of ports: 4x USB-A
- Data transfer rate: Up to 5Gbps
- USB input: USB-A
- USB outputs: 4x USB-A
- External supply voltage: 7-36VDC (screw terminal) or 5VDC via 2.1x5.5mm DC plug
- Rated current (max) / port: 2A (requires external power supply)
- Power supply current (max): 5A for all USB ports
- Protection features: Overvoltage, overcurrent, short circuit, overtemperature, reverse current, undervoltage lockout, 8kV ESD protection, and filter protection
- Indicators: Power indicator and activity indicator for each USB port
- Enclosure: Metal
- Mounting: Flanges for fixed installation
- Operating temperature: 0°C to 75°C
- Included accessories: USB-A to USB-A cable, 1m
