Product description
ATX power supply rated at 350 W from the Akyga Ultimate series, compatible with the ATX 2.31 standard. The power supply is designed to provide stable power delivery in systems with higher demands and more advanced configurations. With 80 Plus Bronze certification and efficiency above 85%, it enables energy-efficient operation and reduced heat generation.

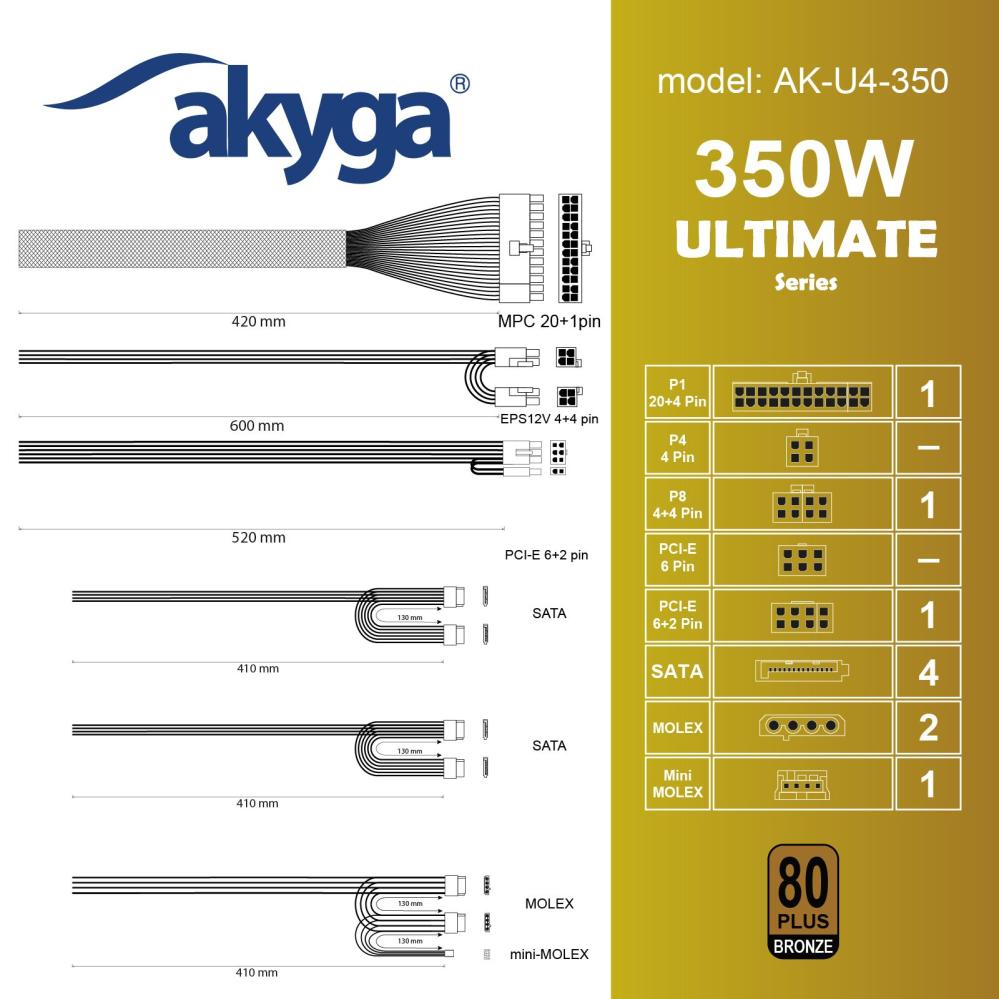

The power supply is equipped with a 24-pin motherboard connector, EPS 4+4-pin for CPU, and PCIe 6+2-pin for graphics cards. Four SATA connectors, two Molex, and one mini-Molex enable connection of storage devices and accessories. The built-in temperature-controlled 120 mm fan ensures efficient cooling during operation. A mechanical power switch allows easy shutdown without disconnecting the mains cable.
For stable and safe operation, the power supply includes multiple protection features such as overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, undervoltage protection, and short circuit protection. Active PFC ensures stable operation and reduces interference in the power system. A power cable is included.
Specifications:
- Model: AK-U4-350
- Power: 350 W
- Form factor: ATX 2.31
- Series: Ultimate
- Supply voltage: 230 V
- Efficiency: > 85%
- Certification: 80 Plus Bronze
- +3.3 V: 10 A
- +5 V: 10 A
- +12 V: 21 A
- Max load +12 V: 252 W
- Max load +3.3 V +5 V: 85 W
- Motherboard connector: 24-pin
- CPU connector: 4+4-pin EPS
- PCIe connector: 6+2-pin
- SATA connectors: 4 pcs
- Molex connectors: 2 pcs
- Mini-Molex: 1 pc
- PFC: Active

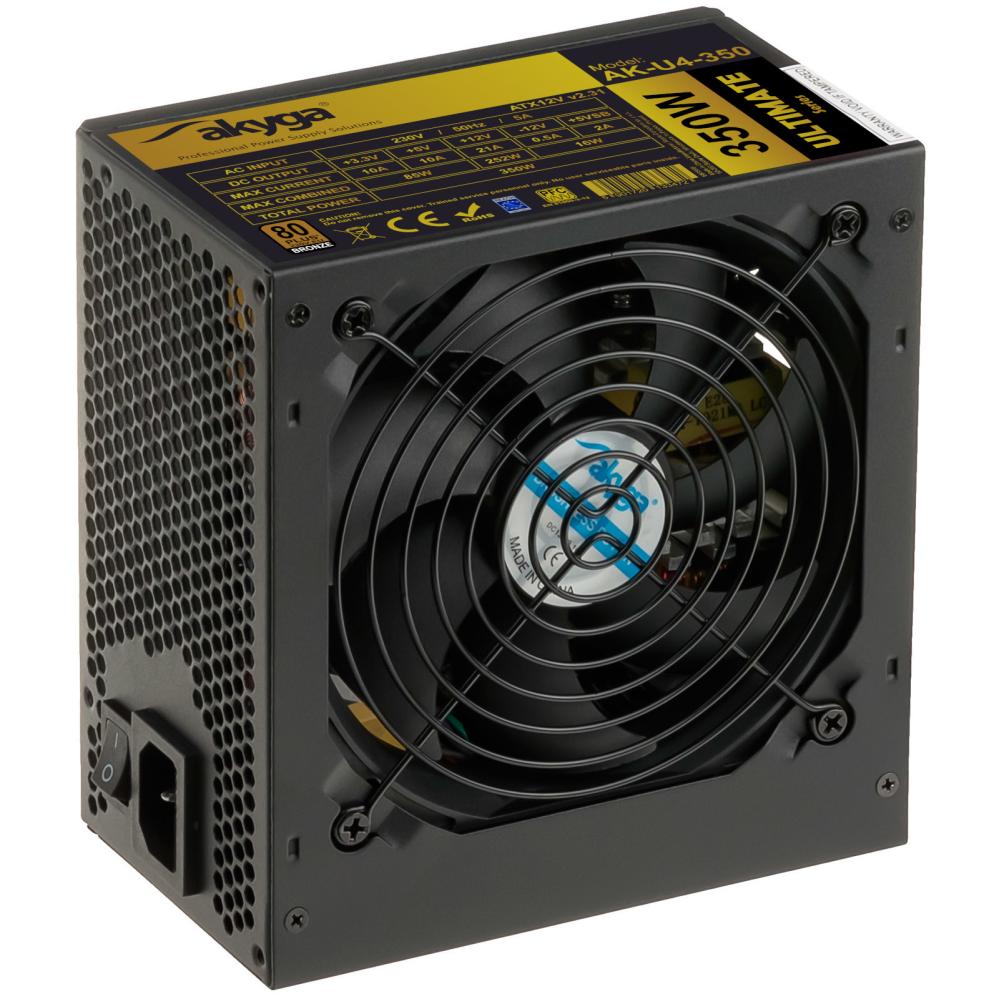

- Cooling: 120 mm fan, temperature controlled
- Power switch: Yes
- Protection: OVP, OCP, OPP, OTP, SCP, UVP
- Power input: IEC C14, power cable included
- Cable length: 40–55 cm
- Product dimensions: 140 x 150 x 90 mm
- Weight: 1.2 kg
- Certifications: CE, RoHS, REACH
- Warranty: 36 months
