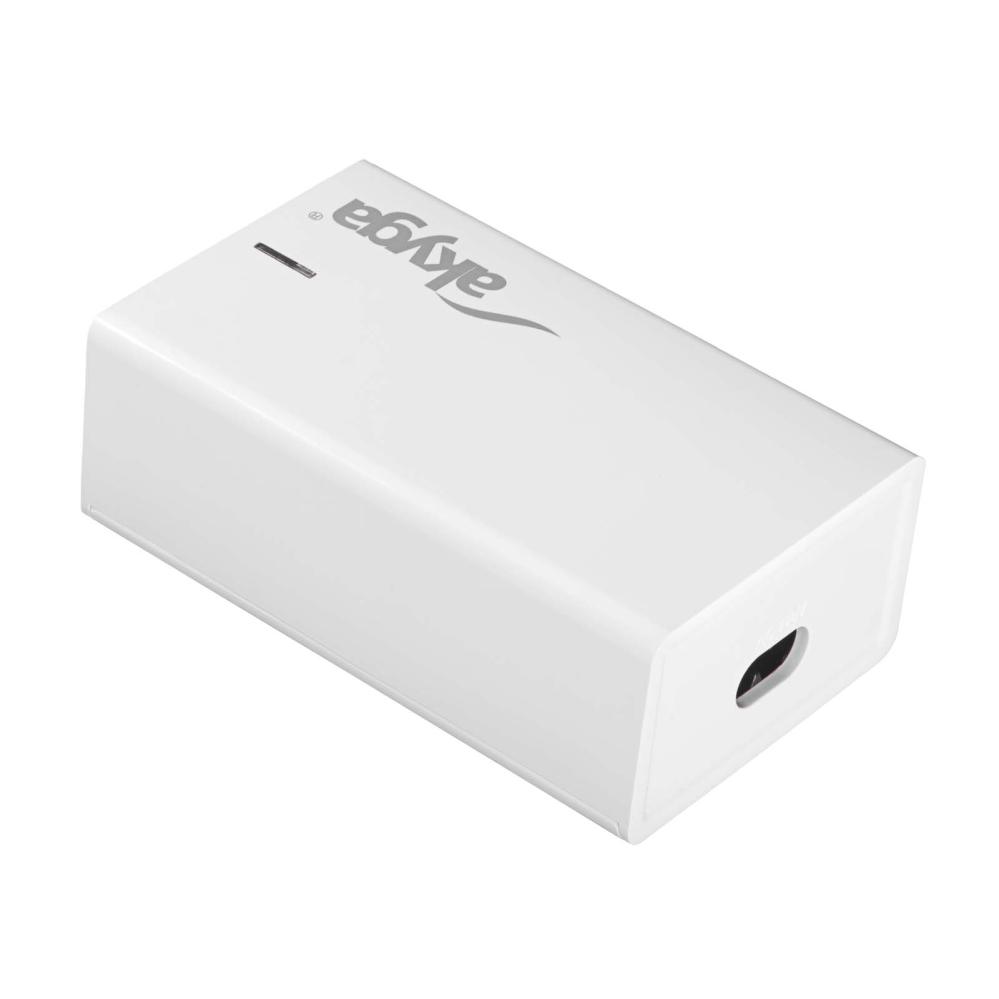

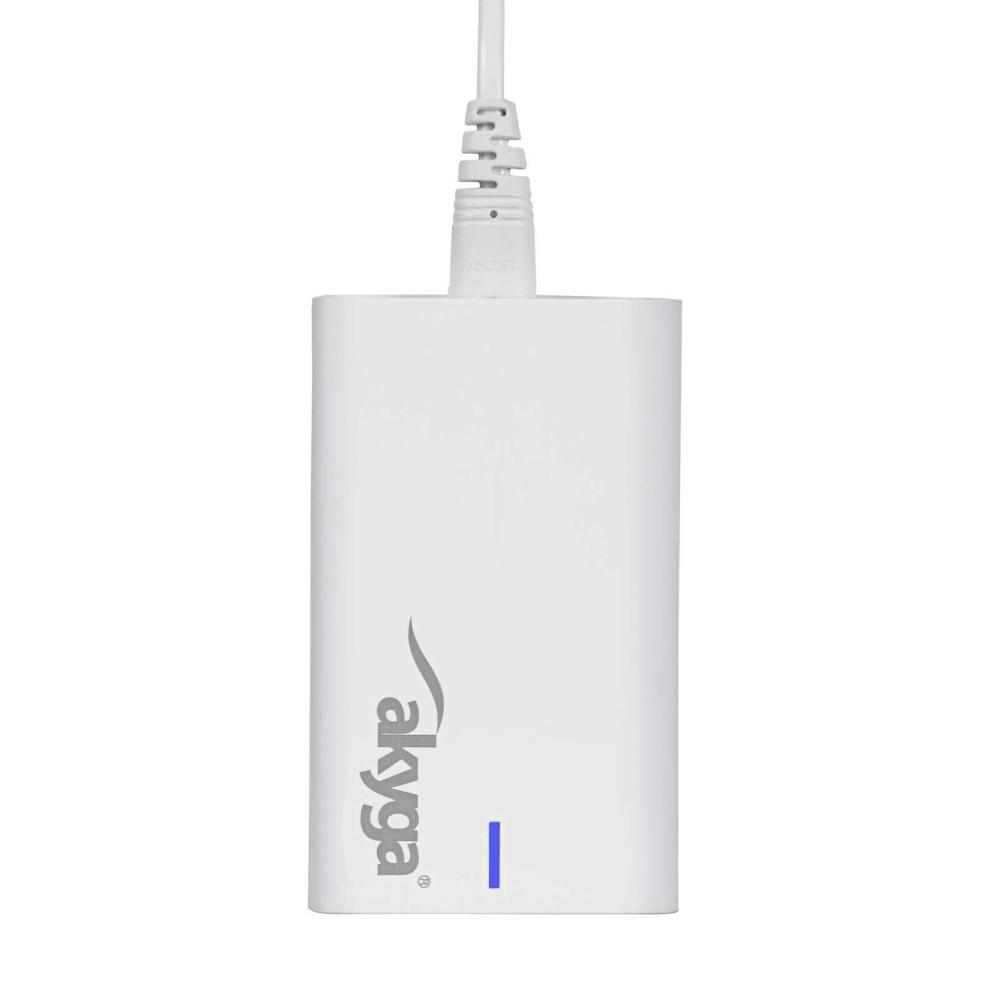

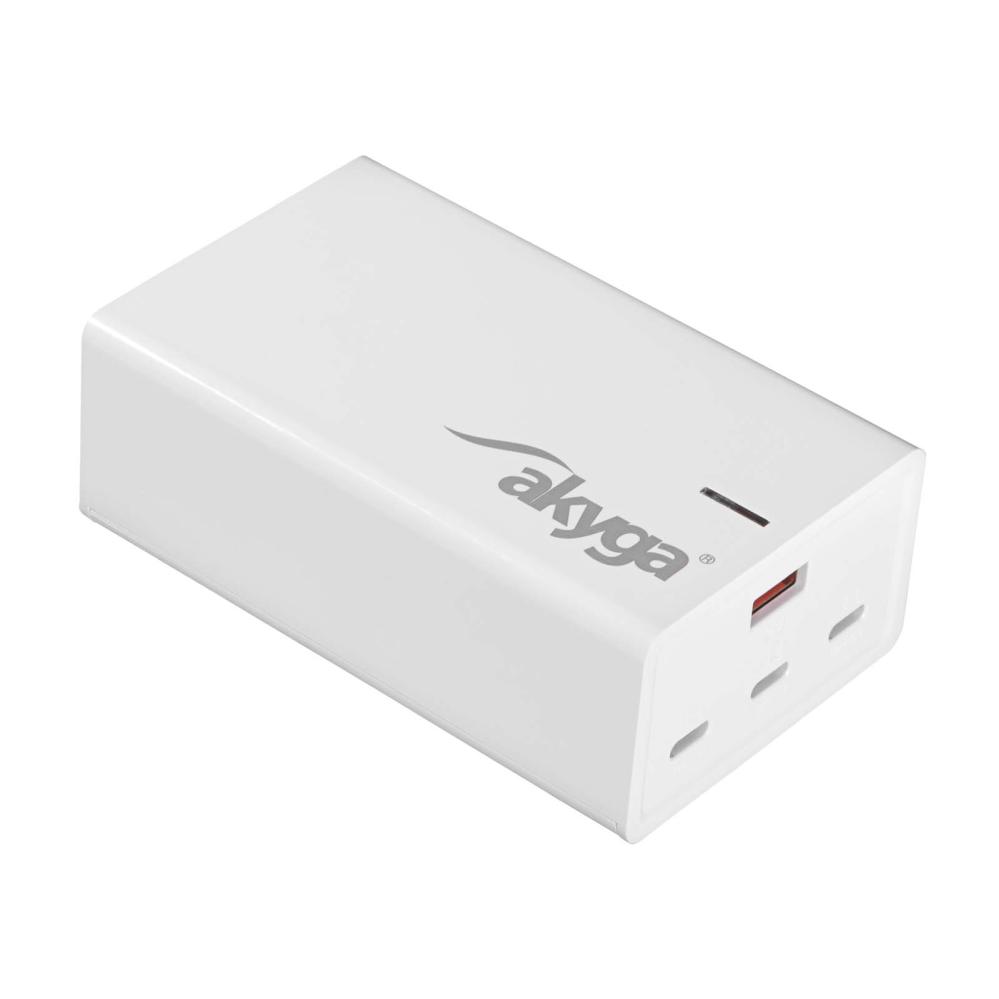

USB-C PD GaN multiport snabbladdare 140W

Multiport USB fast charger. Designed to charge multiple devices simultaneously and suitable for both desktop environments and more demanding applications. With three USB-C ports and one USB-A port, smartphones, tablets, laptops, and other devices can be charged or powered in parallel.

Thanks to GaN technology, high efficiency is achieved in a compact format with reduced heat generation. Support for Power Delivery enables fast and adaptive charging depending on the connected device. The charger delivers up to 140 W via USB-C ports and includes built-in protection against overcurrent, overvoltage, overheating, and short circuit. Supplied with a power cable (IEC C7).

Specifications:

• Model: AK-CH-25
• Supply voltage: 110–240 V AC, 50/60 Hz
• Power: 140 W
• Standard: Power Delivery 3.0 and Quick Charge 3.0
• USB-A output: 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A (max 30 W)
• USB-C PD1/PD2 output: 5 V / 3 A, 9 V / 3 A, 15 V / 3 A, 20.5 V / 5 A, 28 V / 5 A (max 140 W)
• USB-C PD3 output: 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A, 15 V / 2 A, 20 V / 1.5 A (max 30 W)

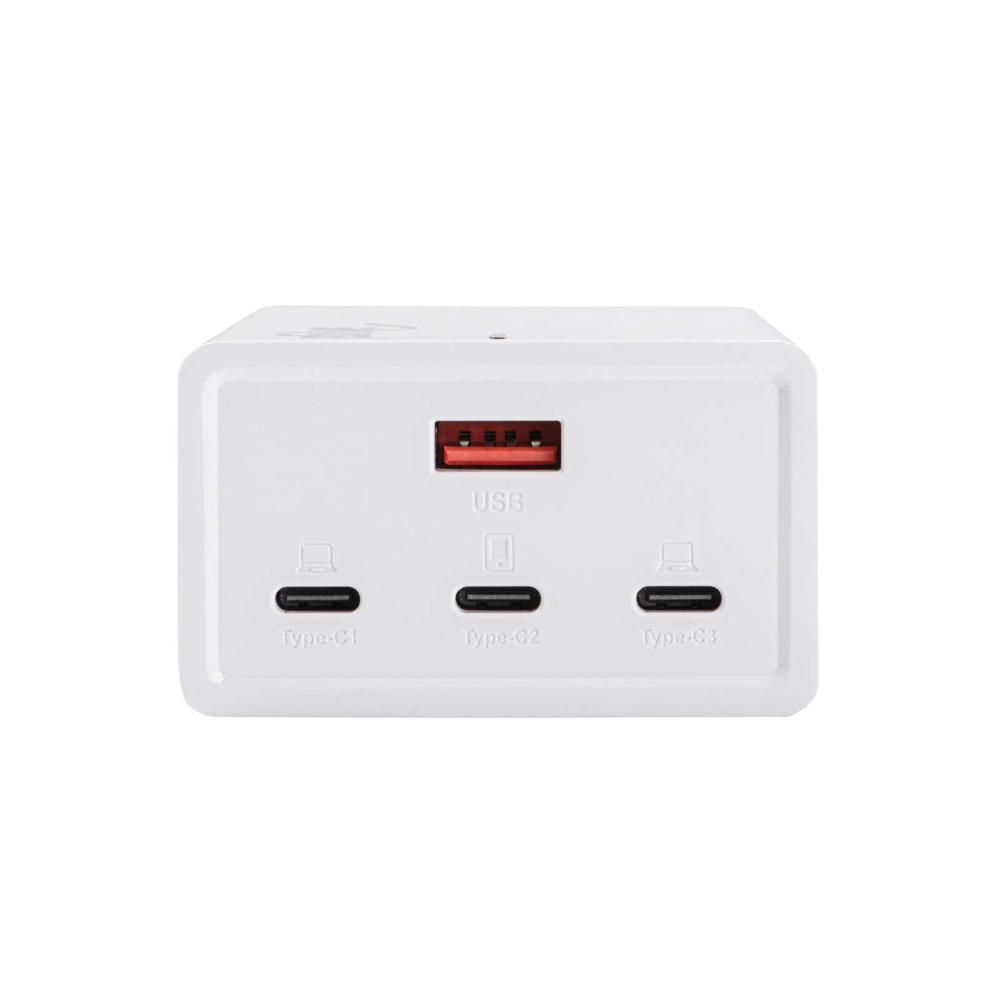

• Number of ports: 3 x USB-C, 1 x USB-A

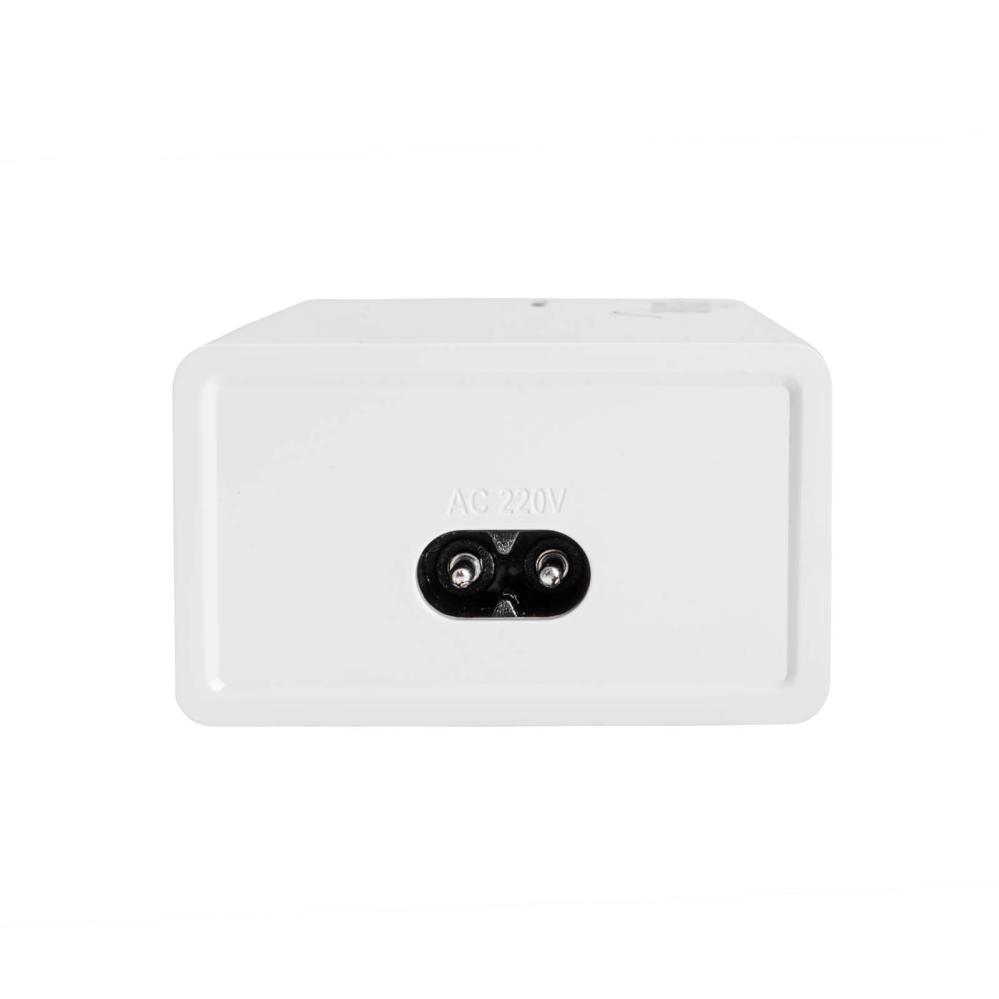

• Power connector: IEC C7
• Protection: OVP, OCP, OTP, SCP
• Material: ABS
• Color: White
• Operating temperature: 5–50 °C
• Dimensions: 102 x 62 x 36 mm
• Weight: 258 g
• Certifications: CE, FCC, RoHS, REACH

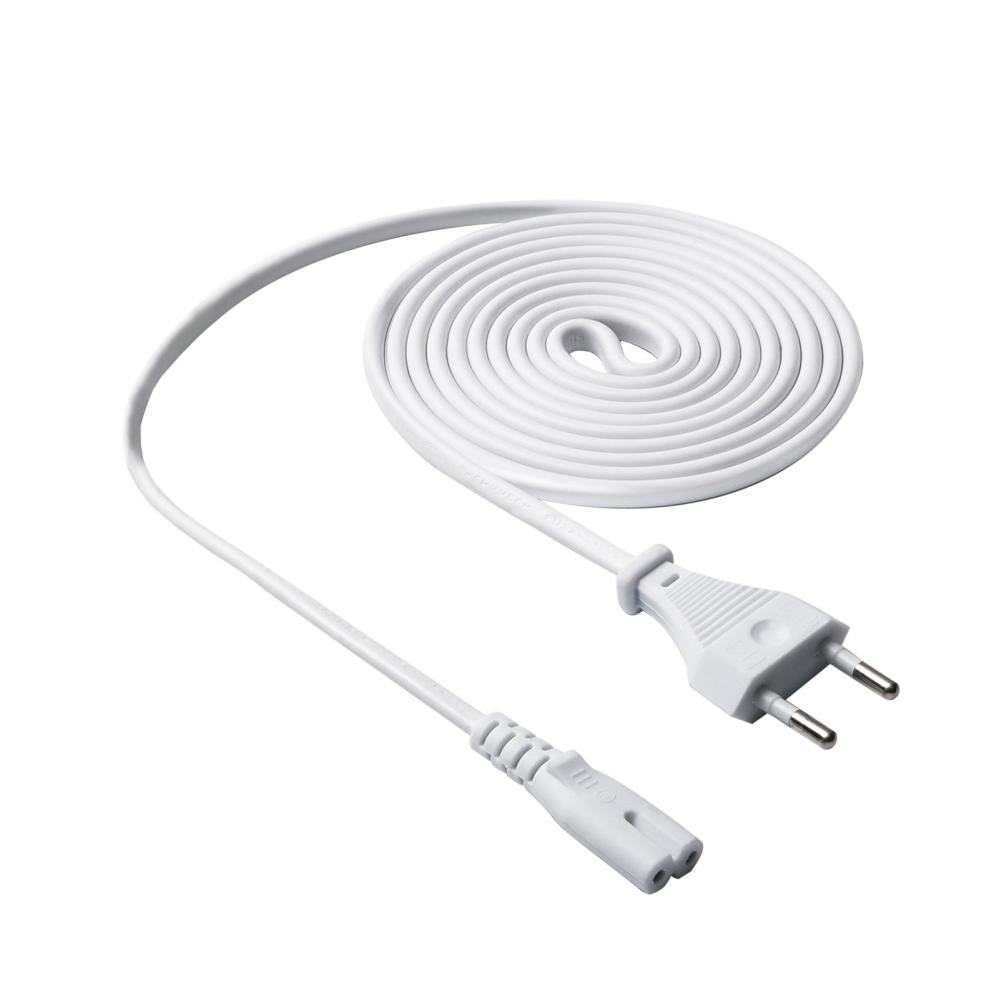

• Included accessories: Power cable
