Product description

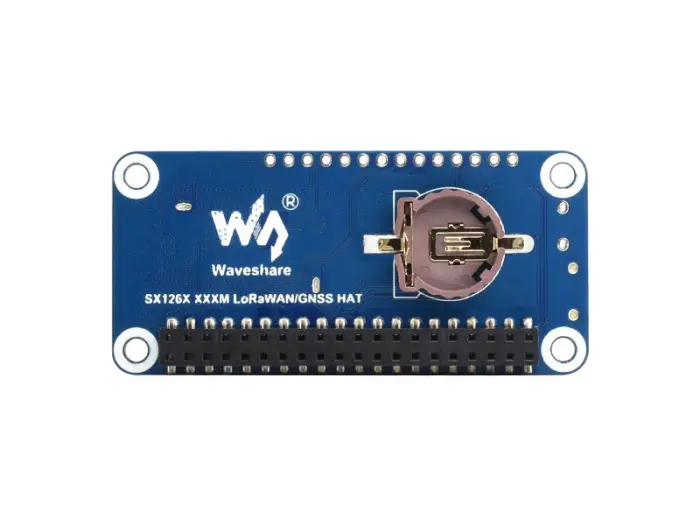

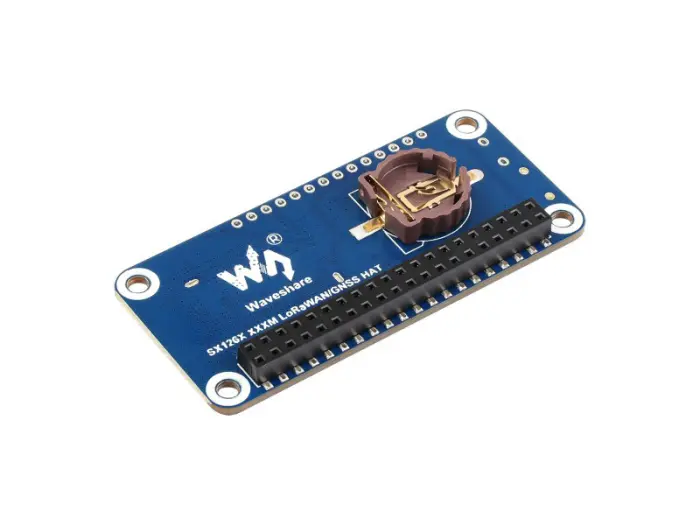

433 MHz LoRaWAN with GNSS for Raspberry Pi. Based on the new generation SX1262 RF chip, providing longer range, improved interference immunity, and lower power consumption compared to previous generations. Battery holder for ML1220 rechargeable battery, used to preserve information during power failures and for quick start-up. Supplied with a 433 MHz magnetic antenna, magnetic GNSS antenna, 2 × IPEX (uFL) to SMA adapters, mounting screws, and a 40-pin GPIO stacking header.
Specifications:
- RF chip: SX1262
- Frequency band: 433 MHz
- Modulation: LoRa and (G)FSK
- Data rate LoRa: 0.018–62.5 kbps, (G)FSK: 0.6–300 kbps
- Output power (max): 22 dBm
- Supply voltage: 3.3 V
- Backup battery: ML1220 rechargeable (not included)

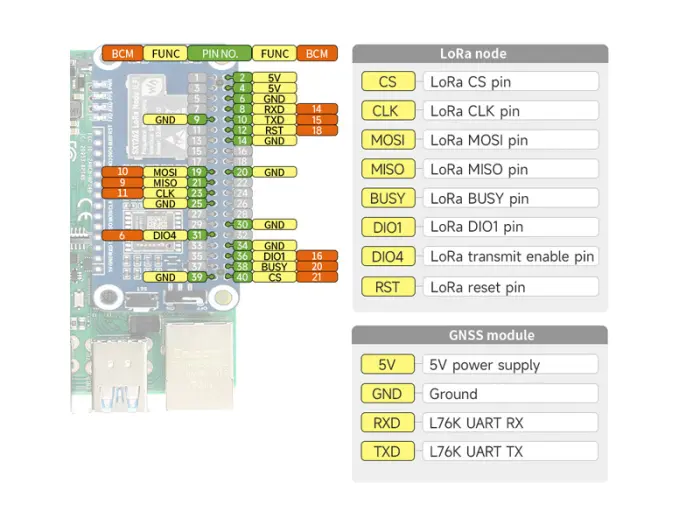

- Communication interface: SPI via Raspberry Pi 40-pin GPIO header

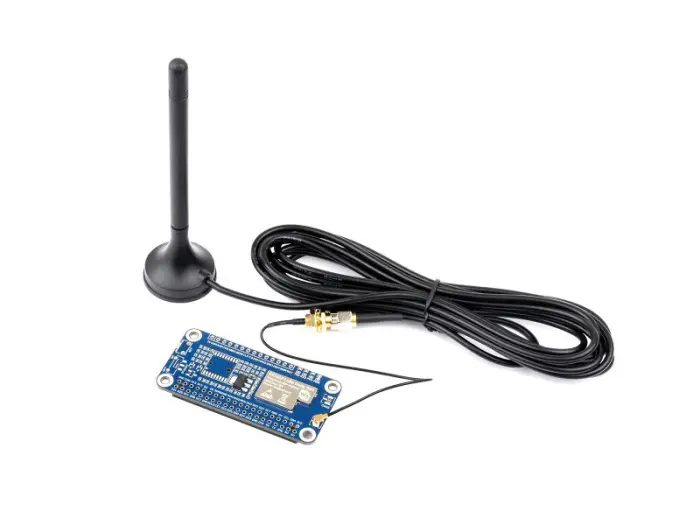

- Supplied antennas: Magnetic GNSS antenna and 433 MHz magnetic antenna including antenna adapters
- GNSS: GPS/GLONASS/BDS/QZSS, on-board LED indicators, GNSS wake-up button
