Product description

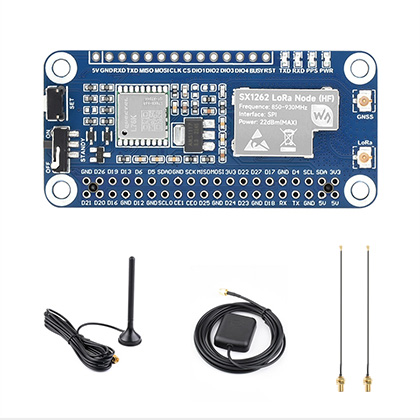

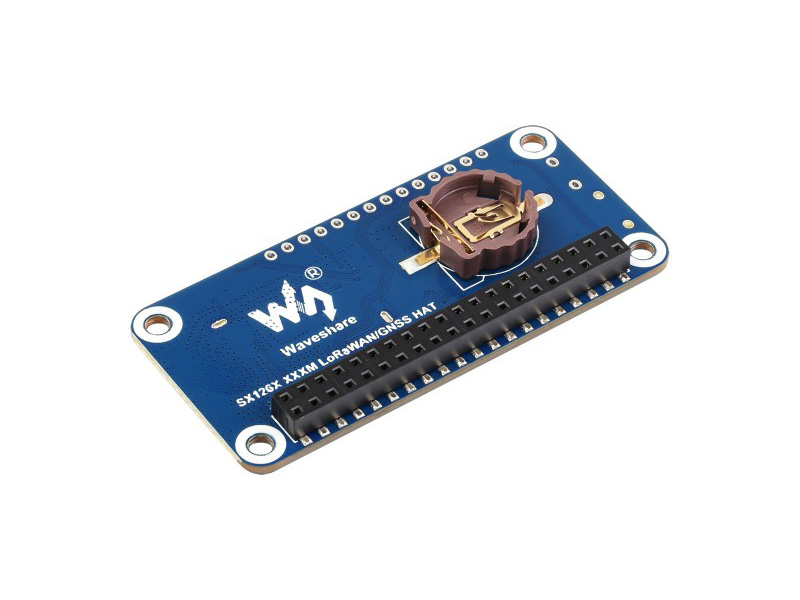

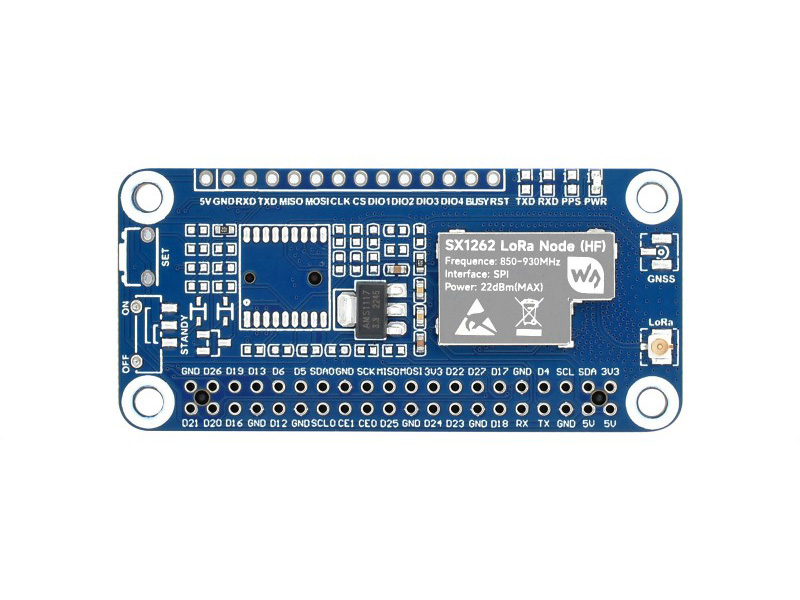

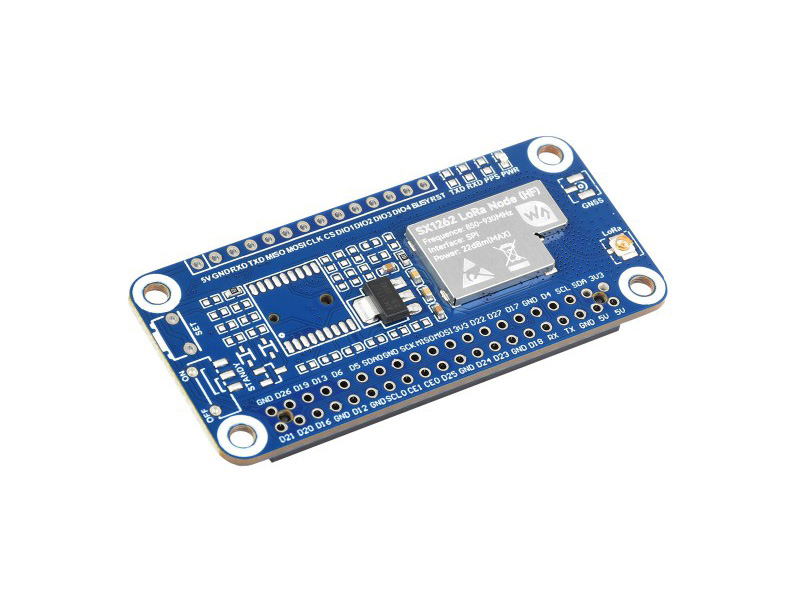

SX1262 LoRaWAN / GNSS HAT from Waveshare is an expansion board for Raspberry Pi with support for LoRaWAN communication and an integrated GNSS function. GNSS enables positioning via GPS/BeiDou, making the module suitable for tracking and geographically distributed IoT systems.

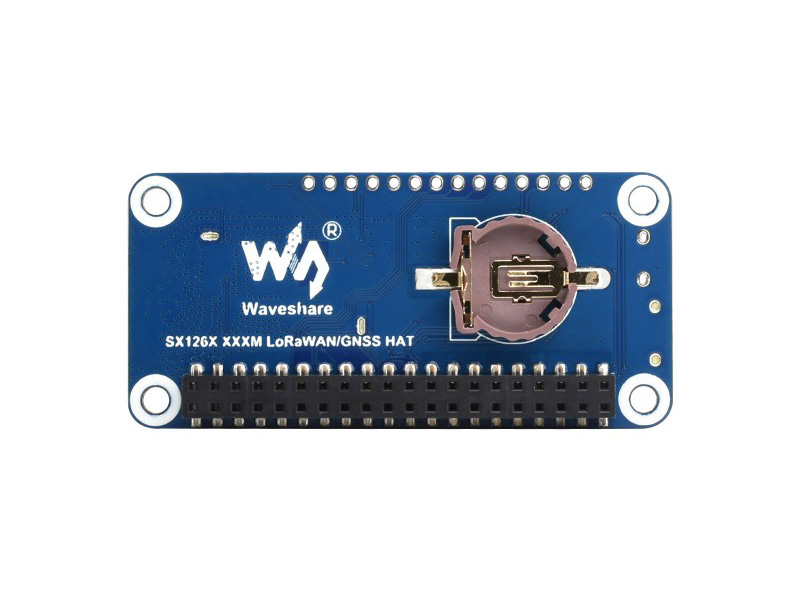

The board is based on the SX1262 RF chip, offering high energy efficiency, long range, and strong interference immunity. In combination with a LoRa gateway, the system can connect to cloud services such as TTN to build scalable IoT solutions. The integrated GNSS module (L76K) supports both GPS and BeiDou and provides accurate positioning and timing data. Battery holder for a rechargeable coin cell (enables faster startup).

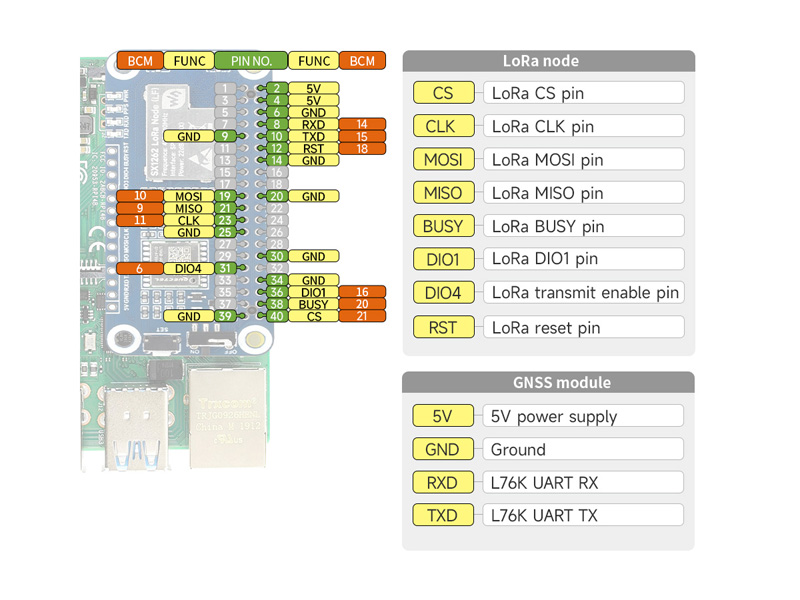

The board connects directly to the Raspberry Pi via the standard 40-pin GPIO header and communicates via UART. A built-in USB-to-UART converter simplifies connection to a computer or other control systems. Multiple operating modes are supported, including low-power mode with Wake-on-Radio, making the solution suitable for battery-powered applications.
LoRa modulation provides long range, typically up to approximately 5 km under favorable conditions, along with features such as automatic forwarding, signal monitoring, and remote configuration.

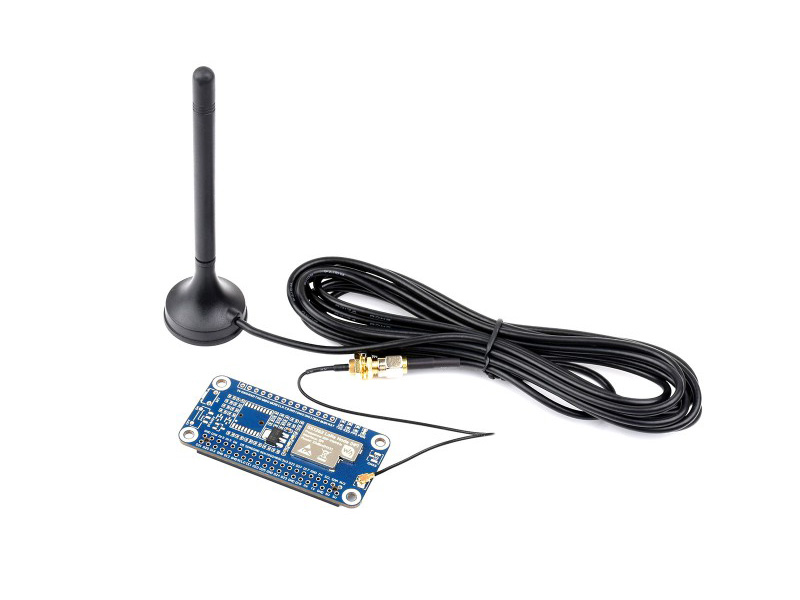

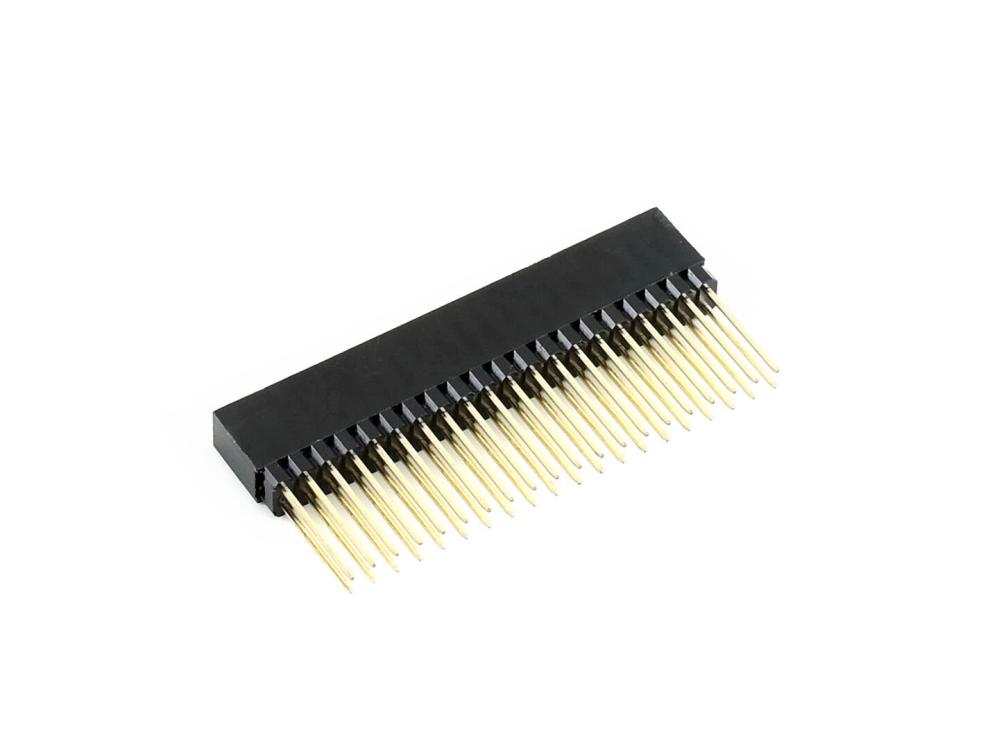

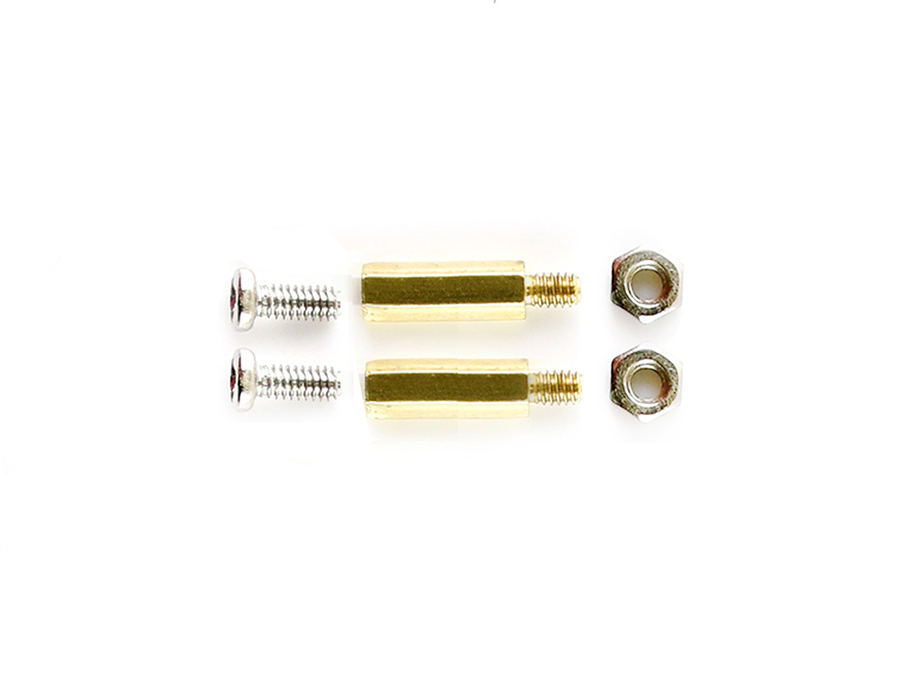

Includes: Magnetic antenna, GNSS antenna, 2 x antenna adapters, stacking header, and mounting screws.

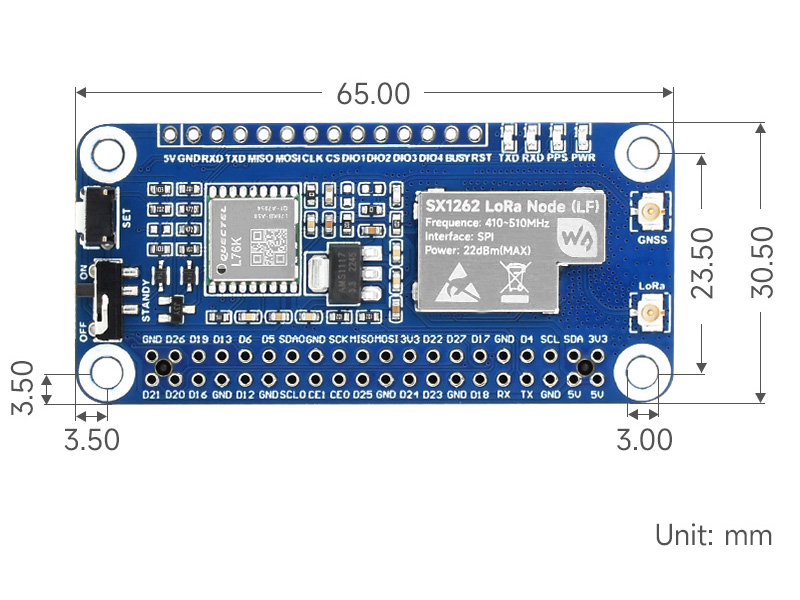

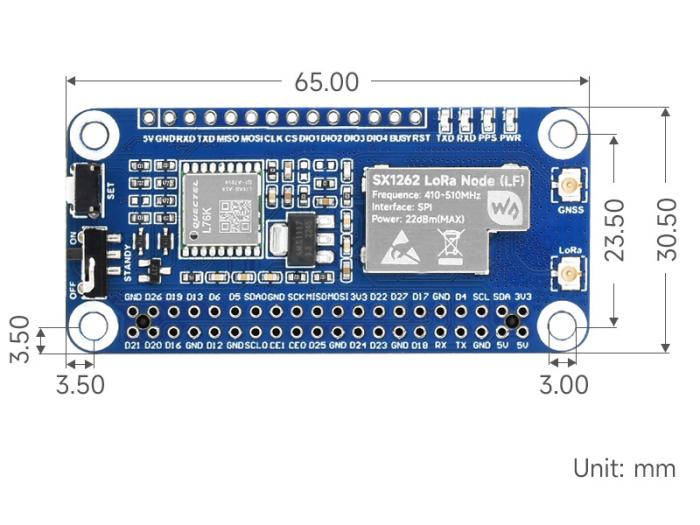

Specifications:
- RF chip: SX1262
- Frequency band: 868 MHz
- Modulation: LoRa, (G)FSK
- Data rate: 0.018–62.5 kbps (LoRa), up to 300 kbps ((G)FSK)
- Transmit power: up to 22 dBm
- Receiver sensitivity: down to -147 dBm
- Communication interface: UART
- GPIO connection: 40-pin Raspberry Pi header
- Supply voltage: 5 V
- Logic level: 3.3 V / 5 V
- Current consumption: approx. 133 mA transmitting, approx. 11 mA receiving, approx. 2 µA standby
- Range: up to approx. 5 km (depending on environment and configuration)
- GNSS: GPS / BeiDou
- Battery backup (GNSS): ML1220 rechargeable coin cell (not included)
- Indication: 4 x status LEDs
- Operating temperature: -40 to +85 °C
- Antenna connector: 2 x u.FL / IPEX

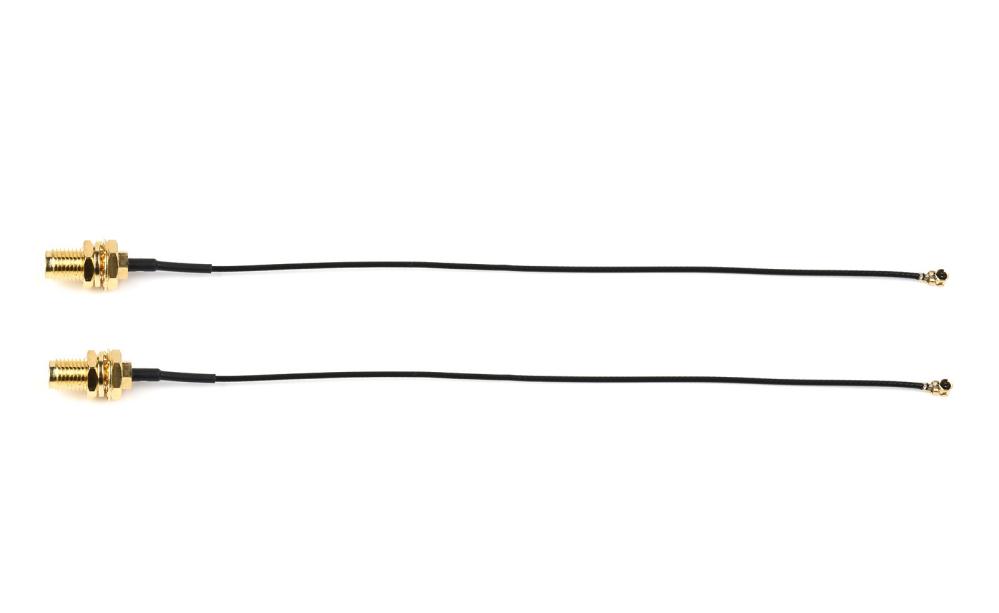

- Antenna adapter: 2 x u.FL / IPEX to SMA, 170 mm (included)

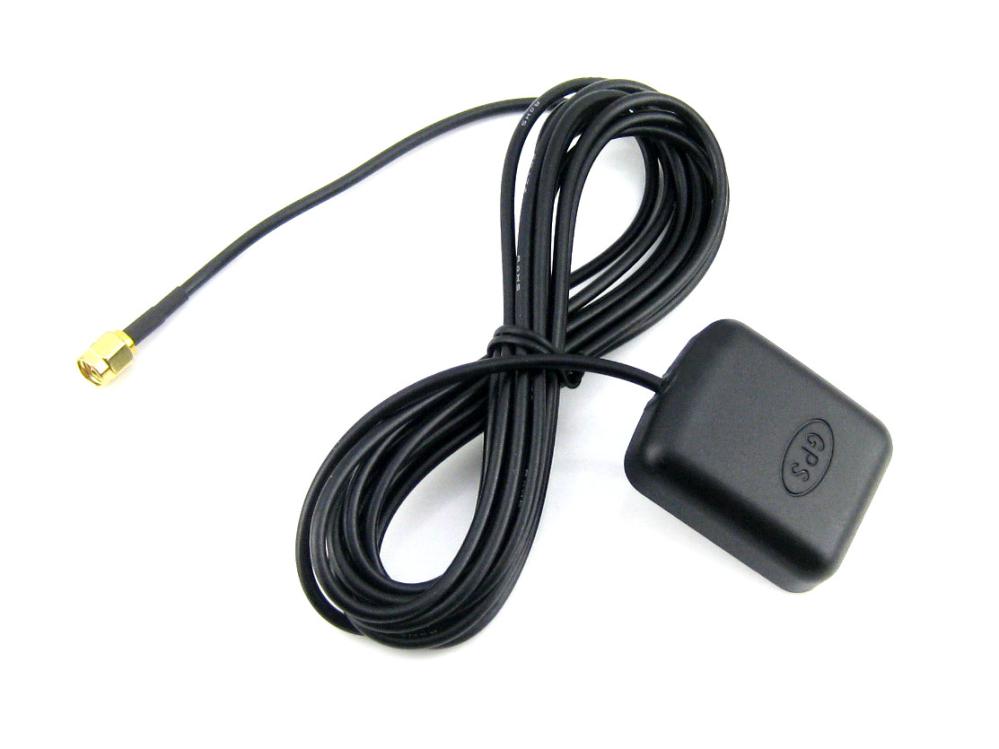

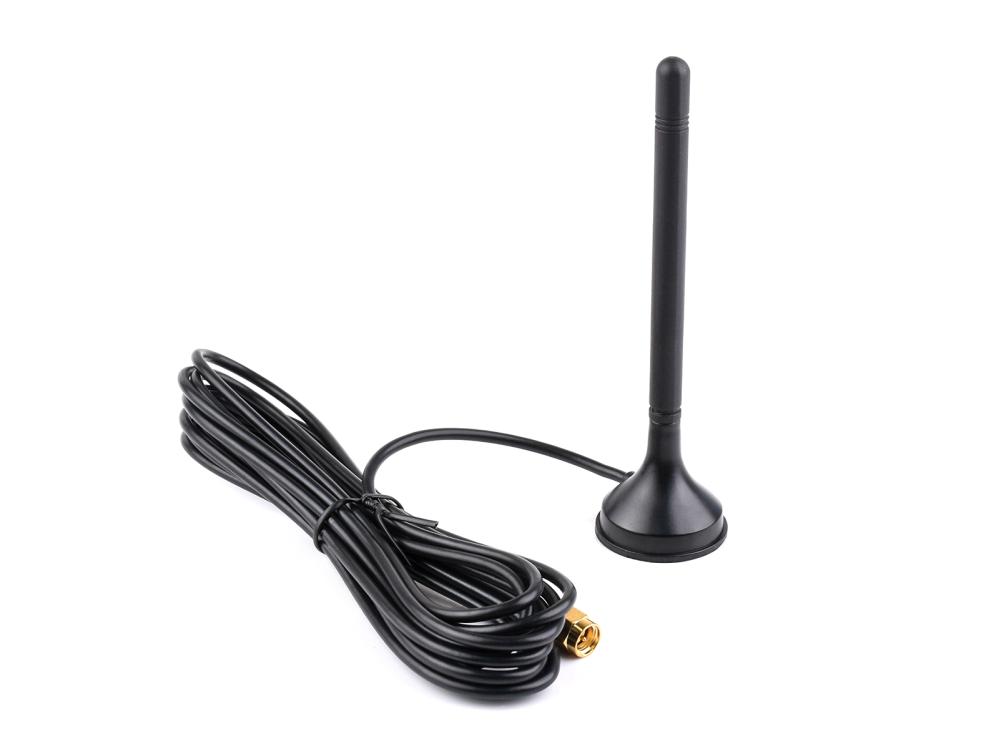

- Antenna LoRa: 868 MHz magnetic antenna with 3 m cable and SMA connector (included)
- Antenna GNSS: Magnetic puck antenna with 3 m cable and SMA connector (included
