Product description

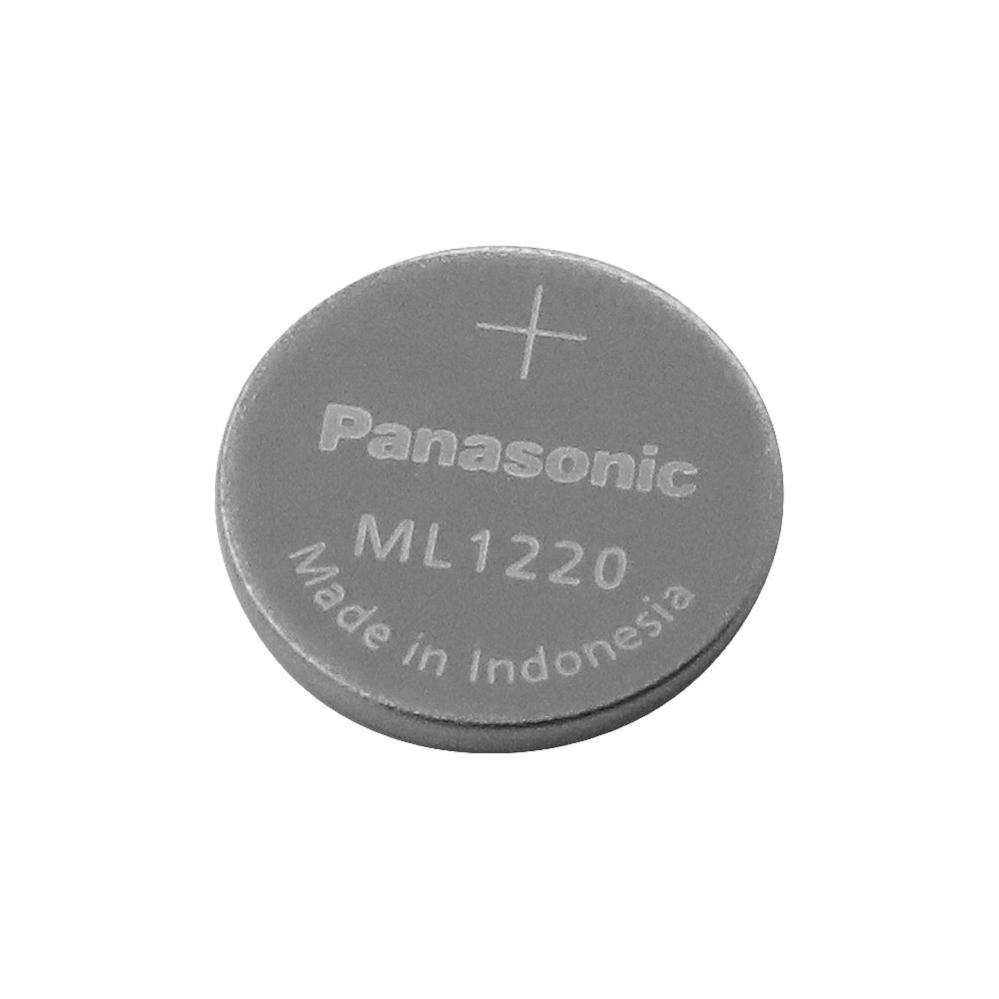

ML1220 rechargeable coin cell, Li–Al Alloy Manganese Dioxide type. The ML1220 is a rechargeable battery of the Li–Al Alloy Manganese Dioxide type (lithium–aluminum alloy).ML batteries are rechargeable lithium cells that use a lithium–aluminum alloy anode and a manganese dioxide (MnO₂) cathode.
This battery chemistry provides a stable operating voltage, long service life, and very low self-discharge.
ML cells are designed for low-current applications with limited charging requirements, such as real-time clocks (RTC), memory backup, and sensors.
They can be charged with a controlled low current and have a nominal voltage of 3.0 V. ML batteries combine the high energy density of lithium cells with rechargeability, making them common in many low-power applications.
Specifications:
- Nominal capacity: 17 mAh
- Nominal discharge current: 0.02 mA
- Standard charge current: 2 mAh (or lower)
- Operating temperature (charging): –20 to 60 °C
Dimensions:
- Height: 2.0 mm
- Diameter (ø): 12.5 mm
Additional information:
- Rechargeable: Yes
- Packaging: 1 pc (supplied on tray, packed in zip bag)
- Alternative designation: MH12568
- Chemistry: Lithium–aluminum alloy manganese dioxide (LiAl + MnO₂)
