Product description
Pico-CAN-B provides Raspberry Pi Pico with CAN bus communication via SPI. The module enables reliable data transmission over long distances and is commonly used in industrial systems, automotive electronics, and distributed control systems.

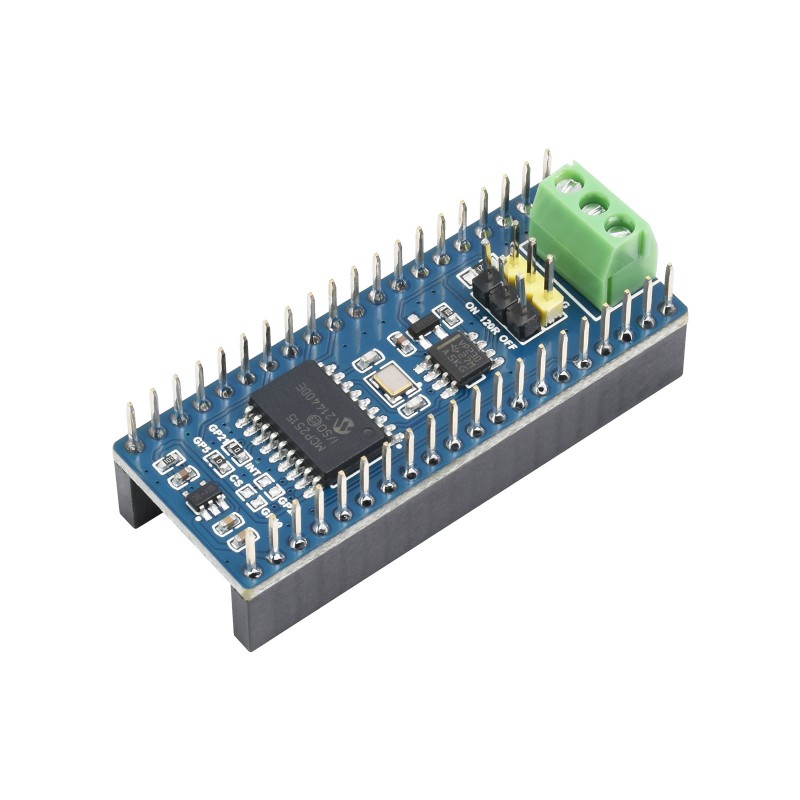

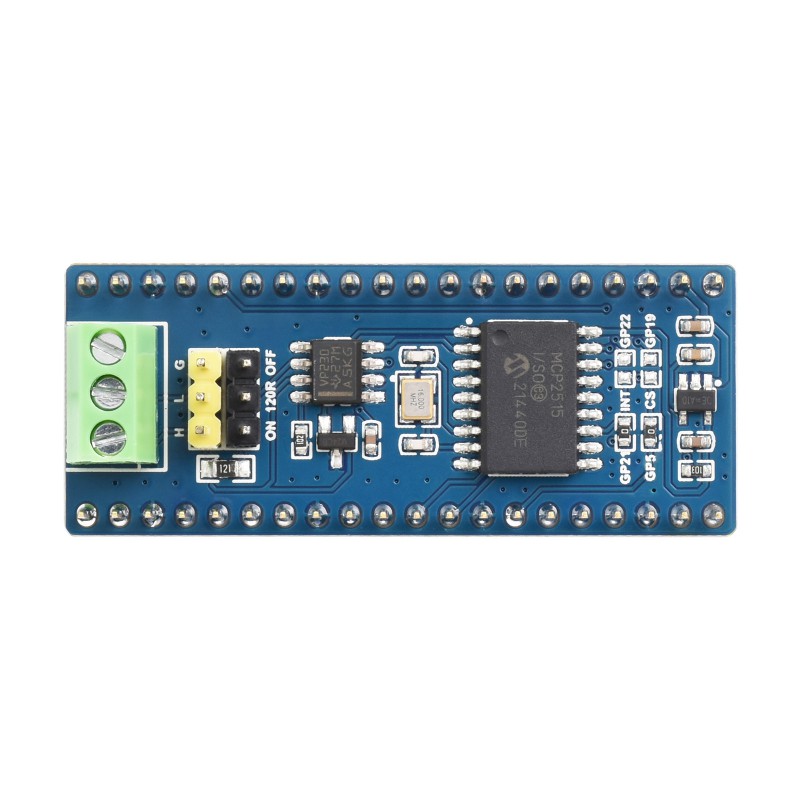

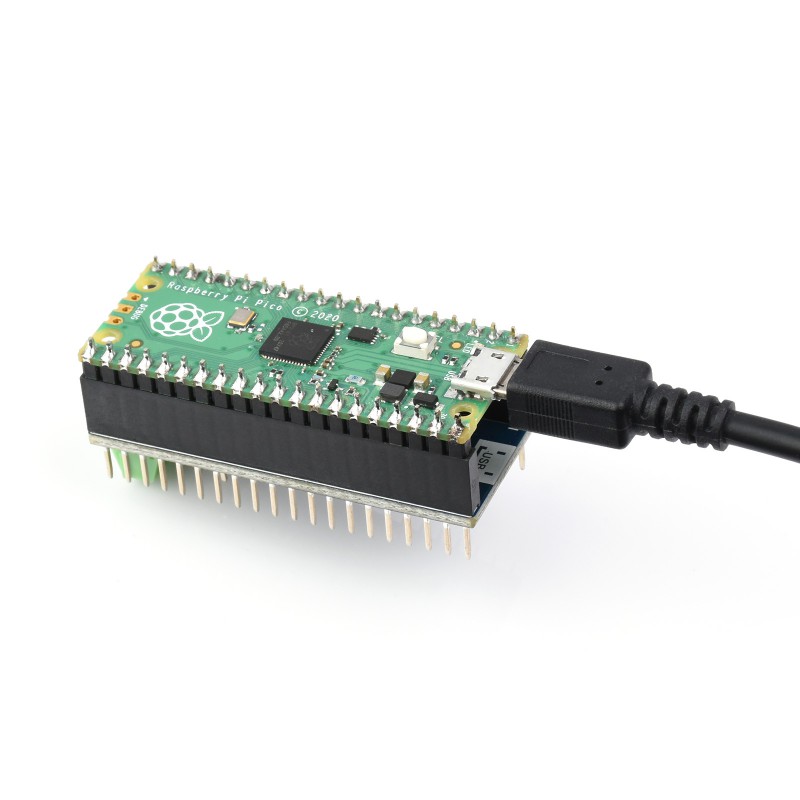

The design is adapted for direct mounting on Raspberry Pi Pico via pin headers. CAN communication is handled by an MCP2515 CAN controller in combination with a SIT65HVD230DR transceiver, providing a complete and proven CAN interface implementation.
The module features a selectable termination resistor (120 ohms) that can be enabled as needed.
Support is available for both C/C++ and MicroPython, and included example code allows for quick development and integration into existing systems.
Specifications:
- Supply voltage: 3.3 to 5 V
- Communication interface: SPI
- CAN controller: MCP2515
- CAN transceiver: SIT65HVD230DR
- Baud rate: 5 to 1000 kbps
- Termination resistor: 120 ohms, selectable
- Compatibility: Raspberry Pi Pico series
