Product description

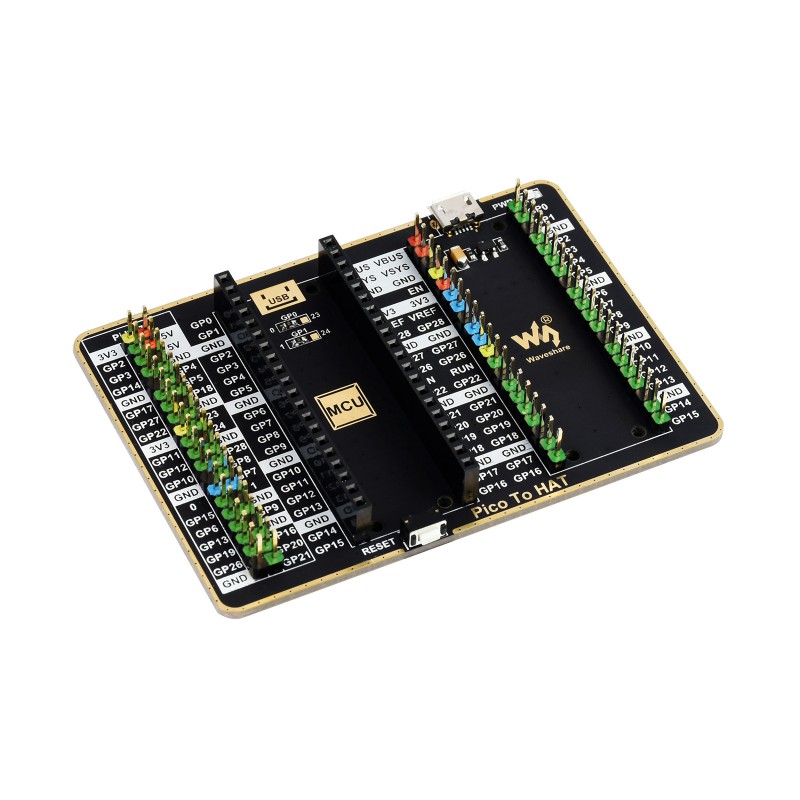

Pico-To-HAT allows standard Raspberry Pi HAT modules (with 40-pin GPIO) to be connected to Raspberry Pi Pico. The module functions as a GPIO expander and breaks out the Pico’s signals to both a 40-pin Raspberry Pi header and a 2x20-pin Pico header.
Designed for direct mounting of Raspberry Pi Pico via pin headers. At the same time, the standardized 40-pin GPIO header enables compatibility with a wide range of existing Raspberry Pi HAT boards.
The module also features a USB connector for external power supply, ensuring sufficient power when multiple expansion modules are used simultaneously. A breakout RESET button is integrated. Clear pin labeling on the PCB simplifies wiring and reduces the risk of incorrect connections.

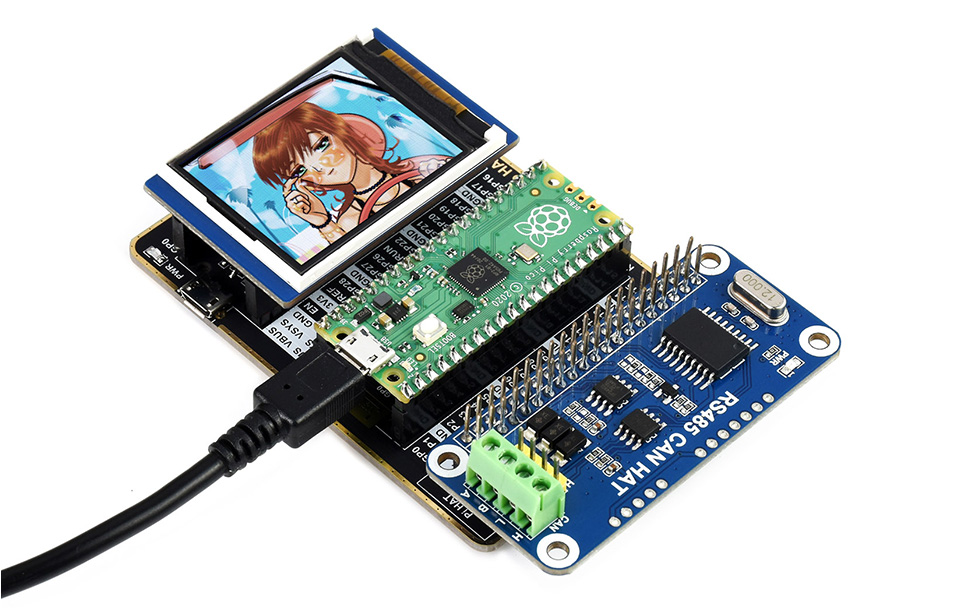

Pico-To-HAT is particularly suitable for projects where the compact form factor of Pico is combined with the established ecosystem of Raspberry Pi HAT modules, such as prototyping, test environments, and education.
Specifications:
- Supply voltage: Via USB or Pico
- Interface: GPIO (40-pin Raspberry Pi header, 2x20-pin Pico header)
- Header: 1x 40-pin Raspberry Pi, 1x 2x20-pin Pico
- Power supply: USB input

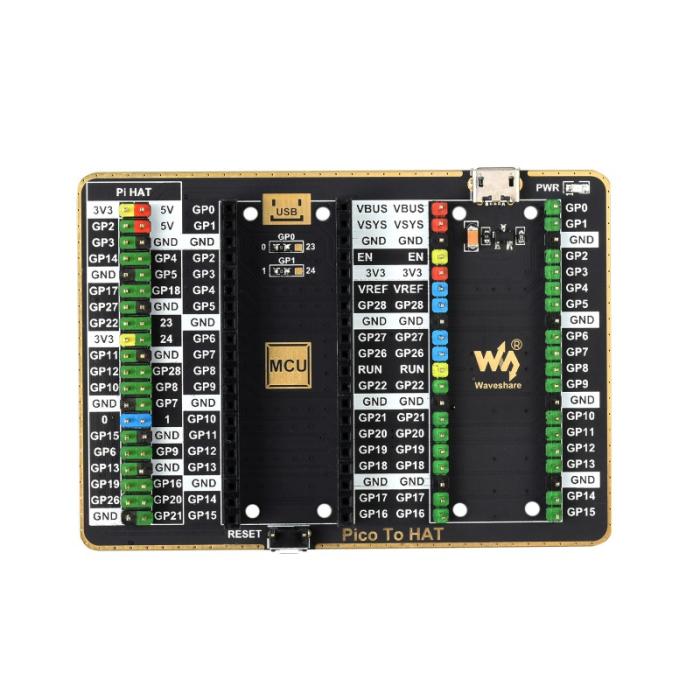

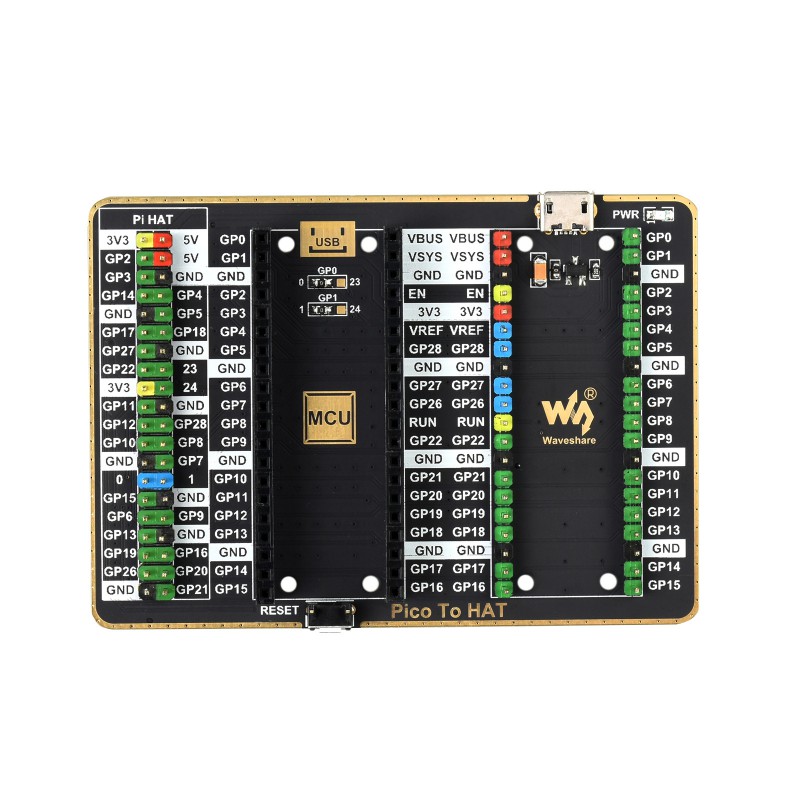

- Other: RESET button, pinout labeling on the PCB
- Compatibility: Raspberry Pi Pico series, Raspberry Pi HAT modules
