Product description

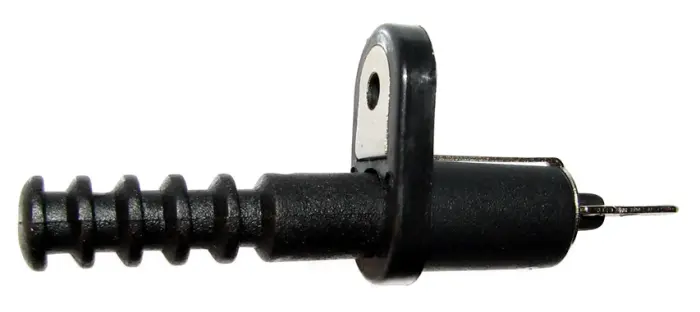

Door contact switch for vehicles. Function: NO (normally open), opens the circuit when the door is closed. The switch is grounded to the vehicle chassis using a screw (ø3–3.5 mm). The Faston terminal is grounded (becomes 12 V negative) when the door or engine bonnet is open. The button can be snapped off in 5 steps if it is too long.
Specifications:
- Breaking capacity: 20 A / 12 VDC
- Breaking capacity: 10 A / 24 VDC
- Connection: Faston 6.3 × 0.8 mm
- Mounting hole (body): ø3.6 mm
- Contact surface plate/base dimensions: 24 × 13 × 3.5 mm
- Mounting depth: 40 mm
- Button length (open position): 12 / 15 / 20 / 24 / 27 / 32 mm
- Button length (closed position): 0 / 4 / 8 / 13 / 17 / 21 mm
- Button diameter: ø8 mm
