Terminal block female connector 5.08mm 2-pole 300V 10A

Art no: 40210011
NKE - WJ2EDGK-5.08-02P
4.50 SEK
Including 25% VAT

Mängdrabatt:
2pcs = 9:- 10pcs = 40:50 25pcs = 83:75

QuantityPrice
2 9
4.50 SEK
10 24
4.05 SEK
25 99
3.35 SEK
100
2.90 SEK
In stock, 482 pcs. Leveranstid ca 1-3 vardagar
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

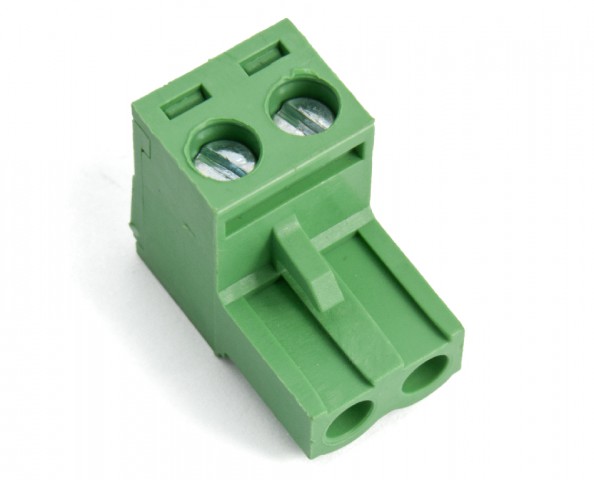

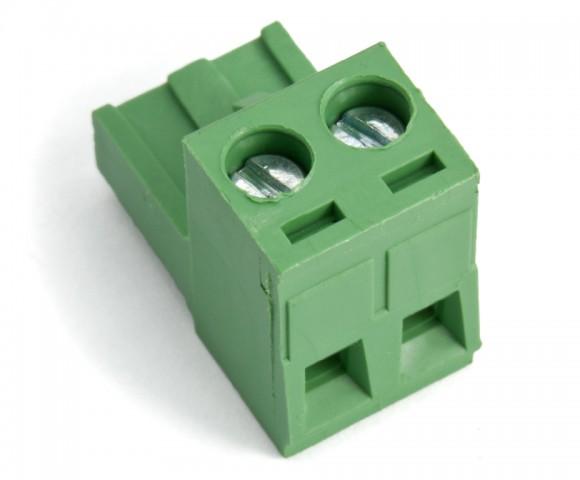

Pluggable female screw terminal block for connection to PCB pin headers or pluggable male terminal blocks. Easy to use, reusable and robust.

Specifications:

  • Number of poles: 2
  • Pitch: 5.08 mm
  • Rated voltage: 300 VAC
  • Rated current: 10 A
  • Temperature range: -40 to +105 °C
  • Contact resistance: max. 20 mOhm
  • Wire size: AWG 24–12 (0.25–2.5 mm²)
  • Material: PA66 (Polyamide 66)
  • Flammability rating: UL94 V-0

Technical data

Pitch
5.08
Poles
2
Termination
Skruv

  • SKU:

    40210011

  • MPN:

    NKE - WJ2EDGK-5.08-02P

  • HS / TARIC:

    8536693000
