Product description

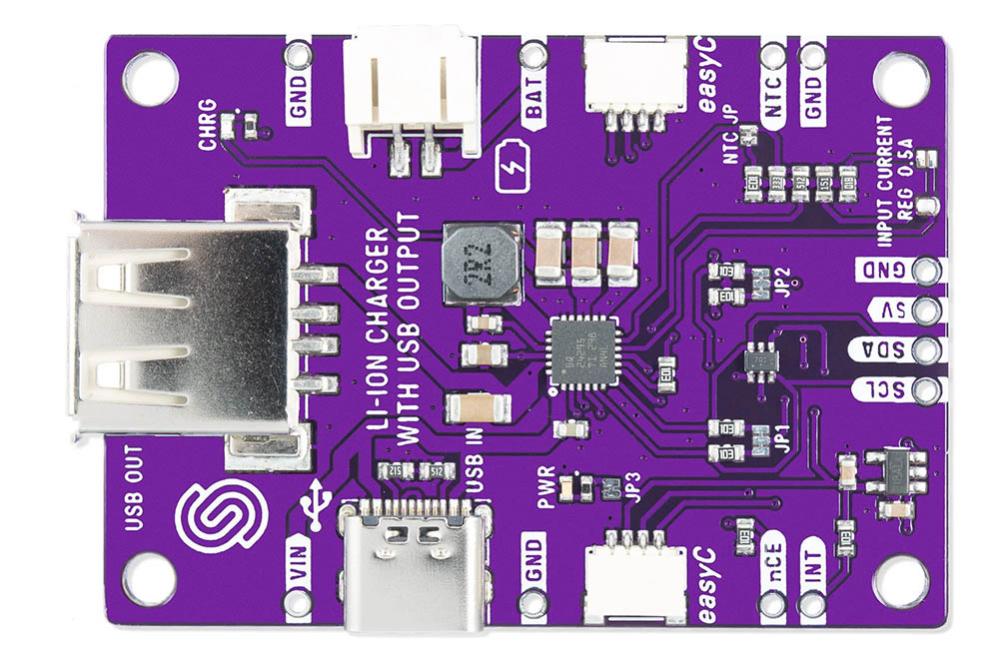

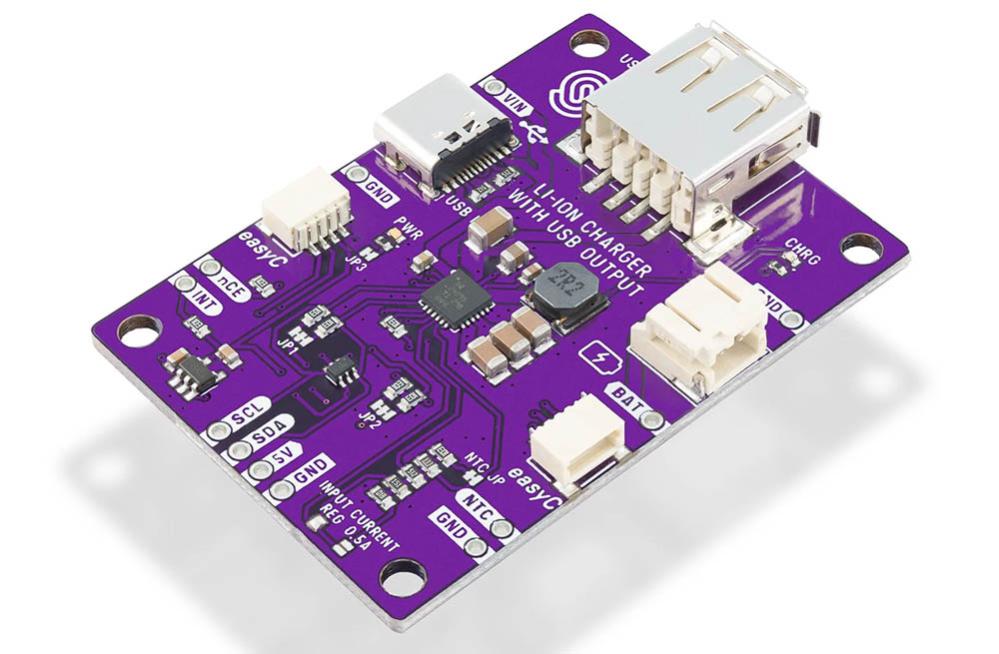

Li-Ion charger module based on the Texas Instruments BQ24295 for charging 3.6/3.7 V Li-Ion and Li-Po batteries. The module uses Constant Current (CC) and Constant Voltage (CV) charging methods for fast and safe charging. It is suitable for battery-powered projects, IoT devices, portable electronics, and other applications requiring an efficient charging solution.
The module features a wide input voltage range of 4.35–17 V and can be powered from sources such as USB ports or power adapters. The integrated Power Path Management function allows the battery to be charged while simultaneously powering the connected load without interruption. The board is also equipped with two Qwiic connectors for easy connection to microcontrollers.
Specifications:
- Charging IC: Texas Instruments BQ24295
- Battery type: Li-Ion / Li-Po (3.6 / 3.7 V)
- Charging method: Constant Current (CC) / Constant Voltage (CV)
- Input voltage: 4.35–17 V
- Charging current (max): 3 A
- Communication: I2C
- Connections: 2 × Qwiic
- Dimensions: 54 × 38 mm

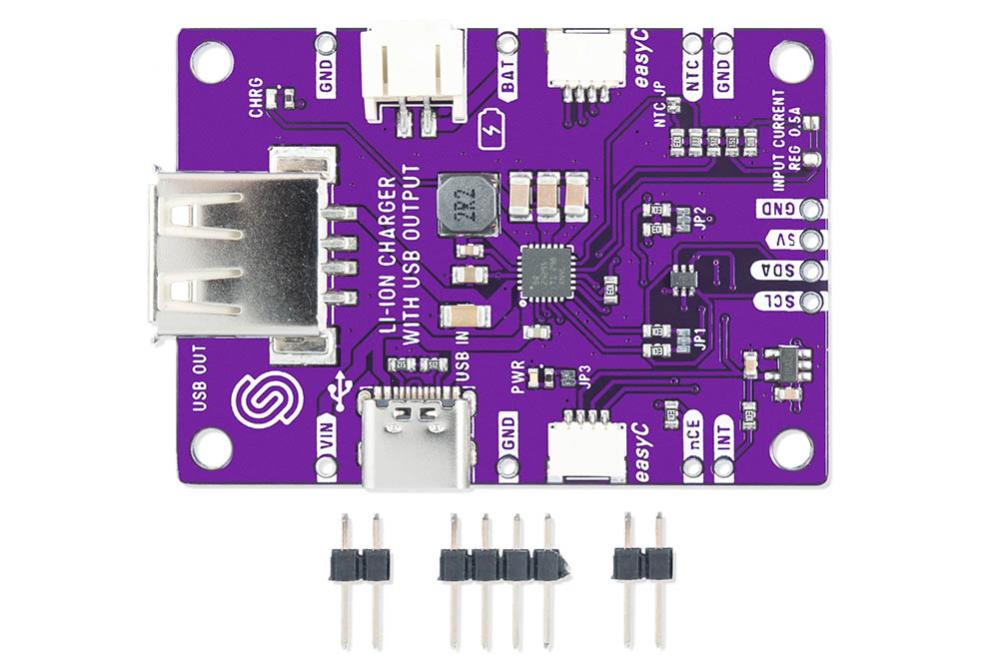

- Supplied with: Pin header (not pre-soldered)
- Manufactured in: EU (Croatia)
