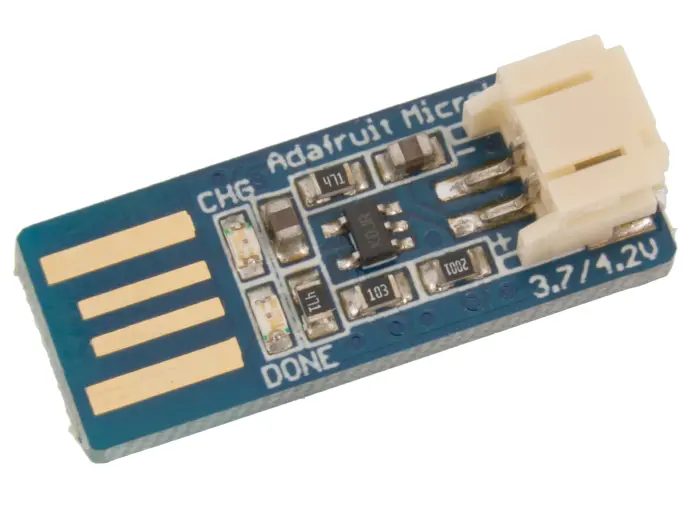

Micro LiPo USB charger
Art no: 41011707
Adafruit - 1304
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
Charging is performed in three stages: first a preconditioning charge, then a constant-current fast charge and finally a constant-voltage trickle charge to keep the battery topped-up. The charge current is 100mA by default, so it will work with any size battery and USB port. If you want you can easily change it over to 500mA mode by soldering closed the jumper on the back, for when you'll only be charging batteries with 500mAh size or larger.
Comes assembled and tested with a free bonus JST cable!
5V input via PCB-style USB connector
For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
100mA charge current, adjustable to 500mA by soldering a jumper closed
Free 2-pin JST cable included!
Batteries not included.
Comes assembled and tested with a free bonus JST cable!
5V input via PCB-style USB connector
For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
100mA charge current, adjustable to 500mA by soldering a jumper closed
Free 2-pin JST cable included!
Batteries not included.
