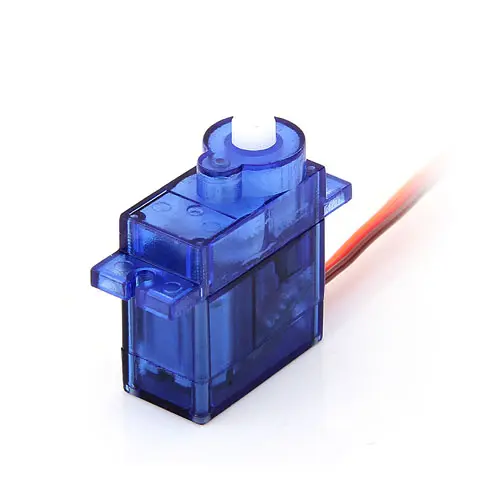

Micro servo TS90 / SG90 360° 1.2 kg
Art no: 41013137
TS90 / SG90
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
360 microservo for e.g. Arduino and Raspberry-Pi projects. Typical applications: robots, model airplanes, RC cars, PT cameras (Pan-Tilt), etc. Comes with three different horns/arms. Gearbox made of nylon. Connection plug: JR / Futaba / GWS. Color coding: Brown = minus, red = plus, orange = PWM signal.
Specifications:
- Supply voltage: 4.8-6V
- Dimensions (LWH): 22.5 x 12.3 x 30 mm
- Weight: 9g
- Current drain idle @ 4.8V: 8 mA
- Current drain full load @ 4.8V: 500 mA
- Speed: 0.12s / 60° @ 4.8V, 0.1s / 60° @ 6V
- Max torque: 1.3kg/cm @ 4.8V
- Continuous (uninterrupted) 360° rotation: Yes
- Cable length: 250 mm
- Modulation: Analog PWM
- Pulse cycle: 20 ms
- Pulse width: 900-2100 uS
- Model number: SG90A / TS90A
Product information
SKU:
41013137MPN:
TS90 / SG90
