Product description

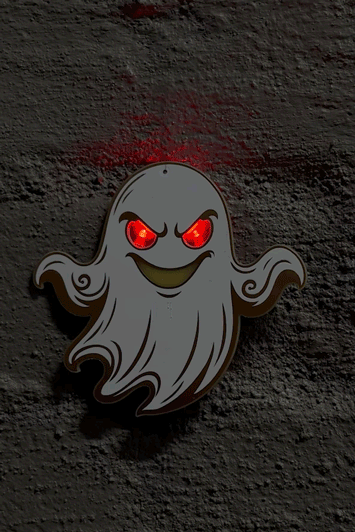

Halloween Ghost with Two Pulsing Eyes. Electronics kit with surface-mount components (SMD). Build a pulsing Halloween ghost that blinks faster when you hold it. This simple and fun SMD kit is ideal for anyone who wants to try soldering surface-mount components.
The kit consists of a printed circuit board with an operational amplifier (LMV358) that drives two red LEDs. When a battery (CR2032) is connected, the LEDs slowly pulse, creating an effect reminiscent of a living ghost in the dark. Apply pressure to the touch-contacts to make the eyes pulse faster.
The design includes 10 surface-mount components and can be assembled using a standard soldering iron. Assembly instructions and a component list are included.
Features:
- Two pulsing red LEDs
- Simple SMD soldering – great practice project
- Powered by a CR2032 battery (not included)
- Compact and decorative Halloween-themed design
Technical Data:
- Supply voltage: 3 V (CR2032)
- LEDs: 2 × 3 mm red
- IC: LMV358 (op-amp)
- Components: Surface-mount (SMD) and through-hole red LEDs
- Skill level: Beginner
Included Components:
- Printed circuit board (PCB)
- LMV358 operational amplifier (SOIC-8)
- Resistors, capacitors, and LEDs according to component list
- Surface-mount CR2032 battery holder
Recommended Tools:
- 40–60 W soldering iron with fine tip
- Solder wire with small diameter (ø 0.6 mm recommended)
- Tweezers for SMD components (e.g. 41017500 or 41024531)
- Diagonal cutters (e.g. 41002944 or 41032436)
- Magnification aid (optional)
