Product description

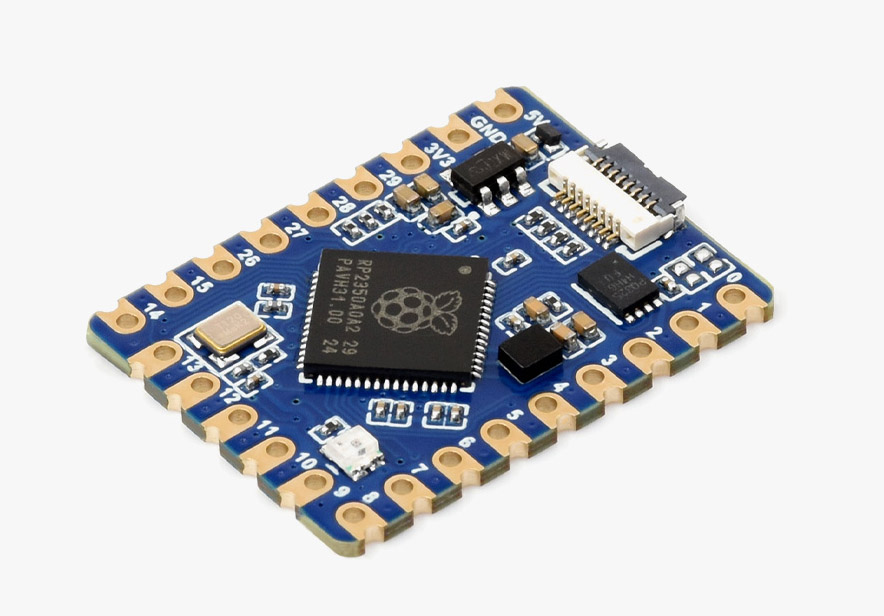

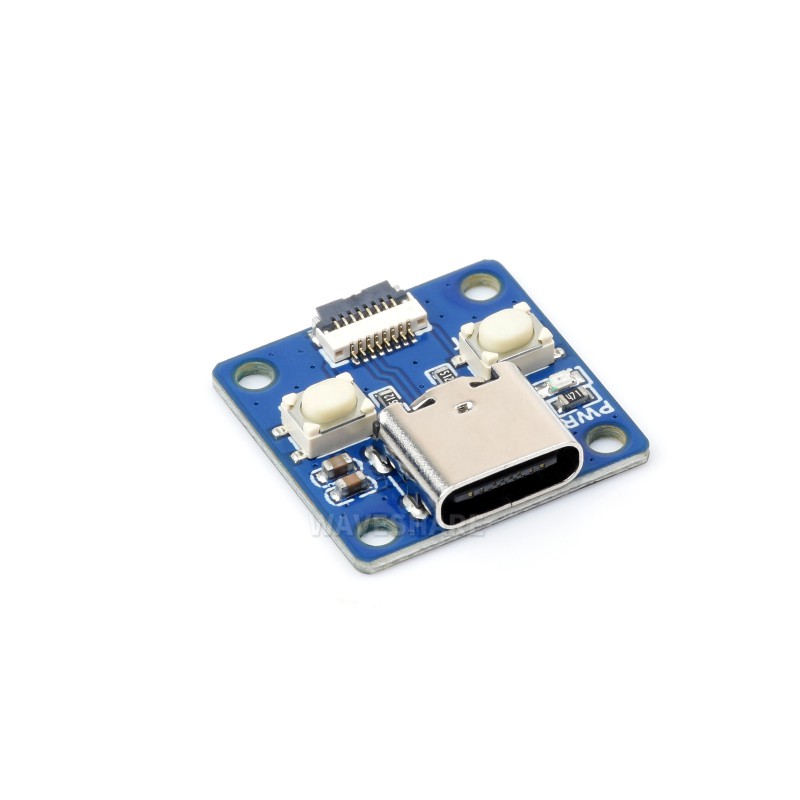

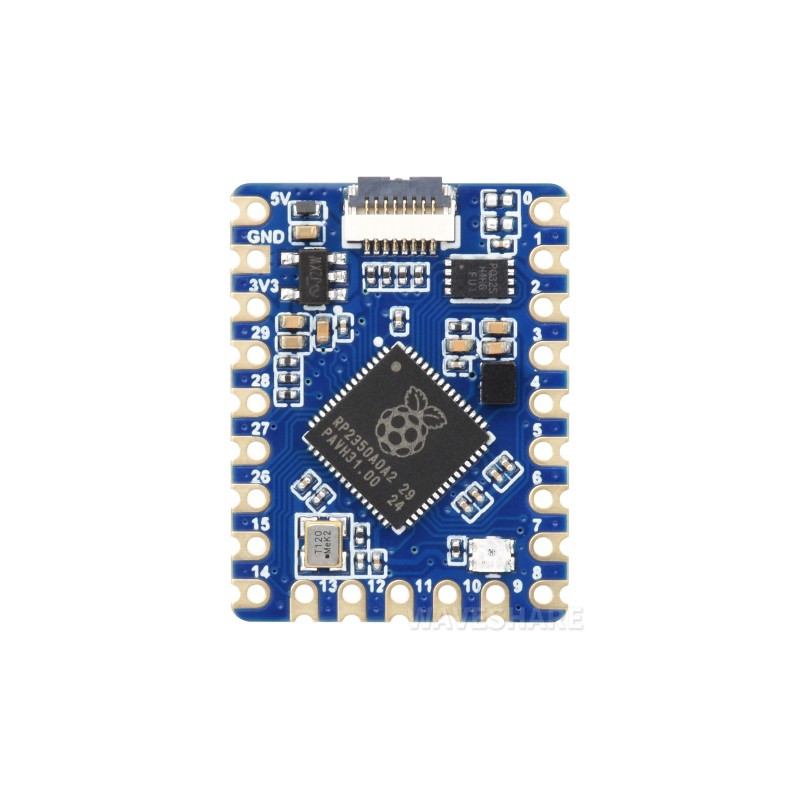

RP2350-Tiny is a small high-performance development board based on the Raspberry Pi RP2350A. The board features a modular design where the USB and programming functions are separated from the core module. After programming, the USB module is no longer required and can be removed.

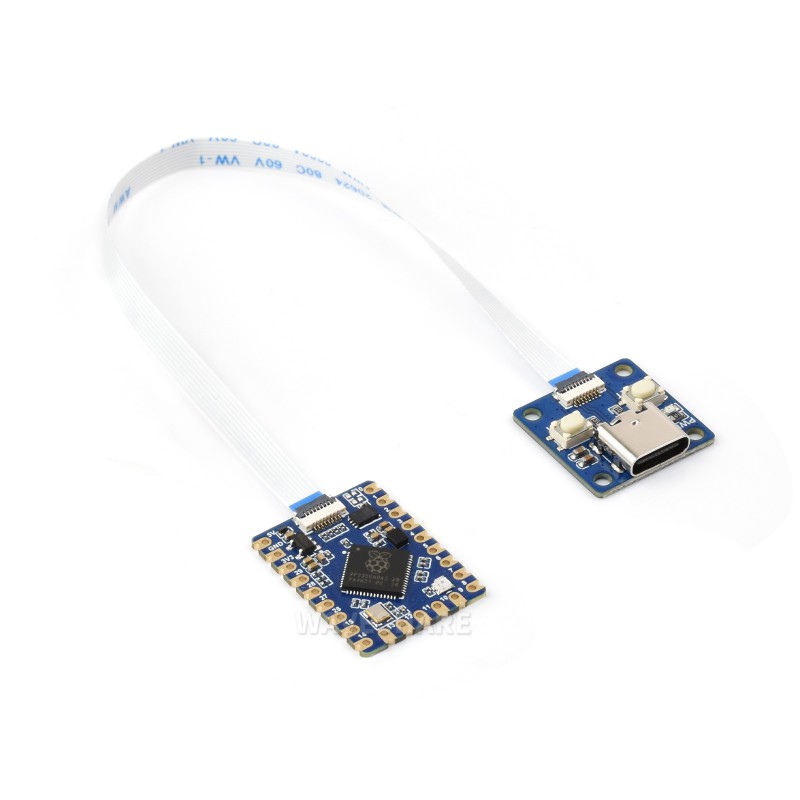

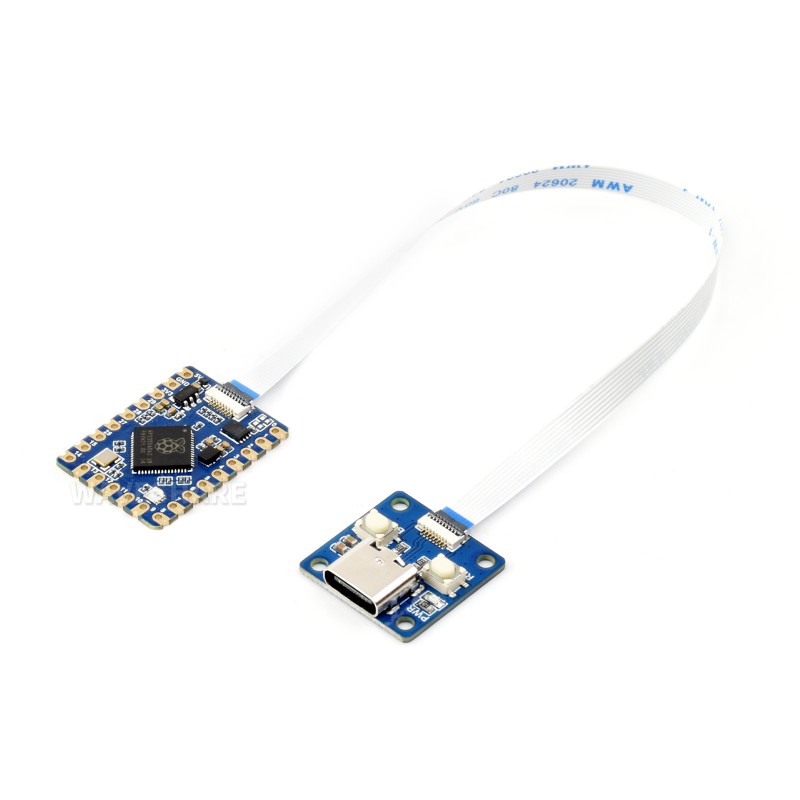

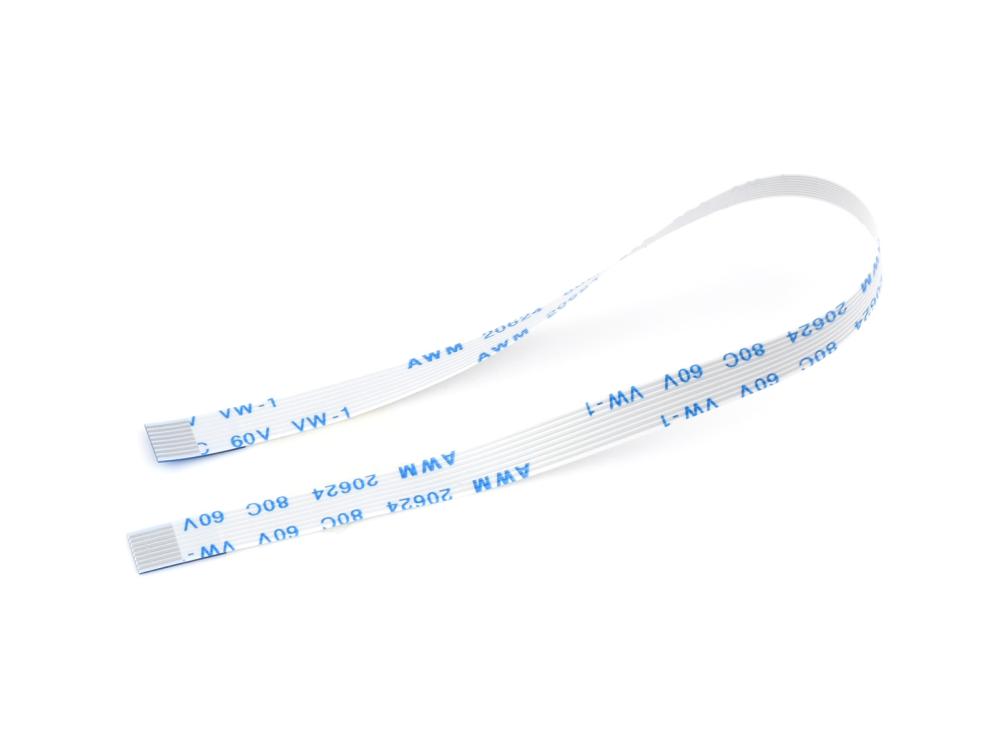

The board is equipped with castellated connections, allowing it to be soldered directly onto a custom PCB as an SMD module. Supplied with USB module connector and a 15 cm FPC cable. RP2350-Tiny is suitable for embedded systems, IoT nodes, and products where minimal size is required.
Specifications:
- Microcontroller: Raspberry Pi RP2350A
- Processor architecture: Dual-core Arm Cortex-M33 + dual-core RISC-V Hazard3
- Clock frequency: Up to 150 MHz
- RAM: 520 kB SRAM
- Flash memory: 4 MB
- Supply voltage and logic level: 3.3 V

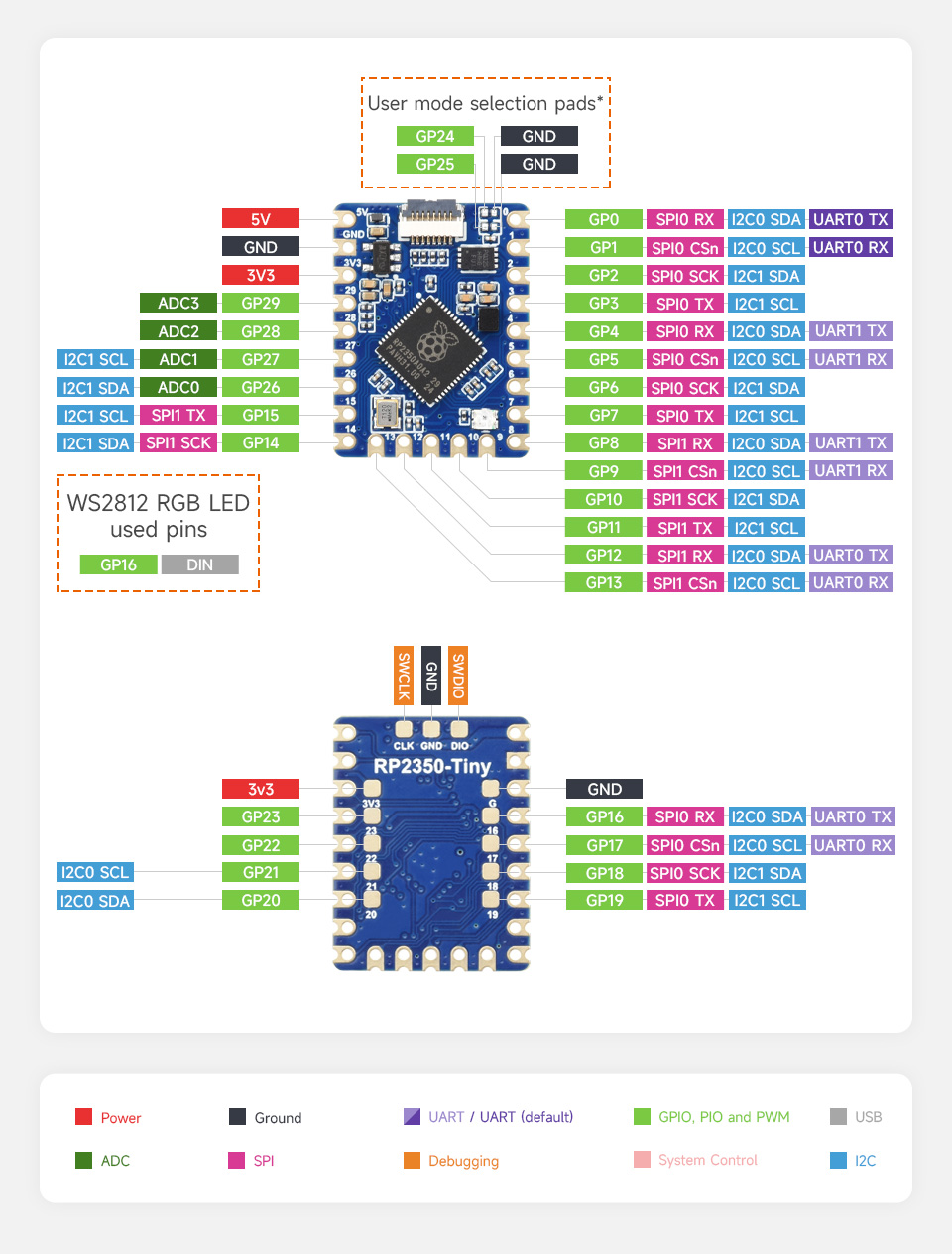

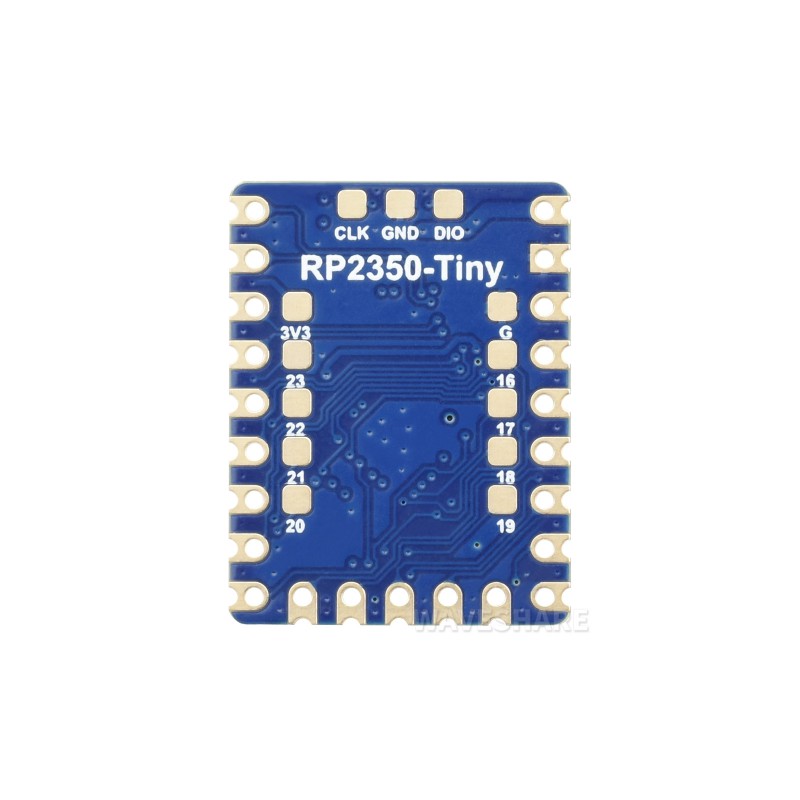

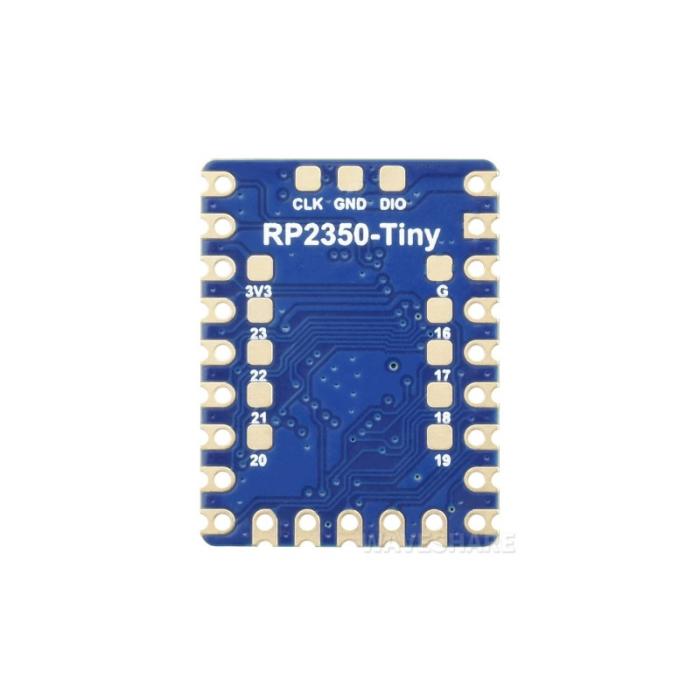

- GPIO: 28 (of which 20 as side pins and 6 as pads on the underside)
- Interfaces: 2 × SPI, 2 × I2C, 2 × UART
- Analog inputs: 4 × ADC (12-bit)
- PWM: Up to 16 channels
- PIO: 12 state machines
- USB: USB-C host/device via external adapter (FPC 8-pin)
- Power supply: via USB adapter or VIN pin
- Low power modes: sleep and dormant
- Other: temperature sensor, castellated connections, very compact design
