Component tester LCR-T7

Art no: 41019041 - Joy-It
Shop this product, Component tester LCR-T7
price 299 SEK
Including 25% VAT
In stock, 29 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

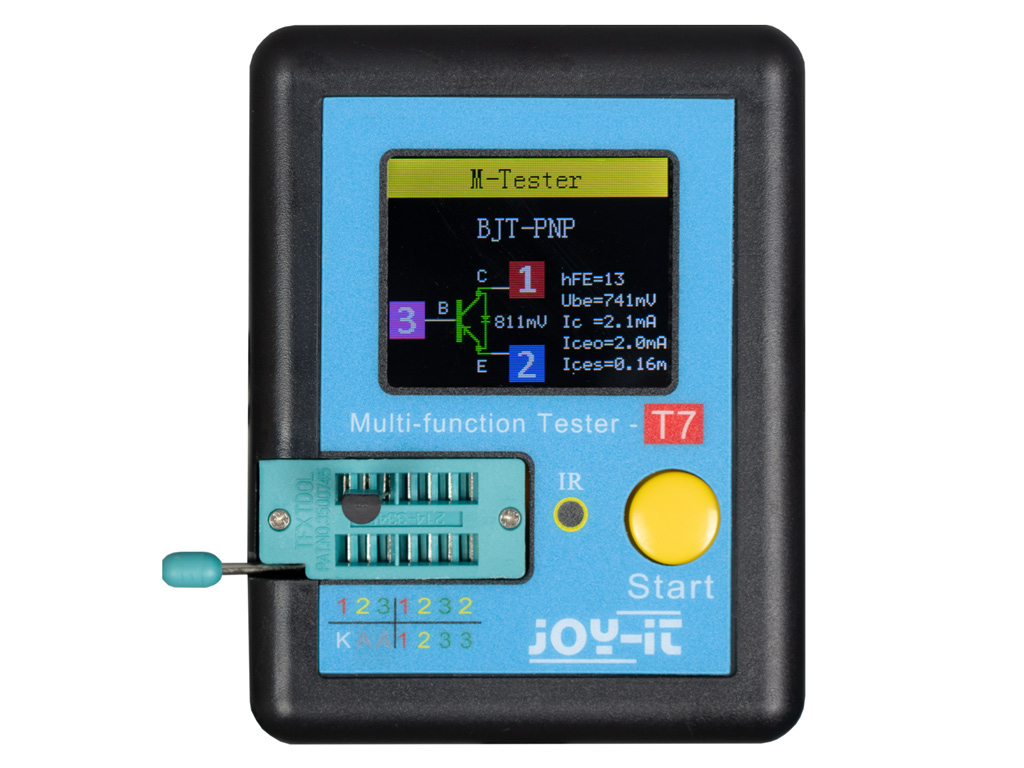

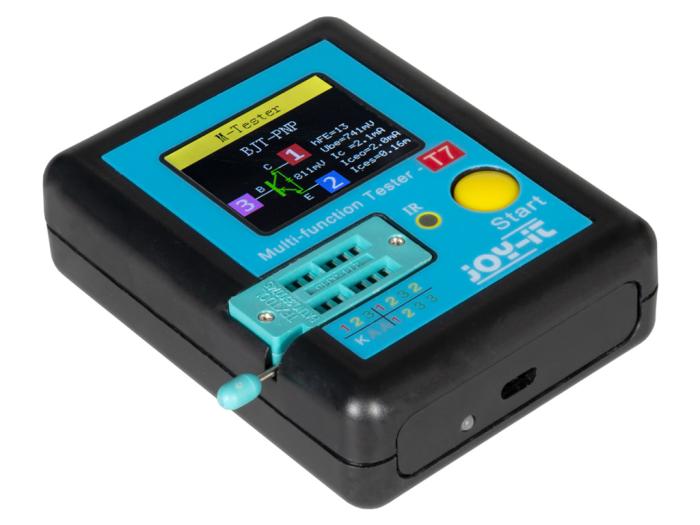

The LCR-T7 is a versatile component tester with automatic recognition and a wide measurement range for inductance (L), capacitance (C), and resistance (R). The device can identify and analyze a broad variety of component types, including diodes, Zener diodes, dual diodes, resistors, capacitors, inductors, thyristors, triacs, FETs, bipolar transistors, and batteries. Transistor type (NPN/PNP) is detected automatically.

Measurement is initiated with a single button press. An integrated IR decoder allows decoding and display of infrared signals in waveform and hexadecimal code. The unit includes a built-in rechargeable lithium-ion battery (approx. 300 mAh), suitable for mobile use. Charging is done via the included micro-USB cable from any 5 V USB power source.

Measurable components:

  • Resistors, capacitors, inductors
  • Diodes, Zener diodes, dual diodes
  • Field-effect transistors, bipolar transistors
  • Thyristors, triacs
  • Batteries
  • Infrared signal decoding

Specifications:

  • Display: 1.8" TFT LCD (160 × 128 px)
  • Special functions: automatic calibration, one-button operation
  • Capacitance: 25 pF – 100 mF
  • Resistance: 0.01 Ω – 50 MΩ
  • Inductance: 0.01 mH – 20 H
  • Battery test: 0.1 – 4.5 V
  • Zener breakdown voltage: 0.01 – 30 V
  • Zener forward voltage: 0.01 – 4.5 V
  • Diode forward voltage (Uf): < 4.5 V
  • Thyristor/Triac gate trigger current (IGT): < 6 mA
  • Built-in battery: 3.7 V lithium-ion, approx. 300 mAh
  • Dimensions: 90 × 70 × 27 mm

Included in the package:

  • Component tester
  • Micro-USB cable

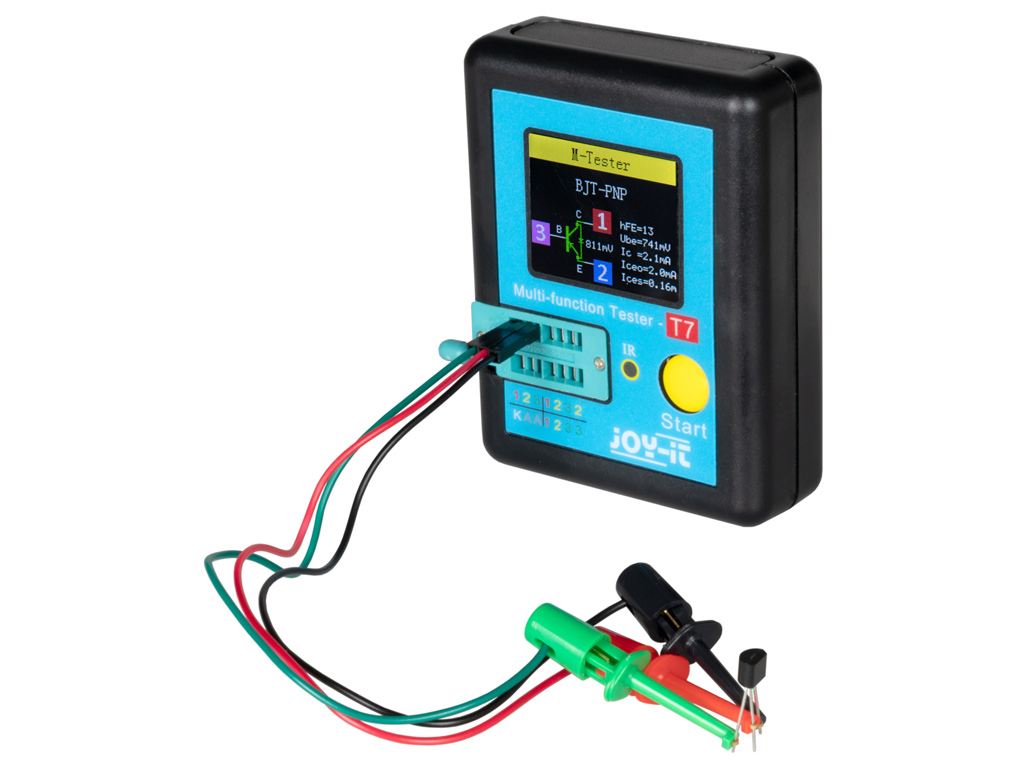

  • Test clip
  • LED
  • Capacitor

Product information

  • SKU:

    41019041
  • MPN:

    LCR-T7
  • EAN / GTIN:

    4250236820323
