Product description

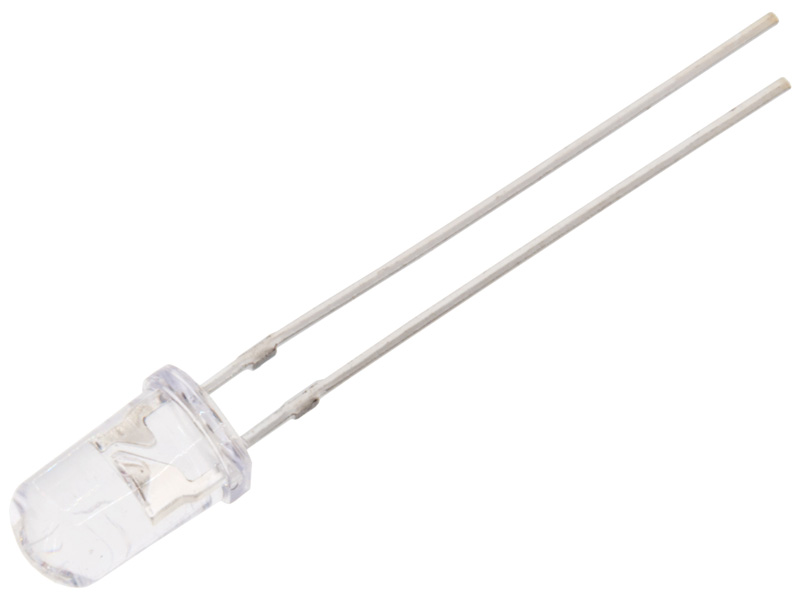

PIN photodiode with a very short switching time, typically 5 ns. The SFH 203 is sensitive over the wavelength range 400–1100 nm and is intended for applications including industrial electronics, control and drive circuits, high-speed photointerrupters, and fiber optic transmission systems. The photodiode has a 5 mm package.
Specifications:
- Type: Silicon PIN photodiode
- Model: SFH 203
- Spectral sensitivity range: 400–1100 nm
- Wavelength of maximum sensitivity: 850 nm
- Photosensitive area: 1 x 1 mm
- Radiation angle: ±20°
- Spectral sensitivity: 0.62 A/W at 850 nm
- Dark current: 1 nA typ., ≤5 nA at VR = 20 V
- Rise and fall time: 5 ns typ. at VR = 20 V
- Reverse voltage: 50 V
- Dark current: 1 nA
- Total power dissipation: 150 mW
- Package: 5 mm LED-type
- Lead spacing: 2.54 mm
