PCIe to M.2 HAT for Raspberry Pi 5

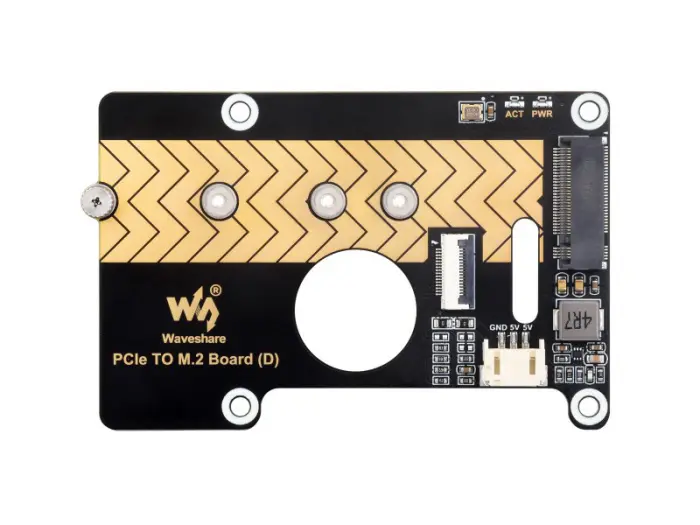

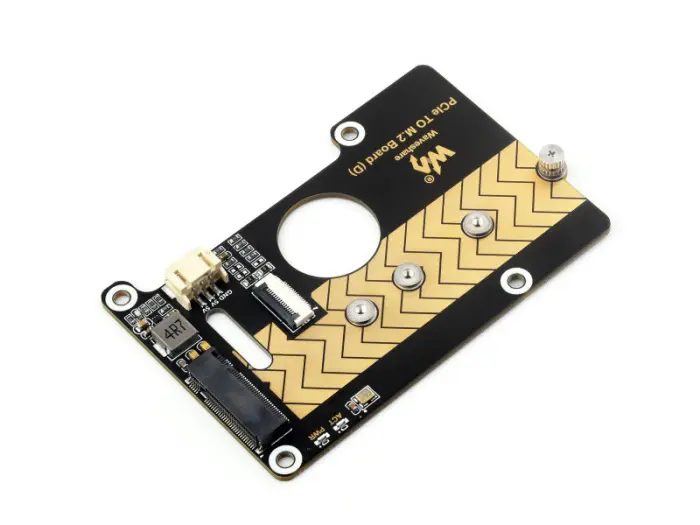

PCIe to M.2 Adapter Board for Raspberry Pi 5

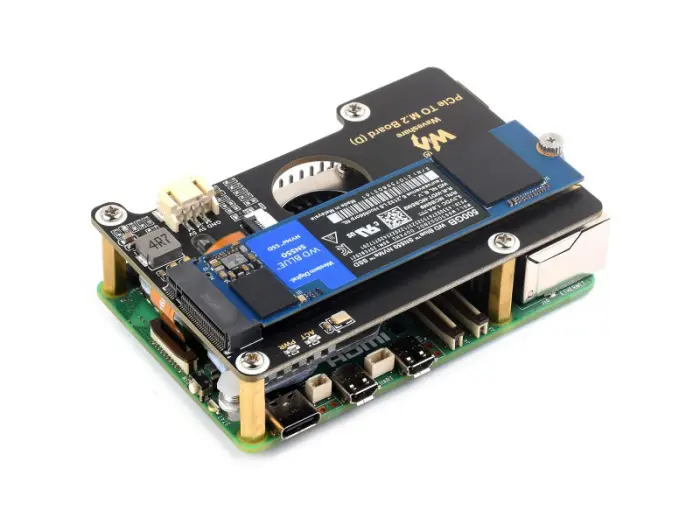

Used to connect an NVMe M.2 SSD storage device to the Raspberry Pi 5. By utilizing the built-in PCIe Gen2/Gen3 x1 bus via a 16-pin ribbon cable connection, this adapter board enables significantly faster read and write speeds compared to microSD cards. Compatible with full-size standard SSD drives (2280 format). Also works with Raspberry Pi SSDs in the 2230 format (item no. 41022961, 41022962).

Specifications:

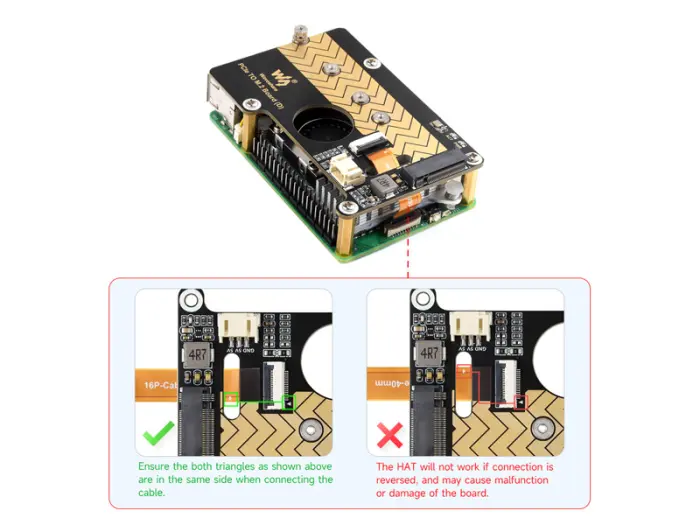

• Interface: PCIe Gen2/Gen3 x1 via 16-pin ribbon cable

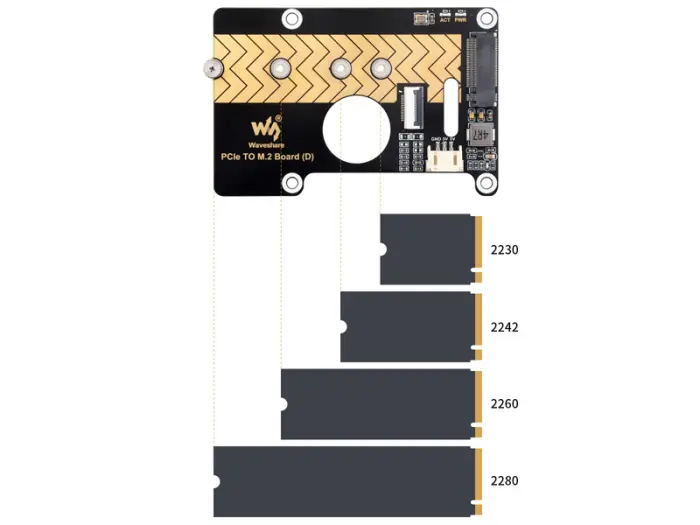

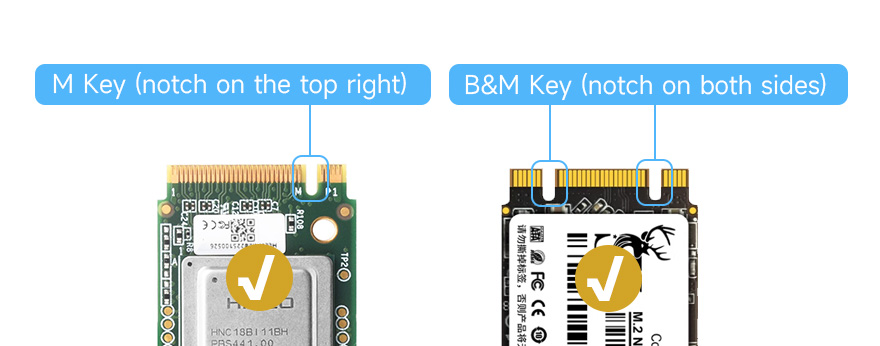

• SSD Support: NVMe M.2 SSDs in sizes 2230, 2242, 2260, and 2280

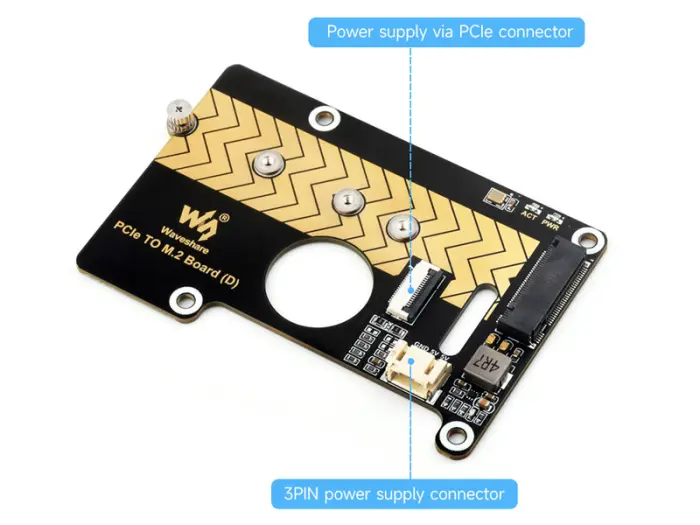

• Power Supply: Via PCIe ribbon cable or 3-pin cable (default is PCIe ribbon cable)

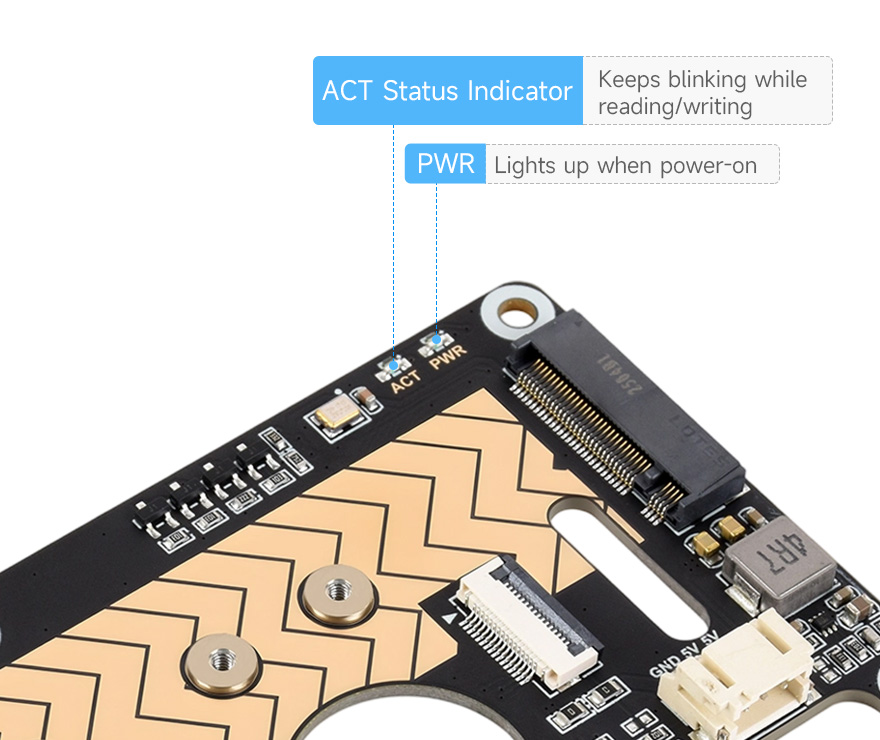

• LED Indicators: Dual LED for power (PWR) and activity (ACT)
• Boot Support: Boot the Raspberry Pi 5 directly from the SSD

Advantages:

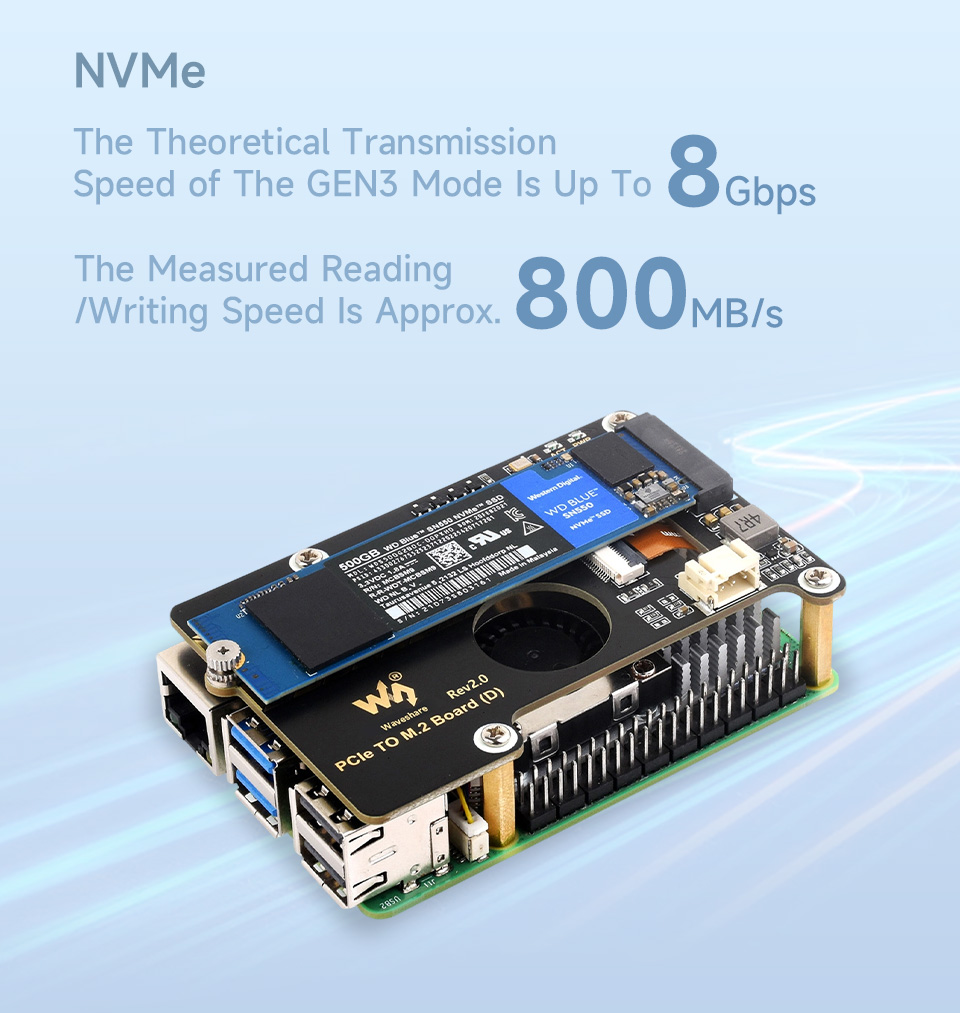

• High Speed: Up to 800 MB/s read/write speed
• Flexibility: Supports multiple M.2 SSD sizes and both Gen2 and Gen3 PCIe modes

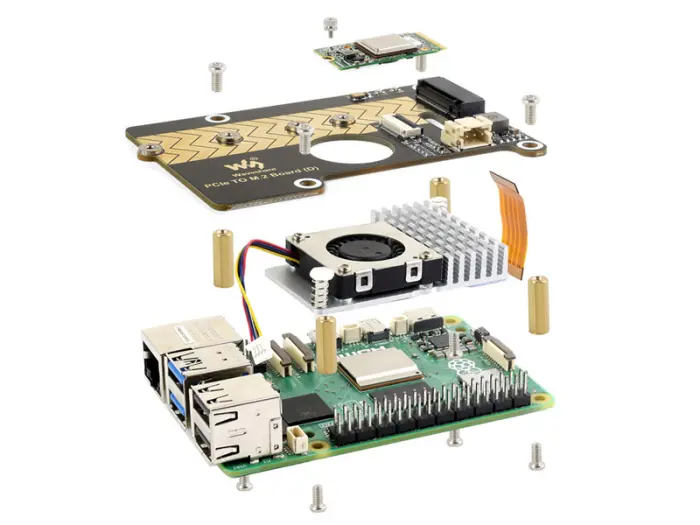

• Easy Installation: Supplied with screws, spacers, and cables

Package Contents:

• 1 x PCIe to M.2 Adapter Board (D)

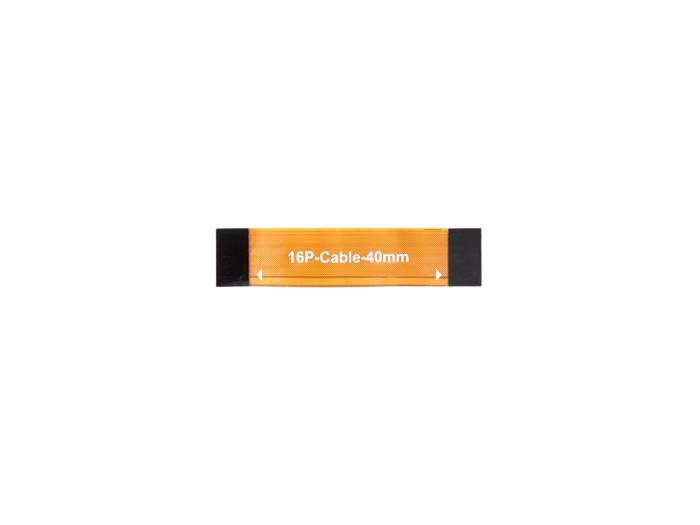

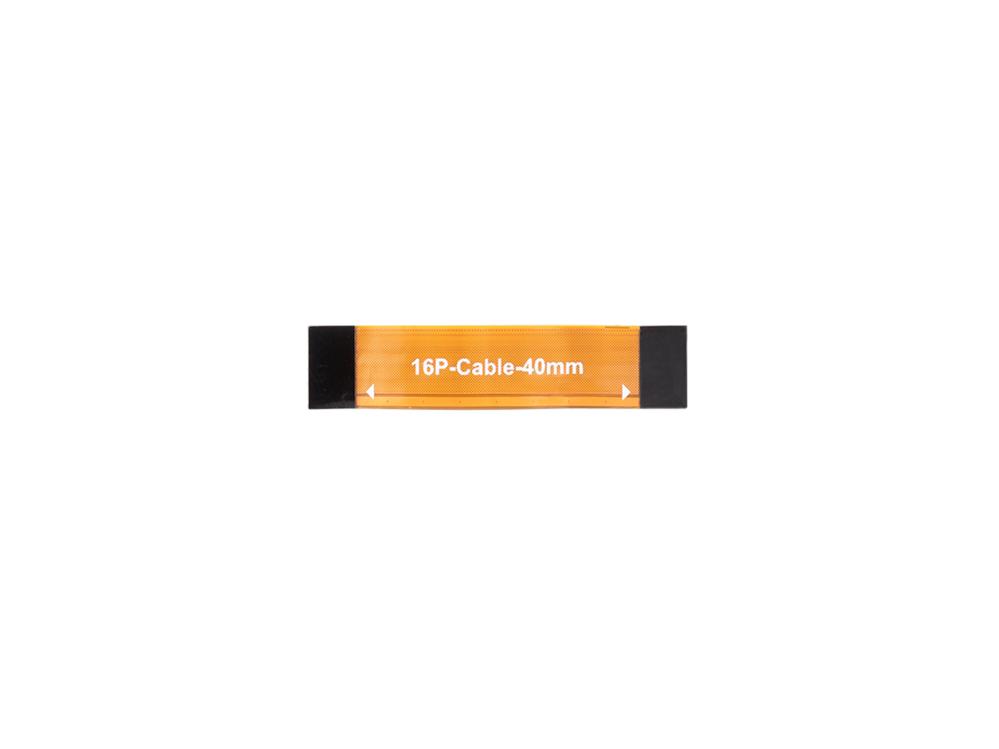

• 1 x 16-pin ribbon cable (40 mm)

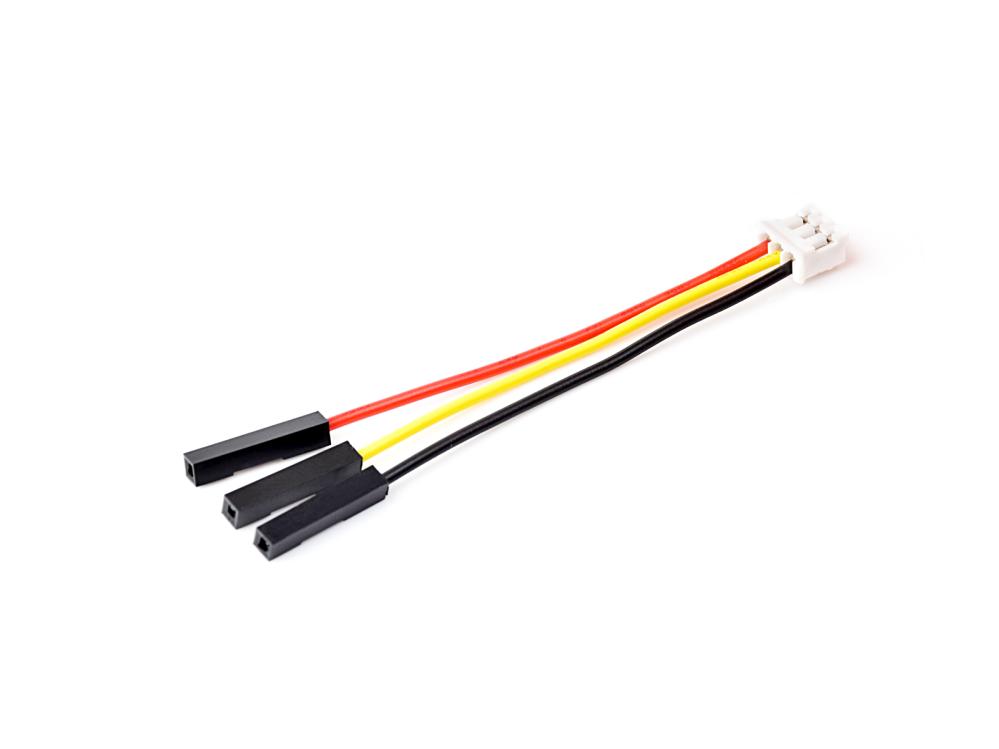

• Extra 3-pin power cable (can be used if needed for power-demanding SSDs)

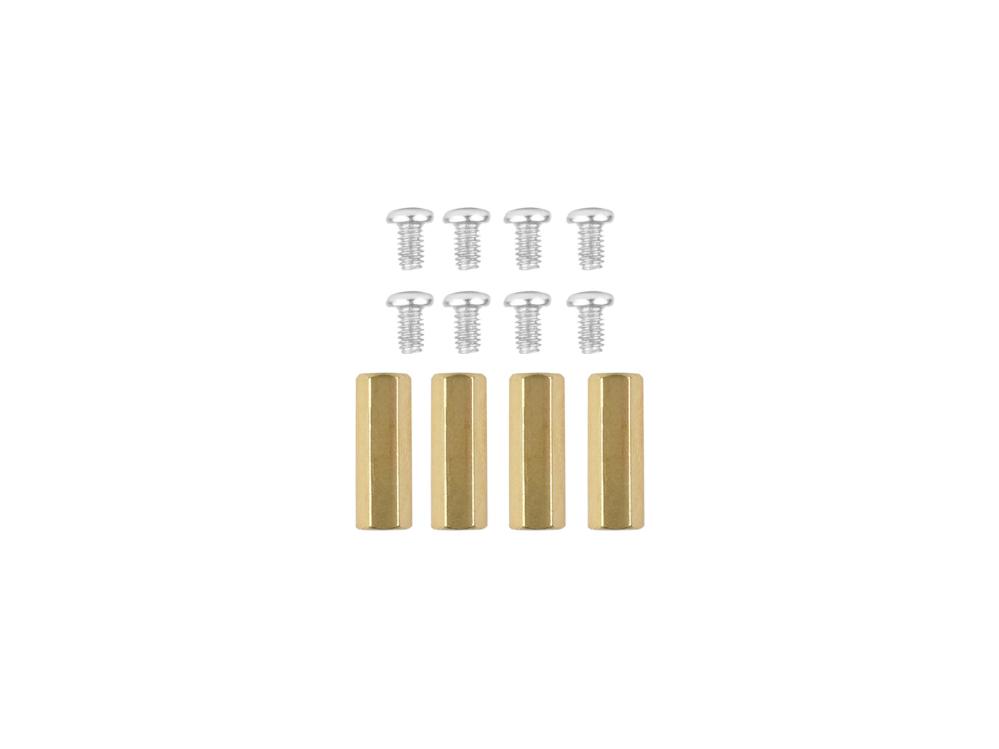

• 1 x Screws and spacers
