Product description

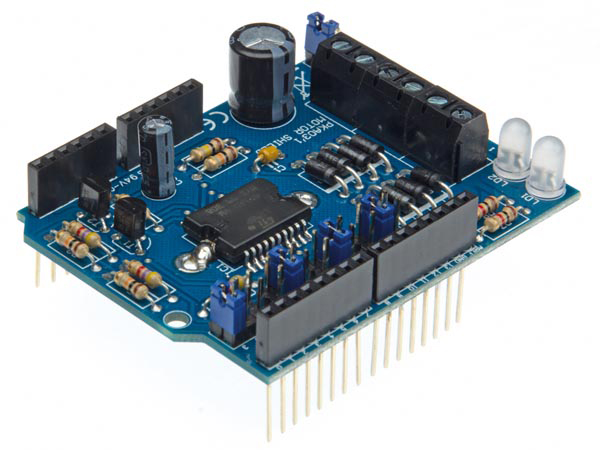

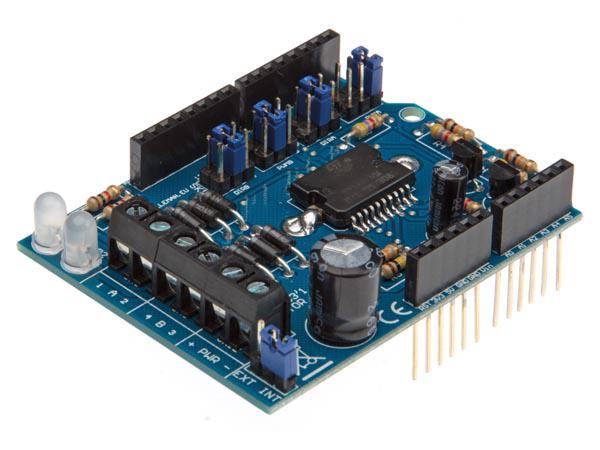

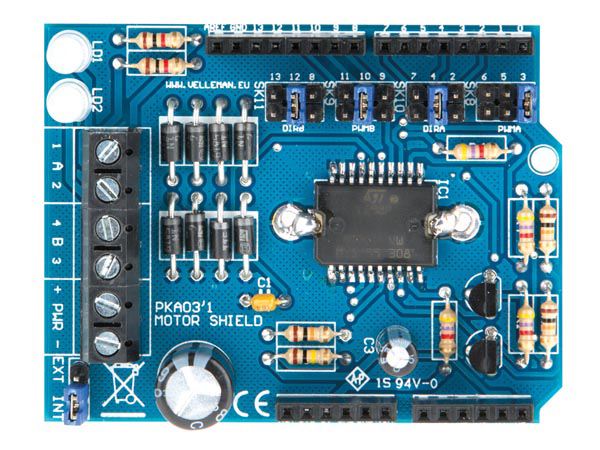

Motor & Power Shield for Arduino UNO R3 / R4. Designed for controlling DC motors, stepper motors, relays, and solenoids. The board has two channels and is based on the L298P motor driver with dual H-bridges. It can be used to control two DC motors or one bipolar stepper motor.

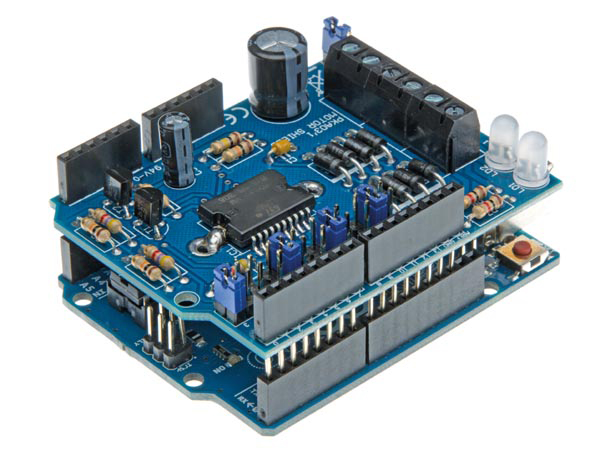

The board can be powered either from the Arduino board's internal power supply (Vin) or from an external power supply. The GPIO connections used can be selected to facilitate combination with other shields. The board features a stackable design and can be mounted together with other expansion boards. Example code is available for download.
Specifications:
- Manufacturer: Velleman / Whadda
- Model: WPSH03
- Type: Motor & Power Shield
- Compatibility: Arduino UNO R3 / R4
- Motor driver: L298P, dual H-bridge
- Number of channels: 2
- Output current (max): 2.5 A per channel
- External supply voltage (max): 50 V
- Power supply: Internal via Vin or external
- Design: Stackable
- Dimensions: 68 x 53 mm
- Assembly: Pre-assembled
