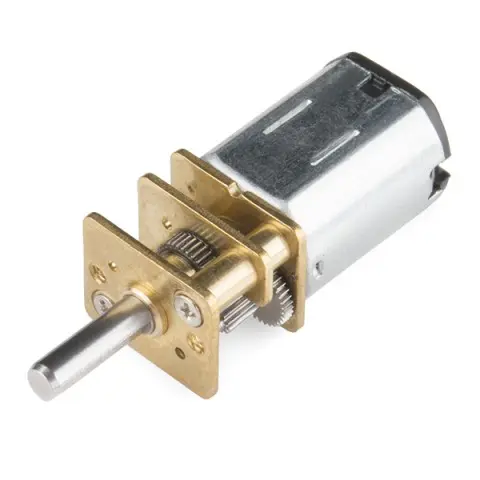

Miniature DC-motor with gearbox 6-12VDC 10:1 2600rpm
Art no: 41012282
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
These micro gearmotors are incredibly tough and feature full metal gears. They have a gear ratio of 10:1 and operate up to 12 volts and have a stall torque of 4 oz-in. and a max speed of 2600 RPM. Each micro gearmotor sports a 3mm D-shaft.
Please note! This motor must not be stalled or damage to the gearbox may occur!
Features:
Voltage: 6 - 12 Volts
Gear Ratio: 10:1
Stall Torque: 2/4 oz-in. (6/12V)
Speed: 1300/2600 RPM (6/12V)
No Load Current: 40/120 mA (6/12V)
Stall Current: 360/1600 mA (6/12V)
DC Reversible
Dimensions:
Motor Size: 26 x 12 x 10mm
Shaft Size: 3mm Diameter x 10mm Length
Wire Length: 6"
Weight: 17g
Please note! This motor must not be stalled or damage to the gearbox may occur!
Features:
Voltage: 6 - 12 Volts
Gear Ratio: 10:1
Stall Torque: 2/4 oz-in. (6/12V)
Speed: 1300/2600 RPM (6/12V)
No Load Current: 40/120 mA (6/12V)
Stall Current: 360/1600 mA (6/12V)
DC Reversible
Dimensions:
Motor Size: 26 x 12 x 10mm
Shaft Size: 3mm Diameter x 10mm Length
Wire Length: 6"
Weight: 17g
Documents
Technical data
| Attribute | Value |
|---|---|
|
Rpm
|
2600 RPM
|
|
Voltage
|
12 V
|
SKU:
41012282
