Heatsink star PCB for high-power LEDs ø20x1.5mm

Art no: 41037429

OptoSupply - OSMCPCB8060B

5.20 SEK

Including 25% VAT

Mängdrabatt:
2pcs = 10:40 4pcs = 19:80 10pcs = 46:50

Quantity discount
Quantity	Price
2 till 3	5.20 SEK
4 till 9	4.95 SEK
10 till 24	4.65 SEK
25 till	3.90 SEK

In stock, 75 pcs. Leveranstid ca 1-3 vardagar

Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

Product description

OpenClose

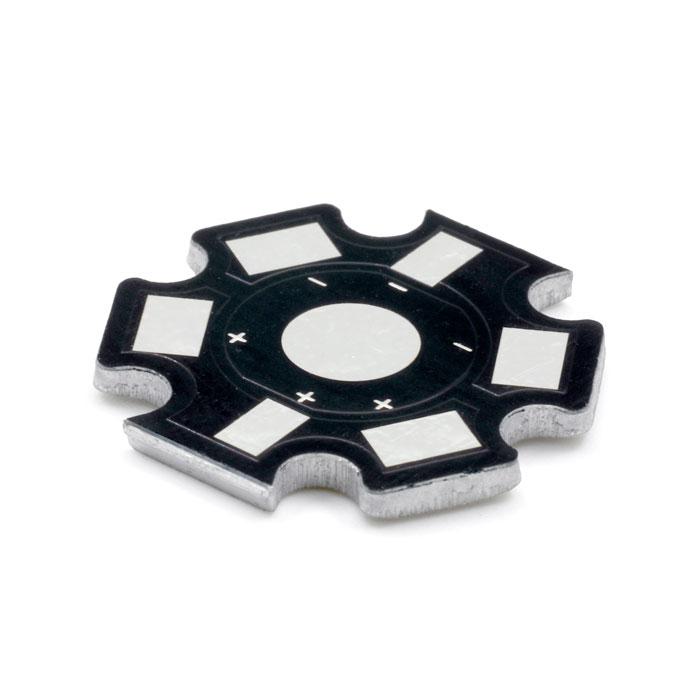

STAR PCB for mounting high-power LEDs. With solder pads and an aluminium base. The board is constructed as a metal-core copper-clad laminate (MCPCB) with a 1.5 mm aluminium base, thermally conductive dielectric layer and 35 µm copper foil. The surface has a black solder mask and solder pads.

Specifications:

Manufacturer: OptoSupply
Model: OSMCPCB8060B
Suitable LED power: 1 W
Type: Aluminium-based MCPCB
Base material: Aluminium
Base material thickness: 1.5 mm
Copper layer: 35 µm (1 oz)
Thermally conductive dielectric layer: NTCD
Surface finish: Black solder mask
Dimensions: 19.9 × 19 × 1.5 mm
