Heatsink 16x16x10mm 29K/W

Art no: 41037420

XSD - 151510

6.40 SEK

Including 25% VAT

Mängdrabatt:
2pcs = 12:80 10pcs = 57:50 25pcs = 120:-

Quantity discount
Quantity	Price
2 till 9	6.40 SEK
10 till 24	5.75 SEK
25 till 49	4.80 SEK
50 till	4.15 SEK

In stock, 100 pcs. Leveranstid ca 1-3 vardagar

Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

Product description

OpenClose

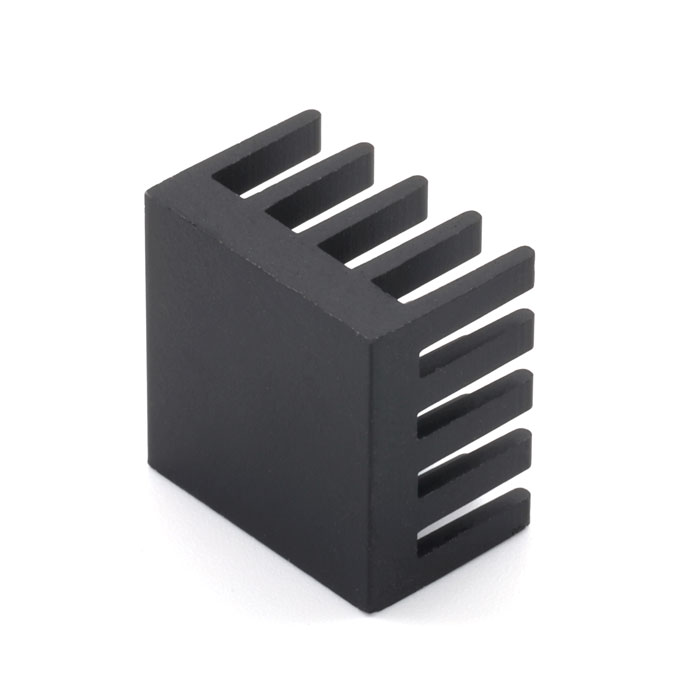

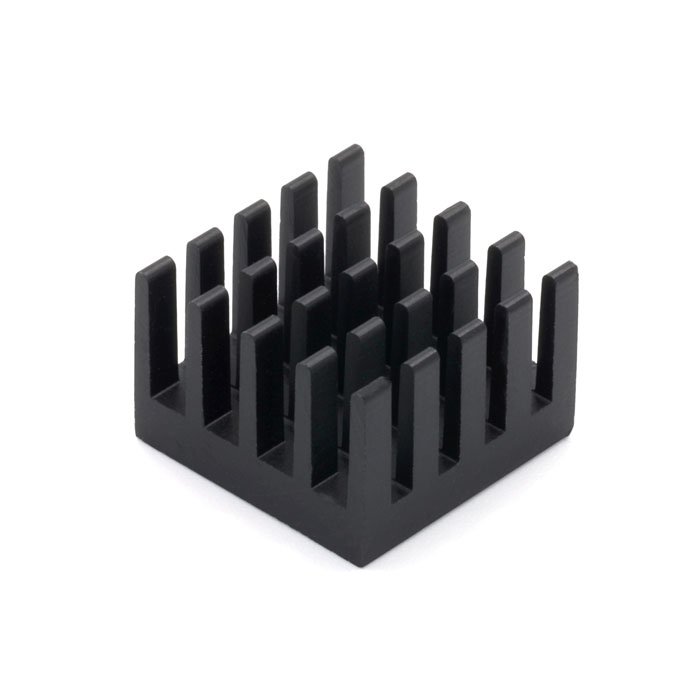

Heat sink in black anodized aluminum for semiconductor components. The heat sink is mounted using thermally conductive tape or thermally conductive adhesive (not included). Suitable when improved heat dissipation is required from, for example, BGA ICs.

Specifications:

Model: XDS - 151510
Material: Aluminum
Surface finish: Black anodized

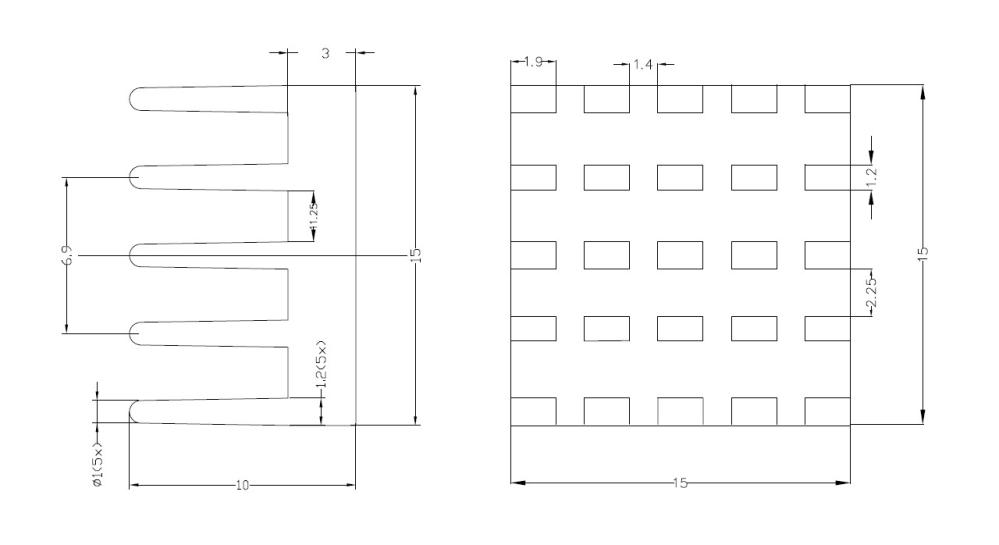

Dimensions: 15 × 15 × 10 mm
Material thickness: 3 mm
Thermal resistance: 29 K/W
