Product description

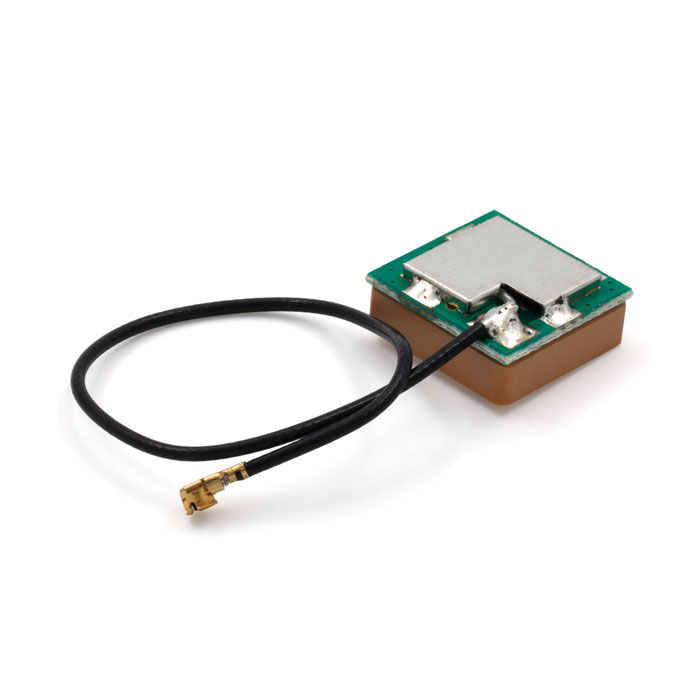

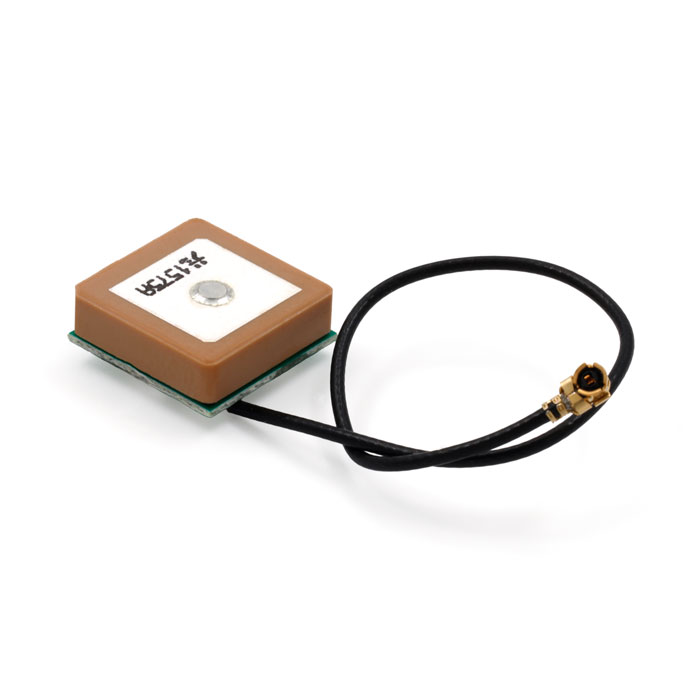

GPS-ANT045 is an internal passive ceramic GNSS antenna with coverage for GPS, GLONASS and Galileo. Supplied with a u.FL connection cable. Intended for internal installation/integration. It operates in the L1 band (1575 MHz) and features RHCP polarization.
Specifications:
- Model: GPS-ANT045
- Type: Internal passive GPS antenna
- Center frequency: 1575.42 MHz ±3 MHz
- Bandwidth: ±5 MHz
- VSWR: 1.5:1
- Gain: 0 dB
- Polarization: RHCP
- Impedance: 50 Ω
- Dimensions: 15 × 15 mm
- Cable: Low-loss 1.13 mm with u.FL / IPEX connector
- Operating temperature: -40 to +85 °C
