Product description

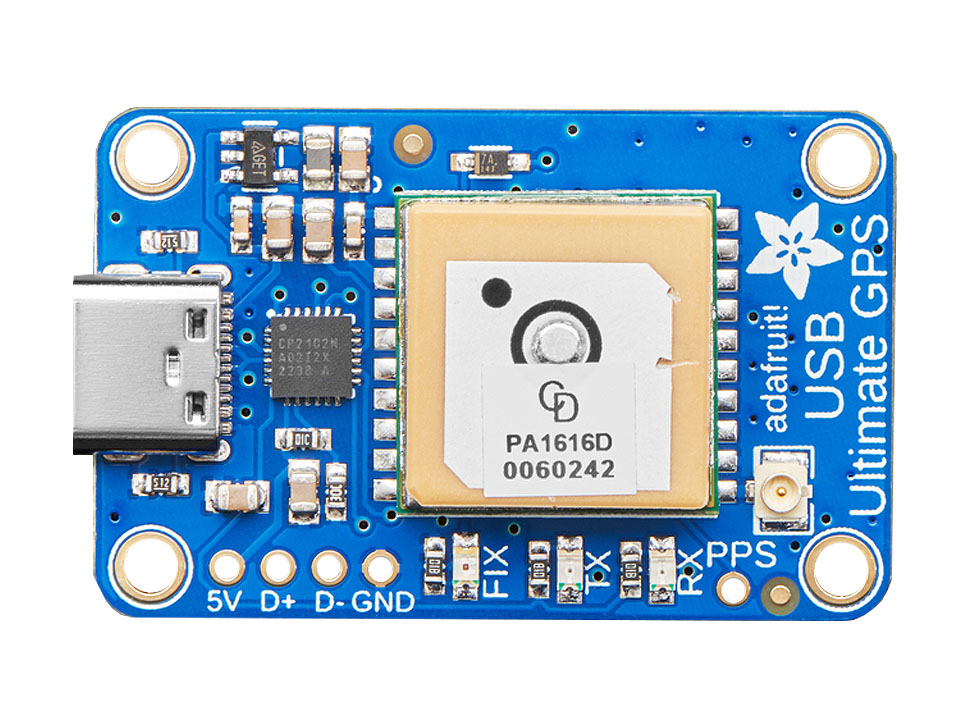

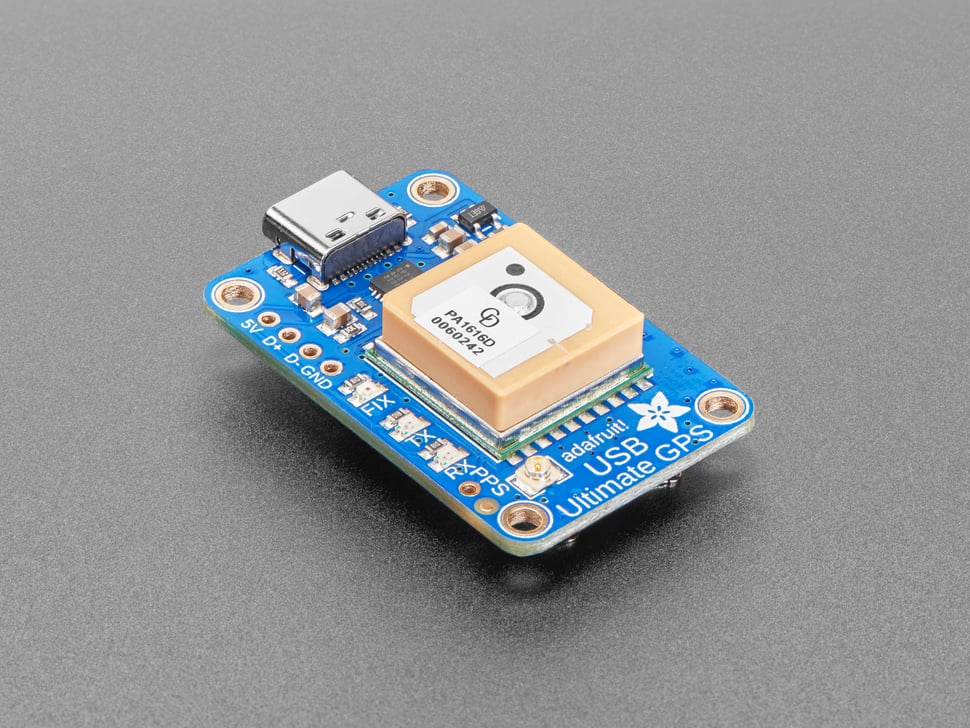

Adafruit Ultimate GPS GNSS with USB is a compact GPS/GLONASS module with USB-C, built-in USB-to-serial converter, and support for up to 10Hz update rate. The module features an internal patch antenna, u.FL connector for an external active antenna, built-in data logging, and LEDs for fix status and UART activity.
Specifications:
- Chipset: MTK3333
- GPS module: PA1616D
- GNSS support: GPS + GLONASS
- Channels: 33 tracking, 99 acquisition
- Update rate: 1 to 10 Hz
- Position accuracy: < 3m
- Speed accuracy: 0.1m/s
- Warm/cold start time: 34 s
- Acquisition sensitivity: -145 dBm
- Tracking sensitivity: -165 dBm
- Maximum speed: 515 m/s
- Supply voltage: 3.0-5.5 VDC
- Current consumption: 34 mA during startup, 29 mA during tracking
- Output: NMEA 0183, 9600baud default, 3V logic level output, 5V-tolerant input
- Antenna: Internal patch antenna + u.FL connector for external active antenna
- Patch antenna: 15 x 15 x 4mm

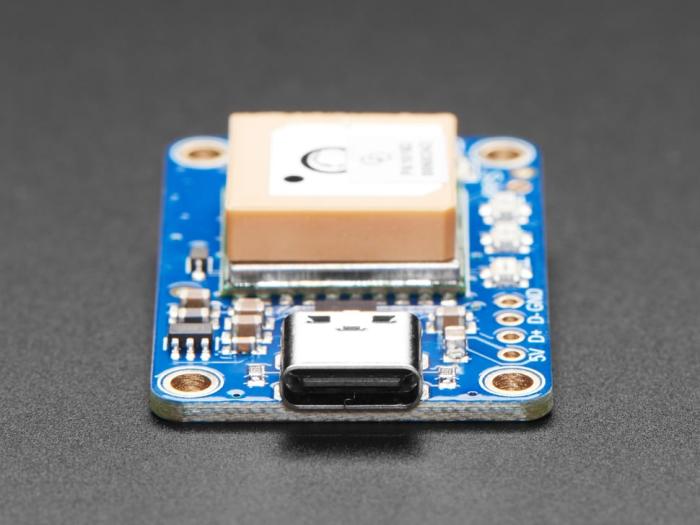

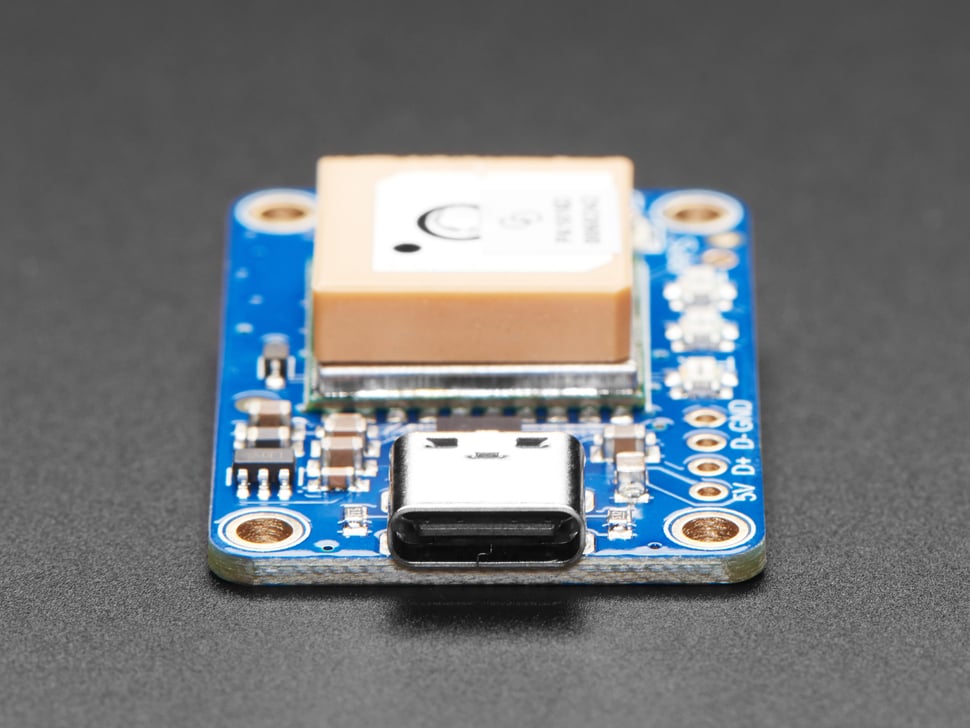

- USB: USB-C

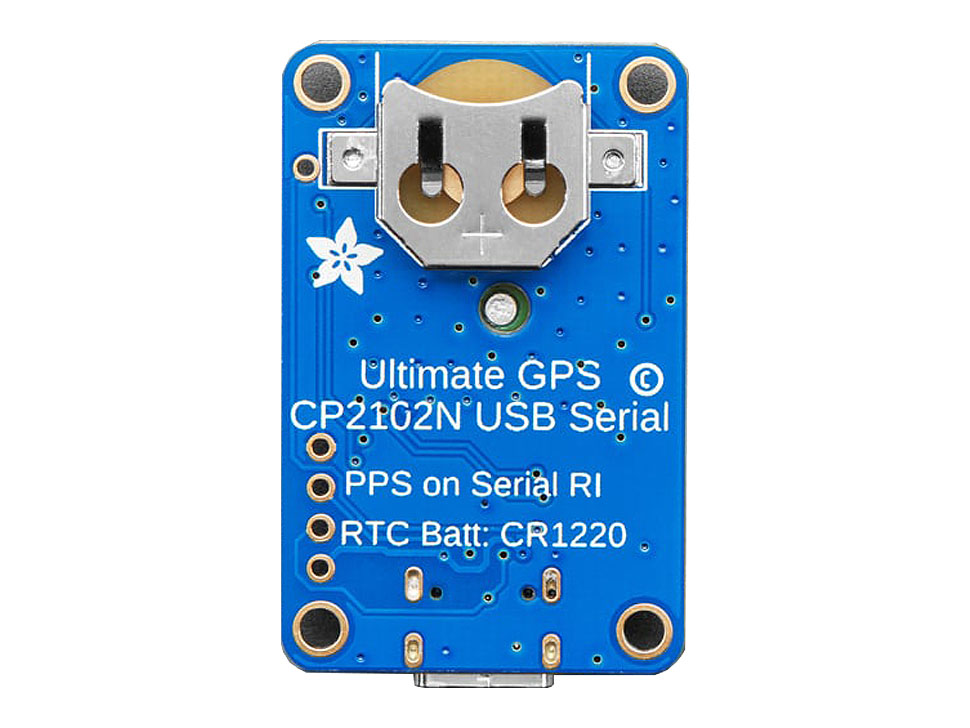

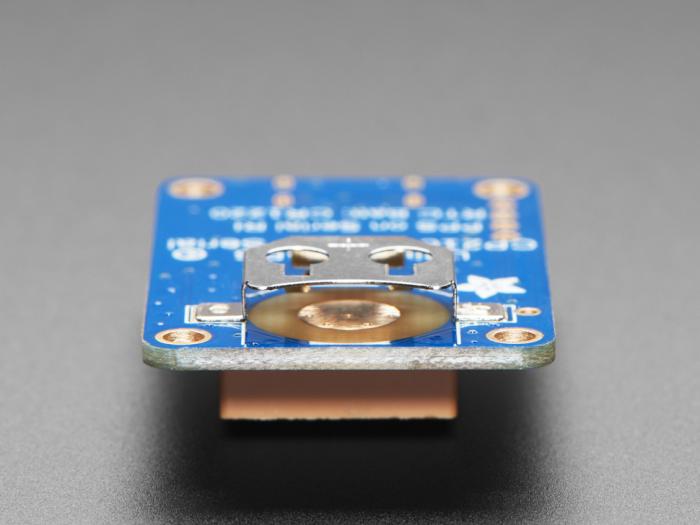

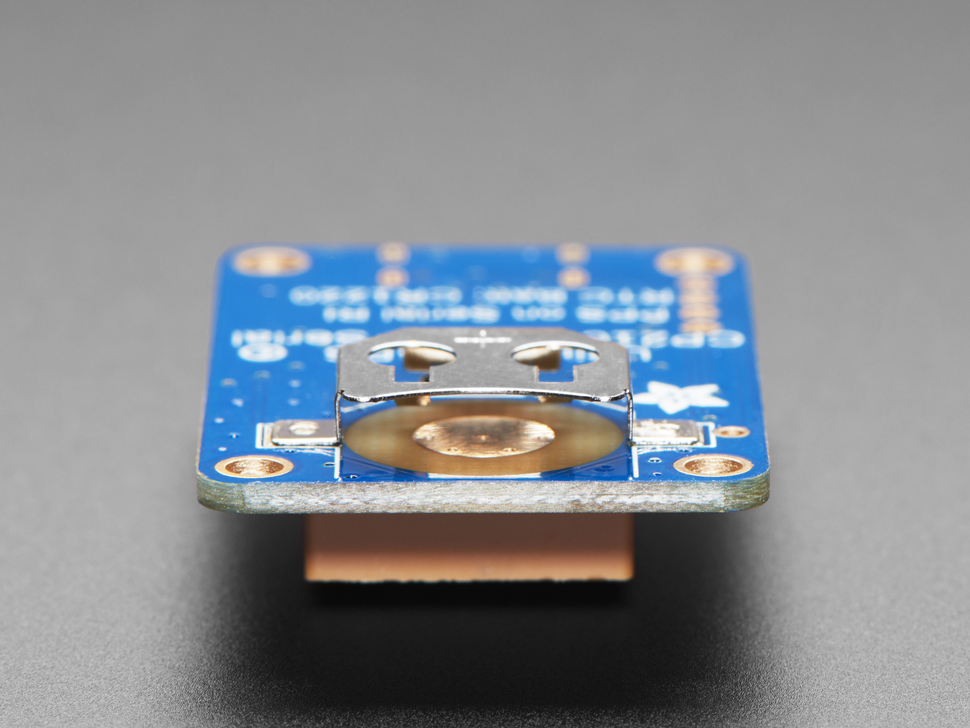

- RTC battery: CR1220 (not included)
- Weight: 9.9 g
- Dimensions: 40.8 x 25.3 x 10.8 mm
