Product description

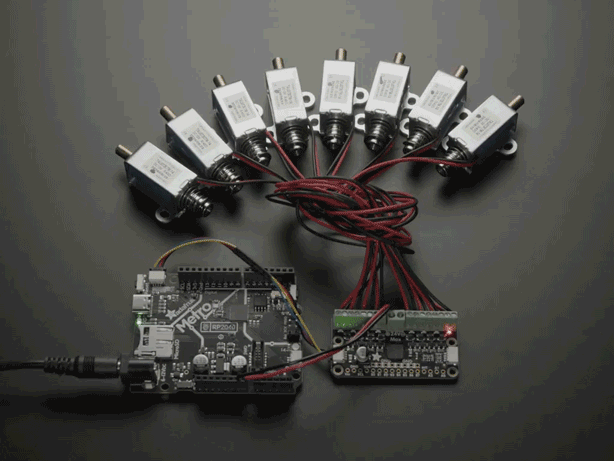

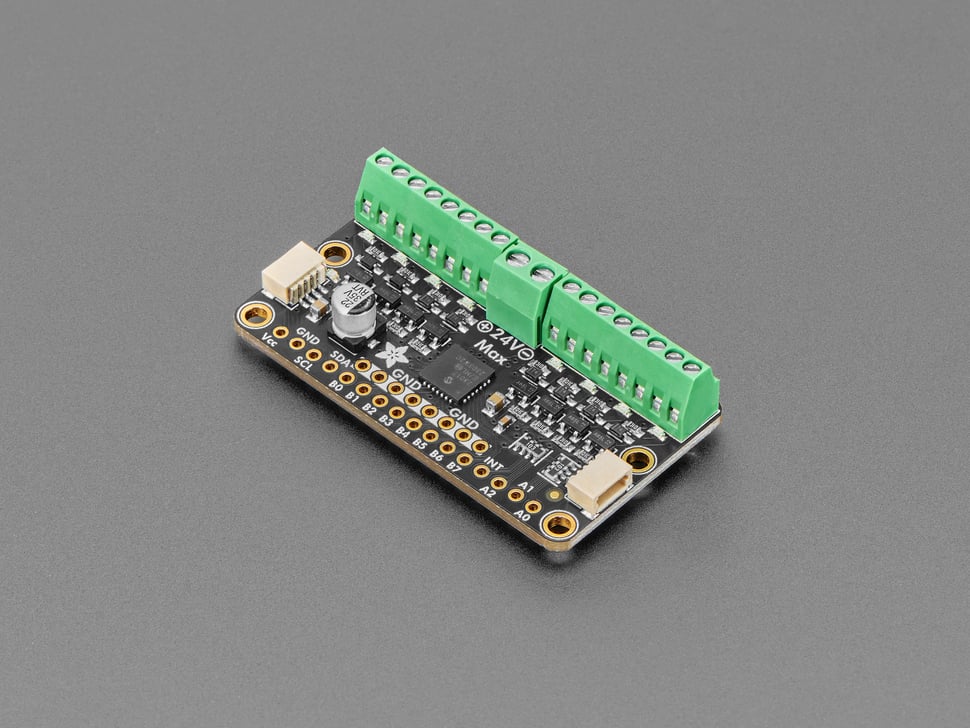

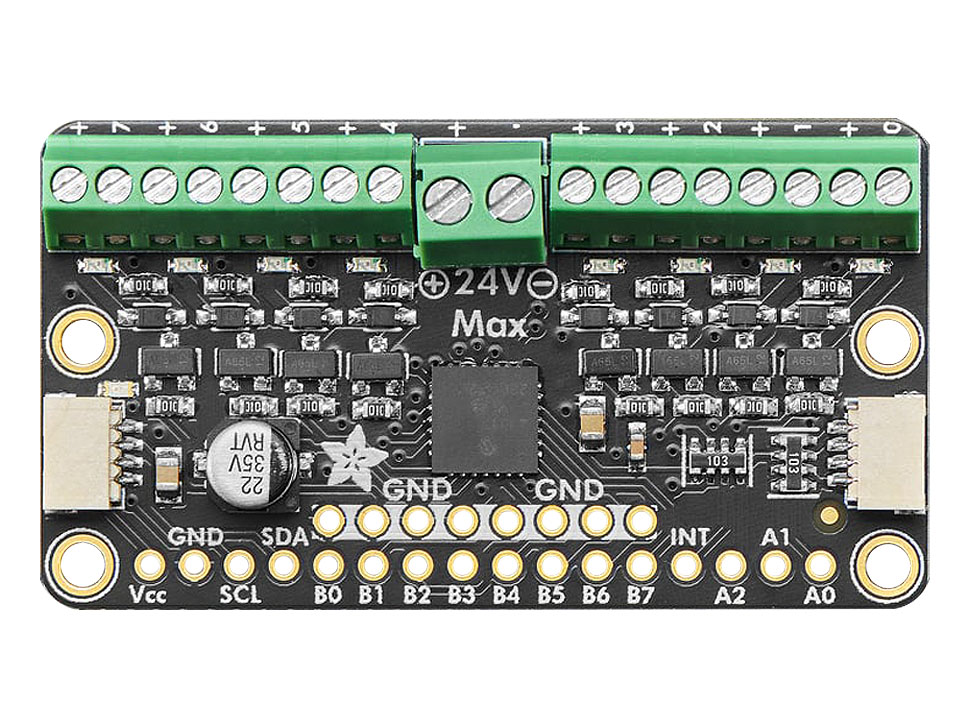

I2C controller board with 8 MOSFET outputs for controlling solenoids, electromagnets, and other electrical loads. The board is based on the MCP23017 GPIO expander and allows up to 8 individual outputs to be controlled via I2C, without using multiple GPIO pins on the microcontroller.

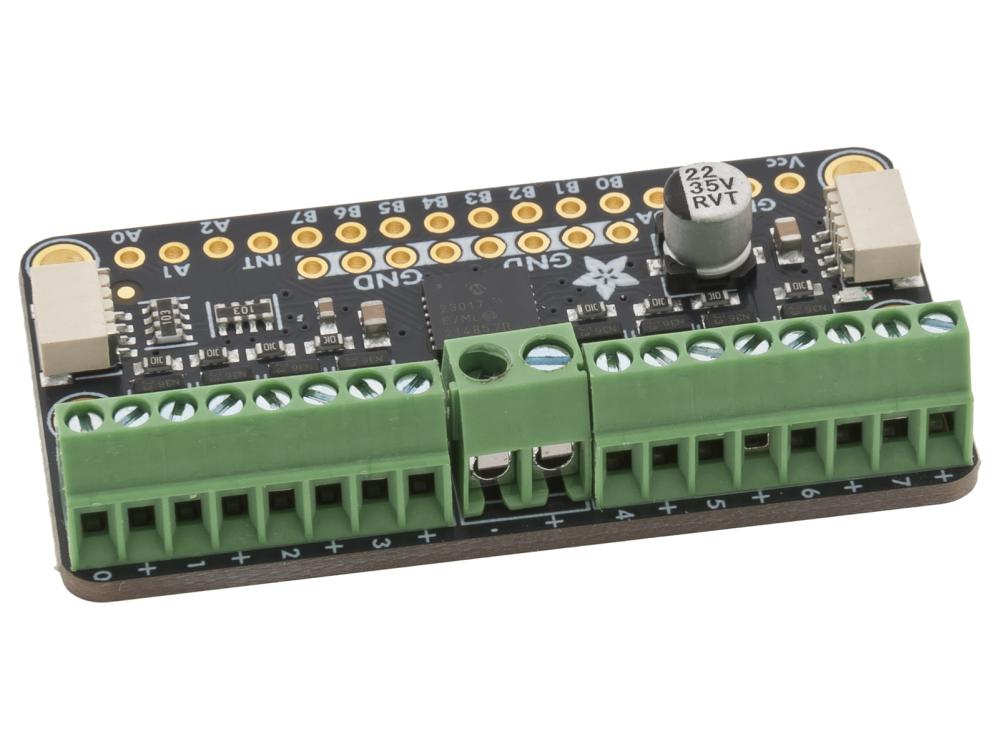

Each output has a separate N-channel MOSFET (AO3406) with a protection diode against inductive voltage spikes. A red LED indicates when each output is activated. Loads and external power are connected via screw terminals. The outputs use low-side switching, meaning that the MOSFET connects the negative side of the load to ground when activated.

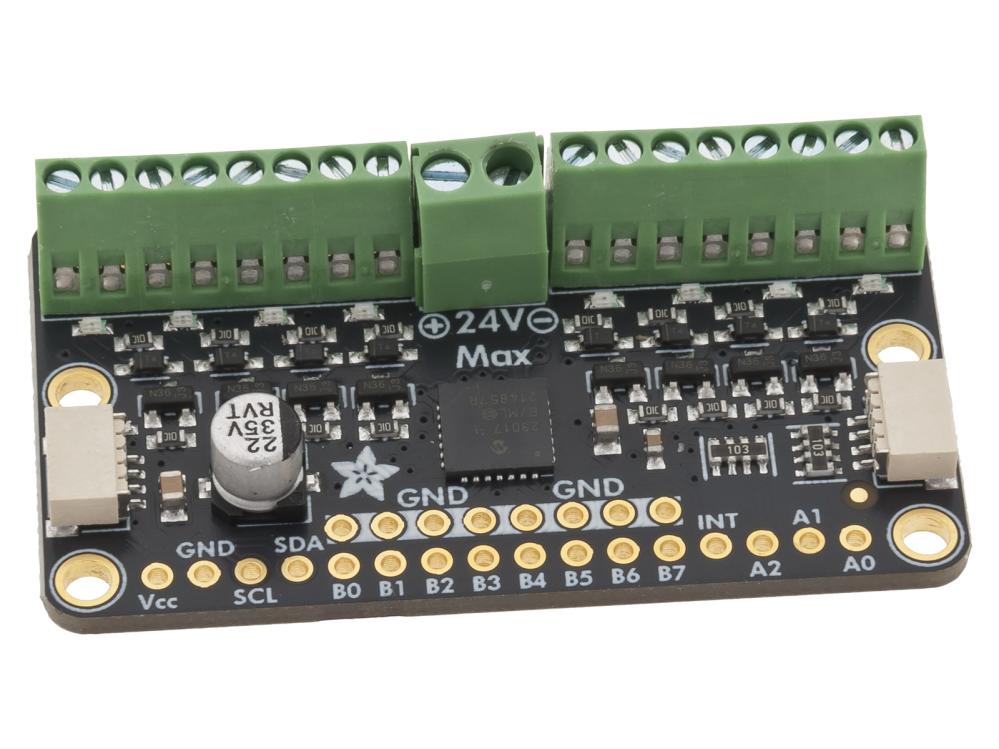

The board also provides 8 additional GPIO connections from the MCP23017's port B, which can be used for LEDs, buttons, or other purposes.

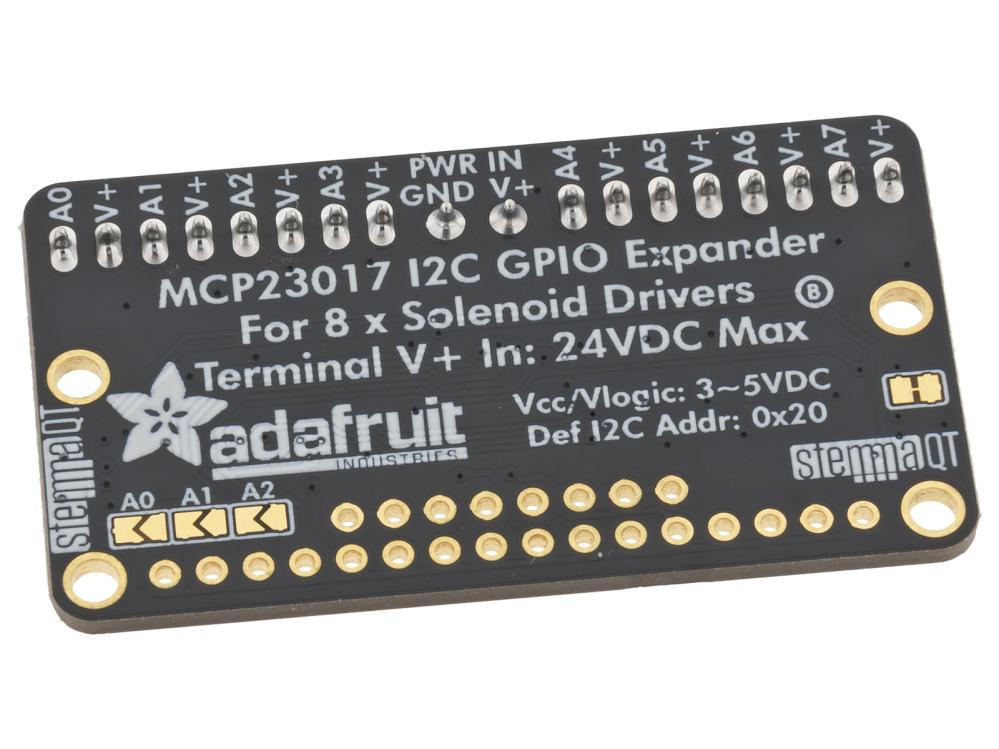

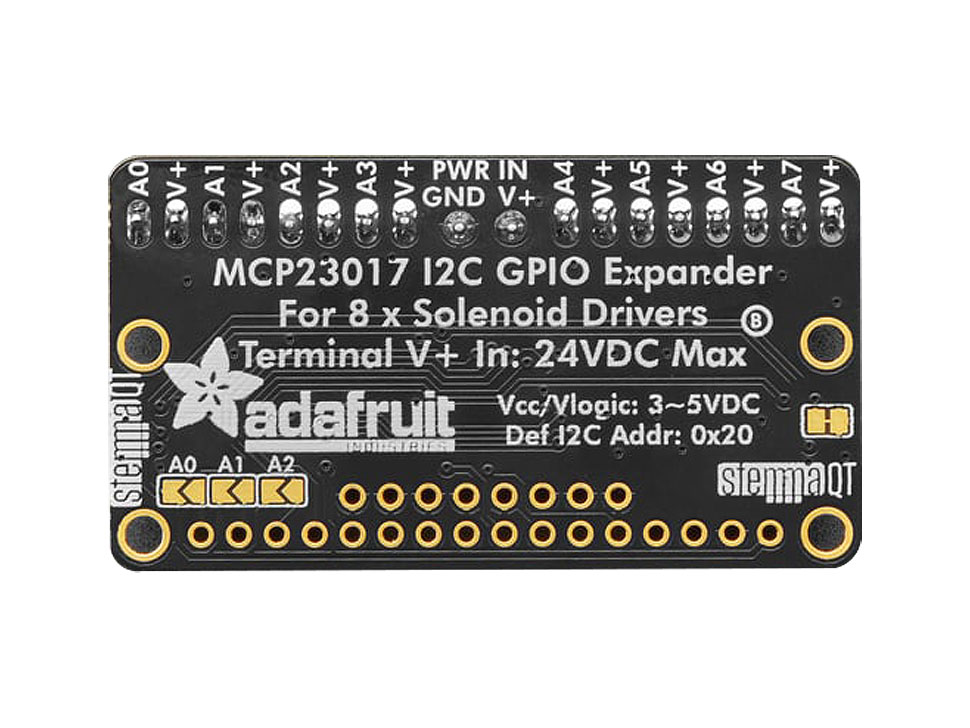

Three address jumpers allow up to 8 boards to be connected to the same I2C bus, providing a total of 64 controllable outputs. The board features Qwiic connectors and can be used with microcontroller boards such as Arduino and Raspberry Pi.
Specifications:
- Controller IC: MCP23017
- MOSFET: AO3406, N-channel
- Number of MOSFET outputs: 8
- Interface: I2C
- Logic voltage: 3 V or 5 V
- Load supply voltage: 3–24 VDC
- Current (max) per channel: 3.6 A
- MOSFET RDS(on): 70 mΩ
- Output type: Low-side switching MOSFET
- Protection: Flyback diode on each channel
- Indicators: Red LED on each channel
- I2C addresses: 8 selectable
- Maximum number of connected boards: 8
- Maximum number of controllable outputs: 64

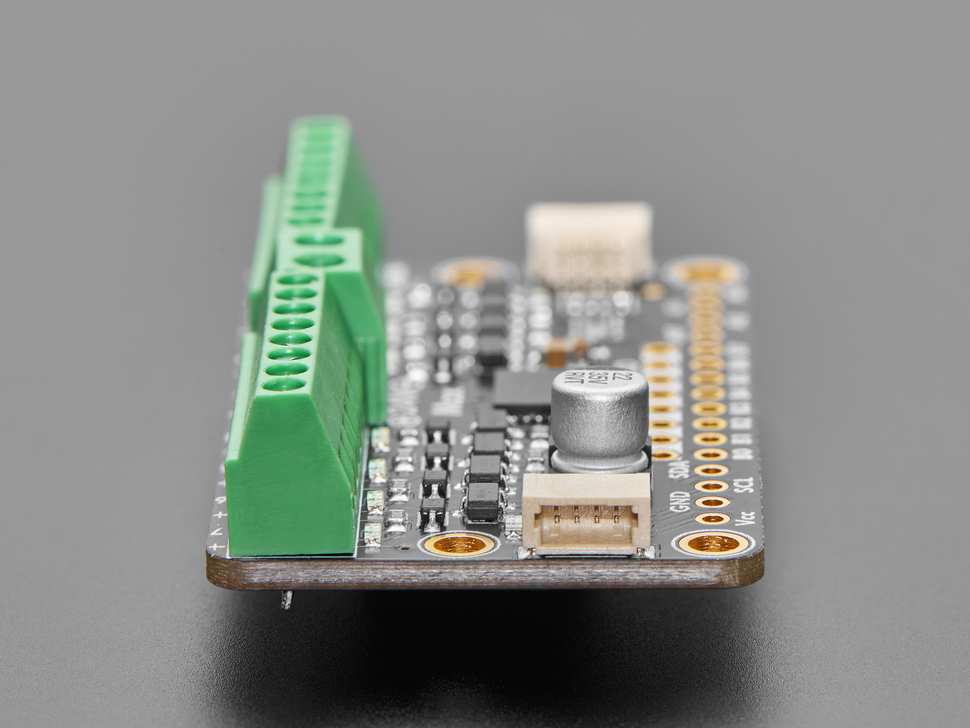

- Connections: Screw terminals and 2x Qwiic
- Dimensions: 51.0 x 28.0 x 10.2 mm

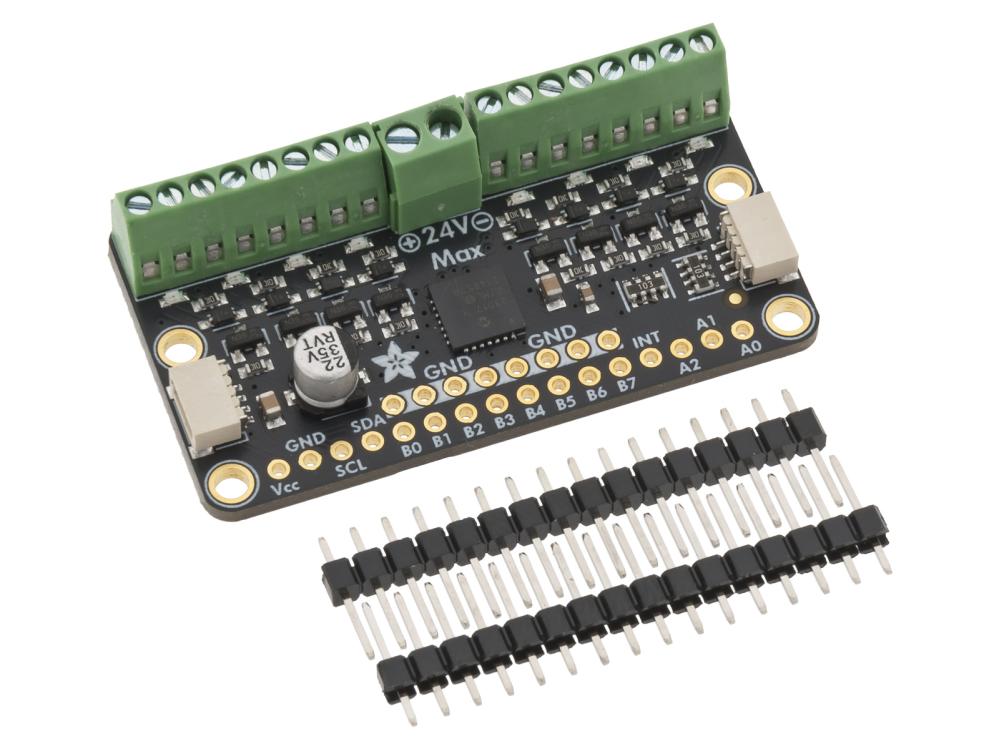

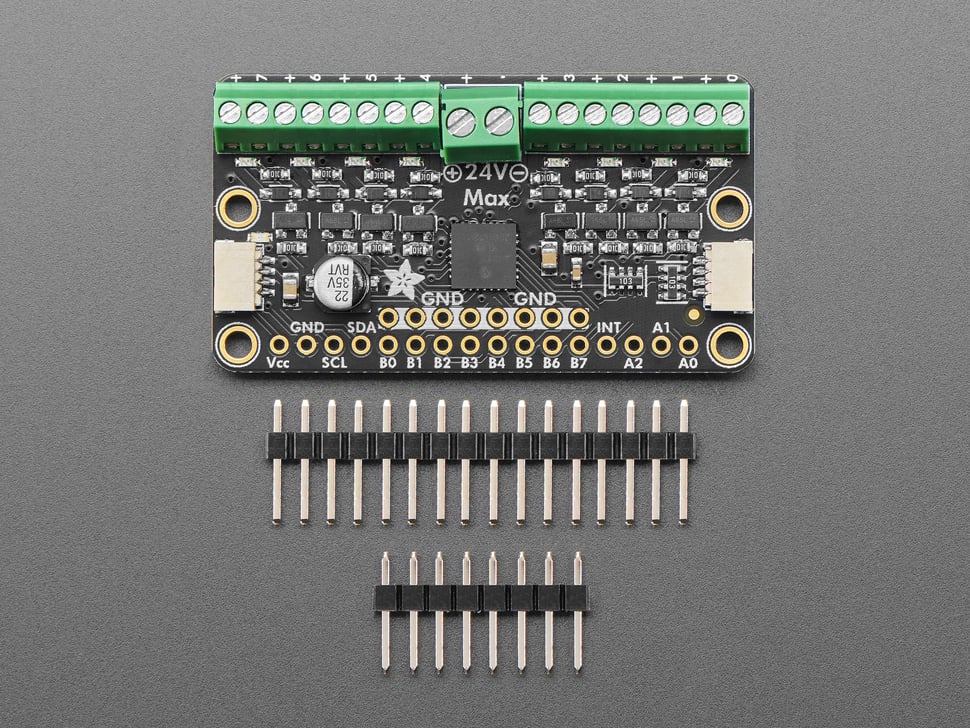

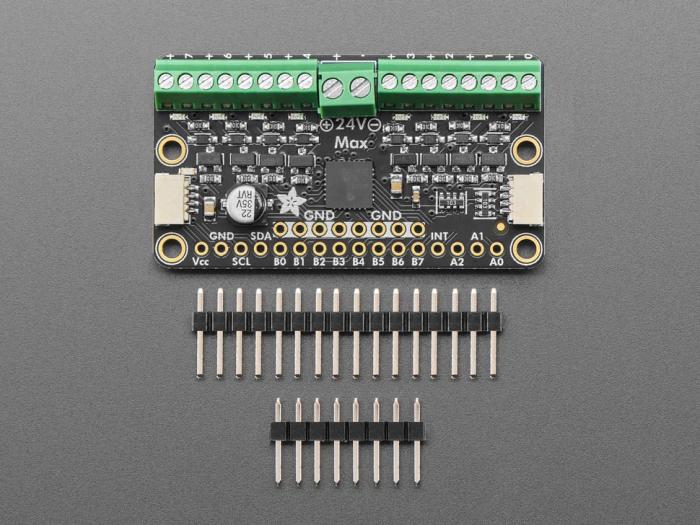

- Included: Pin headers (not pre-soldered)
