Product description

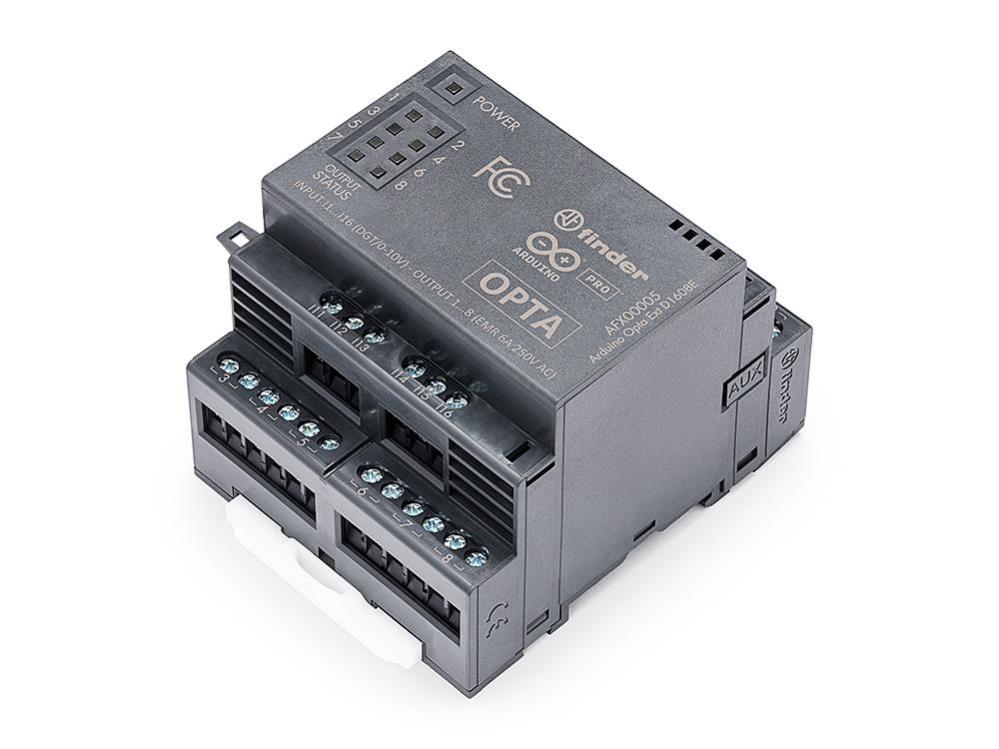

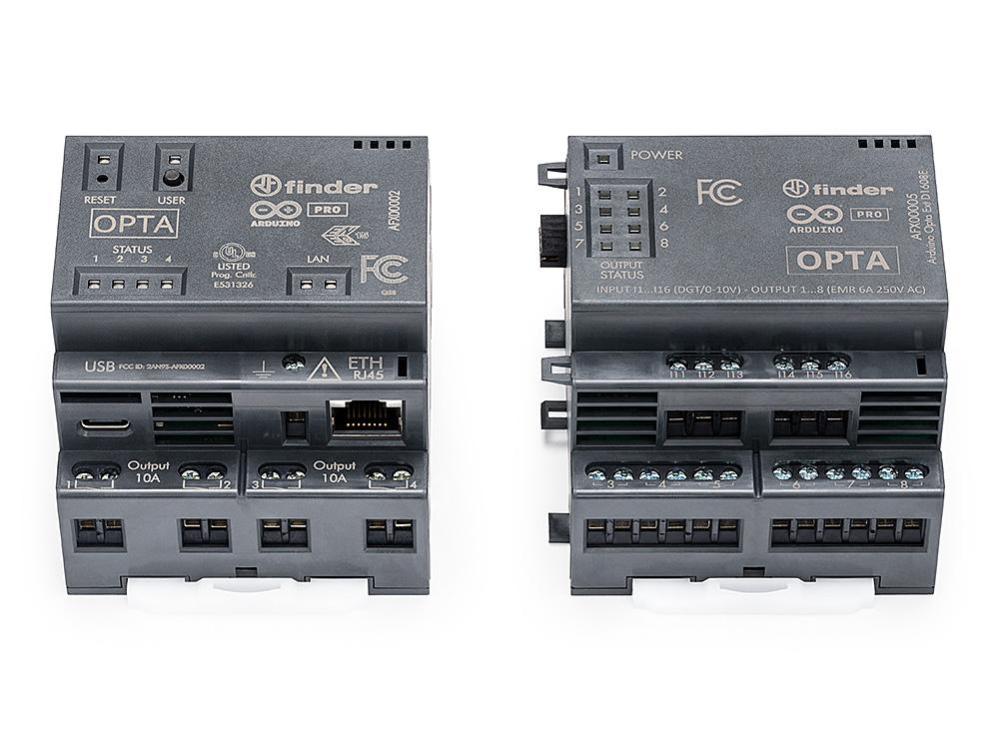

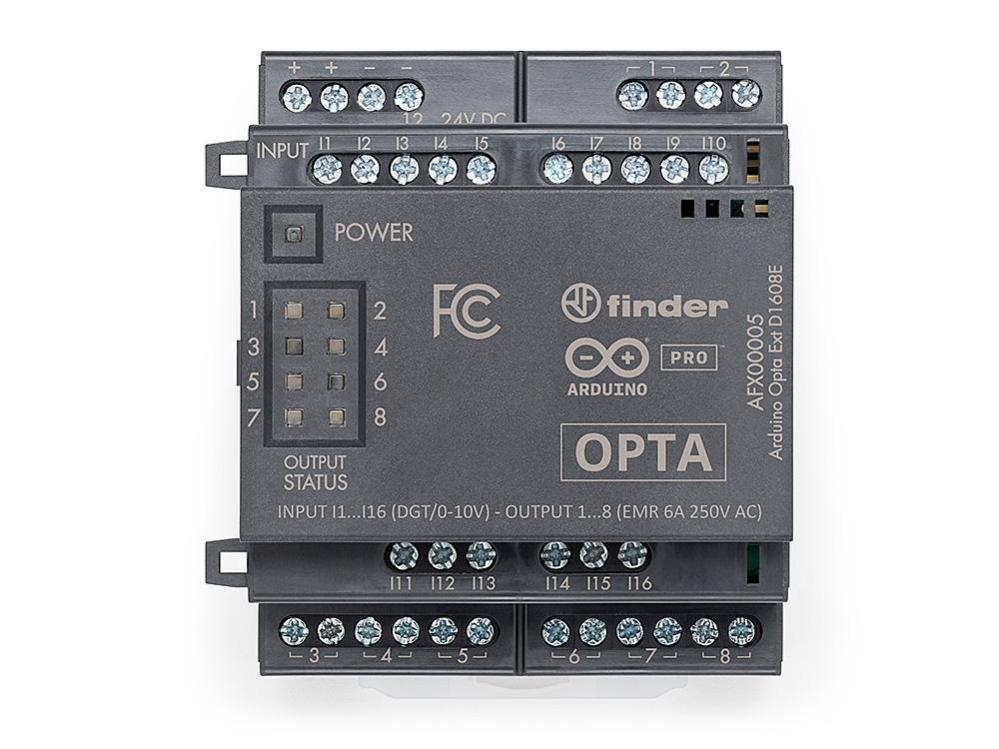

Arduino D1608E (Relays) - Expansion module for the Arduino Opta system. Snap-on module that provides 16 additional programmable voltage inputs and 8 relays.
Specifications:
- Inputs: 16 × programmable (digital 0–24 VDC / analog 0–10 V, 14‑bit resolution)
- Outputs: 8x relays
- Relay contact (8x): 250 VAC 6A (temporarily 10A), NO - SPST (NO)
- Supply voltage: 12–24 VDC
- Module power consumption (max): 3 W (250 mA @ 12 VDC or 125 mA @ 24 VDC)
- Operating temperature: –20 °C to +50 °C
- Dimensions: 89 × 70 × 62 mm
- Protection: IP20

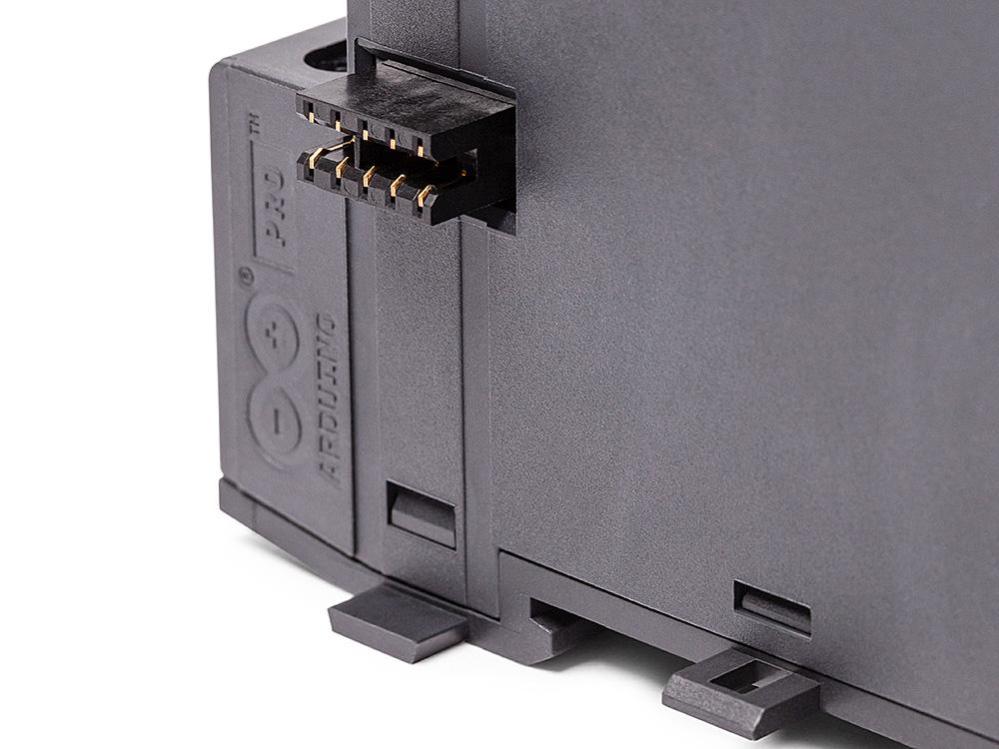

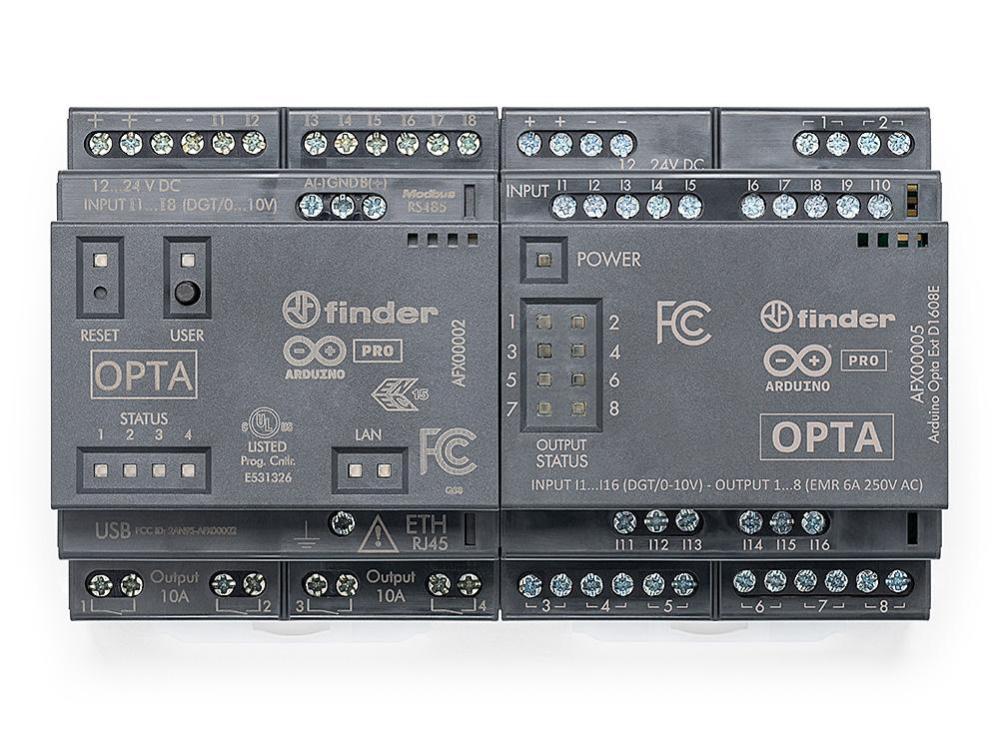

- Installation: DIN‑rail mountable, snap‑on modular stacking up to 5 modules
