Product description

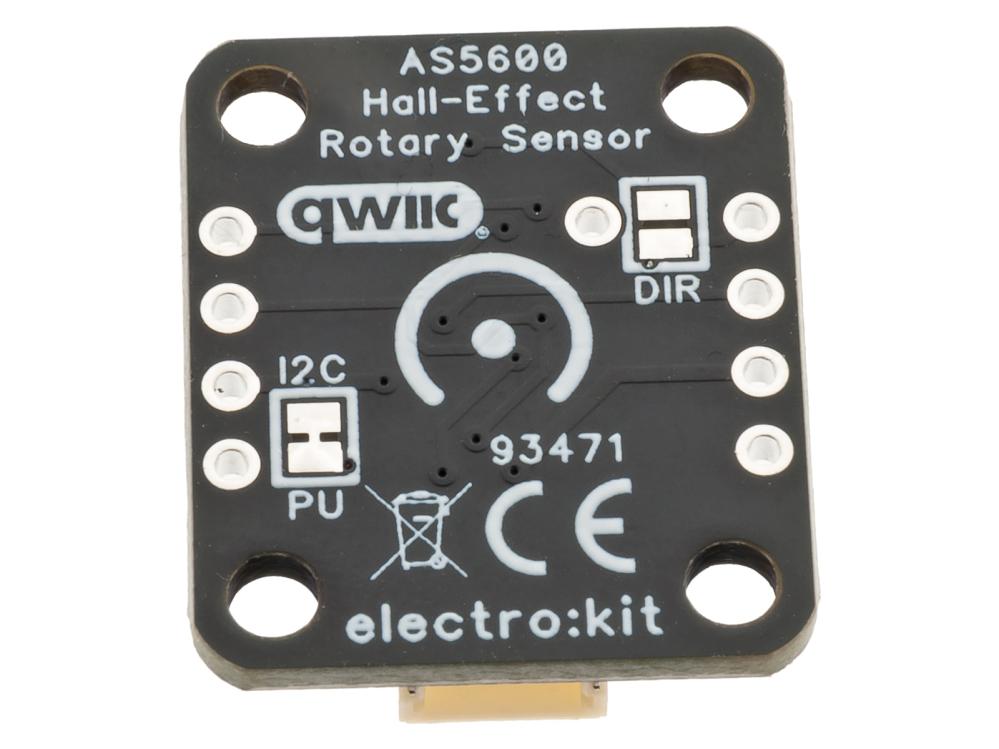

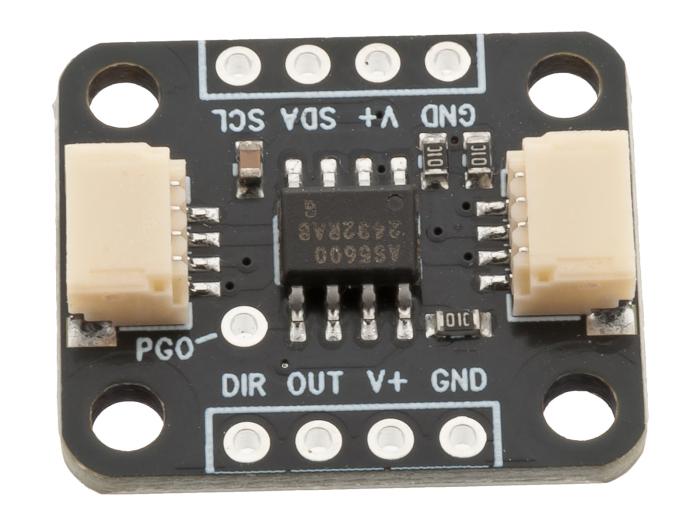

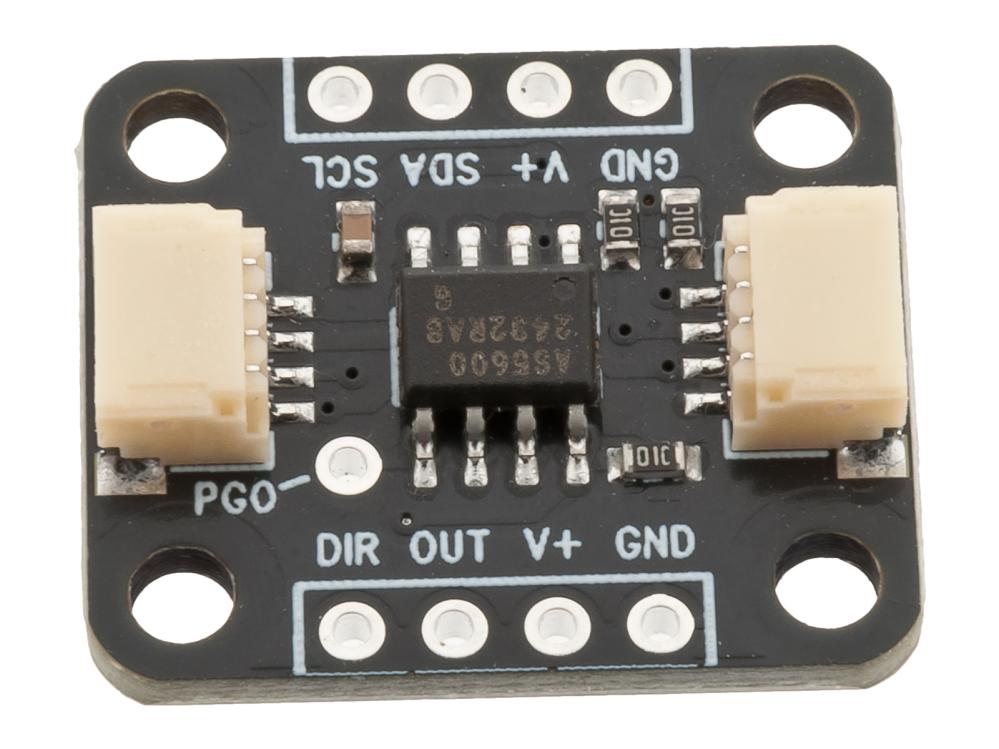

Module featuring the well-known angular position sensor AS5600 from Infineon (Osram). The sensor detects magnetic fields from a nearby magnet and provides absolute rotation readings. EKM040 can be used to create a highly robust non-contact potentiometer or encoder with absolute position.
The sensor communicates via I2C using Qwiic connectors and also features an auxillary output that provides a proportional analog voltage or PWM signal.
Functions
- Contactless anglular sensing
- Qwiic connectors for solder-free wiring
- Auxillary analog or PWM output
- Extremely high resolution and linearity
- Programmable scaling and endstops
Specifications
- Voltage supply: 3.3V (3.0 - 3.6V)
- Current draw: 6.5mA (down to 1.5mA)
- Resolution: 12-bit (4096 steps per revolution)
- Nominal flux range: 30 - 90mT
- I2C address: 0x36

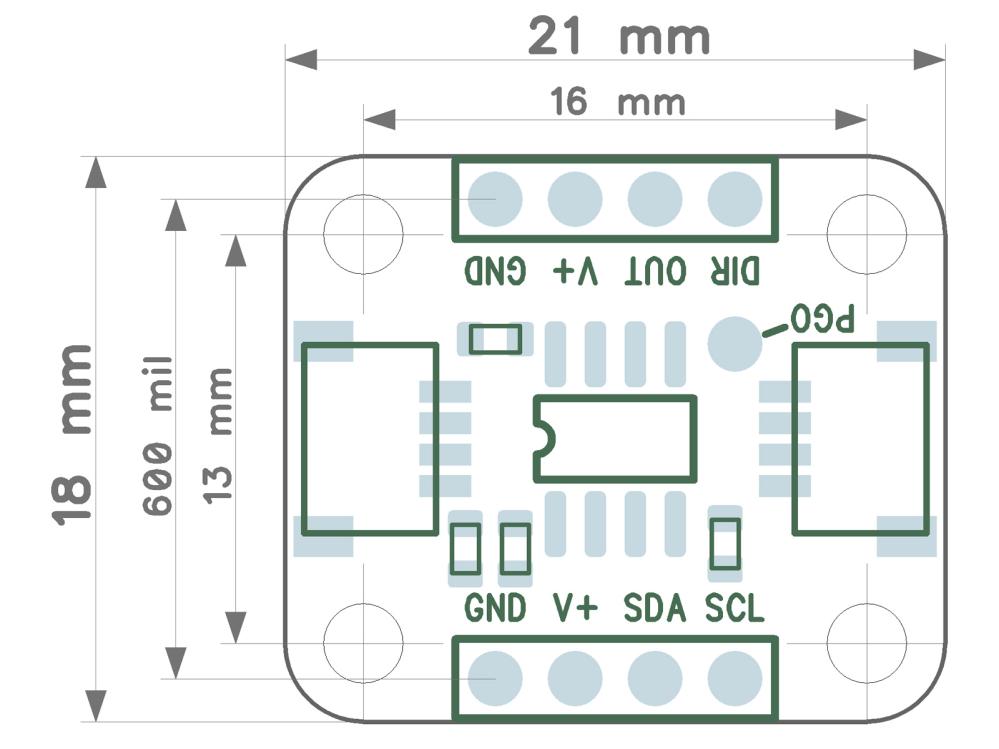

- Dimensions: 21 x 18 x 4.55mm
