Product description

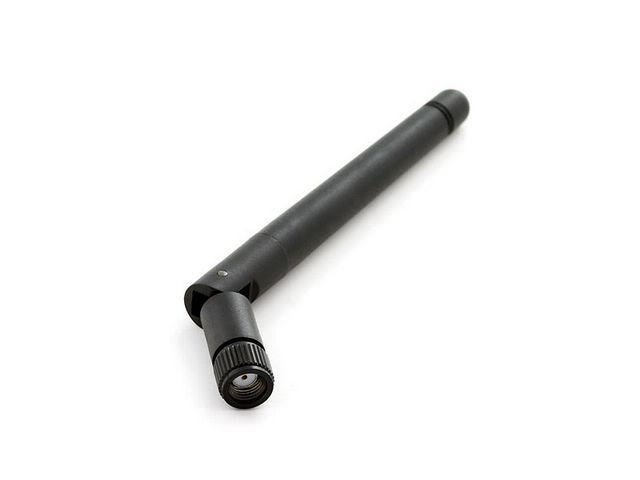

2.4/5.0 GHz dual-band ISM antenna, tilt-adjustable. The antenna is omnidirectional with an RP-SMA connector. Suitable for WiFi 4/WiFi 5/WiFi 6, also WiFi/LPWA/Bluetooth/ZigBee/RFID.
Specifications:
- Frequency range: 2410-2490 MHz / 4920-5925 MHz
- VSWR: <= 1.2:1 / 1.9:1
- Antenna gain (dBi): 2.3 / 0.8
- Impedance: 50 ohm
- Operating temperature: -40 to +85°C
- Max input power: 25 W
- Polarization: Linear
- Antenna dimensions: Ø10 × 113 mm
- Connector: RP-SMA male
Useful information about WiFi standards and frequency bands:
- WiFI 1999 - IEEE 802.11b (2.4 Ghz)
- WiFI 2003 - IEEE 802.11g (2.4 Ghz)
- WiFi 4 2009 - IEEE 802.11n (dual band 2.4/5 Ghz)
- WiFi 5 2013 - IEEE 802.11ac (5 Ghz)
- WiFi 6 2019 - IEEE 802.11ax (dual-band 2.4/5 Ghz)
- WiFi 6E 2020 - IEEE 802.11ax (tri-band 2.4/5/6 Ghz)
- WiFi 7 2024 - IEEE 802.11be (tri-band 2.4/5/6 Ghz)
- WiFi 8 2028 - IEEE 802.11bn (tri-band 2.4/5/6 Ghz)
About SMA and RP-SMA:
SMA and RP-SMA (Reverse Polarity SMA) are two common types of coaxial connectors for RF and antenna applications. The difference is in the construction of the center pin:
- SMA male has a protruding pin - female has a receptacle
- RP-SMA male has a receptacle - female has a protruding pin
Important information about wifi routers:
WiFi routers are normally equipped with RP-SMA connectors. Therefore, carefully check which connector your equipment requires before purchasing an antenna or accessories. Please note that it is possible to join a SMA together with a RP-SMA mechanically, but there will be no electrical connection.
