Product description

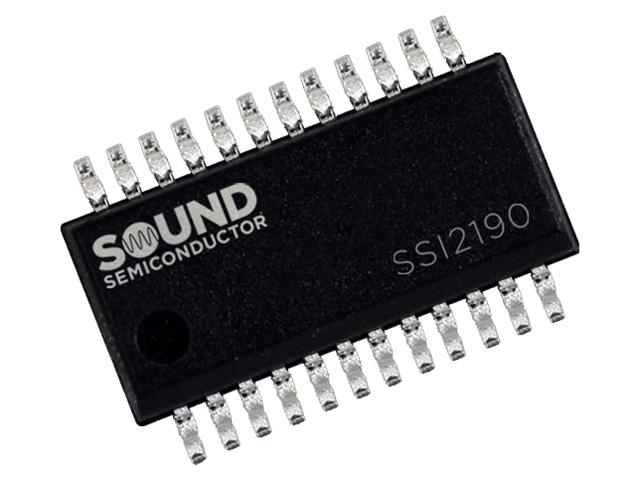

Six-channel voltage-controlled mixer in a space-saving SSOP-24 package. Based on a new OTA (Operational Transconductance Amplifier) circuit from Sound Semiconductor. The six inputs have individually voltage-controlled levels, after which they are summed together into one output. Low noise, low distortion, large dynamic range and differential inputs on all channels.
Easy to use, few external components required.
- Supply voltage: ±4V to ±18V
- Single supply possible
- Current consumption: approx. 12mA (per supply)
- Handles signals with swing up to 10V RMS
- Linear control
- Noise: approx. -91 dBu
- Distortion: approx. 0.025%
- Dynamic range (at 1% THD): +22 dBu
- Channel separation: 88 dBu
