Product description

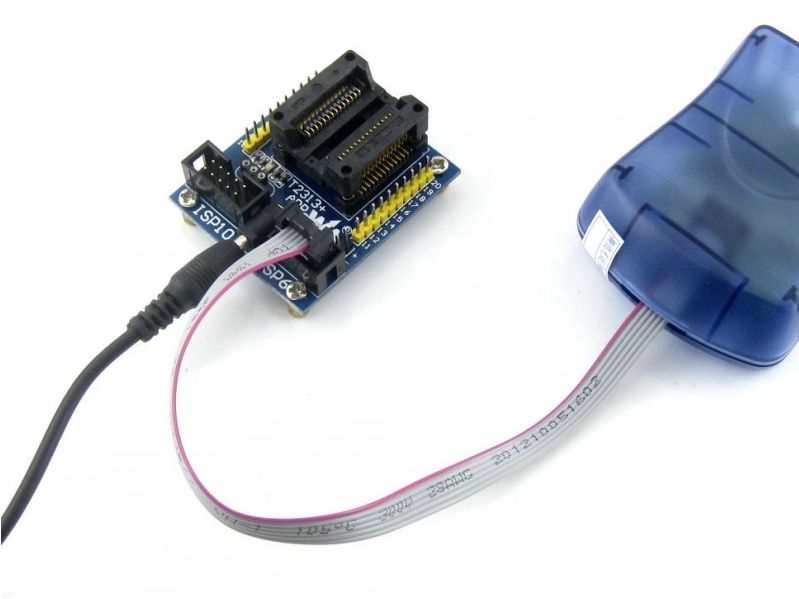

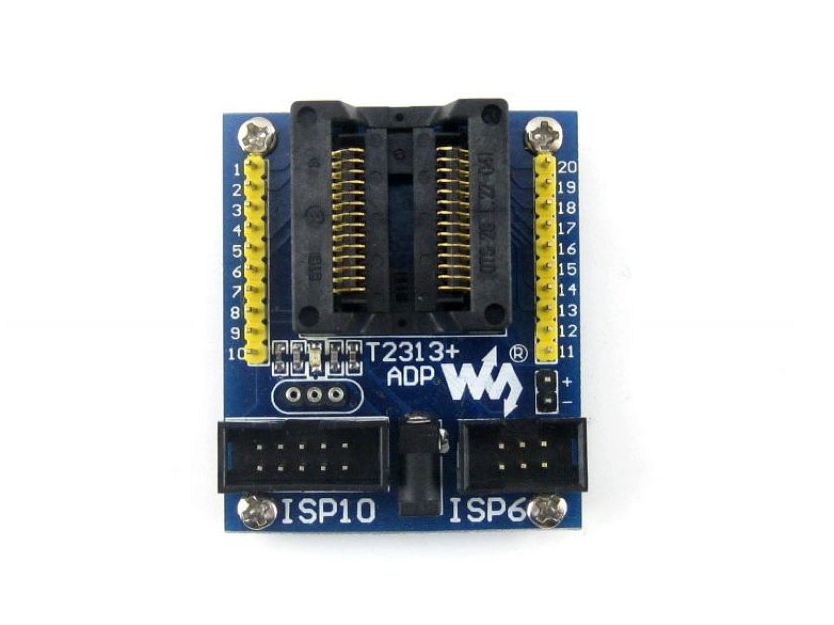

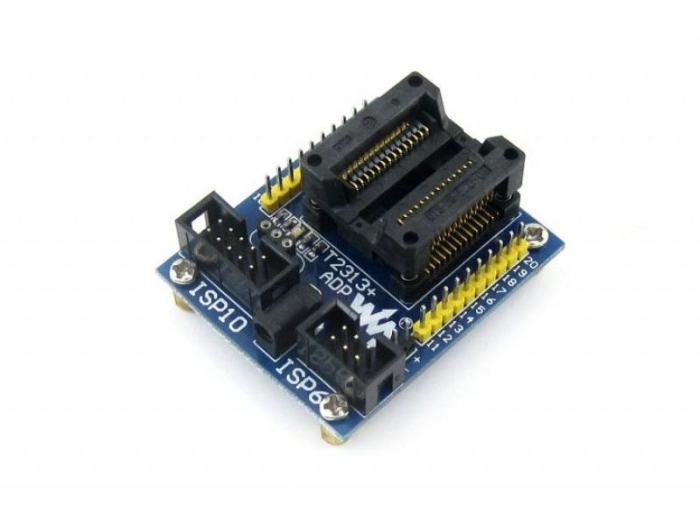

Adapter board for programming and testing AVR microcontrollers. Equipped with a ZIF-like SOIC-20 socket (300 mil). Intended for testing and programming microcontrollers. All 20 pins are broken out to header pins for easy access during development or verification. The adapter board features 10-pin and 6-pin ISP connectors for connection to an external AVR programmer. It also provides the option to connect an external crystal oscillator (socket included). The adapter board is suitable for ATtiny2313 and other microcontrollers with the same pin layout, including certain 51-series MCUs such as AT89S2051, AT89S4051, AT89LP201 and AT89LP4051, providing flexibility when working with different SOIC-20 devices.
Specifications:
- IC socket: OTS-28-1.27-04
- Package: SOIC20 (300 mil) for AVR and compatible MCUs
- ISP connectors: 10-pin and 6-pin
- External crystal: Socket for external crystal oscillator
- Connections: All MCU pins broken out to 20 header pins
- Supply voltage: 5 V via VIN or via included USB cable (with DC plug)
