Product description

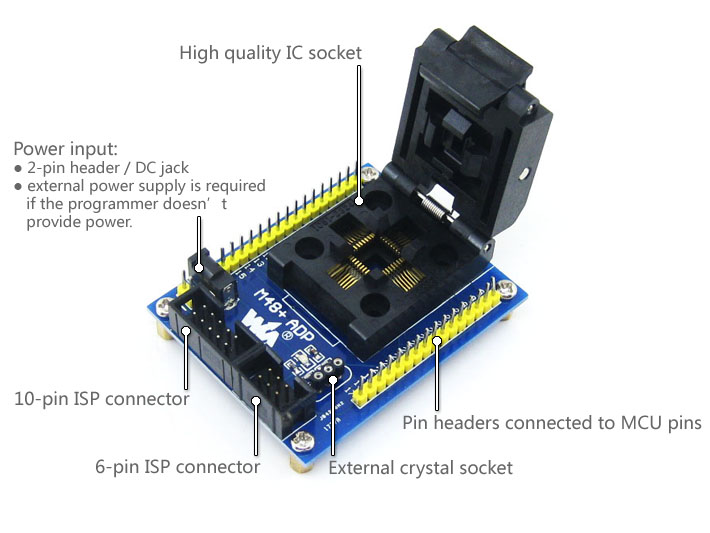

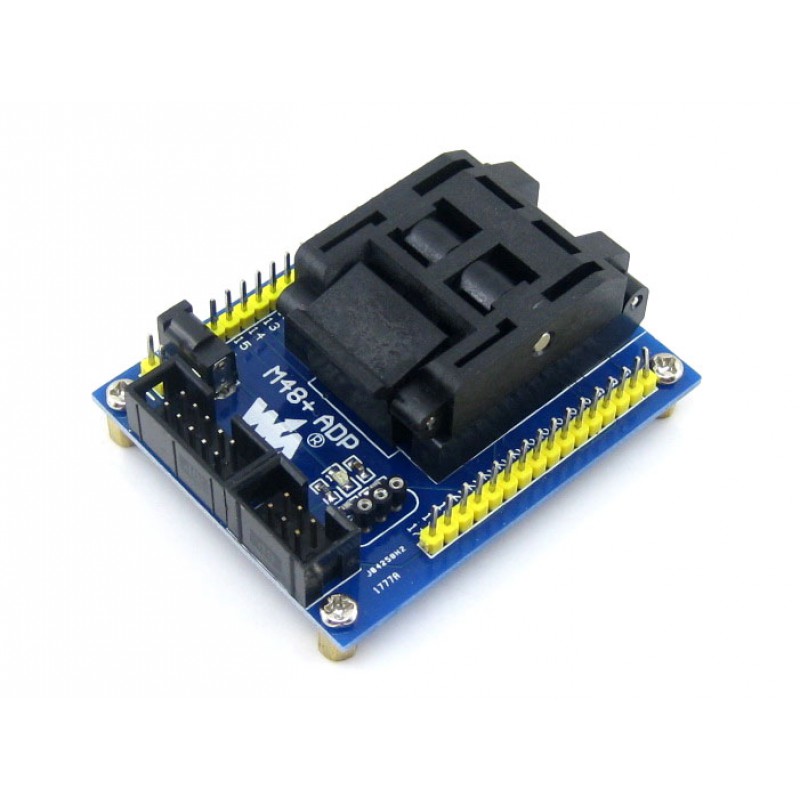

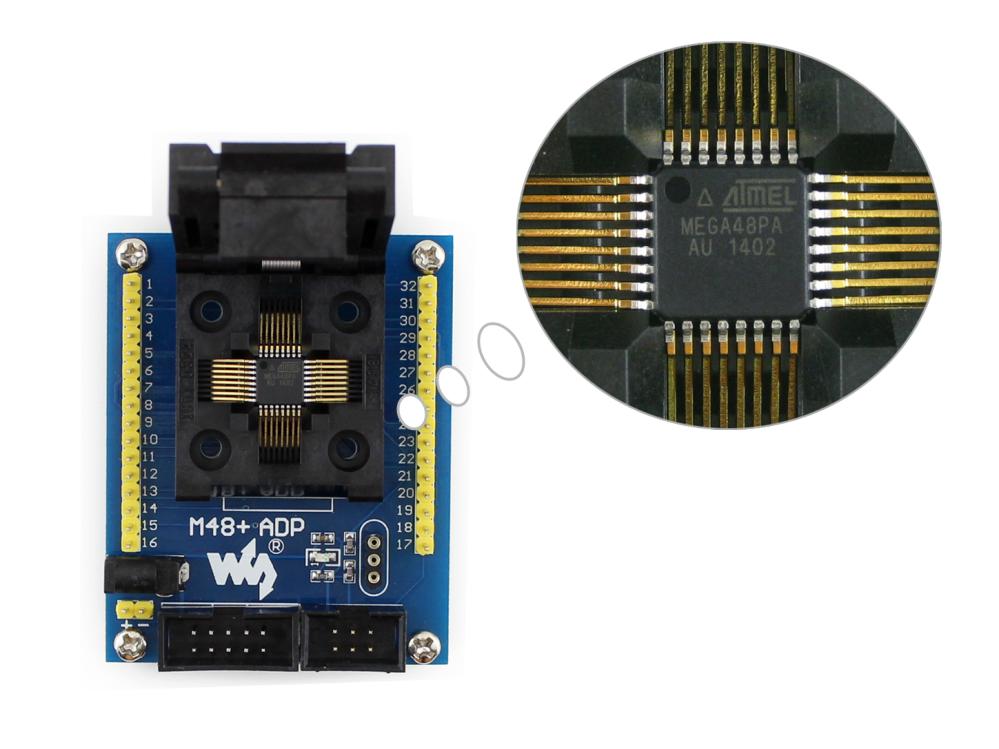

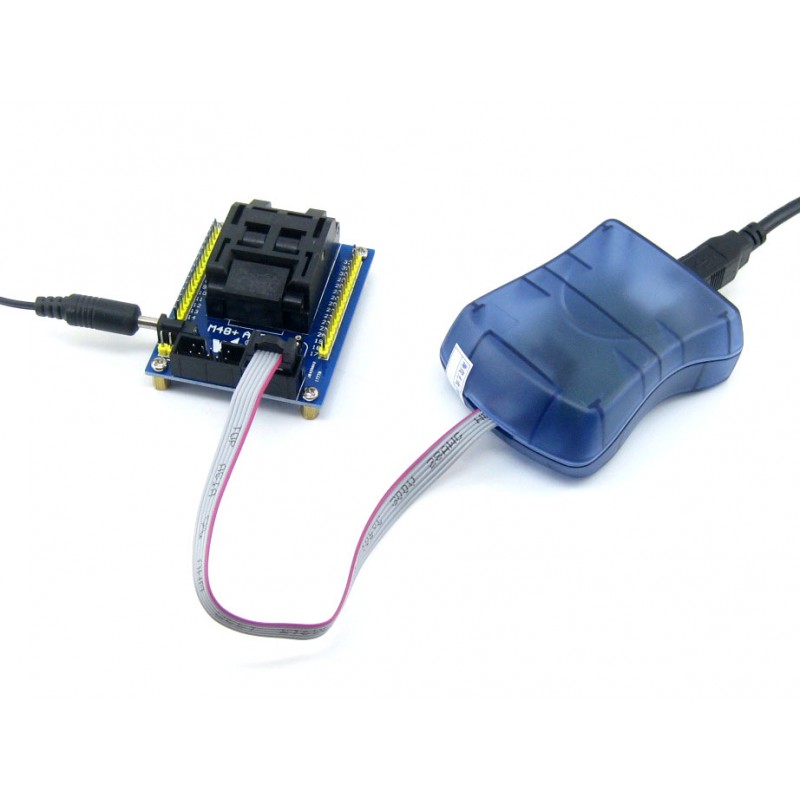

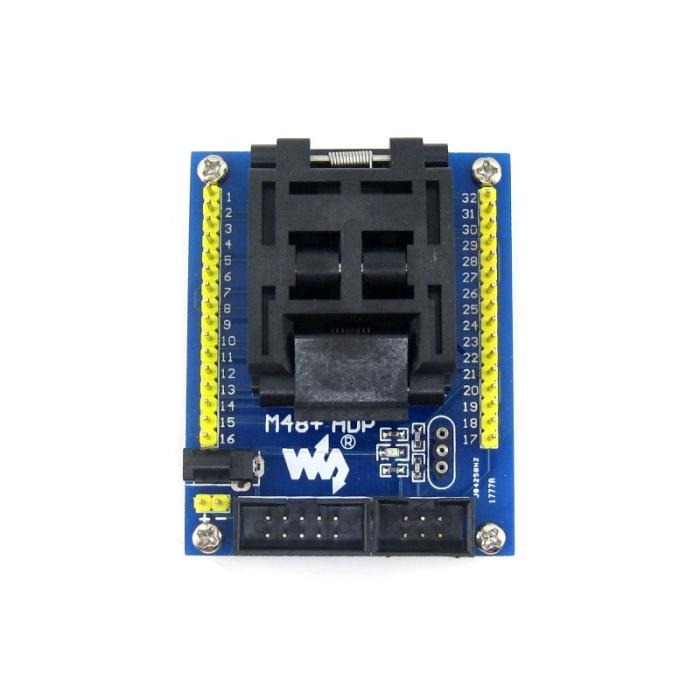

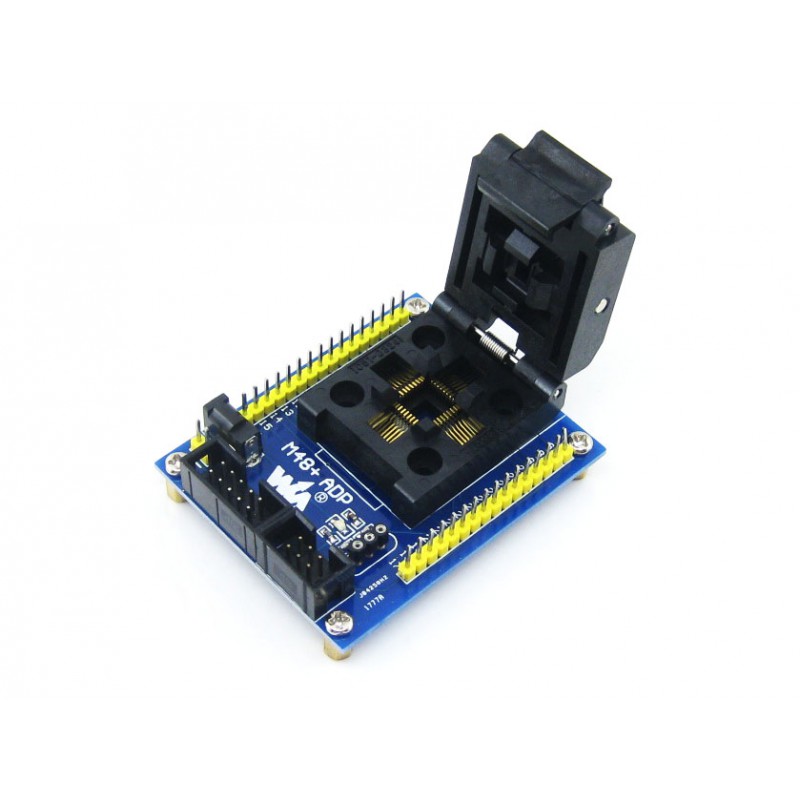

M48-ADP is an adapter board for programming and testing AVR microcontrollers. It features a ZIF-style socket for TQFP32 packages. All 32 pins are broken out to headers for easy access during development or verification. The adapter board includes 10-pin and 6-pin ISP connectors for connection to an external AVR programmer. It also provides the option to connect an external crystal oscillator (socket available).
The adapter board is suitable for:
- ATmega48 / ATmega88 / ATmega168 / ATmega8
- ATmega48PA / ATmega88PA / ATmega168PA / ATmega8A
- ATtiny48 / ATtiny88 / ATmega328 / ATmega328P
Specifications:
- IC socket adapter: AVR TQFP32
- ISP connectors: 10-pin and 6-pin
- Socket manufacturer and model: Yamaichi IC51-0324-1498
- External crystal: Socket for external crystal oscillator
- Connections: All MCU pins accessible via 32-pin header
- Power supply: 5 V via VIN, DC jack or included USB cable (with DC connector)
