Product description

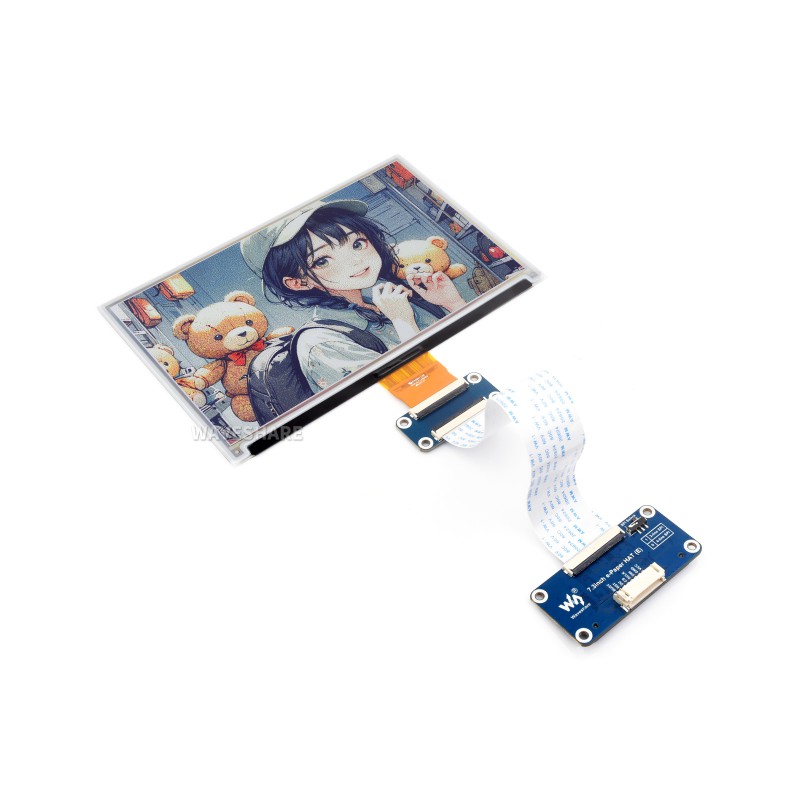

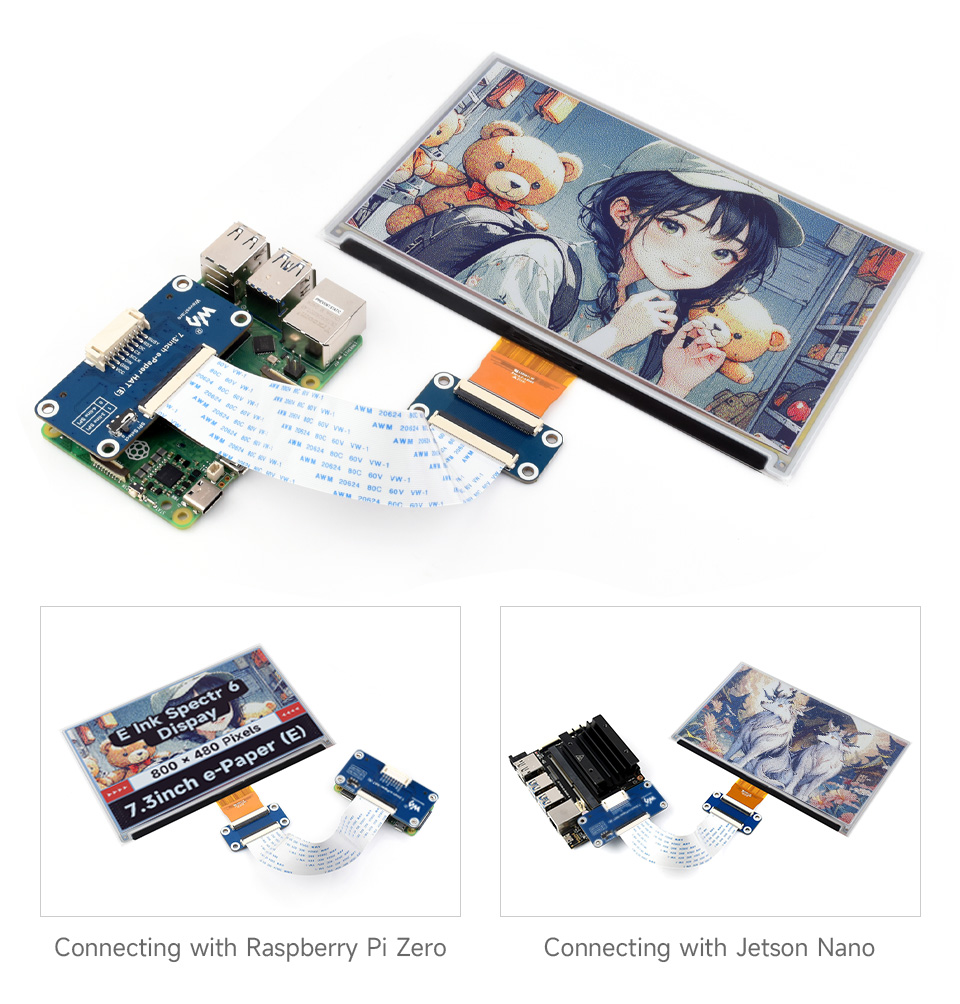

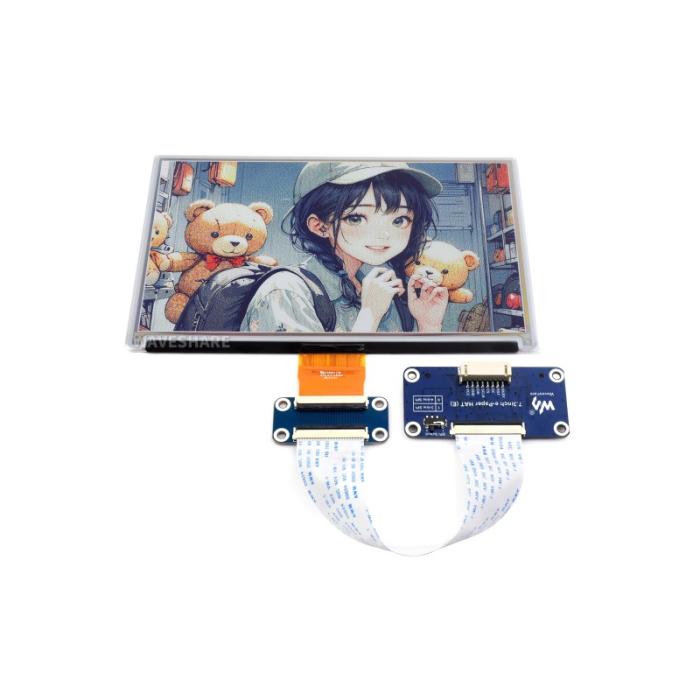

7.3-inch e-paper display (e-ink). Supplied with a HAT module for direct connection to Raspberry Pi. Can also be connected to other microcontrollers via SPI, such as Jetson Nano, Arduino, and ESP32. The display uses E Ink Spectra 6 (E6) full-colour technology, enabling colour display with high contrast and good colour saturation without backlighting. The panel has a resolution of 800×480 pixels and an active display area of 160 × 96 mm. With a viewing angle of more than 170°, the content remains clearly readable over a wide viewing range.
Thanks to the passive reflective properties of e-ink technology, the display requires no backlighting and retains its content even when the power supply is disconnected. This significantly reduces overall power consumption. A full panel refresh takes approximately 12 seconds, and standby current is practically negligible.

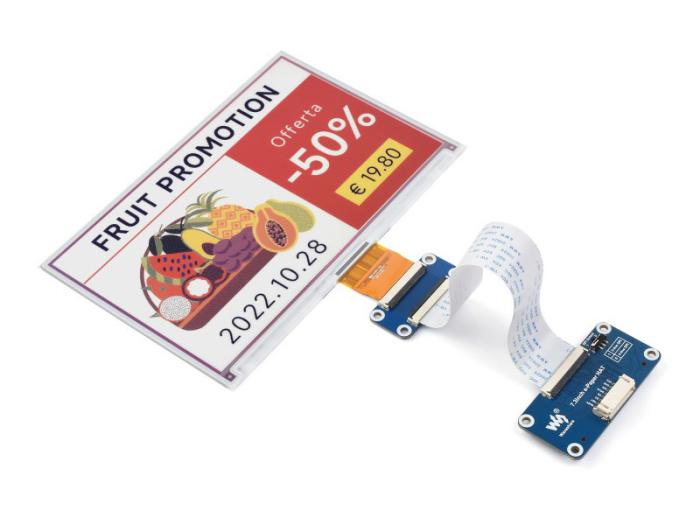

The display is suitable for applications such as digital information signage, sensor terminals, price information displays, and other systems where low power consumption, passive display, and good readability in direct light are important.

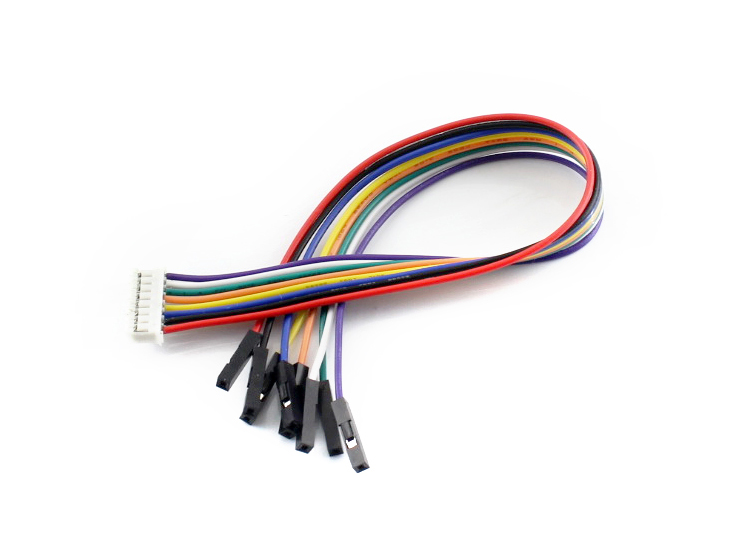

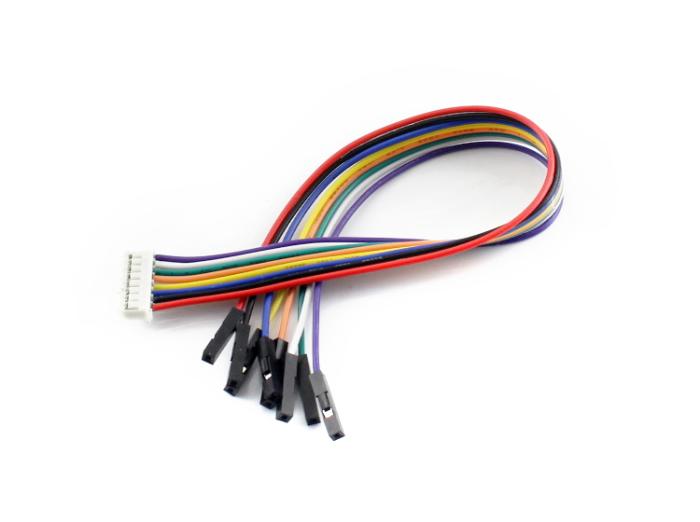

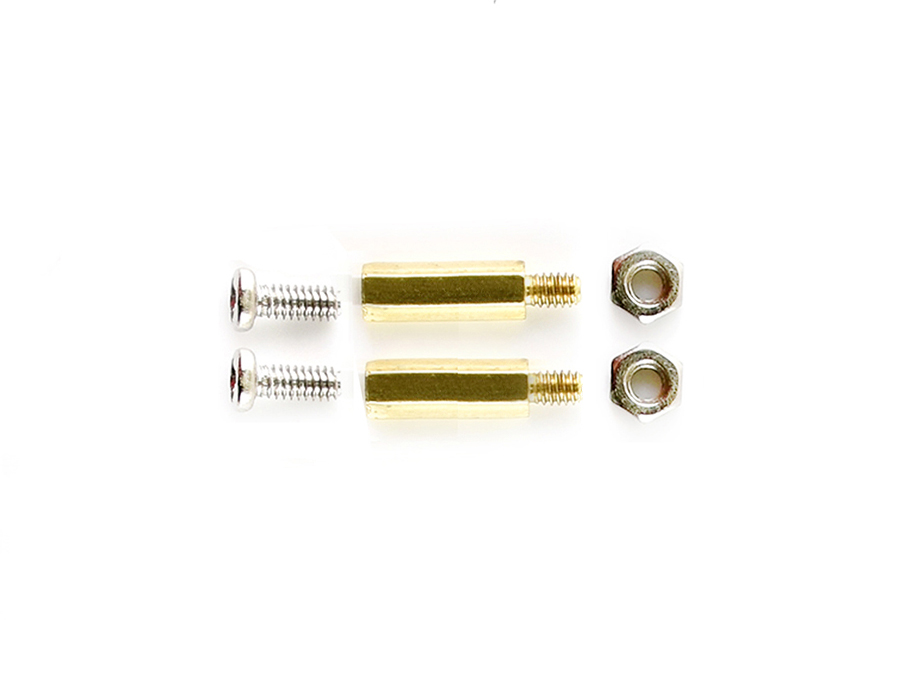

Supplied with: SPI cable with 8x dupont female connectors, mounting screws, driver, FPC adapter and FPC cable.
Specifications:

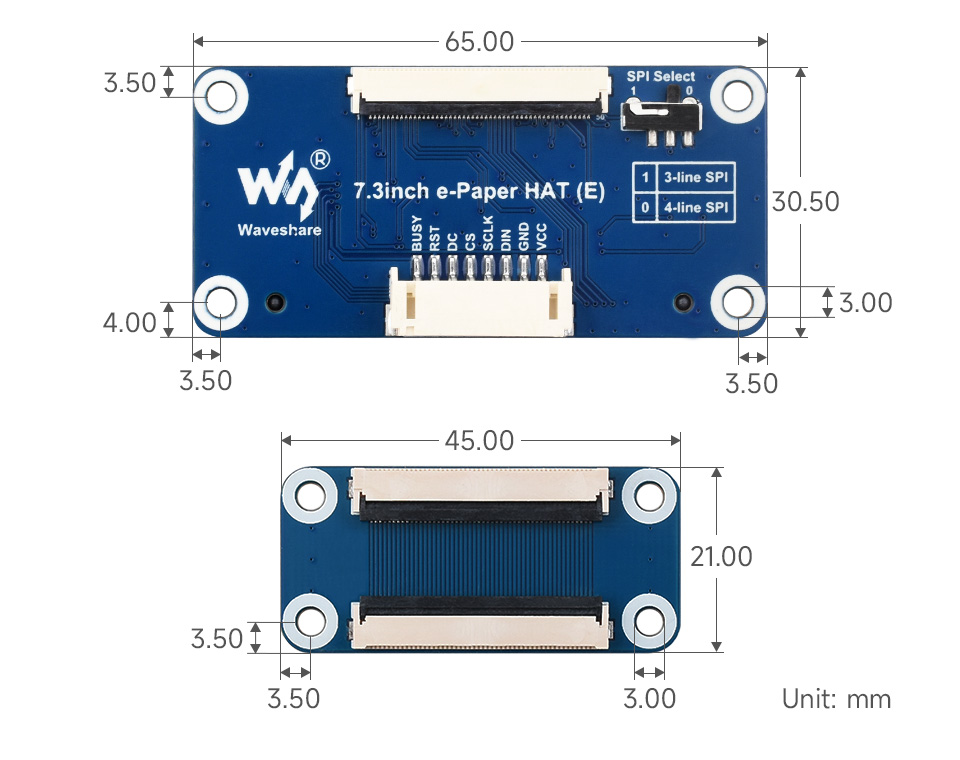

- 7.3-inch e-ink display with e-Paper Driver HAT

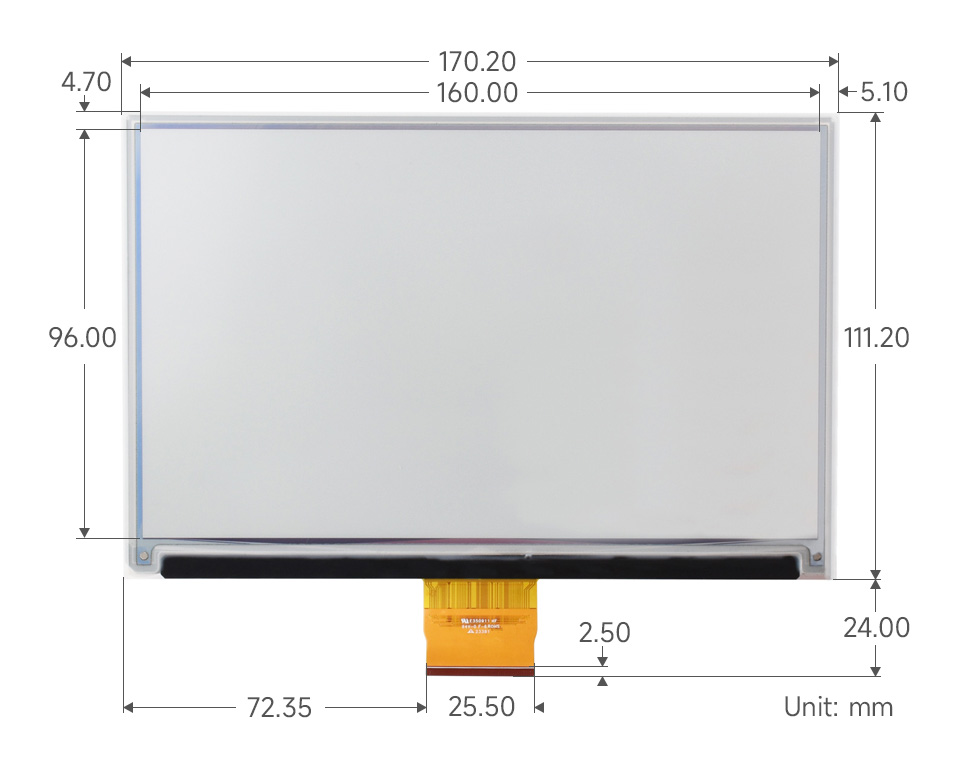

- Active display area 160 × 96 mm
- Resolution 800 × 480 pixels
- Viewing angle >170°
- Colour technology E Ink Spectra 6 (full colour)
- Grayscale 2

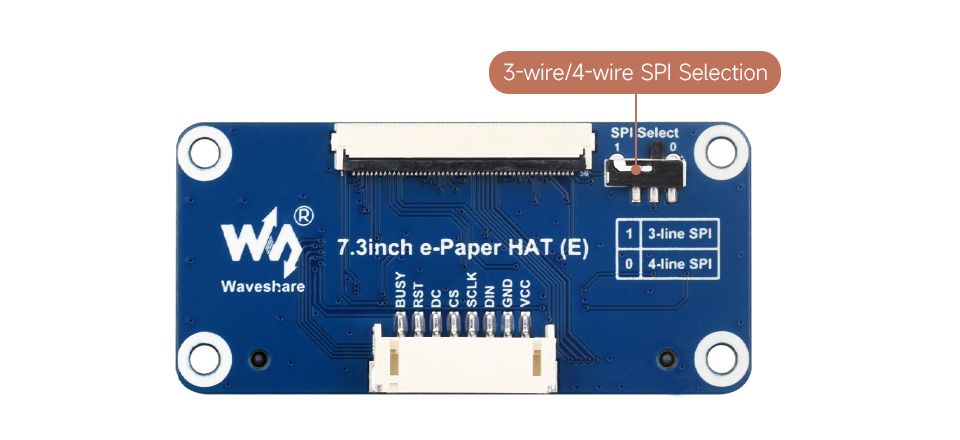

- Communication interface SPI
- Supply voltage HAT 3.3 V / 5 V
- Logic level compatible with 3.3 V and 5 V
- Refresh time full refresh approx. 12 s
- Dot pitch 0.2 × 0.2 mm
- Standby current <0.01 µA
- Refresh power <70 mW
