Product description

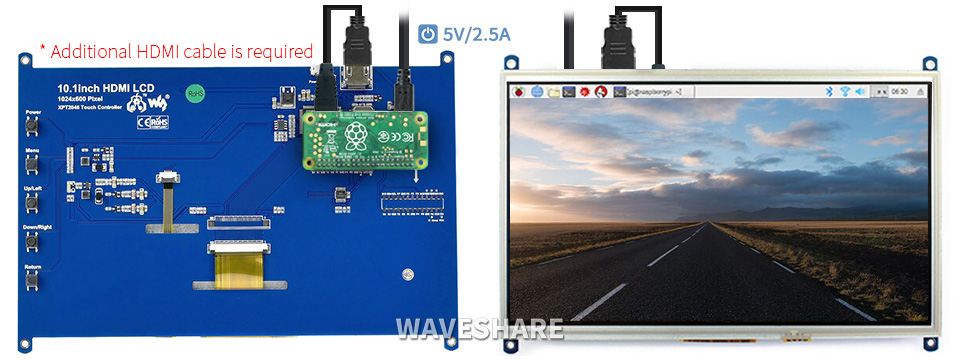

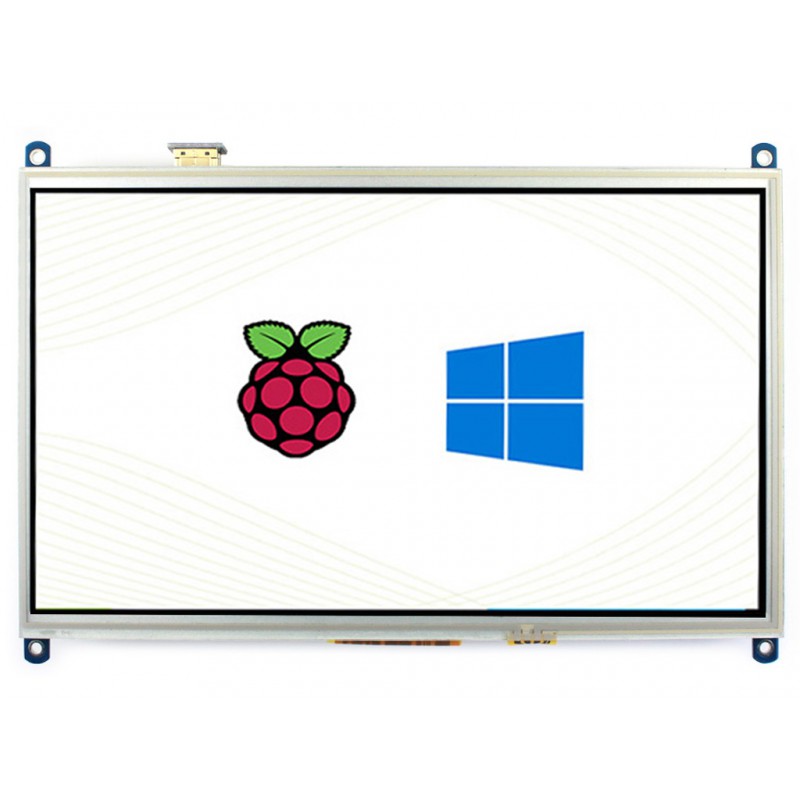

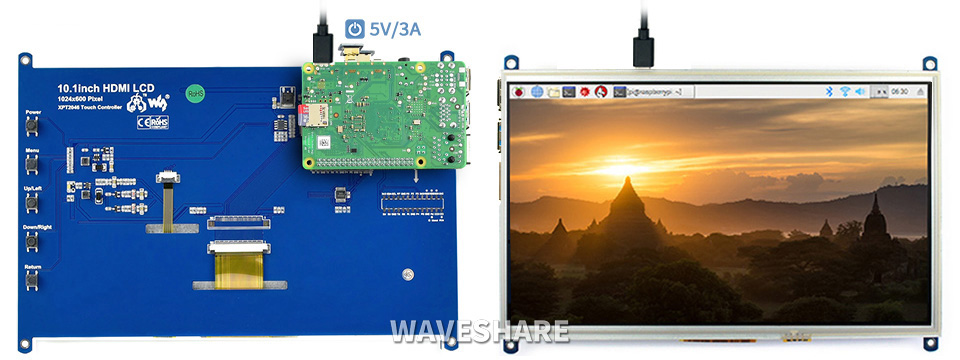

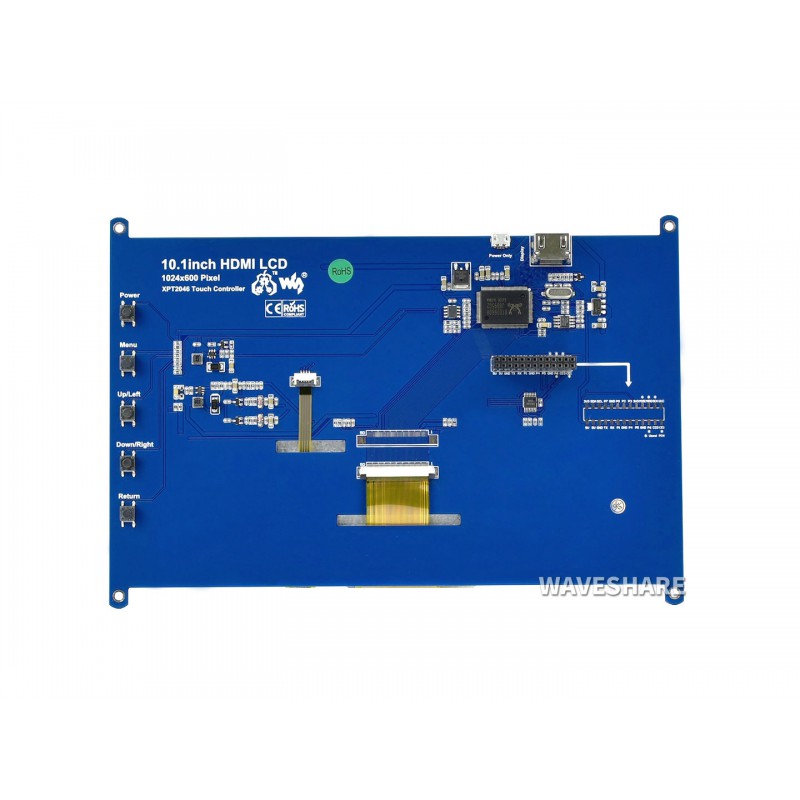

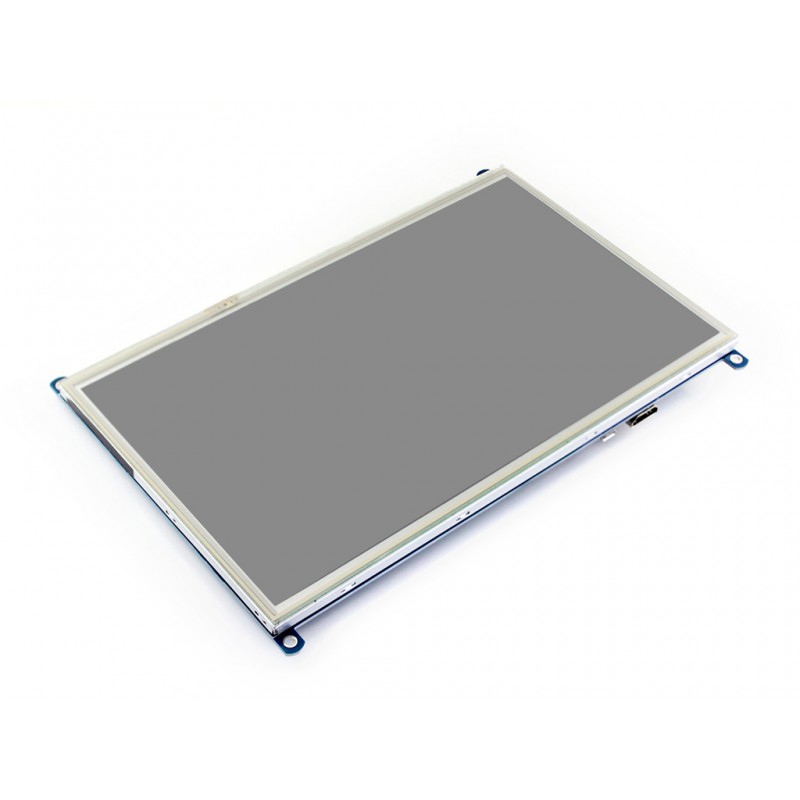

10.1" monitor with touch. Designed for embedded systems and industrial applications. The display uses an IPS panel that provides a wide viewing angle and good color reproduction. Connects via HDMI for video signal and SPI for resistive touch functionality. Enables easy integration with, for example, Raspberry Pi and other single-board computers. Can also function as a standard HDMI display for PC, but without touch functionality. Support is available for multiple operating systems, including Raspberry Pi OS, Ubuntu, and Kali. The integrated OSD menu allows adjustment of brightness and contrast directly on the display.

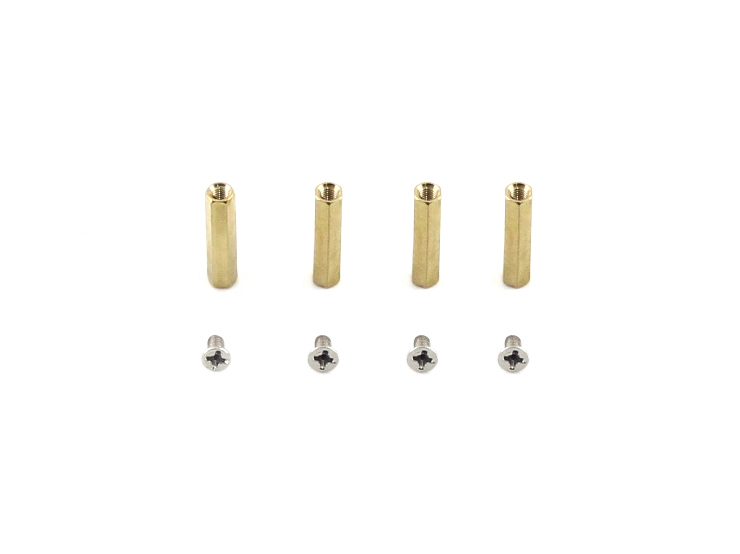

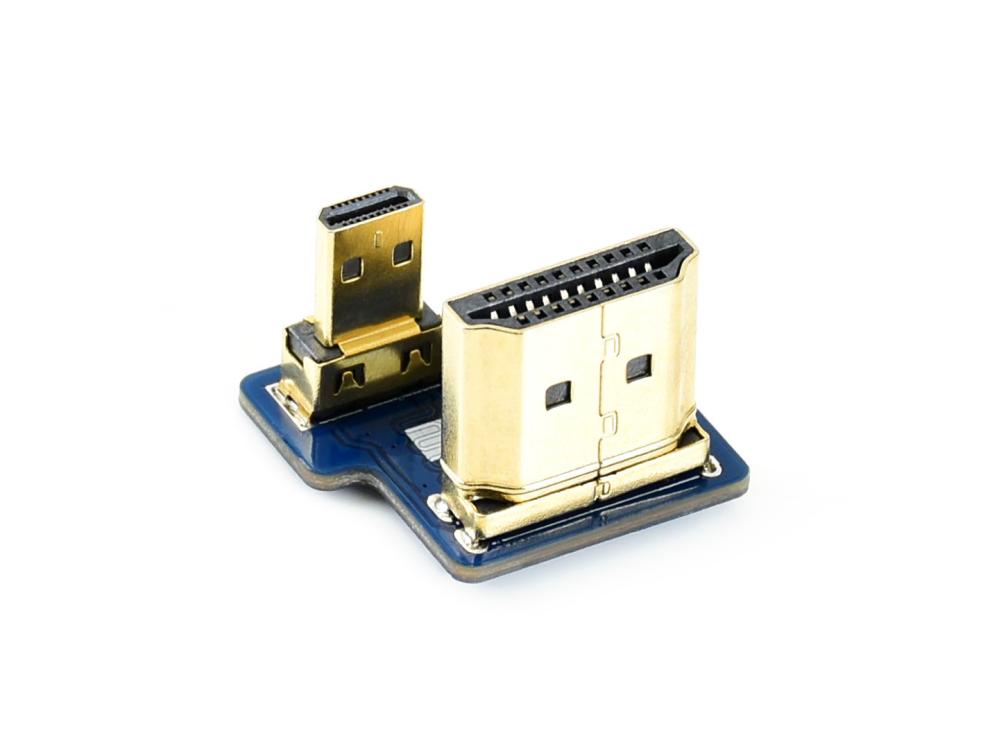

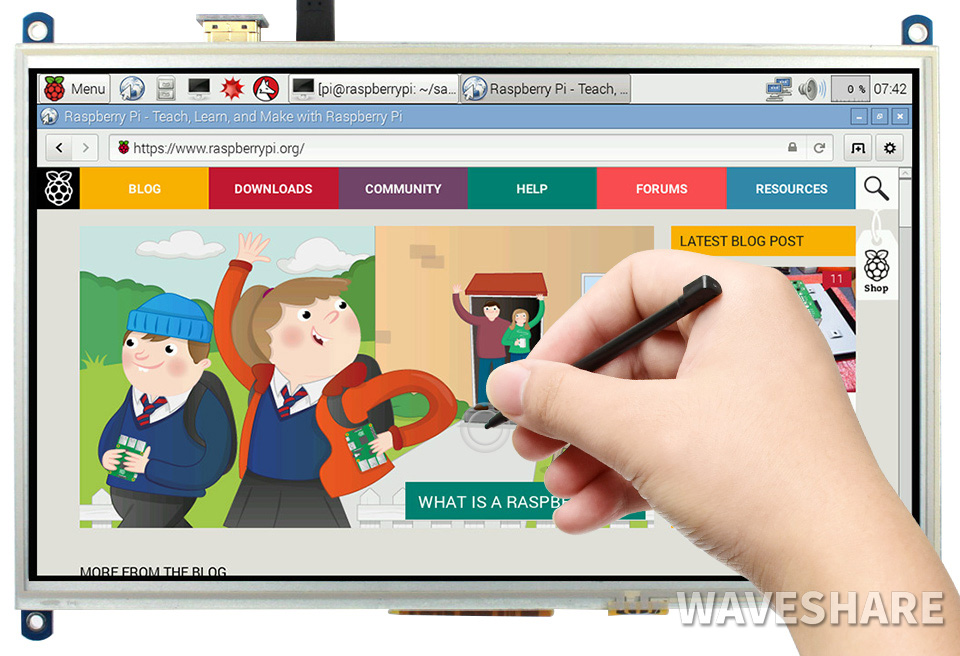

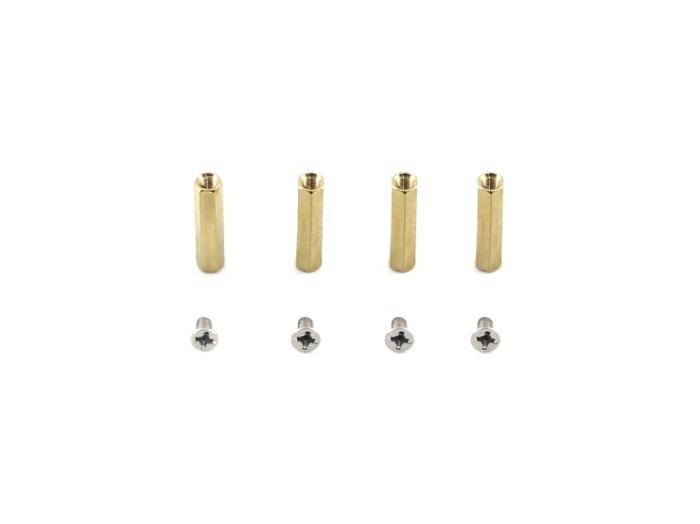

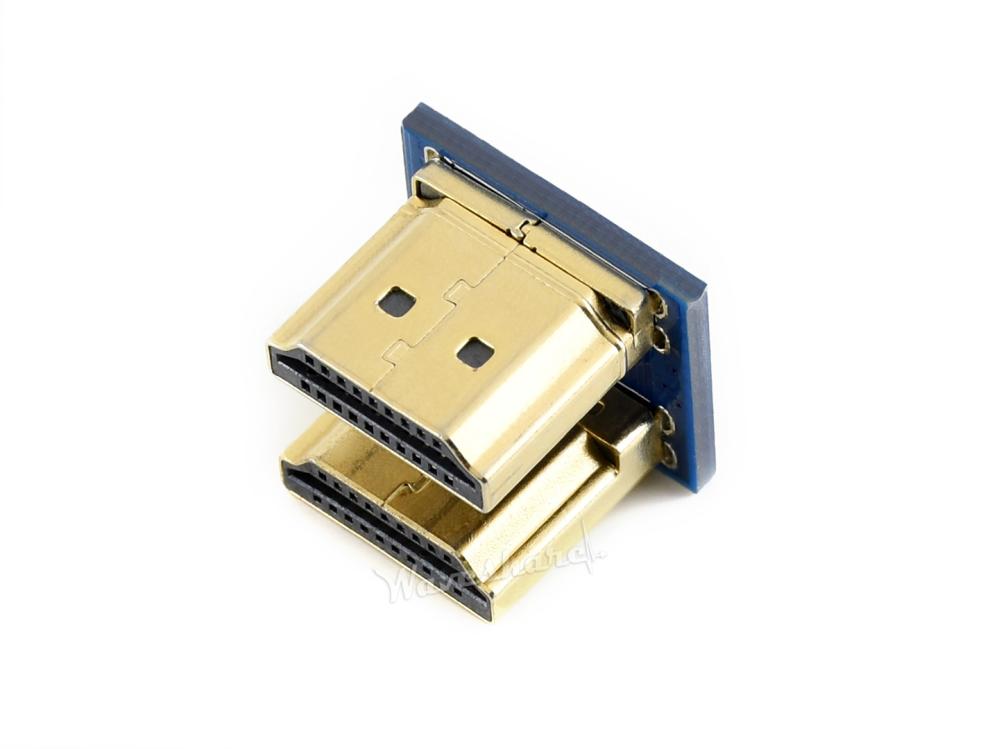

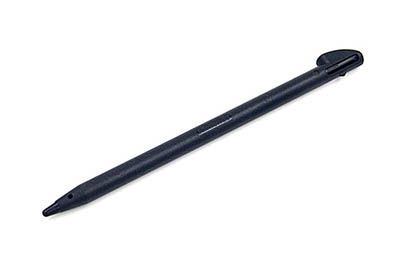

Supplied with stylus pen, mounting screws, and HDMI adapter for direct connection to Pi 3, 4, 5, and Pi Zero.
Specifications:
- Display size: 10.1 inch
- Resolution: 1024 × 600 pixels
- Panel type: IPS
- Viewing angle: 170°
- Power supply: Via Raspberry Pi GPIO or microUSB
- Interface (video): HDMI
- Touch type: Resistive
- Touch interface: SPI

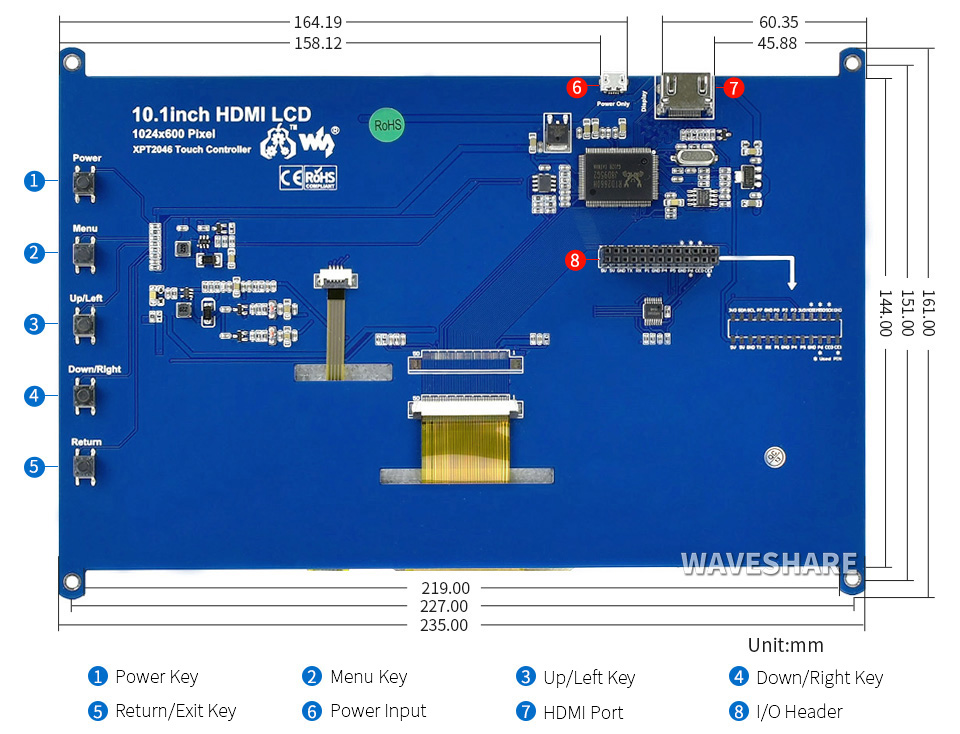

- OSD functions: Brightness, contrast
- Compatibility: For example Raspberry Pi, PC
