Product description

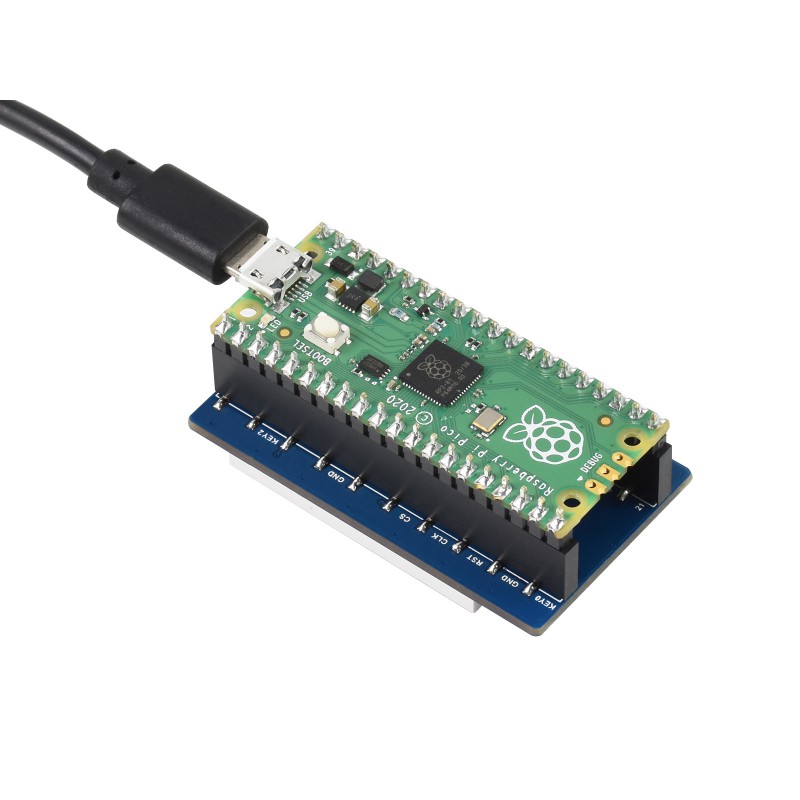

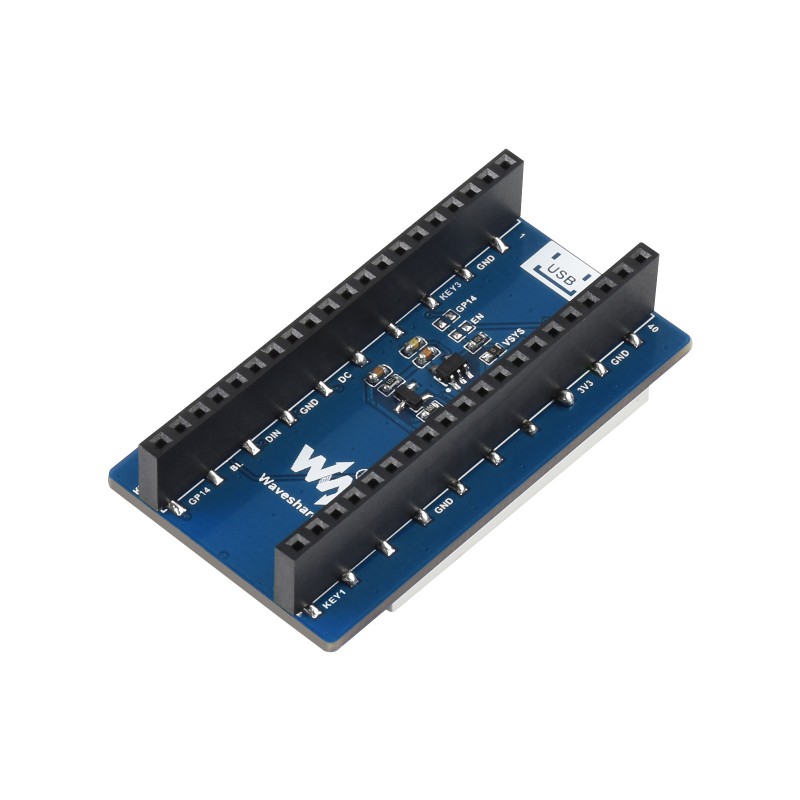

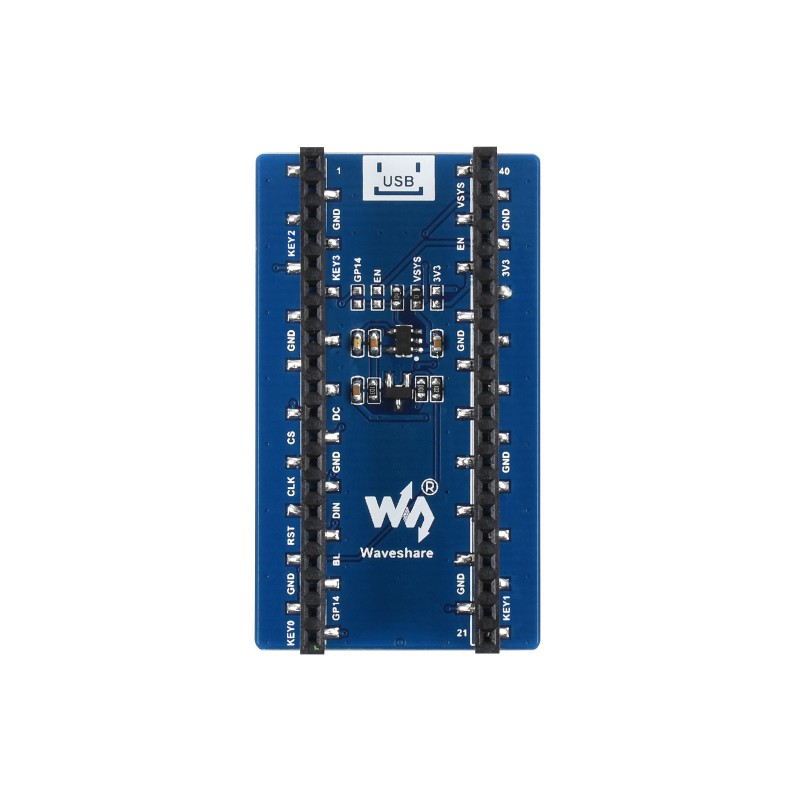

Pico-LCD-1.44 is a display module developed for Raspberry Pi Pico. Intended for projects where visual feedback and user interaction are required. The module connects directly to the Pico via pin headers and uses an SPI interface.

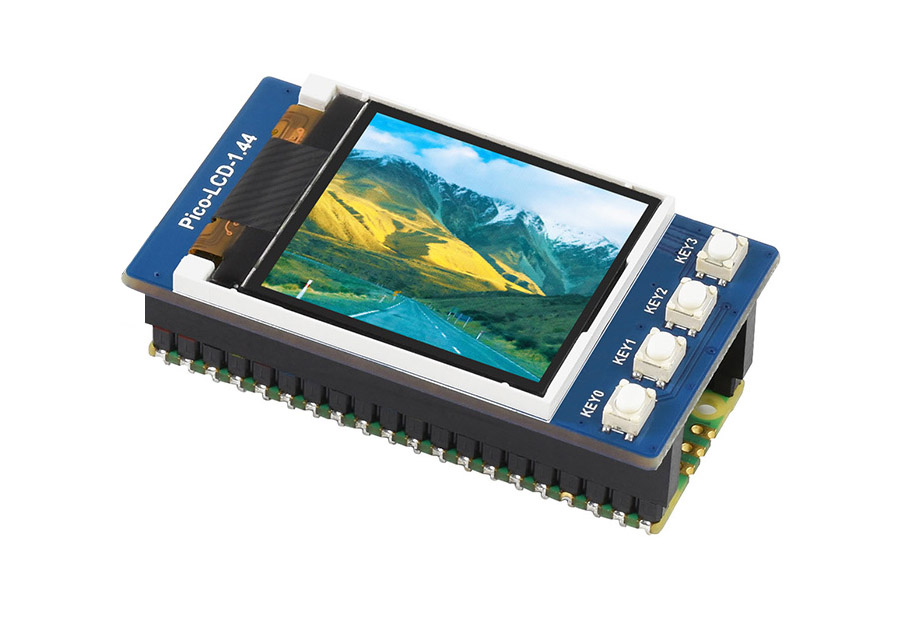

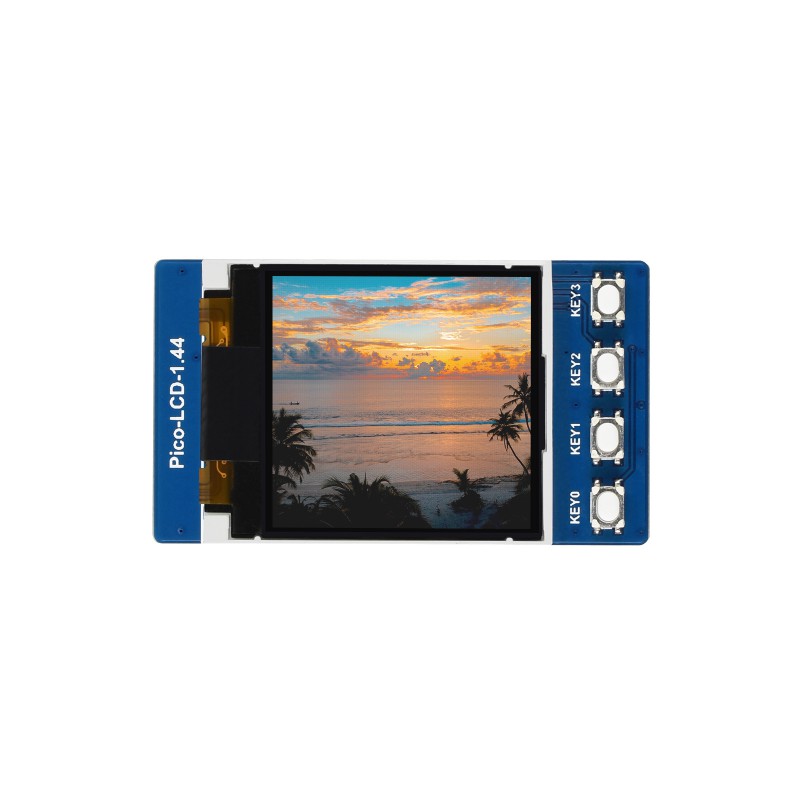

The display is a 1.44-inch TFT panel with 128x128 resolution and support for up to 65,000 colors, providing clear graphics and good readability. The integrated ST7735S controller handles graphics efficiently and enables fast content updates.

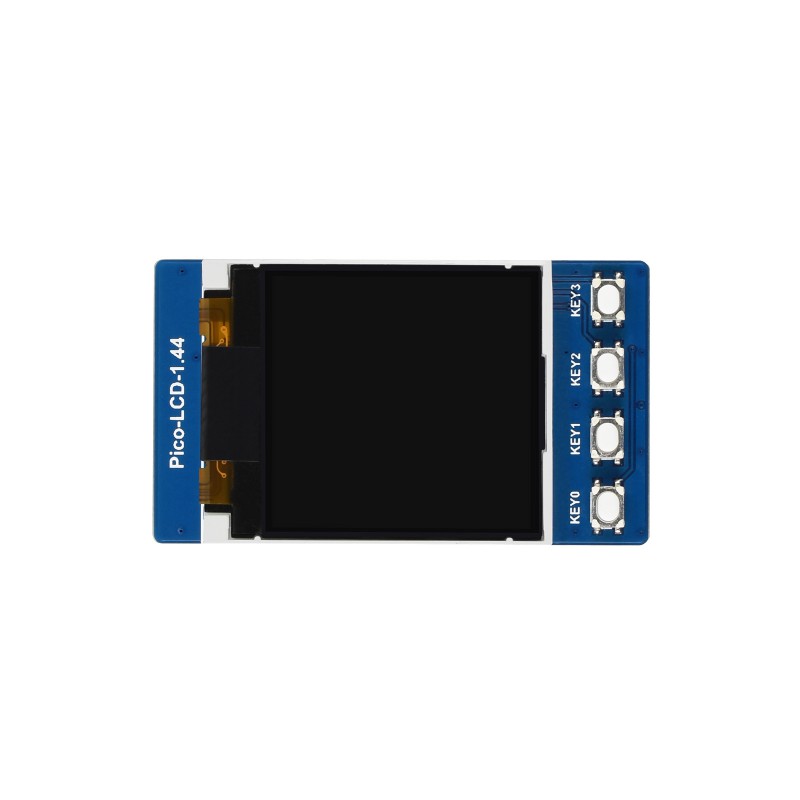

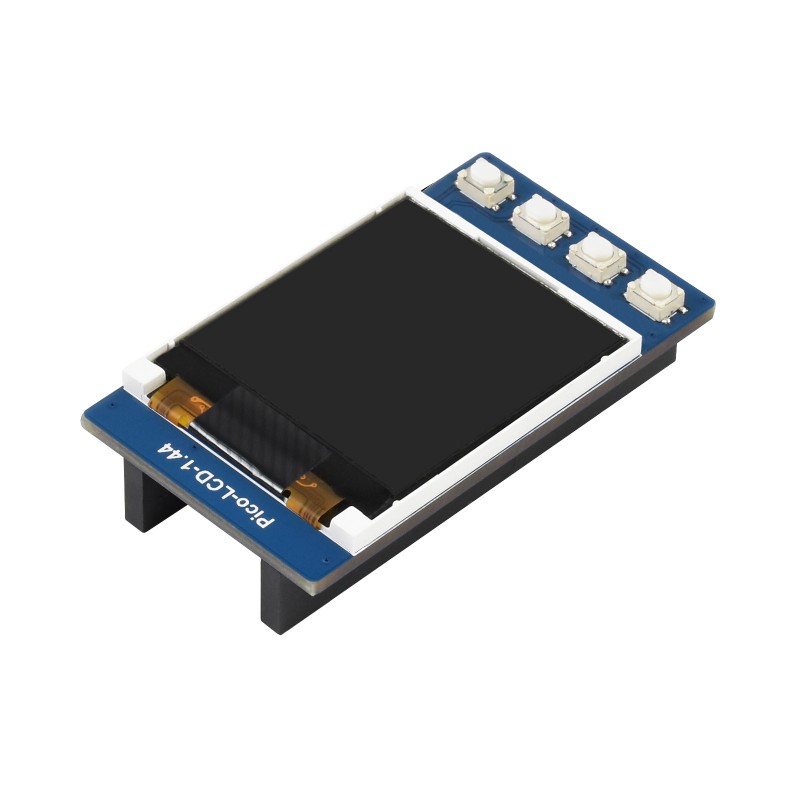

The module is equipped with four user buttons that can be used for menus or navigation. Suitable for applications such as dashboards, IoT devices, and portable systems.
With available examples for both C/C++ and MicroPython, development can be started quickly, making the module suitable for both prototyping and finished applications.
Specifications:
- Display type: TFT LCD
- Size: 1.44 inch
- Resolution: 128 x 128 pixels
- Colors: 65K RGB
- Controller: ST7735S

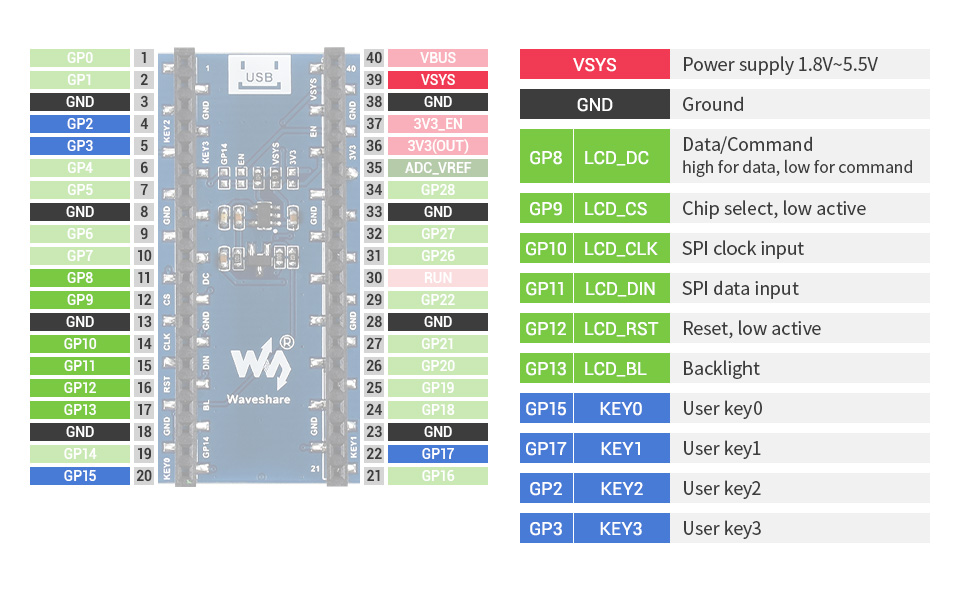

- Interface: 4-wire SPI
- Supply voltage: 3.15 - 5 V

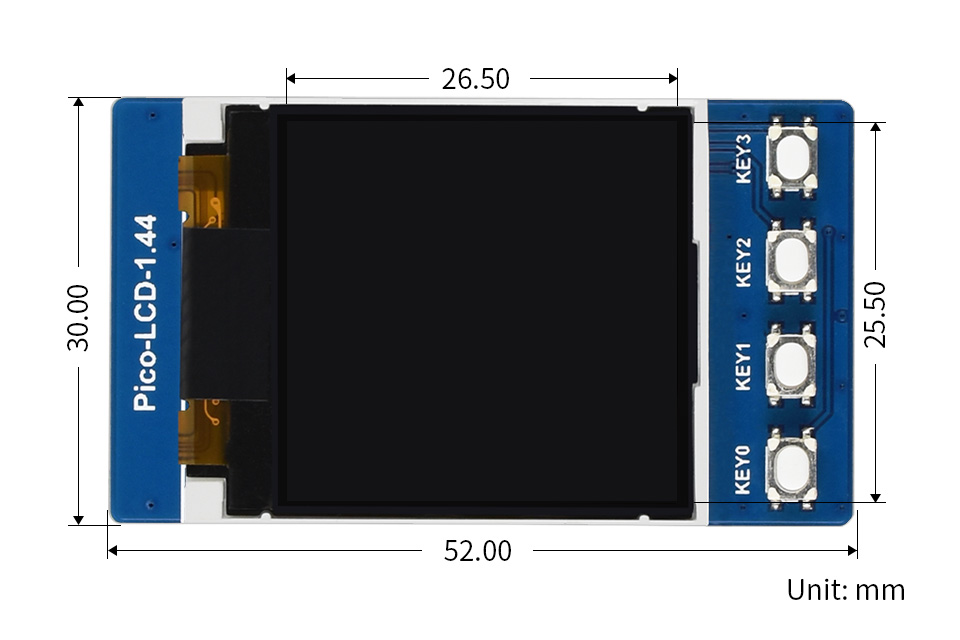

- Active area: 25.5 x 26.5 mm
- Module dimensions: 52 x 30 mm
- Buttons: 4 user buttons
- Compatibility: Raspberry Pi Pico
- Other: Example code for C/C++ and MicroPython
