Product description

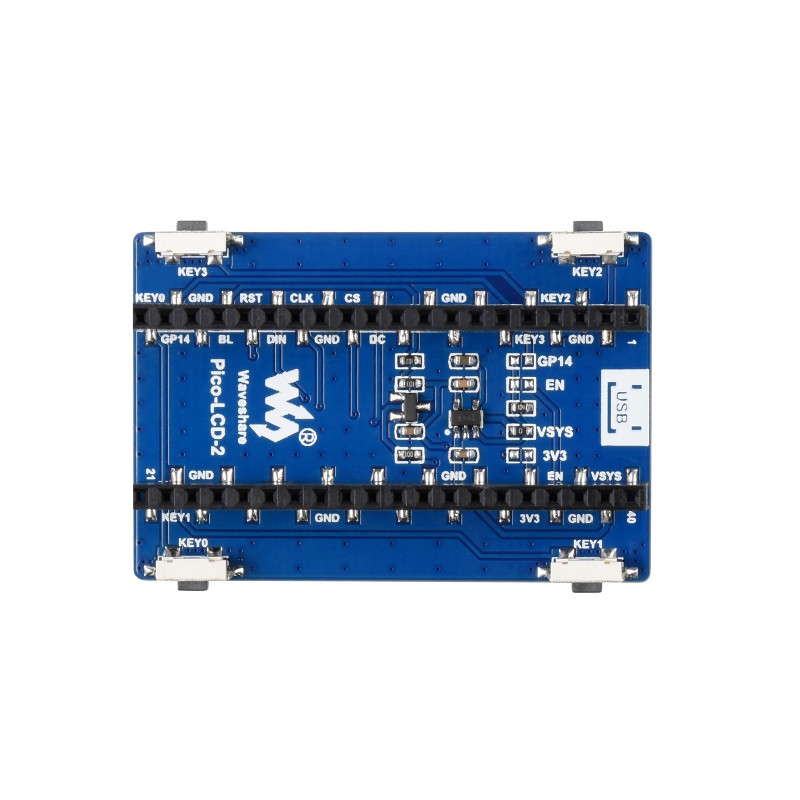

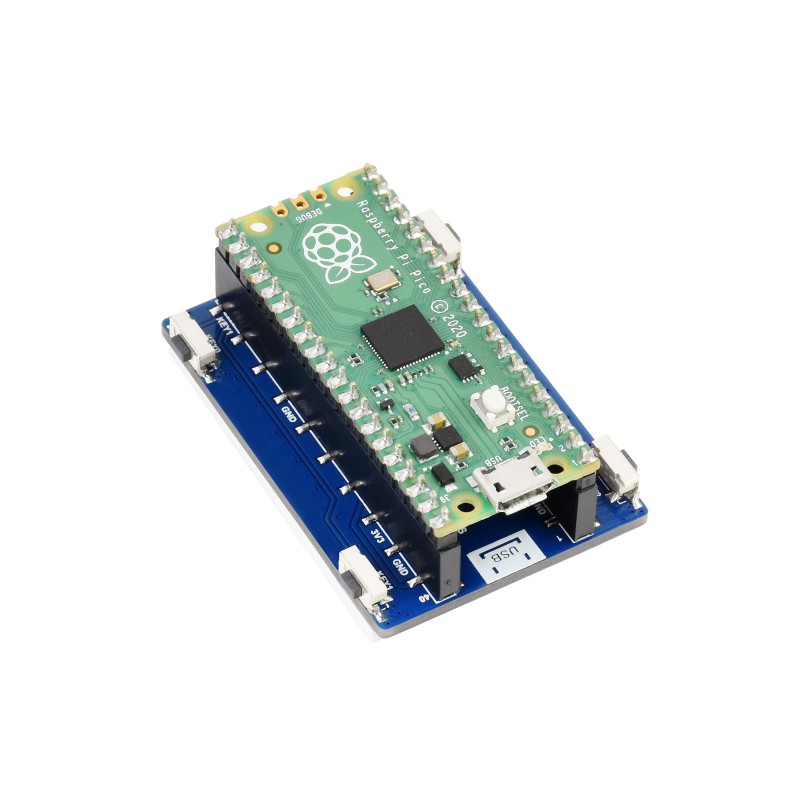

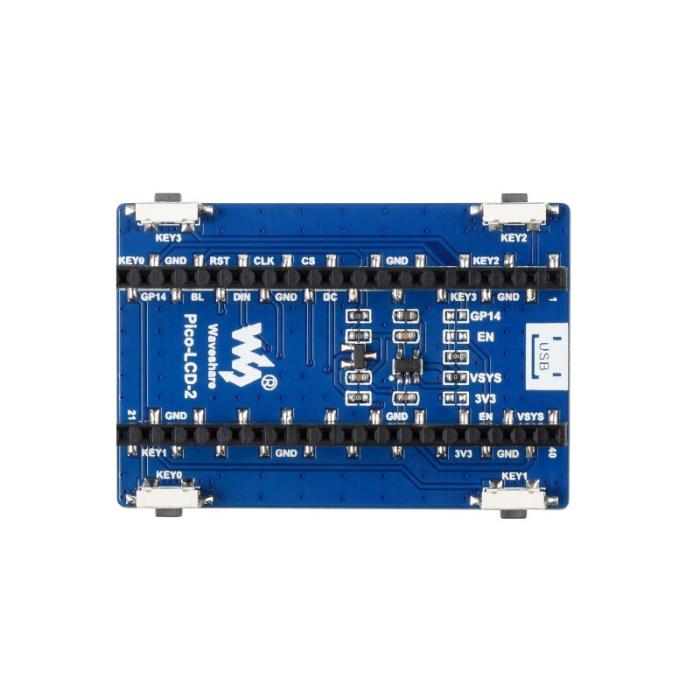

Pico-LCD-2 is a display module for Raspberry Pi Pico, intended for projects where a larger and more detailed user interface is required. The module connects directly to the Pico via pin headers and uses an SPI interface.

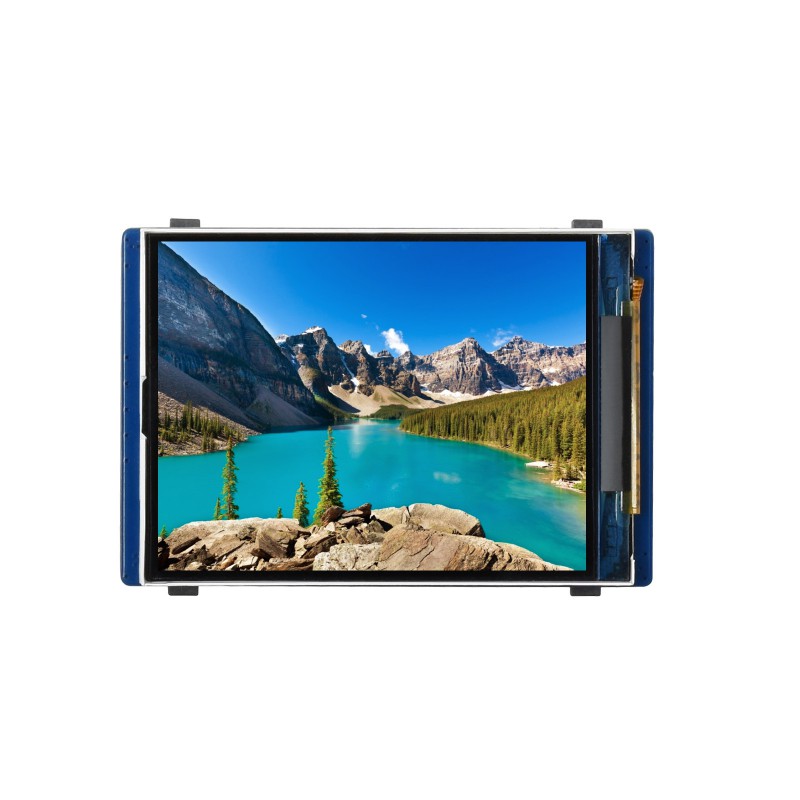

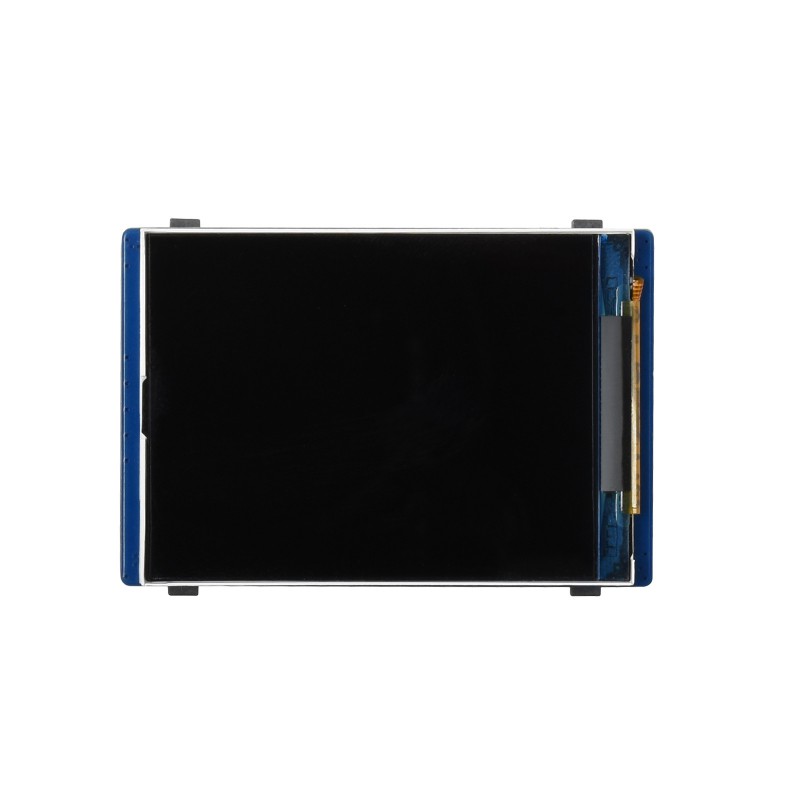

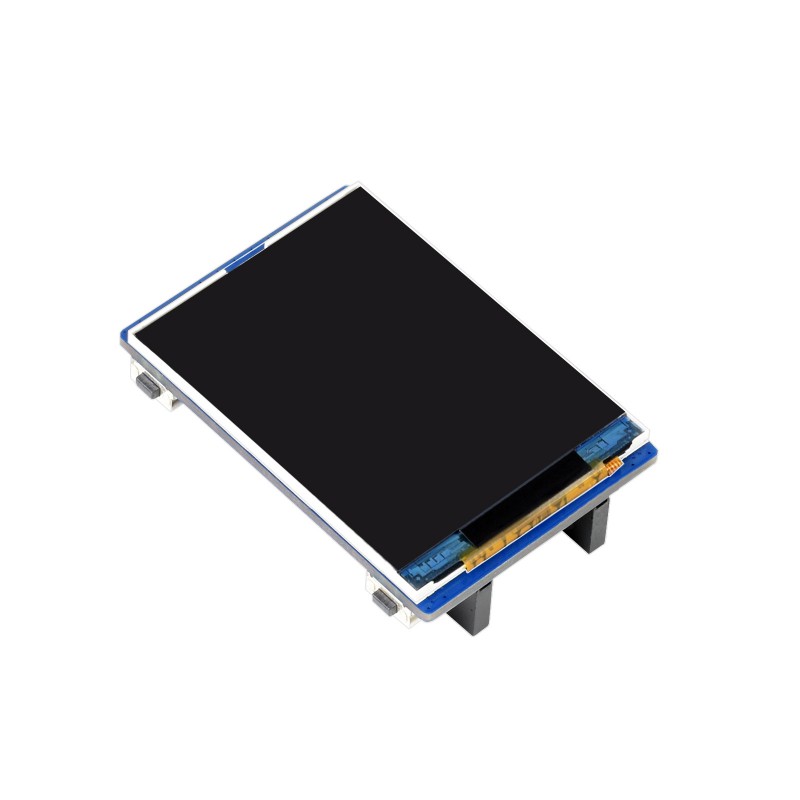

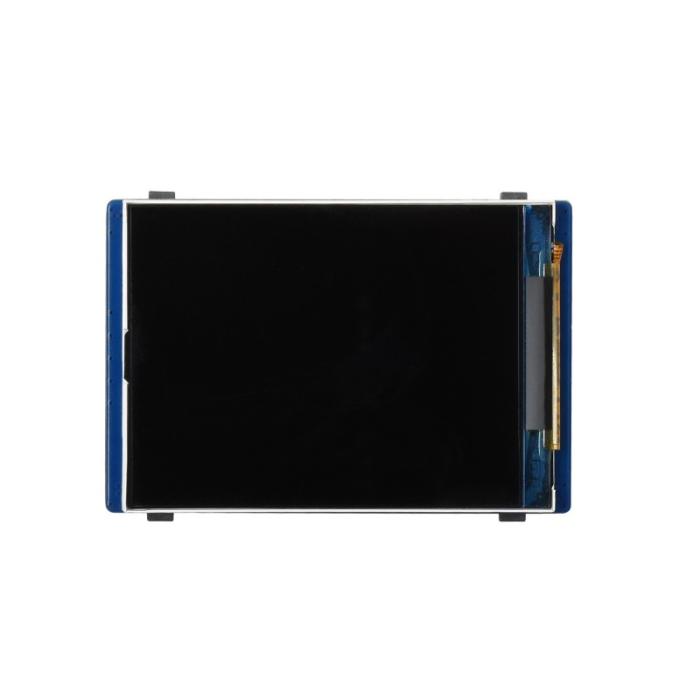

The display features a 2-inch IPS panel with a resolution of 320 × 240 pixels and support for 65,000 colors. This provides high color reproduction, wide viewing angles, and good readability even in graphics-intensive applications. The integrated ST7789 controller handles graphics efficiently and enables fast content updates.

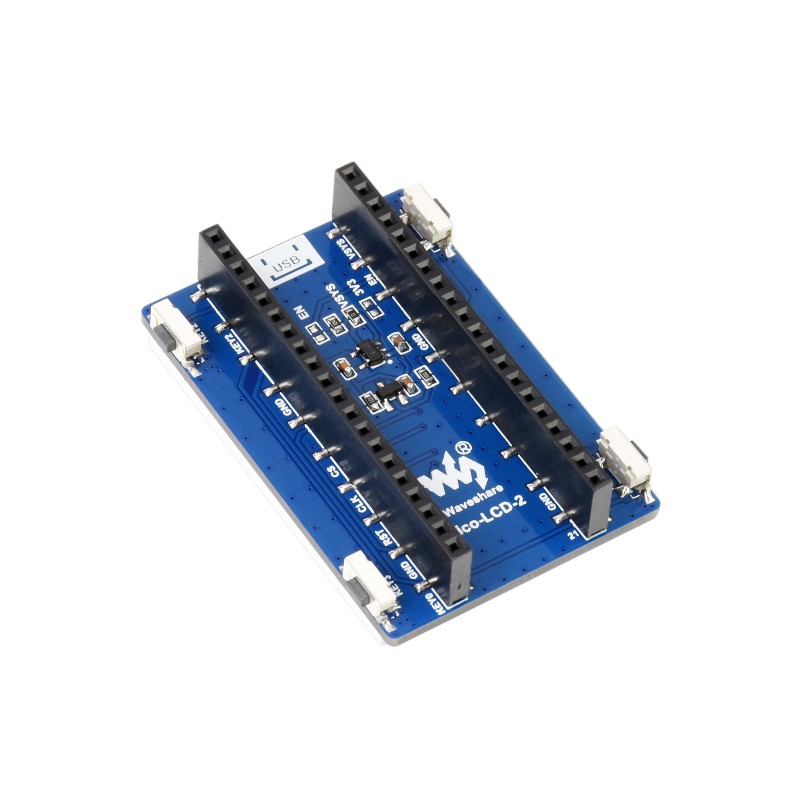

The module is equipped with four user buttons that can be used for menus, navigation, or interactive functions. This makes it suitable for applications such as dashboards, IoT devices, and portable systems where both display and simple control are needed in the same unit.
With support for both C/C++ and MicroPython, along with available example code, development can be started immediately, making the module suitable for both prototyping and finished products.
Specifications:
- Display type: IPS TFT LCD
- Size: 2 inch
- Resolution: 320 × 240 pixels
- Colors: 65K RGB
- Controller: ST7789
- Interface: 4-wire SPI
- Supply voltage: 2.6 - 5.5 V via Raspberry Pi Pico
- Active area: 40.8 × 30.6 mm
- Module dimensions: 52 × 35 mm
- Buttons: 4 user buttons
- Compatibility: Raspberry Pi Pico
- Other: Example code for C/C++ and MicroPython
