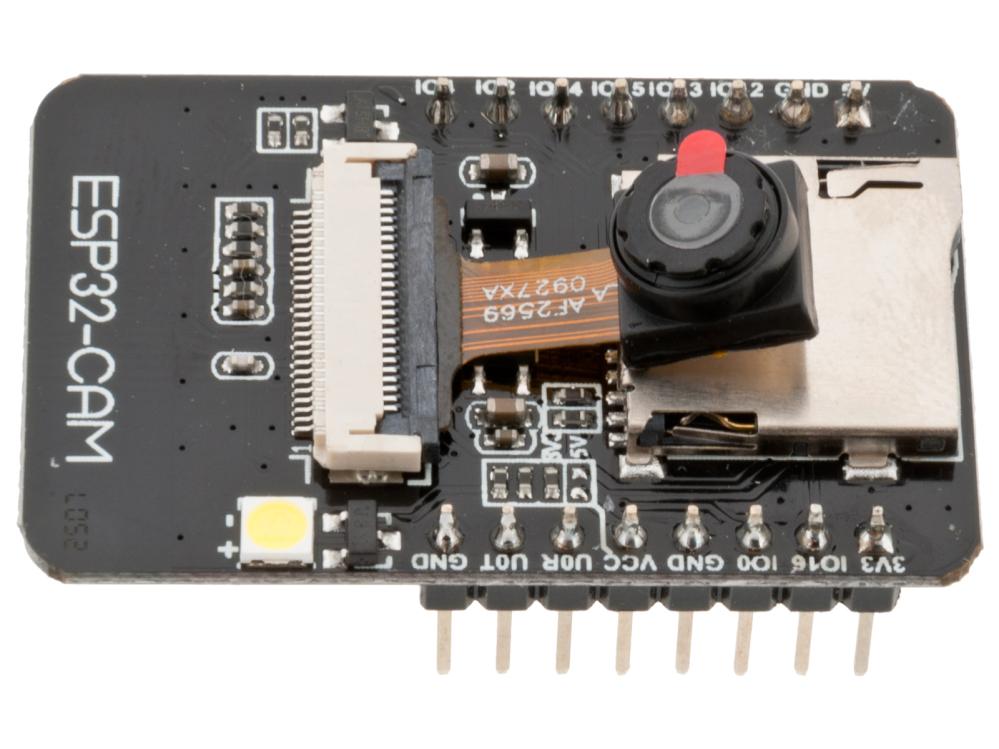

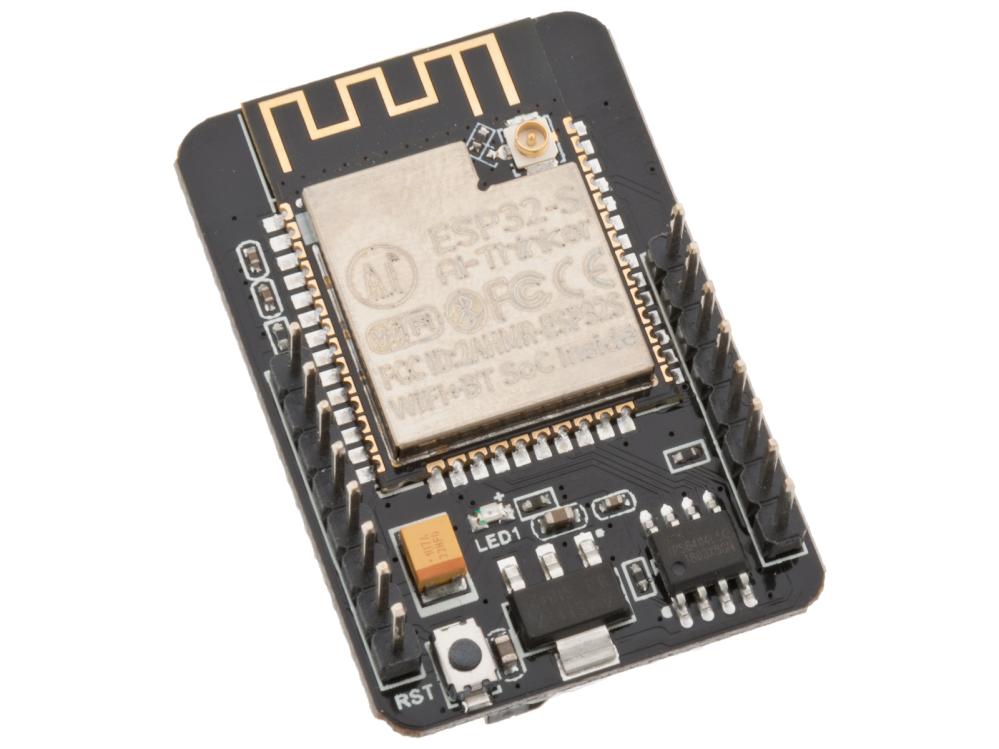

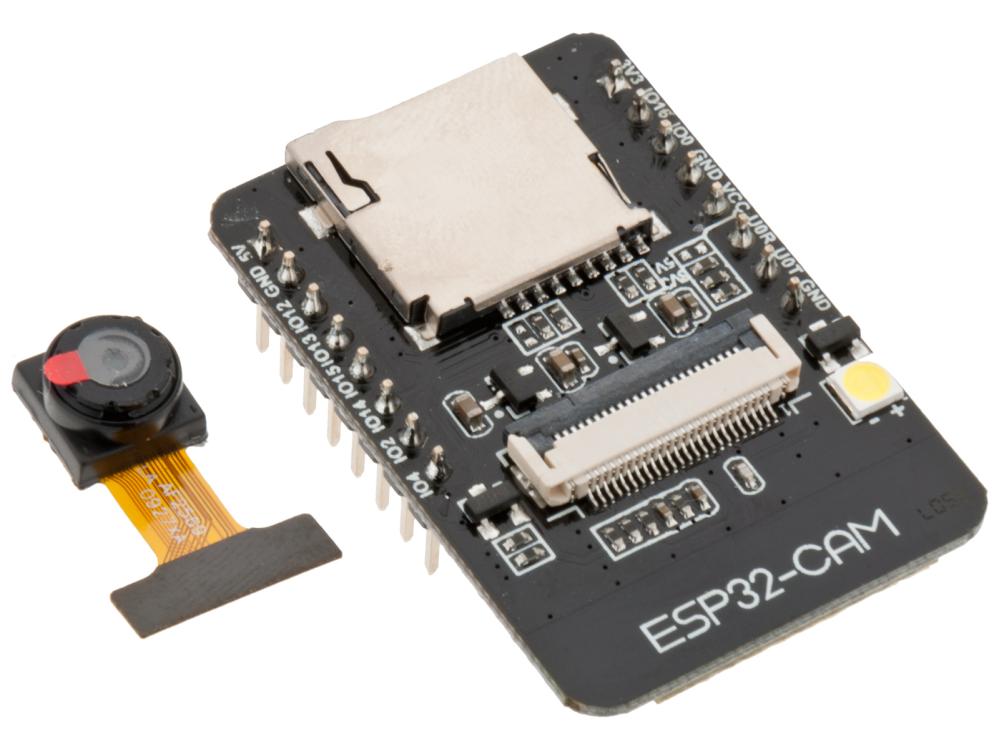

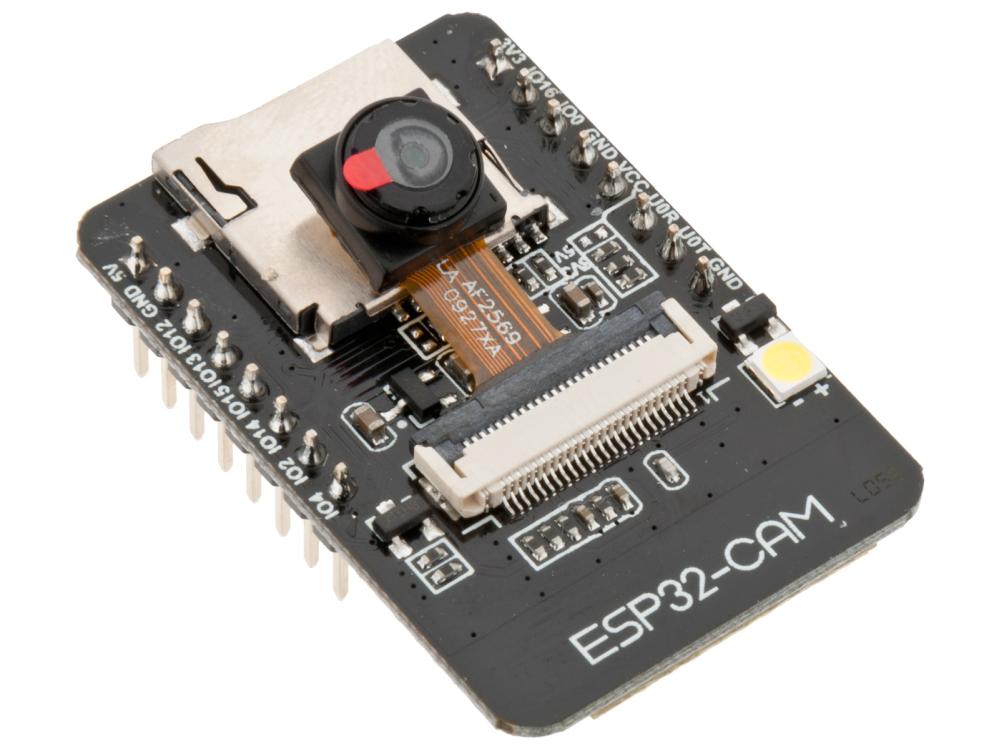

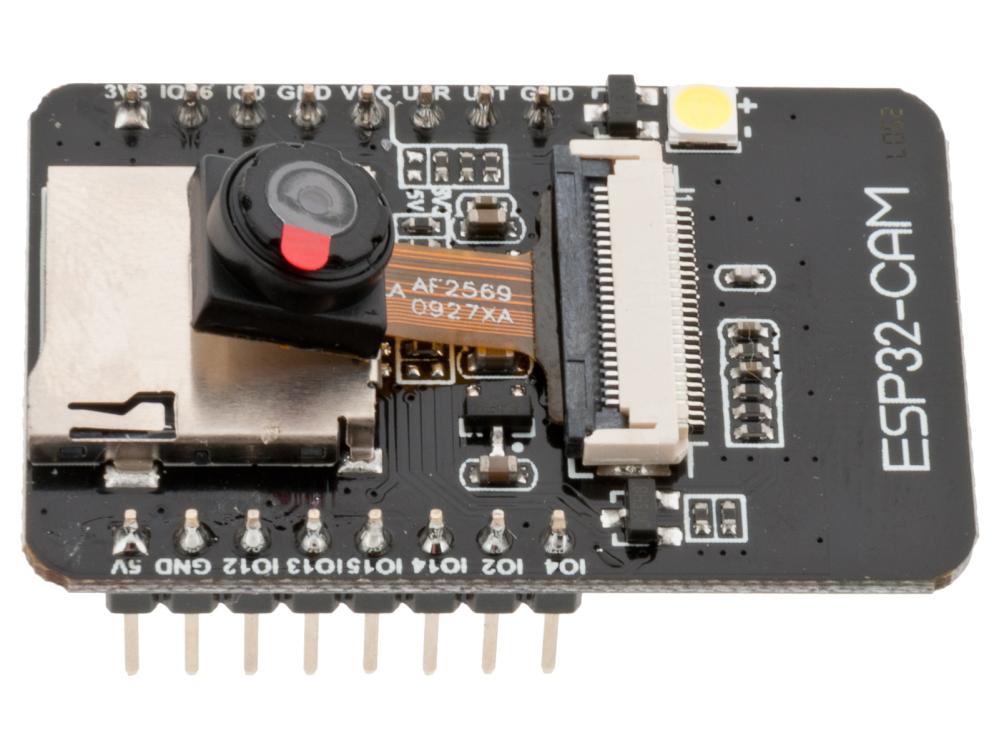

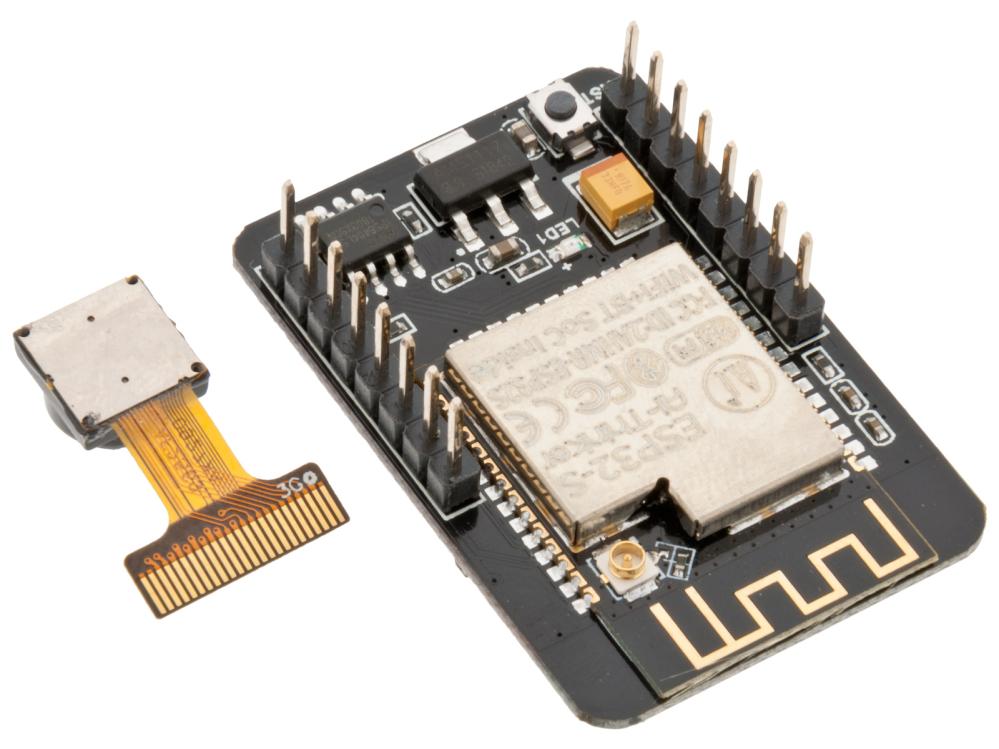

ESP32-CAM Development board with WIFI and camera

Art no: 41017348
Shop this product, ESP32-CAM Development board with WIFI and camera
price 179 SEK
Including 25% VAT
In stock, 73 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

ESP Module (ESP32-S) with Camera and WiFi. A cost-effective way to add video functionality to your project. Can be used as a simple WiFi camera or for more advanced computer vision applications such as facial recognition, object detection, and more.
Equipped with a high-power LED that can be used as a flash or illumination for low-light environments. Built-in microSD card reader. Supplied with pre-soldered pin headers. Use an FTDI programmer (3.3 V). See video for example wiring and usage with the Arduino IDE.

Specifications:

  • Microcontroller: ESP32-S, 32-bit CPU, up to 160 MHz
  • Wireless communication: Integrated 2.4 GHz WiFi (802.11 b/g/n) and Bluetooth 4.2 (BLE)
  • GPIO: 9 ports
  • Camera: OV2640 included
  • Storage: MicroSD card slot
  • I/O ports: Multiple GPIO with support for UART, SPI, I2C, PWM, etc.
  • Memory: 520 kB SRAM + 4 MB PSRAM, 32 Mbit SPI flash
  • Power supply: 3.3 V or 5 V via onboard 3.3 V regulator
  • Current consumption: 180–310 mA
  • Antenna: Onboard PCB antenna (default) or external via U.FL / IPEX connector, selectable via solder bridge

The board does not have a built-in USB to UART converter. Programming is done via an external serial adapter (e.g. FTDI or CP2102).

Product information

  • SKU:

    41017348
